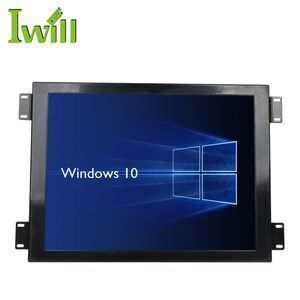

Cheap Intel Core i5 4200u cpu processor 15 inch rack mount touch all in one mini pc rs 232 oem electronic wifi panel computer

Product details
Model Number:ITPC-A150 Fan;CPU:Intel Core i5 4200U, Celeron J1900 Optional;
Graphics Card Type:Integrated Card;Processor Brand:Intel;
Brand Name:IWILL;Type:All-In-One;
Screen Size:15";Widescreen:No;
Storage:1*MINISATA, 1*2.5''SSD/HDD;Place of Origin:Guangdong China;
Dimension:351 x 262 x 45 mm;Power Supply:DC 12V;
Processor Main Frequency:2.6GHz;Keywords:All-in-one Computer;
USB:2*USB 2.0, 2*USB3.0;LAN:1* Realtek 8111E 1000M Lan;
Display port:VGA, LVDS,HD;Payment Terms:T/T,Western Union;
Packaging Detail:each packed in box;Use:BUSINESS;
Display Type:LCD;Products Status:Stock;
Operating System:Windows7/8/10, Linux;Optical Drive Type:CD-ROM;
Resolution:1024 x 768;

Cheap Intel Core i5 4200u cpu processor 15 inch rack mount touch all in one mini pc rs 232 oem electronic wifi panel computer



Feature



1) Intel Celeron J1900 quad core 2.0GHz(core i5 4200U is optional)

2) 1*VGA, 1*HD, 1*RJ45LAN, 2*USB3.0, 2*USB2.0,2*COM

3) 64MB SMT Flash ROM, support wake on lan

4) Support 1*MSATA,1*2.5''SSD/HDD

5) 1*Realtek 8111E 1000M lan, support wake on lan

6) 12V DC-IN  power adapter;

7) Applied in Digital signage, KIOSK, Advertising Machine, Self-service Terminal,

    Electronic Whiteboard, ATM, POS/Retail, Networking, Automation, Surveillance

    Parking Pay Station, Channel System, Medical electronic etc .

Product Display

Product Description

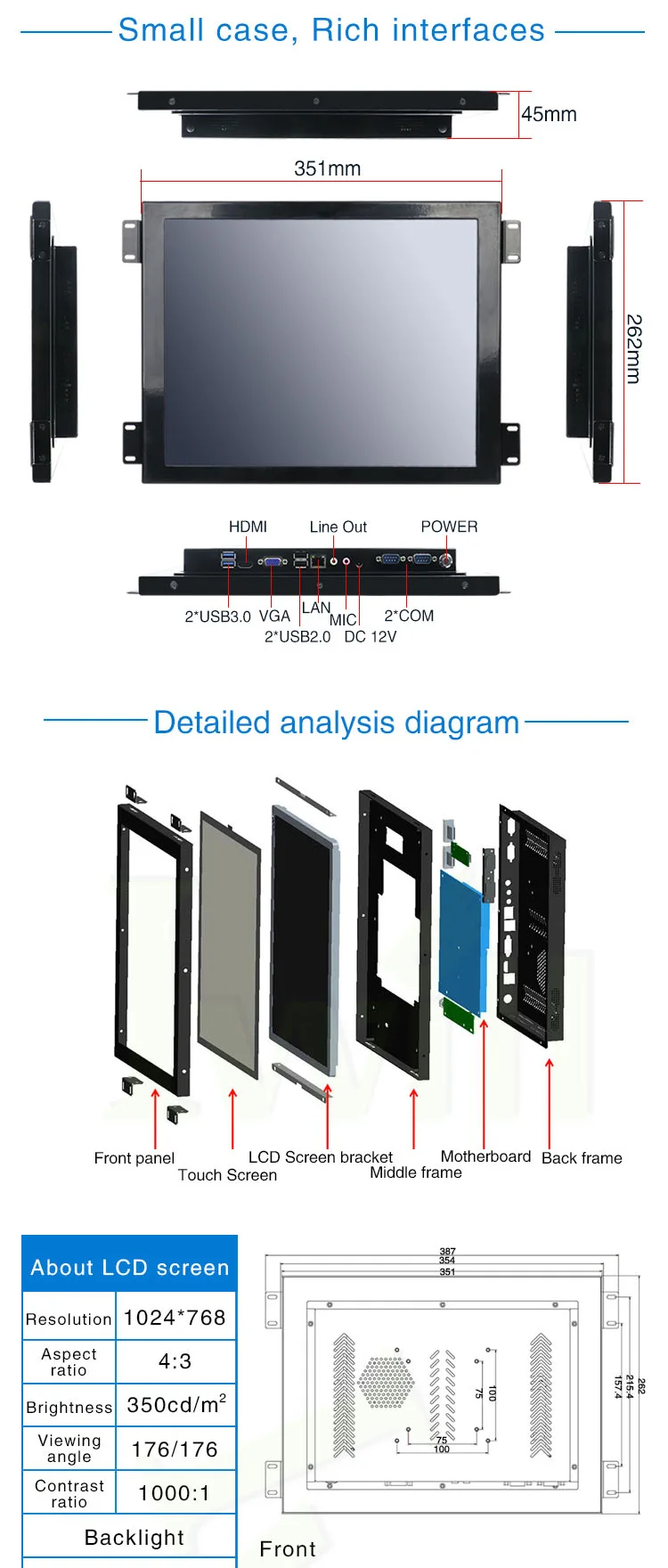

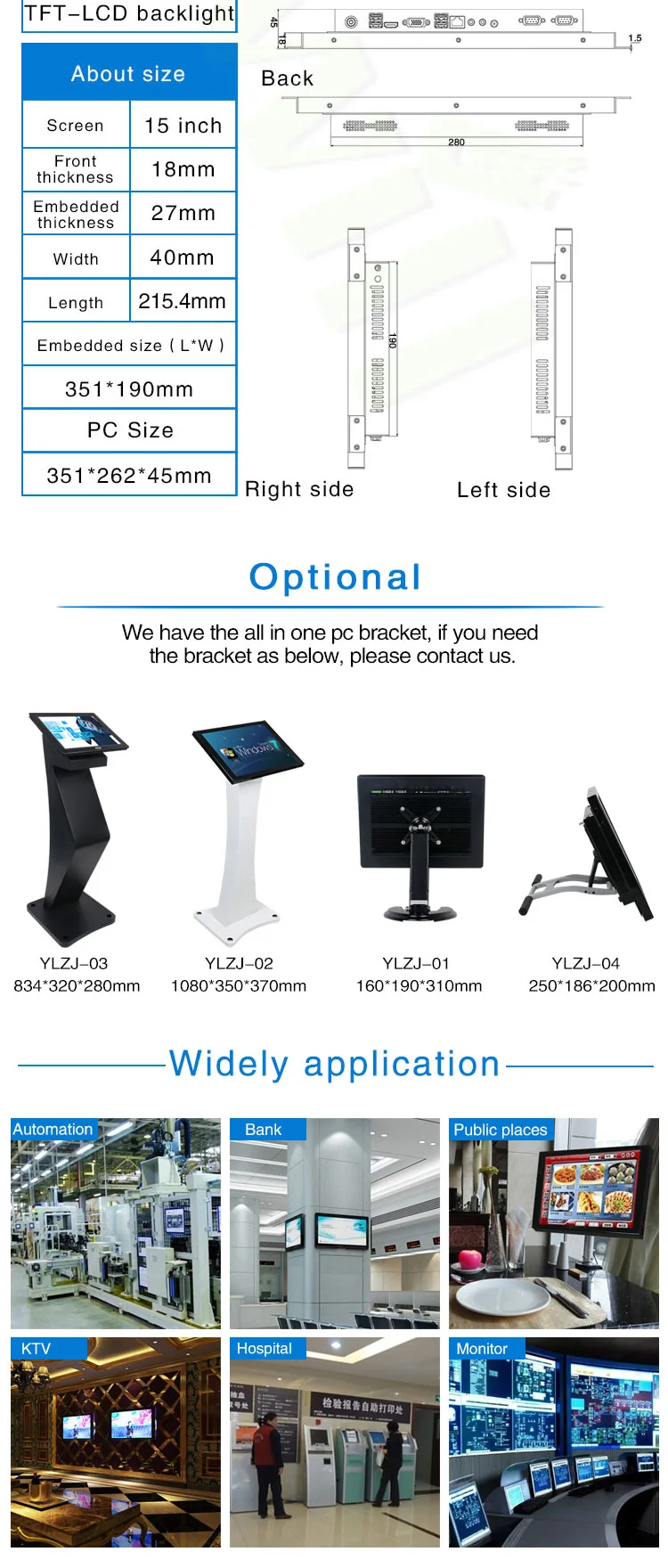

Specification

Model

ITPC-A150 Fan

Case Color

Black(color can be customized)

Material

High-quality pure aluminum

CPU

Intel Celeron J1900 quad core 2.0GHz, (Intel Core i5 4200U Optional)

Chipset

Adopt Intel express chipset

RAM

1*SODIMM DDR3L(Max:8G)

Storage

1*minisata, 1*2.5''SSD/HDD

Audio

Integrated Realtek ALC662 6 sound channel

Display Interface

1*HD, 1*VGA, 1*LVDS

Display

Integrated Intel HD Graphic card, support VGA, HD, LVDS display input

I/O

 2*USB3.0, 2*USB2.0

1*HD

2*COM

1* RJ45 Lan

1*MIC

1*Audio

1*12V DC IN

Network Card

1*Realtek 8111E 1000M lan, support wake on lan

Touch screen

 Resistance-type Touch screen(Single Point),Life time: over 30 Millions

Watch Dog Timer

Support

Power Supply

DC 12V-IN power supply and AC power adapter

Operating System

Windows 7/8/10, Linux

BIOS

64MB SMT Flash ROM

Working Temperature

-10°C - 50°C

Net Weight

3KG

Working Humidity

0% - 90% relative humidity, Non-condensing

Size

351*262*45 mm (W*D*H)

Packaging & Shipping

 1.Delivery      Time: 1 ~ 3 Days for one sample, 15 Working days for a large quantity.

 2.Packaging Ways: Each pc for one neutral box,

 3.Shipping    Ways: For small amount, we advise our customer to take DHL, Fedex, UPS.

                                  For a large quantity, we can support to ship by air or by sea.



Our Services

1.We can provide OEM/ODM services .

2.We can sell one sample for your test .

3.High-quality product and competitive price.

4.1 years Warranty, the second year and the third year,

   we can repair it free. but we will charge for the parts that need to change.

Company Information

    IWILL TECHNOLOGY(HONGKONG) LIMITED. established in 2000, is an officially registered and approved large-scale resource-basedenterprise, forcus on research and design, producing, processing, marketing and distribution. Main products cover mini PC, HTPC, embedded PC, vehicle computers, industrial computers, fanless systems, aluminum cases, ITX motherboards, DC power boards, hardware and computer-related accessories.

   IWILL TECHNOLOGY(HONGKONG) LIMITED.controls all the processes, from design, producing, processing, assembly, quality inspection to packing and delivering; and holds the advantage of leading technique and more competitive price.

 IWILL TECHNOLOGY(HONGKONG) LIMITED.has established cooperation with lots of enterprises, rely on its strength, reasonable price, excellent service, over 10 years rich experience in R&D and producing. Products are popular at home and abroad. Its OEM/ODM services have already covered many countries in South East Asia, Middle East, Europe, America, South Africa etc.



Certifications

FAQ

Question: Can you put my brand name (logo) on these products?

Vincent:    Yes,.We can support OEM/ODM service, the process of customization is following:

                   1:provide your specific requirement.    2:our design engineer draw the design draft.

                   3:you confirm the design draft.            4.we start produce it.

Question:  How much do I need to pay for your OEM servise?

Vincent:    You should pay extra 500$,but we will return the 500$ to you when your order over 100 pieces.

Question:  What payment method do you accept?

Vincent:    T/T,Western Union,PayPal.

Question: What is the Minimum Order Quantity(MOQ)?

Vincent:    We can sell one piece sample for your test.

Question: What is the lead time of your products?

Vincent:    1-3 days for one sample, 15 working days for a large quantity.
