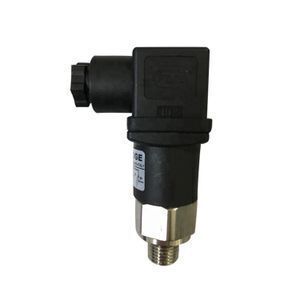

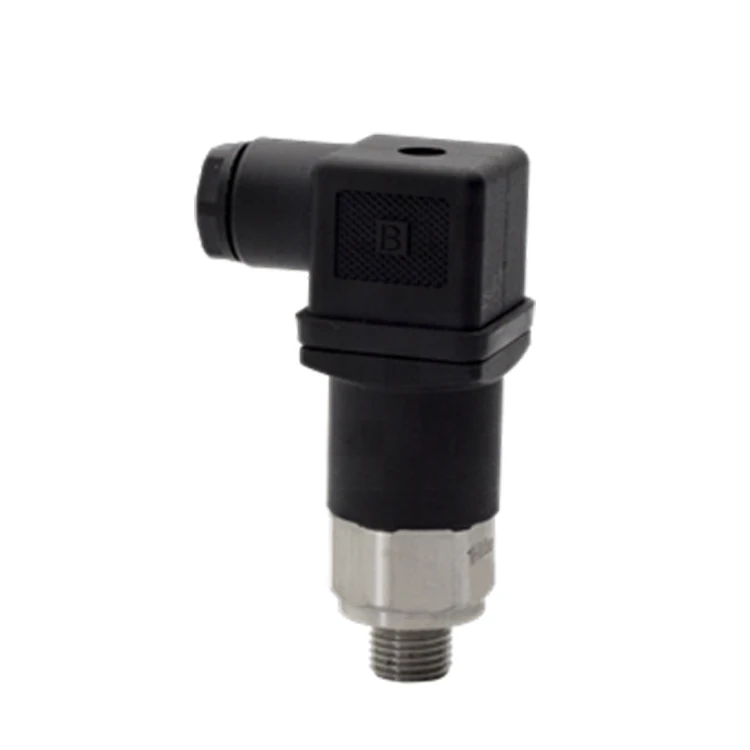

0.3-400Bar Hydraulic General Adjustable Pressure Switch
-
Supplier: Ningbo Autumn Tree Instruments Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Tomas Liu -
Price: $1.00 / >=10 pieces -
Min. Order: 10 pieces
Product details
| Max. Voltage: | 250VAC; | Measuring Range: | 0.3...400bar; |
| Operating temperature: | -20-90℃; | Application: | Gas, liquid, water; |
| Allowable difference: | 5% of set value; | Max. Working Pressure: | 400bar; |
| Place of Origin: | China; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram,paypal; |
| Certification: | ISO 9001; | Max. Current: | 3A; |
| Protection degree: | IP65; | Brand Name: | OEM; |
| Supply Ability: | 10000 Piece/Pieces per Month; | Product name: | General Adjustable Pressure Switch; |
| Port: | NINGBO,SHANGHAI; | Packaging Detail: | 1pc/box,packed in standard export carton..; |
| Trip: | 90 / min (maximum); | Model Number: | 511B; |
|
Model:
|
511B
|
Application:
|
Gas, liquid, water
|
|
Range:
|
0.3 … 4 0 0 b a r
|
Accuracy:
|
5% of set value
|
|
Output Signal:
|
30VDC 3A ; 125VDC 0.25A
125VAC 3A ; 250VAC 1.5A
|
Trip: | 90 / min (maximum) |
|
Protection degree
|
IP65 | Operating temperature: | -20-90℃ |
