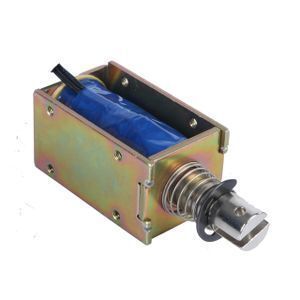

12Mm Stroke Dc Pull Push Open Frame Solenoid
-
Supplier: Zhongshan Landa Solenoid Co., Ltd. -
Region: Guangdong, China -
Contact: Ms Miracle Wang -
Price: $6.00 / >=2 pieces -
Min. Order: 2 pieces
| Power: | Solenoid; | Hi-Pot Test: | AC 600V 50/60Hz 2s; |
| Packaging Detail: | Product Size: 27*30*53 (mm) Carton Box Size: 350*310*180 (mm) N.W.: 0.215 (KG) G.W.: 0.25 (KG); | Port Size: | M3; |
| Place of Origin: | Guangdong China; | Brand Name: | Landa; |
| Model Number: | SQ1253; | Payment Terms: | Western Union,T/T,Paypal; |
| Temperature of Media: | Normal Temperature; | Work Model: | Pull Push type; |
| Stroke(mm): | 0-12MM; | Media: | /; |
| Warranty: | 1 year; | Certification: | Reach; |
| Service Life: | 500 Thousand Times; | Product Name: | solenoid; |
| Customized support: | OEM,ODM; | Structure: | open frame; |
| Holding Force (N): | 1-20N; | Type: | SOLENOID VALVES; |
| Supply Ability: | 50000 Piece/Pieces per Week; | Reset Time(s): | 0.2; |
| Port: | FOB Zhongshan; | Install Style: | screw; |
| Application: | General; | Reted Power(W): | 1-72; |
| Insulation Class: | B; |

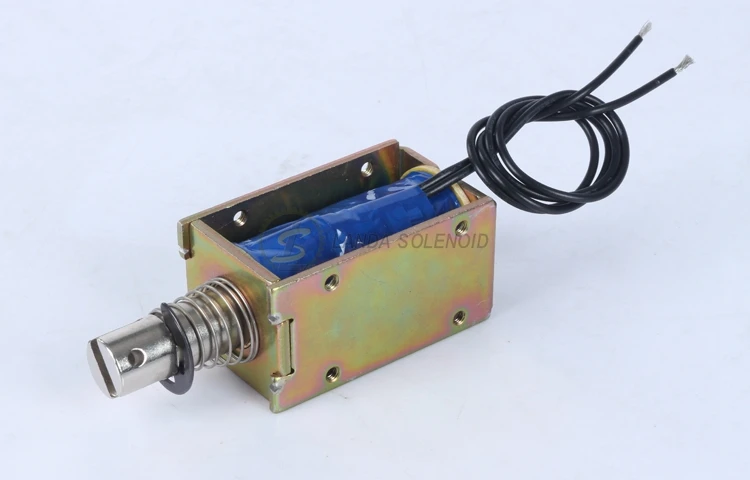

12Mm Stroke Dc Pull Push Open Frame Solenoid
| Specifications | |||
| Brand | Landa | Product Name | open frame push pull solenoid |
| Model | SQ1253 | Rated Voltage | DC 12v 24v |
| Power | 7.2-72w | Force | 1-20N |
| Stroke | 0-12mm | Duty Cycle | 1-100% |
| Cable Length | 200mm | Material | Metal, Electronic Parts |
| Action Form | Push pull type | Weight(N.W.) | 0.215kg |
| Install Style | Screw | Thread Size & Deepth(mm) | M3,2 |
| Hi-Pot Test | AC 600V 50/60Hz 2s | Insulation Class | B |
| Packaging Details | |||
| Body Size | 53*30*27(mm) | Carton Box Size(Standard) | 350*310*180(mm), accepted custom |
1. Push-pull type, linear motion, plunger spring reset, DC solenoid electromagnet.
2. DC Solenoid electromagnets are mainly used in vending machines, transportation equipment, office equipment, household appliances, machinery, etc.
3. The solenoid works externally by pushing and pulling the plunger, and when energized, it works by pushing and pulling the plunger to connect the object.
4. Open frame structure with mounting holes, accepted custom as you needed.
|
Our Products:
|
circular holding solenoid; square holding solenoid; open frame solenoid; tubular solenoid; keep solenoid; lock solenoid >>HOMEPAGE
|
|
MOQ:
|
2 PCS; small orders can be acceptable if we have stocks of this product
|
|
Packing:
|
Carton, standard dimension(L*W*H): 350*310*180, customize according to customer's requirement
|
|
Delivery Time:
|
Shipped in 3-8 days after payment
|
|
Supply Ability:
|
5000Pcs per week
|
|
Payment Terms:
|
T/T; PAYPAL etc.
|
|
Shipping:
|
Sea /air freight, Express (DHL, UPS, TNT, FEDEX, EMS etc).
|
Zhongshan Landa Solenoid CO.,LTD
Established in 2008, located in Dongsheng Town, Zhongshan City, Guangdong Province, Landa Solenoid Co., Ltd.is an enterprise specializing in R&D-ing, producing and selling electromagnet and solenoid valves. Presently we have 70 staffs, and covers an area of 3500 square.
We're one of the biggest electromagnet/solenoid valves manufacturer in China. Experienced in designing and producing for 11 years, we passed ISO9001,got CE and ROHS certifications. Our products are widely used in the area of automation, suitable to fire doors, marking machines, printers, home appliances, communications equipment, electrically door locks, amusement equipment, medical equipment, automibles etc.
Based on our best quality and service, we have a reputation around the world. We take quality as life, timely delivery, competitively priced electromagnet/solenoid valve products for global customers.Looking forward to become your trusted long-term partner and achieve win-win sitution.
Q: Are you trading company or manufacturer?
A: We are original factory.
Q:How to choose a solenoid/electromagnet?
A:Following parameters should be provided: voltage(DC/AC), power, current, resistance, stoke, force, dimension limit, force, residual force, duty cycle, etc.
Q:How long is your delivery time?
A:Generally it is 3-10 days if the goods are in stock, or it is 15-20 days if the goods are not in stock. It is according to quantity.
Q:What is your terms of payment?
A:Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance, balance before shippment.
Q:Is there any extra charges if we want you to print our logo or company name on your products or the packaging?
A:There is no extra charges. Please offer us the LOGO files, and we will make it well on your product.
Q:Where is your factory located? How can I visit it?
A:Our factory is located in Zhongshan City, about 1.5 hours from Guangzhou Airport by car.
