Mini Holding Electromagnet 220v Dc 12v 24v 1.5w 4Kg Electro Electric Magnet

Supplier: Zhongshan Landa Solenoid Co., Ltd.
Region: Guangdong, China
Contact: Ms Miracle Wang
Price: $5.50 / 2 - 99 pieces
$4.00 / 100 - 1999 pieces
$1.88 / >=2000 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Install Style:	screw;	Video outgoing-inspection:	Provided;
Packaging Detail:	Product Size(mm): D25H11 Carton Box Size(mm): 350310*180 N.W.(KG): 0.03 G.W.(KG): 0.05;	Product Name:	Dc 12v 24v electric magnget;
After Warranty Service:	Online support;	Single package size:	2.5X2.5X1.0 cm;
Certification:	CE,ROHS,ISO9001;	Marketing Type:	New Product 2020;
Showroom Location:	None;	Warranty of core components:	1 Year;
Work Model:	Holding Type;	Dimension(LWH):	D25*H11(mm);
Insulation Class:	B;	Core Components:	Iron;
After-sales Service Provided:	Online support;	Selling Units:	Single item;
Reted Power(W):	1.5;	Local Service Location:	None;
Brand Name:	Landa;	Service Life:	500 Thousand Times;
Single gross weight:	0.03 KG;	Holding Force (N):	40;
Hi-Pot Test:	AC 600V 50/60Hz 2s;	Reset Time(s):	0.2;
Condition:	New;	Machinery Test Report:	Not Available;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Place of Origin:	Guangdong China;
Warranty:	1 Year;

Mini Holding Electromagnet 220v Dc 12v 24v 1.5w 4Kg Electro Electric Magnet

Product description

Specifications
Brand	Landa	Product Name	4Kg Electro Electric Magnet
Model	HY2511	Rated Voltage	DC 12v 24v
Power	1.5w	Force	40N
Waterproof Class	IP65	Duty Cycle	100%
Cable Length	200mm	Material	Metal, Electronic Parts
Action Form	Holding type	Weight(N.W.)	0.03kg
Install Style	Screw	Thread Size & Deepth(mm)	M4,11
Hi-Pot Test	AC 600V 50/60Hz 2s	Insulation Class	B
Packaging Details
Body Size	D25*H11(mm)	Carton Box Size(Standard)	350310180(mm), accepted custom

Product Feature

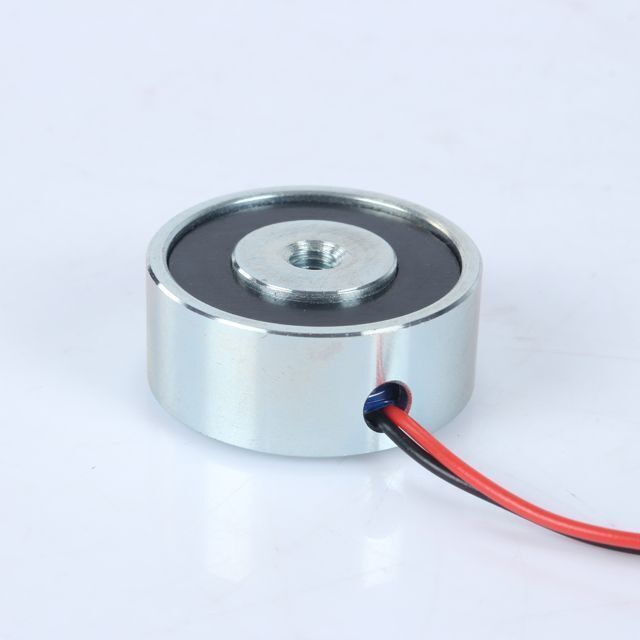

circular holding electromagnet

1.Holding type, round shape, mini size, IP65 waterproof, DC solenoid electromagnet.

2.The electromagnet need to be energised to develop suction force, widely used for holding of ferromagnetic workpieces during machining or assembly, safety mechanisms, selector devices in textiles machinery, door latching holdback devices and etc.

3.Energised-on-holding, and release deenergised. We also offer an optional spring loaded ejector pin to overcome residual magnetism, as well as optional armature plates as a magnetic counterpart for optimum performance.

4.Also offer custom shape and energise to release circular electromagnet

Detailed Images

Packaging & Shipping

Our Products:	circular holding solenoid; square holding solenoid; open frame solenoid; tubular solenoid; keep solenoid; lock solenoid >>HOMEPAGE
MOQ:	2 PCS; small orders can be acceptable if we have stocks of this product
Packing:	Carton, standard dimension(LWH): 350310180, customize according to customer's requirement
Delivery Time:	Shipped in 3-8 days after payment
Supply Ability:	5000Pcs per week
Payment Terms:	T/T; PAYPAL etc.
Shipping:	Sea /air freight, Express (DHL, UPS, TNT, FEDEX, EMS etc).
