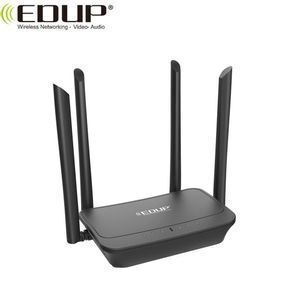

EDUP 300Mbps best 4g wifi router EP-N9531 lte wifi router with sim card

Supplier: Shenzhen EDUP Electronics Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Richer Lin
Price: $17.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

With Modem Function:	No;	LAN Ports:	2;
Max. LAN Data Rate:	300Mbps;	Standard:	IEEE802.11n/b/g;
Standards And Protocols:	Wi-Fi 802.11b,Wi-Fi 802.11g,Wi-Fi 802.11n;	1st name:	4g lte wifi router;
Wired Transfer Rate:	100Mbps;	Supports WDS:	No;
3rt name:	router wifi 4g with sim card;	Package Preview:	;
FDD LTE:	B1/B3/B5/B8;	Packaging Detail:	Gift Box;
Certification:	CE FCC ROHS;	Port:	Shenzhen/HK;
Wi-Fi Supported Frequency:	2.4G;	2.4G Wi-Fi Transmission Rate:	300 Mbps;
WCDMA:	B1/B5/B8;	Supply Ability:	100000000 Piece/Pieces per Month OEM/ODM;
Type:	lte wifi router,Wireless;	Encryption Type:	WPA2-PSK,WPA2;
Wi-Fi Transmission Standard:	802.11n;	WAN Ports:	1;
Function:	FireWall,QoS,VPN,APP Control;	Products Status:	New;
Brand Name:	EDUP;	Supports WPS:	Yes;
Chipset:	ZTE;	TD-SCDMA:	B34/B39;
TDD LTE:	B38/B39/B40/B41;	Place of Origin:	Guangdong China;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram,Paypal;	2nd name:	192.168.1.1 4g lte wifi router;
Application:	ENTERPRISE;

EDUP 300Mbps best 4g wifi router EP-N9531 lte wifi router with sim card

universal 4g lte wifi router with sim card slot
best 4g wifi router
4g lte wireless router

4g hot selling model

Features

1) Support 3G, 4G LTE wireless network technology.

2) Support WCDMA, LTE TDD, LTE FDD Band.
3) Support SIM slot
4) 802.11n WiFi standard

5) 1* WAN port, 2* LAN ports

6) More than 6 hours working time

7) Support up to 25 users

8) 300Mbps WiFi

Spefication

Router hardware
processor	MT7628NN
Power input port	DC 12V---1A
WAN Port	1 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u)
LAN Port	2 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u)
WPS/Reset Buttons	Sgort press: WPS,Long press: reset(Used to restore the factory configuration of the router.)
Power button	Router's power switch (not required)
LED indication	1,power supply 2,System (dial status, indiscriminate wired or wireless) 3,3/4G:Blue-green light indicates 3G, 4G status 4,WIFI Indication 5,WAN Interfaces; 6,LAN1; 7,LAN2;
Storage	SDRAM: 64M Bytes Nor Flash: 8M Bytes
Wireless parameters
WIFI Frequency range		FCC: 2412-2462MHz(Ch1-Ch11) ETSI: 2412-2472MHz(Ch1-Ch13)
Mobile network frequency		FDD: B1 B3 B5 B8, TDD: B38 B39 B40 B41 TDS-CDMA: B34 B39 WCDMA: B1 B8
Transmission rate		11n:270/243/216/162/108/81/54/27Mbps 135/121.5/108/81/54/40.5/27/13.5Mbps 130/117/104/78/52/39/26/13Mbps 65/58.5/52/39/26/19.5/13/6.5Mbps
		11g:54/48/36/24/18/12/9/6M(Adaptive)
		11b:11/5.5/2/1M(Adaptive)
Number of working channels		13
Spread Spectrum Technology		DSSS(Direct Sequence Spread Spectrum)
Data modulation method		BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)
Sensitivity @PER (error packet rate)		270M:-61dBm@10% PER;130M: -61dBm@10% PER;108M:-61dBm@10% PER;54M:-65dBm@10% PER;11M:-85dBm@8% PER;6M:-88dBm@10% PER;1M:-90dBm@8% PER
Transmission distance		Up to 50 meters in the room and up to 200 meters in the outdoors (depending on the environment)
RF Power		11n : 15±dBm; 11g : 17±1dBm; 11b : 19±1dBm(Typical value)
LTE related hardware
SIM Card Slot		Rear flip SIM card Slot
Antennas		External 4 antenna, corresponding to 4G main antenna, wifi dual antenna
Router software features
IP Address		Static or dynamic
PPP over Ethernet		YES
The maximum number of users		32 (Simultaneous Internet access)
Routing Protocol		Static route, RIP1/RIP2
Configuration & Management		Based on WEB interface management (HTTP)
DHCP		Support Server and Client
Firewall protection		Built-in NAT firewall
