EDUP 300Mbps wifi router CPE 4G LTE Modem wifi routers b310 lte CPE Wifi Router 4G LTE with Sim Card Slot

  • Supplier: Shenzhen EDUP Electronics Technology Co., Ltd.
  • Region: Guangdong, China
  • Contact: Ms Richer Lin
  • Price: $26.00 / 1 - 499 pieces
    $25.00 / 500 - 999 pieces
    $24.00 / 1000 - 9999 pieces
    $10.00 / >=10000 pieces
  • Min. Order: 1 piece
Product details
Single gross weight:0.520 KG;1st name:4g wifi router with sim card slot;
Wi-Fi Supported Frequency:2.4G;With Modem Function:No;
Function:FireWall,QoS,VPN,APP Control;TDD LTE:B38/B39/B40/B41;
Type:192.168.1.1 4G LTE router,Wireless;Packaging Detail:300Mbps wifi router CPE 4G LTE Modem wifi routers with Sim card slot 300Mbps wifi router CPE 4G LTE Modem wifi routers with Sim card slot;
Support:APN /Systems/WIFISetting;Place of Origin:Guangdong, China;
WAN Ports:1;Standard:IEEE802.11n/b/g;
Selling Units:Single item;Wired Transfer Rate:100Mbps;
Brand Name:EDUP;5G Wi-Fi Transmission Rate:None;
Wi-Fi Transmission Standard:802.11n;Standards And Protocols:Wi-Fi 802.11b,Wi-Fi 802.11g,Wi-Fi 802.11n;
Package Preview:;Supports WDS:Yes;
LAN Ports:2;TD-SCDMA:B34/B39;
Encryption Type:WPA2-PSK,WPA2;Products Status:Stock,New;
3rd name:4g wifi router;Certification:CE FCC ROHS;
Single package size:26X25X6 cm;Supports WPS:Yes;
Application:ENTERPRISE;Max. LAN Data Rate:300Mbps;
WCDMA:B1/B5/B8;2nd name:192.168.1.1 4g lte wifi router;
2.4G Wi-Fi Transmission Rate:300 Mbps;

EDUP 300Mbps wifi router CPE 4G LTE Modem wifi routers  b310 lte CPE Wifi Router 4G LTE with Sim Card Slot



  • 192.168.0.1 wifi wireless router
  • MTK7628N chipset 192.168.0.1 wifi wireless router
  • 300Mbps 192.168.0.1 wifi wireless router
4g hot selling model





Product Description

Key Features

1) Support 3G, 4G LTE wireless network technology.

2) Support WCDMA, LTE TDD, LTE FDD Band.
3) Support SIM slot
4) 802.11n WiFi standard

5) 1* WAN port, 2* LAN ports

6) More than 6 hours working time

7) Support up to 25 users

8) 300Mbps WiFi

Specification

Router hardware

processor

MT7628NN

Power input port

DC 12V---1A

WAN Port

1 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u)

LAN Port

2 x RJ45(10BaseT/100BaseTX with Auto-MDIX IEEE 802.3/802.3u)

WPS/Reset Buttons

Sgort press: WPS,Long press: reset(Used to restore the factory configuration of the router.)

Power button

Router's power switch (not required)

LED indication

1,power supply

2,System (dial status, indiscriminate wired or wireless)

3,3/4G:Blue-green light indicates 3G, 4G status

4,WIFI Indication

5,WAN Interfaces;

6,LAN1;

7,LAN2;

Storage

SDRAM: 64M Bytes       Nor Flash: 8M Bytes

Wireless parameters

WIFI Frequency range

FCC: 2412-2462MHz(Ch1-Ch11)

ETSI: 2412-2472MHz(Ch1-Ch13)

Mobile network frequency

FDD: B1 B3 B5 B8,

TDD: B38 B39 B40 B41

TDS-CDMA: B34 B39

WCDMA: B1 B8

Transmission rate

11n:270/243/216/162/108/81/54/27Mbps

135/121.5/108/81/54/40.5/27/13.5Mbps

130/117/104/78/52/39/26/13Mbps

65/58.5/52/39/26/19.5/13/6.5Mbps



11g:54/48/36/24/18/12/9/6M(Adaptive)



11b:11/5.5/2/1M(Adaptive)

Number of working channels

13

Spread Spectrum Technology

DSSS(Direct Sequence Spread Spectrum)

Data modulation method

BPSK, QPSK, CCK and OFDM (BPSK/QPSK/16-QAM/ 64-QAM)

Sensitivity @PER (error packet rate)

270M:-61dBm@10% PER;130M: -61dBm@10% PER;108M:-61dBm@10% PER;54M:-65dBm@10% PER;11M:-85dBm@8% PER;6M:-88dBm@10% PER;1M:-90dBm@8% PER

Transmission distance

Up to 50 meters in the room and up to 200 meters in the outdoors (depending on the environment)

RF Power

11n  : 15±dBm;

11g  : 17±1dBm;

11b  : 19±1dBm(Typical value)

LTE related hardware

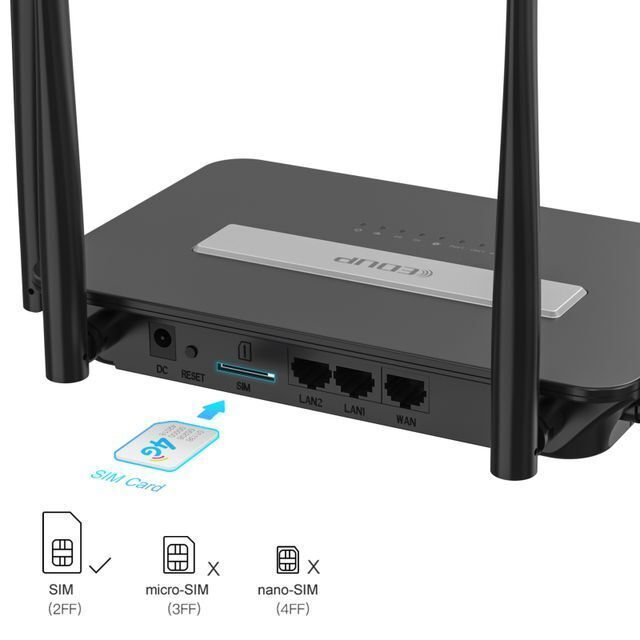

SIM Card Slot

Rear flip SIM card Slot

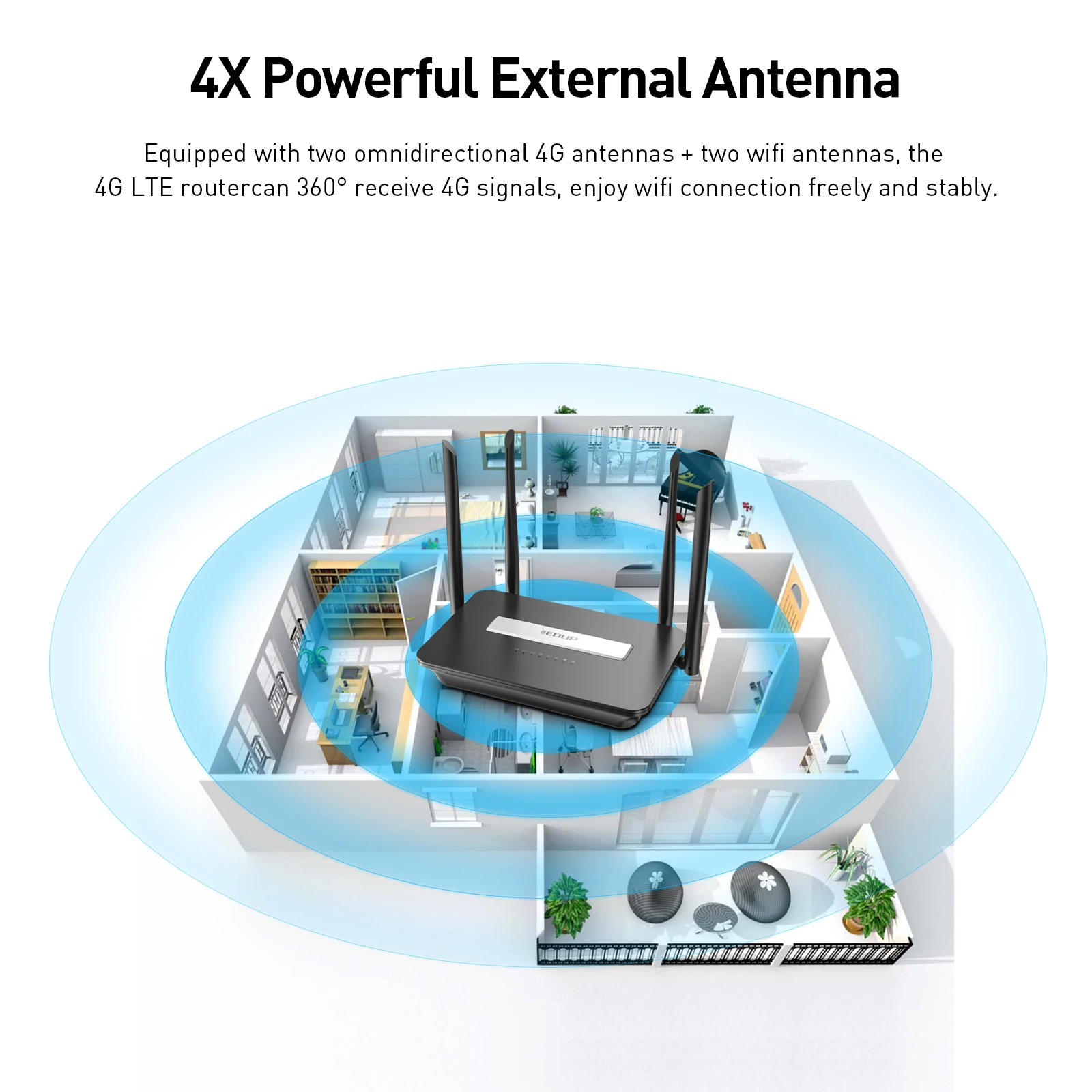

Antennas

External 4 antenna, corresponding to 4G main antenna, wifi dual antenna

Router software features

IP Address

Static or dynamic

PPP over Ethernet

YES

The maximum number of users

32 (Simultaneous Internet access)

Routing Protocol

Static route, RIP1/RIP2

Configuration & Management

Based on WEB interface management (HTTP)

DHCP

Support Server and Client

Firewall protection

Built-in NAT firewall





Product Pictures



Company Information

        Established in 2004, EDUP is the global brand name for Shenzhen EDUP Electronics Technology Co., Ltd. We are a professional company and exporter specialized in Wireless products. We are located in Shenzhen, with convenient transportation access. All of our products comply wtih international quality standards and are greatly apprecaiated in a variety of different markets throughout the world.





Our Services

Why Choose US?

Brief:

  • Professional with many years experience from 2004
  • Brand:EDUP,Cardking,Wisetiger,SkyWing
  • Most competitive price from material supplier base on huge orders to them
  • Experienced an effective inner cost control system through whole process

Quality Control

  • Raw material test,Online production test,PCS test,finished product test
  • Providing relative solution
  • CE,FCC,RoHS,SGS approved Factory

Service:

  • OEM /ODM service and support
  • Free Sample Development for old customers or customers on Fair
  • Free promotion material if needed
  • Clients service one-to-one
  • Effective communication within 24 hours
  • Attend Hongkong Fair / Carton Fair to meet customer face to face
  • New design and style collection updating for customer
FAQ

FAQ

1.What is your advantage?

---Your inquiry will be replied in 24hours

---Well-trained and experienced staffs to answer all your inquires in fluent English

---OEM&ODM, for any of your customized products we can help you to design and put into product

---All our products with 12months guarantee

2.What is our Payment methods?

We agree T/T, Western Union, PayPal.L/C for old customers.

3.What is our Shipping & Trade terms?

Shipping By sea, air, or UPS, FEDEX, EMS, DHL, etc.

Delivered time: 2-3 business days for sample, 20-25 days for mass order.

Trade terms: EXW, FOB , CIF etc.

4. What is our Warranty and Certificates?

Our warranty is 12 months.

We have CE, ROHS, FCC certificates

5.What is your MOQ?

1pc
