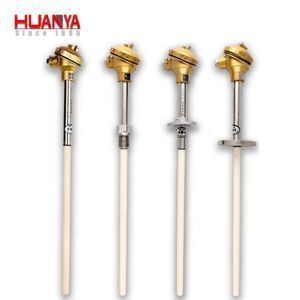

High temperature K/R/S/B type thermocouple with ceramic protecting tube
-
Supplier: Jiangsu Plaza Premium Electric Instrument Co., Ltd. -
Region: Jiangsu, China -
Contact: Ms April Yuan -
Price: $100.00 /piece -
Min. Order: 1 piece
| wire diameter: | 0.5mm,0.4mm,0.3mm(customized size); | Model Number: | K/R/S/B; |
| Packaging Detail: | wooden cases; | shipping terms: | by air or by sea; |
| wire material: | platinum&rhodium; | sample: | available; |
| Payment Terms: | T/T,alibaba link; | product name: | pt-rh thermocouple; |
| Supply Ability: | 10000 Piece/Pieces per Month; | Brand Name: | HY; |
| junction box: | optional; | Place of Origin: | Jiangsu China; |
| tube material: | ceramic; | tube length: | 300mm-1500mm; |
| Port: | Shanghai; |
High temperature K/R/S/B type thermocouple with ceramic protecting tube
For the measurement of higher temperatures we offer thermocouples with ceramic tubes, upon request with additional ceramic
inner tubes. The thermocouples (e.g. type S or type B) are insulated by a 2-hole or 4-hole insulating
ceramic rod. The measuring point is laser-welded.
The thermocouple is protected against environmental influences.
We furnish all kinds of thermocouples with ceramic protective tubes at all lengths and designs.
TYPE
|
Conductor material
|
Type
|
Graduation
|
Specification of protection tube(mm) |
use temperature |
|||
|
Total length |
Immersion length |
OD of protection tube |
material of protection tube | ||||
|
PtRh10-Pt |
WRP | S | 300 | 150 | Φ16 |
High Aluminum tube |
0-1300 |
| 350 | 200 | ||||||
| 400 | 250 | ||||||
|
PtRh30-Pt6 |
WRR | R | 450 | 300 | Φ25 |
Corundum |
0-1600 |
| 550 | 400 | ||||||
| 650 | 500 | ||||||
|
PtRh13-Pt |
WRQ | B | 900 | 750 | Φ16 Φ20 |
High Aluminum tube |
0-1200 |
| 1150 | 1000 | ||||||
| 1250 | 1150 | ||||||
| Mini PtRh10-Pt | WRP | S | 252 | 225 | Φ7 |
High Aluminum tube |
0-1200 |
Technical parameter
