function: | Multifunctional plastic Products Making; | Supply Ability: | 50 Set/Sets per Month servo system injection molding machine; |
Ejector Stroke(mm): | 150; | Key Selling Points: | Competitive Price; |

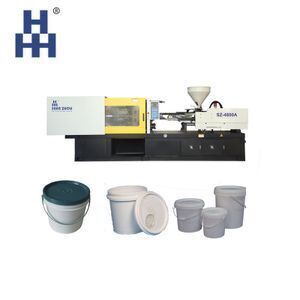

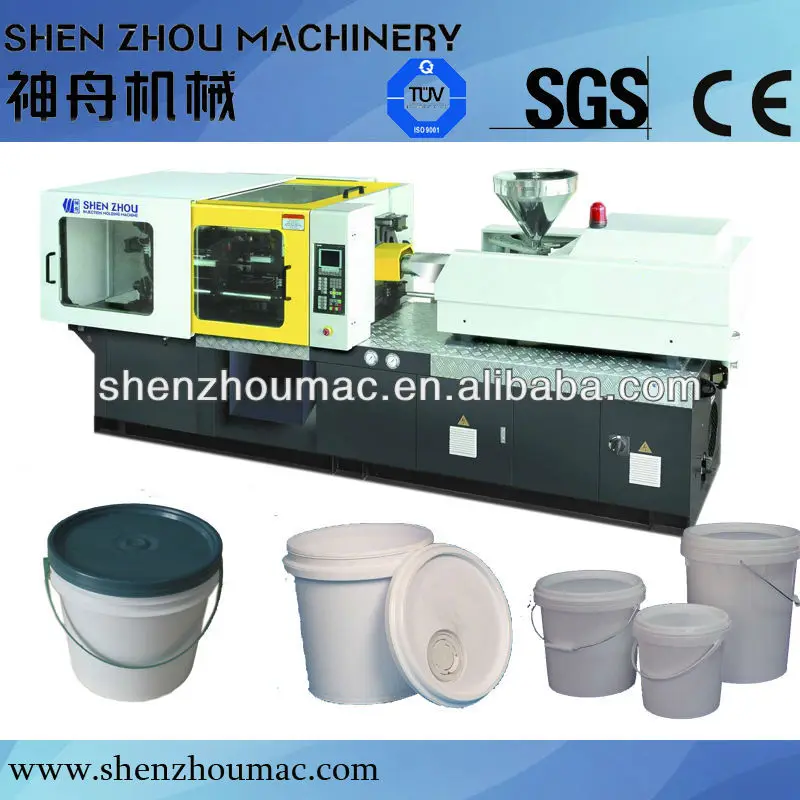

Product name: | plastic bucket making machine; | Screw diameter (mm): | 65; |
Video outgoing-inspection: | Provided; | Injection Rate (g/s): | 283; |
After-sales Service Provided: | Engineers available to service machinery overseas,Video technical support,Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Online support; | Certification: | CE&TUV&ISO&SGS; |
Machinery Test Report: | Provided; | Theoretical Shot Volume(cm³): | 995; |
Distance between Tie Bars(Height)(mm): | 610mm; | Machine Type: | Hydraulic; |
Applicable Industries: | Building Material Shops,Manufacturing Plant,Other; | size: | 6.7*1.75*2.25m; |
Plastic Type: | Thermoplastic; | Warranty of core components: | 1.5 years; |
Brand Name: | SZ; | Style: | Horizontal; |
Warranty: | 1 Year; | Injection Weight (g): | 905; |
Core Components: | Bearing,Motor,Pump,Gear,PLC,Pressure vessel,Engine,Gearbox,Screw; | Port: | shanghai; |

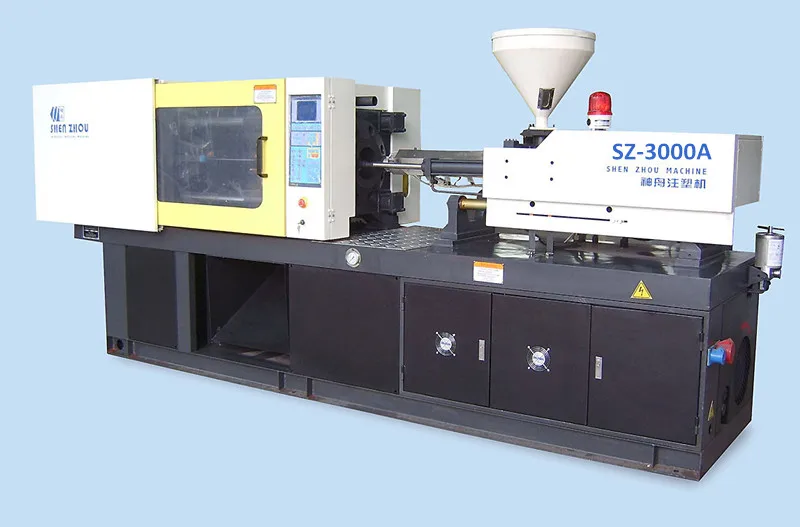

Showroom Location: | None; | Model Number: | SZ-3000A; |
Injection pressure: | 176Mpa; | Ejector Force(kN): | 70.6; |
Local Service Location: | Peru,Russia,Romania,Nigeria,Uzbekistan; | Automatic: | yes; |
Place of Origin: | Jiangsu China; | Weight (KG): | 11000; |
Open Stroke(mm): | 590; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
Type: | Preform Injection; | Distance between Tie Bars(Width)(mm): | 610mm; |
After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; | Power (kW): | 30; |
Keyword: | plastic paint bucket moulding machine; | Advantages: | Energy saving and high efficiency; |
Condition: | New; | Plastic Processed: | PP,PC,ABS,PET,PVC,PPR,PE,HDPE/PP,ABS/PP,PE/PP; |
Packaging Detail: | servo system injection molding machine:wooden case; | Oil Tank Capacity: | 560L; |
Marketing Type: | Hot Product 2020; |
High quality and innovative products ,outstanding productivity ,efficient management ,perfect technical solutions and service.
All our machines with CE/TUV approved!!!
Technical Parameter |
||||
Item |
Unit |
Parameter |
||
INJECTION UNIT |
|
|
||
screw diameter |
mm |
60 |
65 |
70 |
screw L/D ratio |
L/D |
22.7 |
21 |
19.5 |
theoretical shot volume |
cm*3 |
848 |
995 |
1154 |
shot weight(ps) |
g |
772 |
905 |
1050 |
injection pressure |
Mpa |
207 |
176 |
152 |
theoretical injection rate(ps) |
g/s |
241 |
283 |
328 |
plastic capacity |
g/s |
35.2 |
43.3 |
51.8 |
CLAMPING UNIT |
|
|
||
max.clamping force |
KN |
3000 |
||
max.opening stroke |
mm |
590 |
||
space between tie bars |
mm |
610x610 |
||
mould height |
mm |
220-630 |
||
max.daylight |
mm |
1220 |
||
OTHER |
|
|
||
pump motor power |
KW |
30 |
||
pump pressure |
Mpa |
16 |
||
heating power |
KW |
22 |
||
size |
m |
6.7x1.75x2.25 |
||
net weight |
t |
11 |
||
oil tank capacity |
L |
560 |
