2021 newest DDSY5558 IC card prepaid/prepayment electricity energy meter

Supplier: Zhejiang Gomelong Meter Co., Ltd.
Region: Zhejiang, China
Contact: Mr Qianjun Tu
Price: $11.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Measuring Energy Range:	0--999W;	Packaging Detail:	foam+export quality Carton;
Accuracy Class:	class 1 or class 2;	Single package size:	19X7X13 cm;
Category:	prepaid electricity meter;	Single gross weight:	0.62 KG;
Optional function:	RF reading;	Model Number:	DDSY5558;
Output Voltage:	220~265V;	Meter Constant:	1600imp/kWh;
Place of Origin:	Zhejiang China;	Brand Name:	Gomelong;
Supporting facilities:	reading machine;	Selling Units:	Single item;
Phase:	Single Phase;	Display:	digital tube;
Operating Temperature:	-20 ℃--55℃;	Dimensions:	176mm145mm76mm;
Frequency:	50-60HZ;	Display Type:	Analog and Digital;
Color:	white;

MASS_APP4_1159_BEGIN

MASS_APP4_1159_END

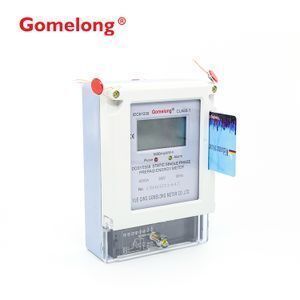

DDSY5558 IC card prepaid/prepayment electricity energy meter

Product Description

Product Brief introduction

The DDSY5558 type single-phase electronic watt-hour meter adopt exclusive use LSI,the device typifying few periphery component, simple structure , high reliability, low power consumption, long life etc, is suitable for the single-phase AC active electric energy with rated frequency of 50Hz;the performance is in conformity with the technical requirements for single-phase electronic watt-hour meter stipulated in GB/T17215 321 -2008 Class I and 2 Static AC Active Watt-hour Meter standard;

Function and Feature

Measure active electric energy,do not need calibrate for long-term operation;

Long service life,accessiblel0 years;

Sampling current at the same time between phase line and middle line,use the larger as valid sampling,abstraction -of-electricity prevention one fire one ground thoroughly;

Adopt exclusive use LSI and SMT surface fixing technique,having advance technology and dimple structure;

Adopt the latest oversea electric energy special integration circuit,greatly improved dynamic working range of Meter;

Have good mistake linearity in the range of5%lb-lmax

Adopt high reliability and long life electronic component,so the Meter assume feature of high reliability and long life;

Low self power consumption,mighty overload

Main Technical Data
