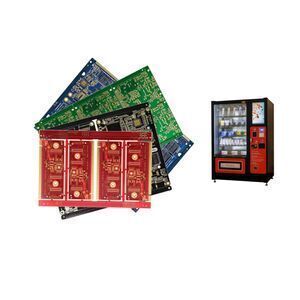

Board Size: | custom; | Packaging Detail: | Double-sided pcb sheet control board for vending machine 1. Vacuum packaging with Desiccant Packs and Humidity Indicator Cards 2. One package 5 ~ 25 pcs 3. One box can't exceed 15kg 4. Space in the carton shall be filled with foam or paper 5. Top and sides of the box required stick shipping mark 6. Each box shall be packed; |
Product name: | vending machine pcb; | Package Preview: | ; |
Application: | Electrice Vehicle; | Usage: | vending machine; |
Origin: | Shenzhen; | Port: | Shenzhen; |
Supply Ability: | 30000 Square Meter/Square Meters per Month; | Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; |
Board Thickness: | 0.4-3.2mm; | Place of Origin: | Guangdong China; |
Model Number: | ETG0079; | Copper Thickness: | Hoz-3oz; |
Base Material: | FR4; | Type: | Double Layers,Double Sided PCB; |
Min. Line Width: | 5mil; | Min. Line Spacing: | 5mil; |
Service: | 24Hours Technical Services; | MOQ: | 1 PC; |
Testing Service: | 100% AOI Testing; | Min. Hole Size: | 0.2mm; |
Function: | PCBA Board Service Prototype PCB Assembly; | Certificate: | ISO9001; |
Brand Name: | Hitek; | Surface Finishing: | LA HAL, OSP, Immersion silver; |
PCB Capacity | |
Materials | FR-4(TG135-180), CEM-1, CEM-3, Aluminum, Arlon, Rogers, etc |
Material Suppliers: | KINGBOARD(KB), SHENGYI, Arlon, Rogers, GUOJI(GDM), etc |
Number of Layer | 1-24 layers |
Min Processing Sheer | 38mm*51mm |
Max Processing Sheer | 610mm*457mm |
Board Thickness | 0.4mm-3.2mm |
Board Thickness Tolerance | ±10% |
Profile Processing | CNC Milling, V-Cut, Mold Flushes |
Copper Thickness | 0.5oz-6oz |
Copper Weight Tolerance | ±0.15 oz |
Min Line Width | 4mil |
Min Space Width | 4mil |
Min Drill Hole Diameter | 0.1mm |
Silk Screen Min Line Width | 4mil |
Soldermask | green, red, blue, white, black, yellow, etc. |
Surface Finishing | HAL, lead-free HAL, ENIG, Plated Gold, Immersion Silver, OSP |
Flame resistance | 94v0 |
Certification | ISO 9001:2000,ISO 14001,ISO/TS16949:2002,UL E203640 |
Approval Standard | IPC-600F |
PCB Assembly Capacity | |
Assembly type | THD (Thru-Hole Device) |
SMT (Surface-Mount Technology) | |
Single or Double-sided SMT· | |
SMT & THD mixed | |
DIP assembly | |
Cable assembly | |
Components type | Passives parts, smallest size 0201 |
Fine Pitch to 0.8Mils | |
BGA, uBGA, QFN, POP, and Leadless chips | |
BGA Repair and Reball | |
Part Removal and Replacement | |
Service Type | Turn-Key, Partial Turn-Key or Consignment |
File Formats | Bill of Materials, Gerber Files, Pick-N-Place File(XYRS) |
Testing | X-ray Inspection, AOI, ICT (In-Circuit Test)/Functional Testing |
Component Packaging | Cut tape, Tube and tray, Reels, Loose parts and bulk |
Advantages | PCB Assembly With UL, CE, FCC, Rohs Approval |
