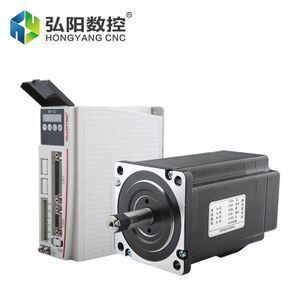

YAKO MS-S3 driver with YKC286C118A1 Closed Loop Hybrid Servo motor kit 10meters encoder line for cnc Engraving Machine original

Supplier: Jinan Hongyang Cnc Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Tiny Li
Price: $22.00 /set
Min. Order: 1 set

Click here to contact

Product details

Certification:	CE ISO;	Single gross weight:	8.0 KG;
Applicable Industries:	Machinery Repair Shops,Manufacturing Plant;	Output current:	6.0A;
Drive step motor:	86mm;	Place of Origin:	China;
Input power voltage:	24-80V;	Brand Name:	yako;
Output Torque:	8N.m;	Warranty:	Unavailable;
Voltage:	220V;	Frequency:	200Khz;
Condition:	New;	Motor phase:	2 phase;
Single package size:	30X30X30 cm;	Suitable motor type:	1500rpm;
Microstep:	400-60000;	Selling Units:	Single item;
Packaging Detail:	Standard export carton or strong plywood box. original 2 Phase stepping motor driver of MS-S3;

Product Description

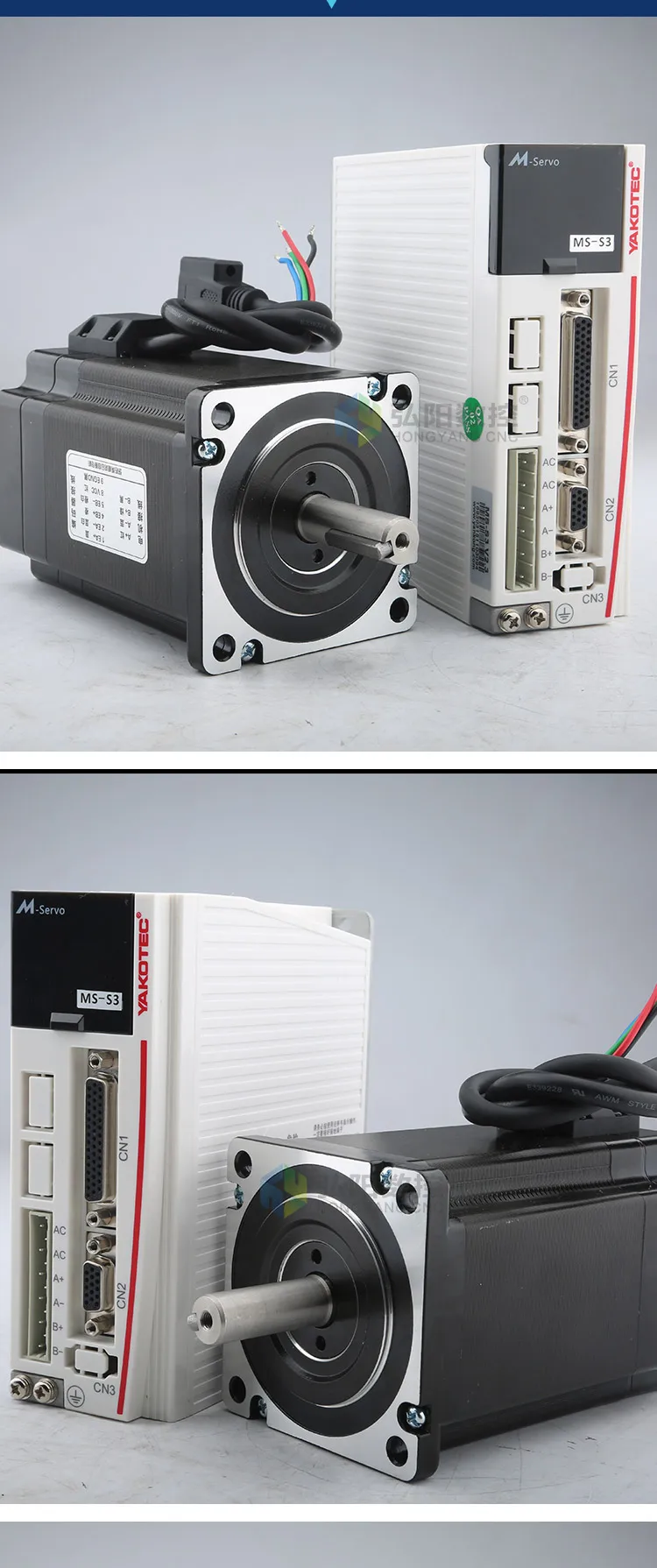

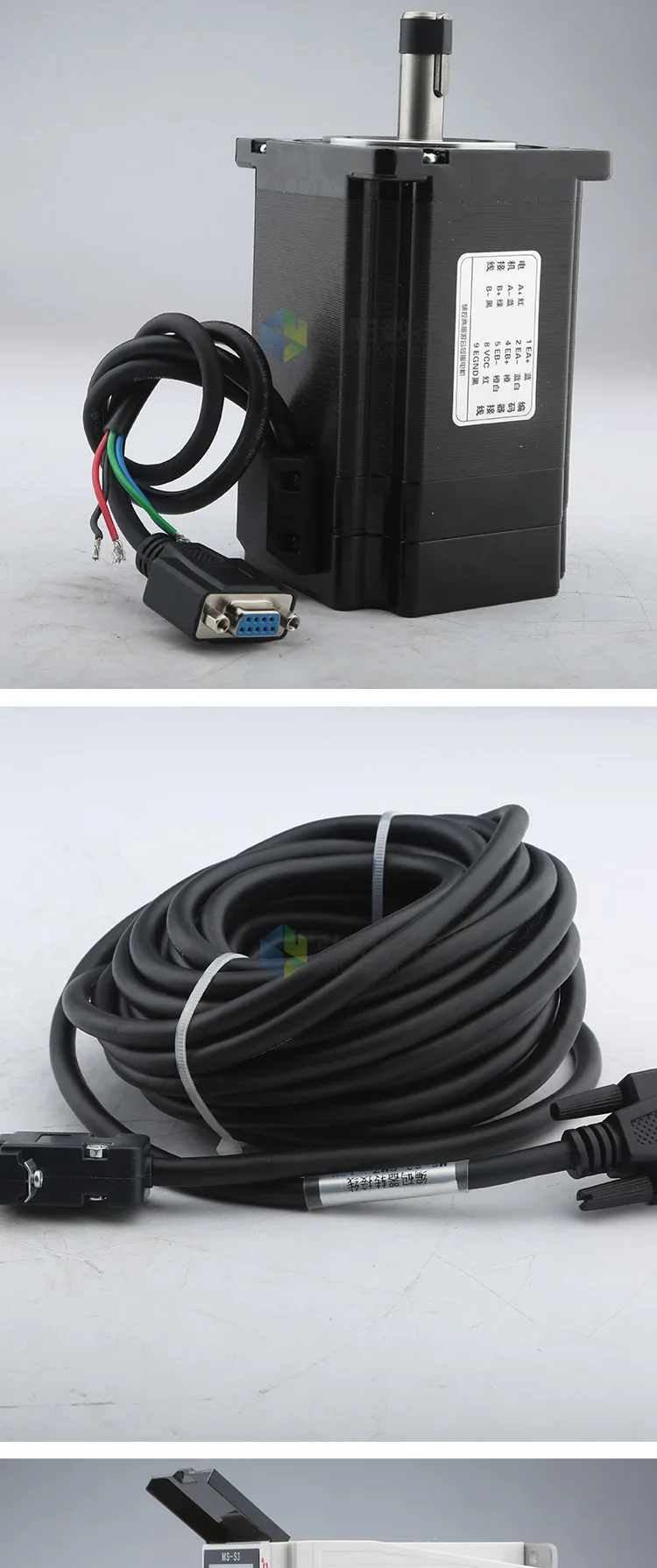

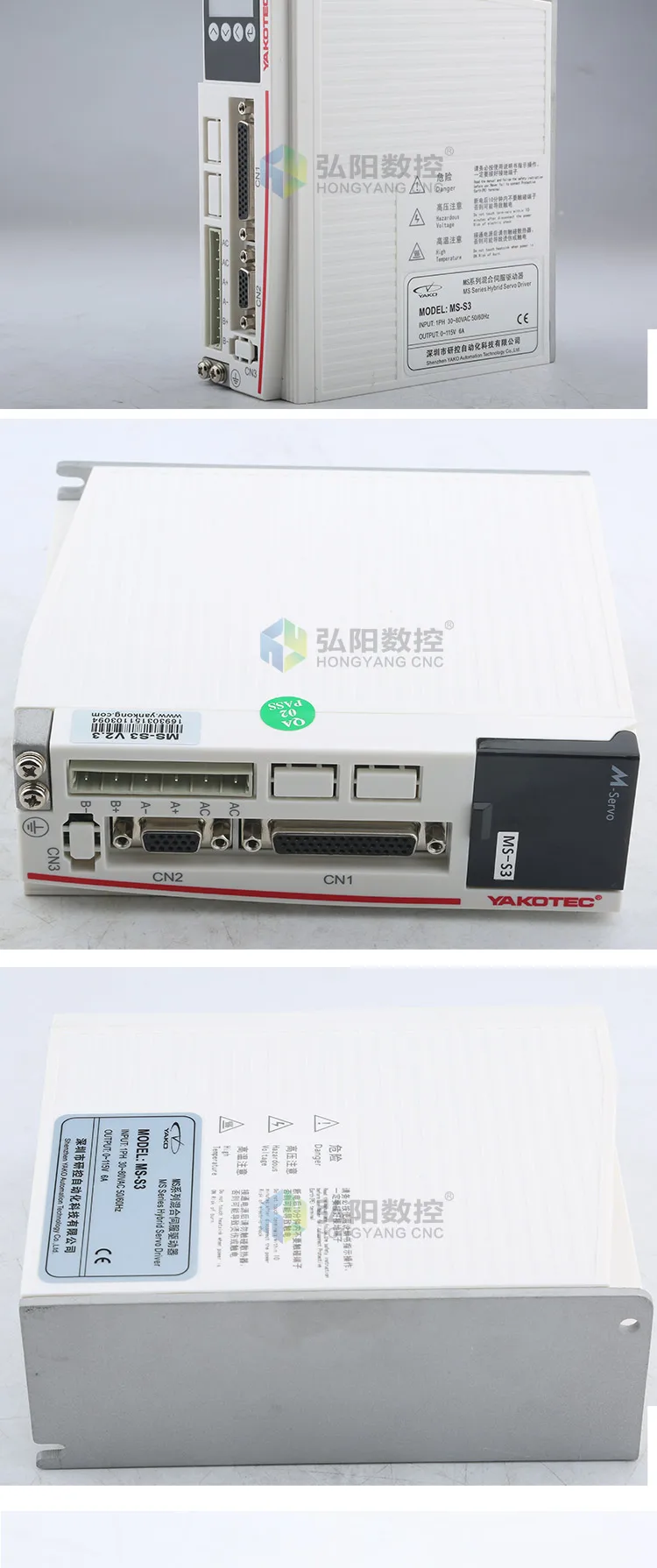

Yako driver MS-S3 driver+YKC286C118A1+10mts encoder line

l 32 bit DSP control technology

l Digital and analog combination with advanced power angle close-loop control

l Current automatically change according to load

l Microstep settings: continuously changeable from 400 to 60,000 pulse per round

l Suitable for 86mm (NEMA 34) close-loop motor

l Photoelectric isolated signal input/output, high anti-interference ability

l 200Kpps pulse response frequency

l Input voltage range: AC24~80V

l Fault protection: over current, over voltage, low voltage protection, position warning

l Six-digit LED display, user friendly for setting and monitoring

Typical Application:

Suitable for high torque large automation equipments such as robots, engraving machine, stripping machine, marking machine, cutting machine, plotter, CNC machine, automatic assembly equipment

Description

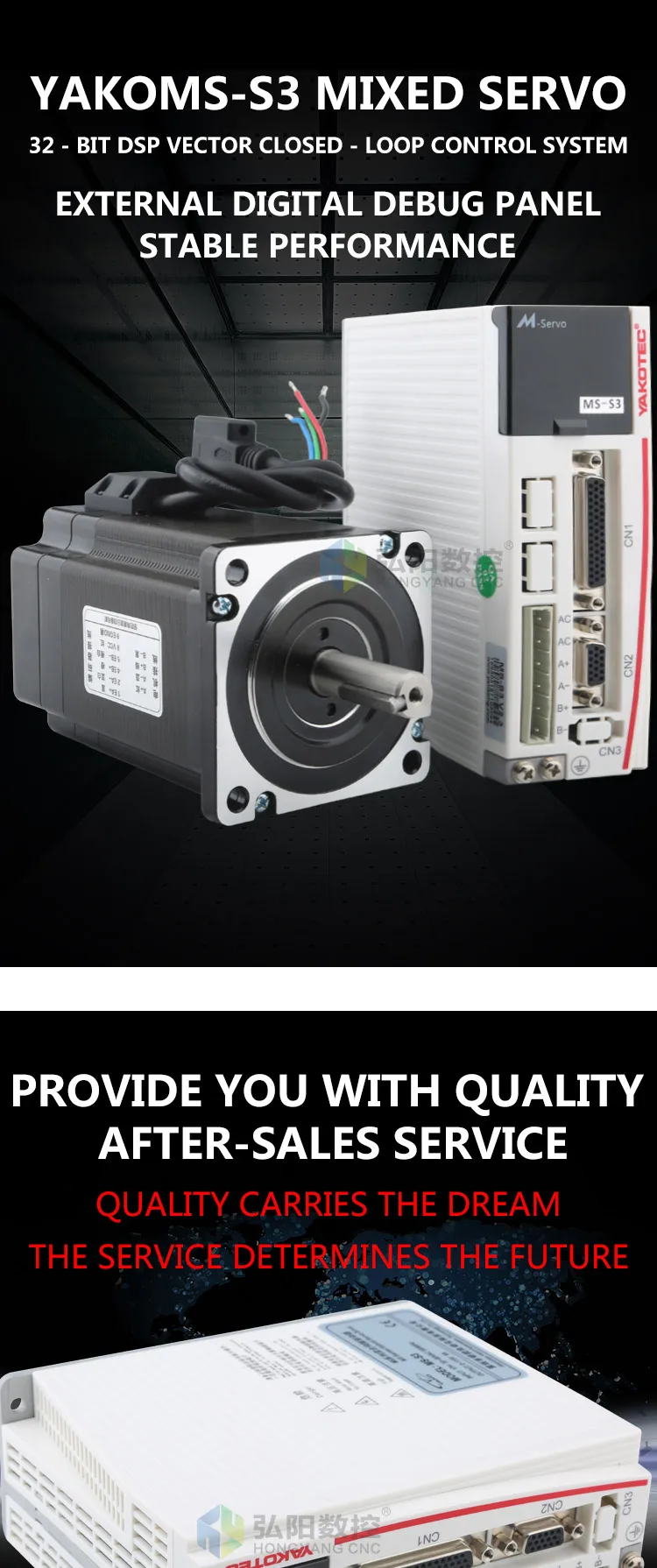

MS-S3 series servo-stepper drive is the latest technology of YAKO. It combines 32-bit DSP motor control technology and power angle control technology, thus completely solved the problem of losing step.

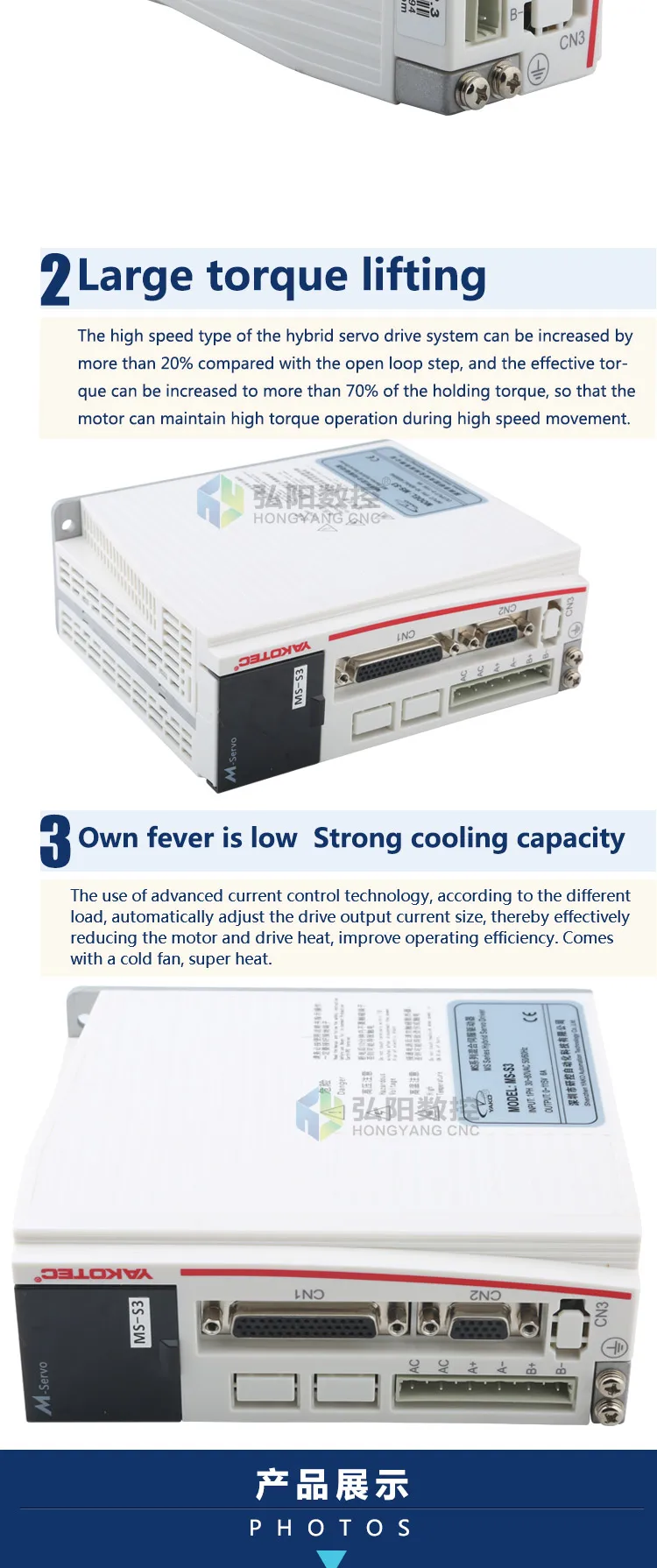

MS-S3 increases high and low speed performance and torque utilization efficiency, effectively reduce motor heat, thus to enhance machine's processing efficiency/accuracy and reduce energy consumption. It has obvious advantage on cost compared with traditional AC servo system.

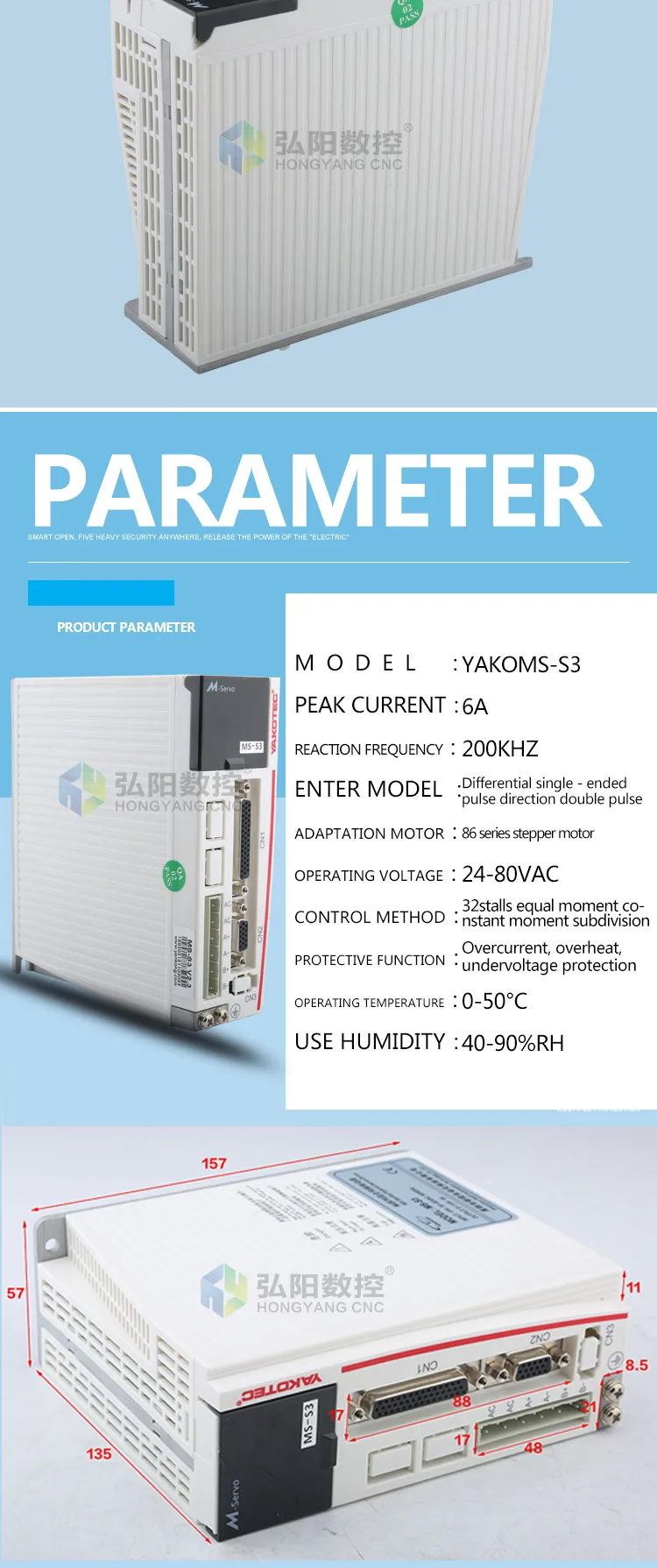

Electrical index

Specification MS-S3	min	Typical value	max	unit
input current	0	--	6.5	A
input power voltage	30	70	80	VAC
Logic input current	7	10	20	MA
Pulse frequency	0	--	200	KHZ
Insulation resistance	500	--	--	MΩ

Control signal port definition

port number	symbol	name	meaning
1	P+	Common DC bus terminal	Multiple machines can be connected in parallel in parallel. Note: The power input of the parallel bus driver must come from the same transformer or switching power supply.
2	P-	Common DC bus terminal	Multiple machines can be connected in parallel in parallel. Note: The power input of the parallel bus driver must come from the same transformer or switching power supply.
3	AC	Power input port	Connect 30v-80v AC
4	AC	Power input port	Connect 30v-80v AC
5	A+	Motor current line	Red cable to the motor
6	A-	Motor current line	Blue cable to motor
7	B+	Motor current line	Green cable to the motor
8	B-	Motor current line	Black cable to the motor

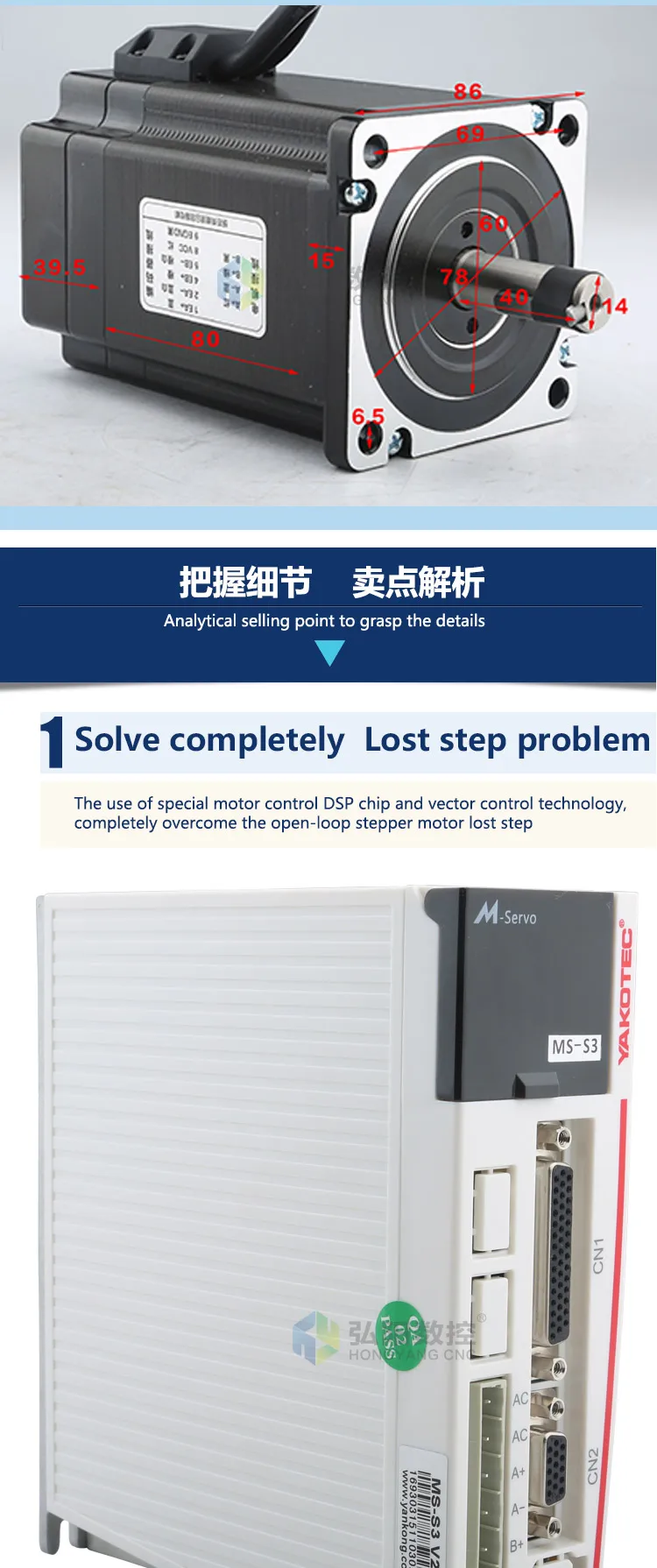

Matching motor

model	Step angle °	motor length L	torque N.m	current A	Phase resistance Ω	Phase inductance Mh	Rotor inertia G.cm2	motor kg	line numbers
YK286EC80A1	1.8	97	4.2	6.0	0.34	2.7	1800	2.1	4
YK286EC118A1	1.8	140	8.2	6.0	0.52	4.7	3200	3.6	4
YK286Ec156A1	1.8	174	12.0	6.0	0.7	9.2	5400	5.0	4

welcome your inquiry and free to share with manual for it .

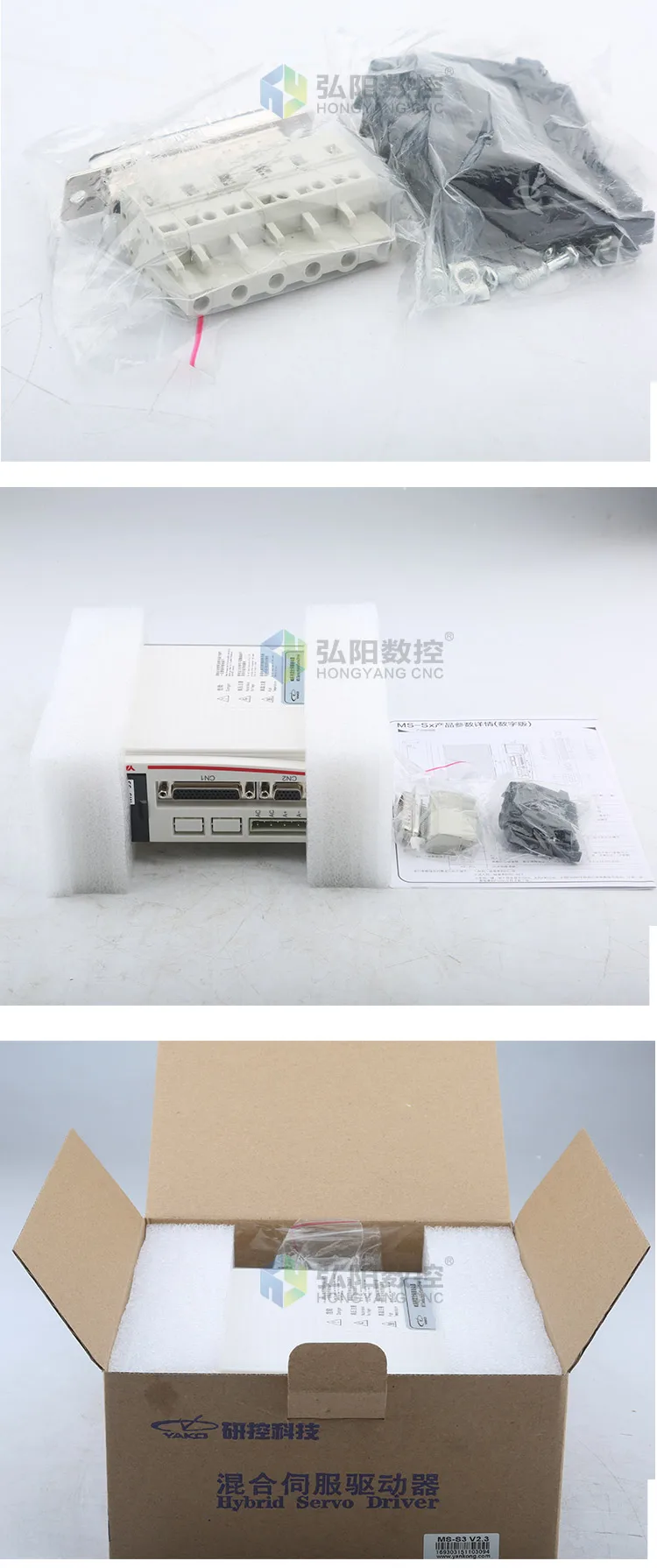

Packaging & Shipping

small quantities by cartons , large quantitiesstandard export carton or strong plywood box.

Company Information

Our Services

1. Delivery Time 3-15Days,All deponds on the quatity of your order.

2.Have strict quality management system.

3.We provide the consumable parts at agent price when you need replacement.

4.Free training course at our factory with professional engineers.

5. For More information, please feel free to contact us. We will reply you at the first time.

FAQ

Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.

Q2. What is your terms of payment?
A: 100% before delivery. We'll show you the photos of the products and packages
before the delivery.

Q3. What is your terms of delivery?
A:FOB, CIF, EXW , CFR...

Q4. How about your delivery time?
A: Generally, it will take 3 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.

Q5. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery

Q6: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.

Advantage :
1. Large stock , after payment could send out .
2. All kinds cnc router parts , making buy all at one stop possible .
3. Flexible payment method : We accpet alibaba payment , TT payment , RMB payment , Western Union payment , Paypal payment , Wechat payment , Ali payment
4. Shipping ways : express shipping , air shipping , sea shipping , shipping to your China shipping agent , all are ok , as your requirements .
company information
Jinan Hongyang CNC Machinery Co., Ltd. was established in 2015. It has over 100 employees and an inventory area of 10,000m². It mainly engages in engraving machine parts, including spindle motor, inverter, stepper motor, driver, hybrid servo motor, servo motor, Richauto dsp series controller , weihong or nc studio controller , water pump for spindle cooling, lubricating oil pump, tool sensor, limit sensor, water-cooled vacuum pump, air-cooled vacuum pump, power supply, transformer, gear box, rack , guide rail, slider or block , ISO30 tool holder, cable chain, spindle dust cover, vacuum cleaner, and other engraving machine accessories, welcome your inquiry.
