Model Number: | HBS86H; | Maximum speed: | 3000rpm; |
Place of Origin: | China; | Phase: | 3 Phase; |
Motor length: | 175mm; | Rated speed: | 1500rpm; |
Selling Units: | Single item; | Frame number: | 86*86; |
Single package size: | 30X30X30 cm; | Keyway: | 5*5*25; |
Voltage: | 30-100DC/AC; | Rated current: | 4.2A; |
Static torque: | 8nm; | Single gross weight: | 7.0 KG; |
Packaging Detail: | Standard export carton or strong plywood box. 86HBM80-1000+HBS86H NEMA34 86mm 8Nm 6A 3ph 30-100VDC low cost leadshine closed loop stepper motor drive kit; | Power supply: | S600-68V; |
Brand Name: | Leadshine; |

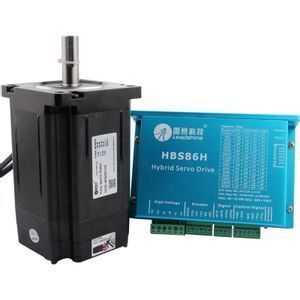

86HBM80-1000+HBS86H NEMA34 86mm 8Nm 6A 3ph 30-100VDC low cost leadshine closed loop stepper motor drive kit
Our company,Jinan Hong Yang CNC Mechanary
The HBS series offers an alternative for applications requiring high performance and high reliability when the servo was the only choice, while it remains cost-effective. Its great feature of fast response and no hunting make it ideal for applications such as bonding and vision systems in which rapid motions with a short distance are required and hunting would be a problem. And it is ideal for applications where the equipment uses a belt-drive mechanism or otherwise has low rigidity and you don't want it to vibrate when stopping.
Specification
Model | Phase | Step Angle | Motor Current | Holding Torque | Flange | Drive Current | Drive Voltage | ||
57HS10-EC-1000+HBS86 | 2ph | 1.8° | 4.2A | 143oz-in | 1.0Nm | NEMA23 | 57mm | 0-8A | 20-50VDC |
57HS20-EC-1000+HBS86 | 2ph | 1.8° | 5.8A | 286oz-in | 2.0Nm | NEMA23 | 57mm | 0-8A | 20-50VDC |
60HBM30-1000+HBS86 | 2ph | 1.8° | 3.0A | 429oz-in | 3.0Nm | NEMA24 | 60mm | 0-8A | 20-50VDC |
573HBM10-1000+HBS507 | 3ph | 1.2° | 5.8A | 143oz-in | 1Nm | NEMA23 | 57mm | 7A | 18-48VDC |
573HBM20-1000+HBS507 | 3ph | 1.2° | 5.8A | 286oz-in | 2Nm | NEMA23 | 57mm | 7A | 18-48VDC |
1103HBM200H-1000+HBS2206 | 3ph | 1.2° | 4.2A | 2857oz-in | 20Nm | NEMA42 | 110mm | 6A | 220VAC |
1103HBM120H-1000+HBS2206 | 3ph | 1.2° | 4.2A | 1714oz-in | 12Nm | NEMA42 | 110mm | 6A | 20VAC |
86HBM40-1000+HBS86H | 3ph | 1.8° | 6A | 571oz-in | 4Nm | NEMA34 | 86mm | 0-8A | 30-100VDC |
86HBM80-01-1000+HBS86H | 3ph | 1.8° | 6A | 1143oz-in | 8Nm | NEMA34 | 86mm | 0-8A | 30-100VDC |
86HBM80-01-1000+HBS86 | 3ph | 1.8° | 6A | 1143oz-in | 8Nm | NEMA34 | 86mm | 0-8A | 20-50VDC |
86HBM80H-1000+HBS1108 | 3ph | 1.8° | 5A | 1143oz-in | 8Nm | NEMA34 | 86mm | 0-8A | 90-130VAC |
86HS40-1000+HBS86H | 3ph | 1.8° | 5.5A | 571oz-in | 4Nm | NEMA34 | 86mm | 0-8A | 30-100VDC |
86HS40-1000+HBS86 | 3ph | 1.8° | 5.5A | 571oz-in | 4Nm | NEMA34 | 86mm | 0-8A | 20-50VDC |
863HBM80H-1000+HBS2206 | 3ph | 1.2° | 3A | 1143oz-in | 8Nm | NEMA34 | 86mm | 6A | 150-220VAC |
1. Delivery Time 3-15Days,All deponds on the quatity of your order.
2.Have strict quality management system.
3.We provide the consumable parts at agent price when you need replacement.
4.Free training course at our factory with professional engineers.
5. For More information, please feel free to contact us. We will reply you at the first time.
Q1. What is your terms of packing?
A: Generally, we pack our goods in neutral white boxes and brown cartons. If you have legally registered patent,
we can pack the goods in your branded boxes after getting your authorization letters.
Q2. What is your terms of payment?
A: 100% before delivery. We'll show you the photos of the products and packages
before the delivery.
Q3. What is your terms of delivery?
A:FOB, CIF
Q4. How about your delivery time?
A: Generally, it will take 3 days after receiving your advance payment. The specific delivery time depends
on the items and the quantity of your order.
Q5. Can you produce according to the samples?
A: Yes, we can produce by your samples or technical drawings. We can build the molds and fixtures.
Q6. What is your sample policy?
A: We can supply the sample if we have ready parts in stock, but the customers have to pay the sample cost and
the courier cost.
Q7. Do you test all your goods before delivery?
A: Yes, we have 100% test before delivery
Q8: How do you make our business long-term and good relationship?
A:1. We keep good quality and competitive price to ensure our customers benefit ;
2. We respect every customer as our friend and we sincerely do business and make friends with them,
no matter where they come from.
