Hongyang Wholesale Cnc Router Original Leadshine Dma860h Driver 18v-80vdc 2.4a-7.2a Microstep Driver Step Motor Driver

Supplier: Jinan Hongyang Cnc Machinery Co., Ltd.
Region: Shandong, China
Contact: Ms Tiny Li
Price: $36.00 /piece
Min. Order: 1 piece

Click here to contact

Product details

Package Preview:	https://sc01.alicdn.com/kf/HTB1fc65XzzuK1RjSspe762iHVXa2.png_640x640.png,https://sc02.alicdn.com/kf/HTB1DkT6XyzxK1RjSspj763S.pXaL.png_640x640.png;	match motor:	57/86/110 hybrid stepper;
Operating Voltage:	18V-80V VAC;	Model Number:	DMA860H;
Place of Origin:	Guangdong China;	Single package size:	16X13X10 cm;
limit frequency:	200KHZ;	Peak current:	7.2A;
Single gross weight:	0.8 KG;	Selling Units:	Single item;
Protective function:	over current / overvoltage / protection functions Pulse;	Control method:	DSP vector closed loop control system;
Brand Name:	Leadshine;	Certificate:	available;
Application:	cnc router controller system;	Product name:	Leadshine Microstep Driver DMA860H;

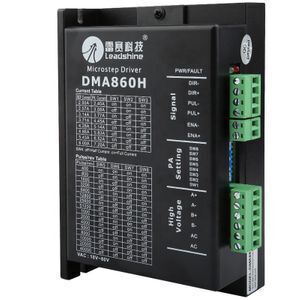

Leadshine DMA860H Microstep Driver for CNC Router

Product Description

DMA860H driver uses a 32-bit DSP processor and integrates nine revolutionary motor control technologies to drive a full range of 35-130 two-phase and three-phase stepper motors. It can automatically generate optimal control parameters for different motors, maximize the performance of the motor, and make the motor run to the "three super performance" of ultra-smooth, ultra-low noise, and ultra-low heat.

Product parameters

Can drive 4, 6, and 8-wire two-phase stepper motors
Voltage input range: 18-80Vac
Maximum current: 7.2A, resolution: 0.1A
Subdivision range: 400 ~ 51200
Signal input: differential / single-ended, pulse / directional or double pulse
Pulse response frequency: 200KHZ

Description	DMA860H
Description	Minimum value	Typical value	Max value	unit
Output current (peak)	2.4	-	7.2	A
Input power voltage	18VAC	70VAC	80VAC	V
Control signal input current	7	10	16	mA
Step pulse frequency	0	-	200	KHz
Insulation resistance	50			MΩ
