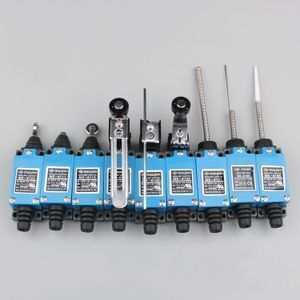

Roller Arm Type AC Limit Switch For CNC Mill Laser Plasma ME-8108

Supplier: Yueqing Lanpu Electrical Co., Ltd.
Region: Zhejiang, China
Contact: Mr Alan LAU
Price: $0.90 /pair
Min. Order: 1 pair

Click here to contact

Product details

Max. Voltage:	250V;	Connecting system:	Crimp connection;
Supply Ability:	200 Pair/Pairs per Day;	Payment Terms:	T/T,Western Union;
Packaging Detail:	standar;	Operating Temperature:	-5~+65C (with no icing);
Port:	shanghai/ningbo;	Momentary:	Latching;
Product name:	Limit Switch;	Protection Level:	IP65;
volt:	250V;	Place of Origin:	Zhejiang China;
Model Number:	ME-8108;	Certificate:	TUV;
Function:	used to solar panel;	Cable Standard:	2.5mm2 4.0mm2 6.0mm2;
Max. Current:	10A;	Color:	black;
Brand Name:	CCQDE;	Gende:	1NO 1MC;
amp:	10A;

General Introduction
LIMIT SWITCHES are installed daily in all types of industrial machinery, in elevators, in the medical or marine sectors, all over in the world, in applications ranging from the heat of deserts to the cold of Iceland. In order to be used in a such wide variety of sectors and countries.

Features:
1. Designed for applications of small mounting space
2. Constructed with Metal based and plastic cover
3. Mechanical movement and electrical line separtes
4. Positive opening mechanism*Improved current carrying capacity to 10A

Technical Specification

Operating Speed	0.5mm~50cm/sec
Operating Frequency	Mechanical:120 operations/min;Electrical:30 operations/min
Contact Resistance	25mΩ max. (initial)
Insulation Resistance	100mΩ min(at 500VDC)
Dielectric Strength	1000VAC, 50/60Hz for 1 min between terminals of the same polarity
	1500VAC, 50/60Hz for 1 min between load currents and no-load currents parts
	1500VAC, 50/60Hz for 1 min between terminal and ground
Vibration	malfunction:10Hz~55Hz, 1.5mm double amplitude
Shock	Mechanical resistance:1000m/s2; malfunction:300m/s2
Ambient Temperature	minus 5ºC~65ºC
Ambient Humidity	<95%RH
Working Life	Mechanical:2107;Electrical:3105
Protection Degree	IP65

Model	Operating Force max	Releasing Force min	Pretravel max	Overtravel min	Movement Differential	Operating Position
LX-ME8104	7.4N(0.75kgf)	0.1N(1kgf)	20°	50°	12°	/
LX-ME8108	7.4N(0.75kgf)	0.1N(1kgf)	20°	50°	12°	/
LX-ME8107	7.4N(0.75kgf)	0.1N(1kgf)	20°	50°	12°	/
LX-ME8111	8.9N(0.9kgf)	1.5N(0.15kgf)	1.5mm	4mm	1mm	26±0.8mm
LX-ME8112/8122	8.9N(0.9kgf)	1.5N(0.15kgf)	1.5mm	4mm	1mm	37±0.8mm
LX-ME8166/8168/ 8169/9101	1.5N(0.15kgf)	/	30mm	/	/	/
