After-sales Service Provided: | Overseas third-party support available; | Brand Name: | XIECHENG; |
Blower: | 215 W; | Controller: | LCD; |
Dew point: | -40 degree; | Weight: | 68 KG; |
Supply Ability: | 500 Set/Sets per Month; | Filter: | withstand high temperature; |
TYPE: | hopper dryer for injection machine; | Condition: | New; |
Warranty: | 1 year; | Certification: | CE; |
Place of Origin: | Guangdong China (Mainland); | Dimensions: | 1000*650*1050 mm; |
Port: | Jiangmen port; | Capacity: | 100 KG; |
Packaging Detail: | standard wooden case or according to customer requirement; | Payment Terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram; |
Voltage: | 380v/3ph/50hz (Customizable); | Heater Power: | 5.5 KW; |

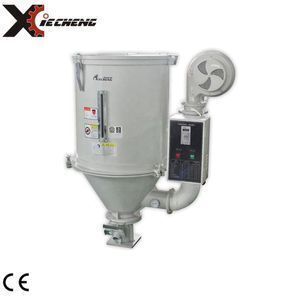

plastic resin hopper dryer
1.Contact parts made of stainless steel.
2.Precisely cast aluminum hull, smooth surface and good performance of maintaining temperature setting
3.Low noise blower, installed air filter with (optional) purity guaranteed
4.Material tank installed with side glass for inspection
5.Curve heating cylinder designed to avoid powder pile,
6.Installed with proportional deviation display thermostat, to control temperature accurately
7.High-temperature type for 50-1500kg available, with double-walled hopper tank, stainless steel heating tube and high-temperature blower
8.Hopper specially designed for easy opening, suitable for all robots

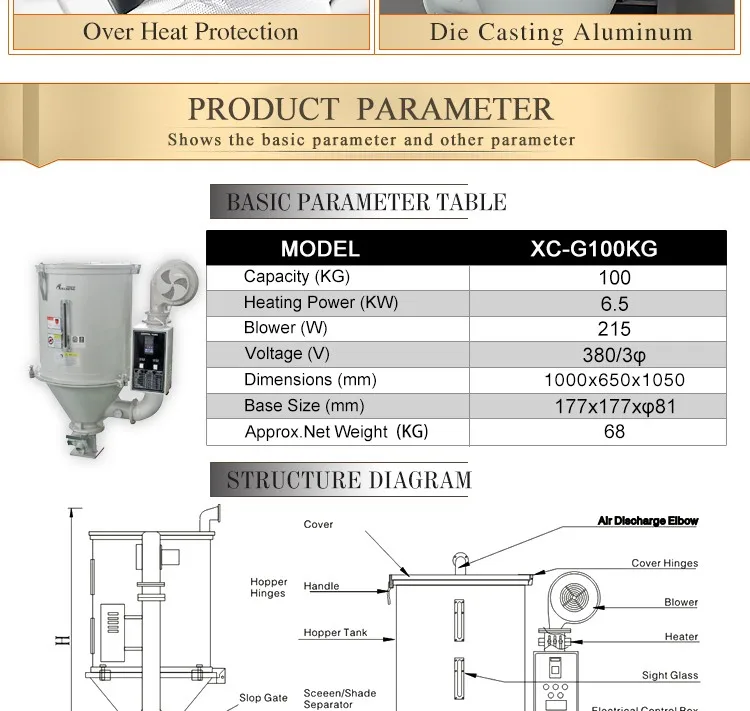

Product specification:
Model | Capacity (Kg) | Heating (Kw) | Blower(W) | Power(V) | Dimension(cm) | Base size(mm) | Net weight(Kg) |
XC-G12KG | 12 | 1.8 | 50 | 220/2p | 64*44*76 | 110*110*p40 | 22 |
XC-G25KG | 25 | 3.5 | 122 | 220/2p | 76*50*104 | 150*150*p73 | 34 |
XC-G50KG | 50 | 4.5 | 135 | 380/3p | 87*54*121 | 160*160*p73 | 45 |
XC-G75KG | 75 | 6.5 | 227 | 380/3p | 94*60*131 | 160*160*p73 | 56 |
XC-G100KG | 100 | 6.5 | 246 | 380*3p | 101*70*141 | 177*177*p81 | 68 |
XC-G150KG | 150 | 9 | 350 | 380*3p | 110*74*162 | 200*200*p83 | 78 |
XC-G200KG | 200 | 12 | 350 | 380*3p | 118*84*176 | 230*230*p114 | 110 |
XC-G300KG | 300 | 15 | 750 | 380*3p | 142*100*188 | 280*280*p120 | 150 |
XC-G400KG | 400 | 15 | 750 | 380*3p | 148*106*202 | 27.5*27.5*p12 | 170 |
XC-G600KG | 600 | 20 | 1100 | 380*3p | 158*116*240 | 280*280*p134 | 280 |
XC-G800KG | 800 | 30 | 2200 | 380*3p | 177*118*254 | 280*280*p135 | 380 |
