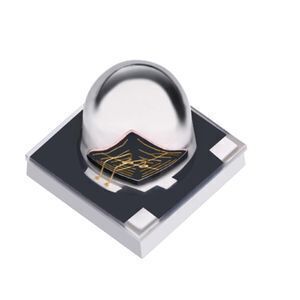

Angle: | 60 / 120 degree; | Max. Forward Voltage: | 1.2-2.6V; |
Max. Reverse Current: | 20uA; | Chip: | Epistar; |
Emitting color: | infrared led; | Max. Forward Current: | 350-700mA; |
Single package size: | 22X22X4 cm; | Available: | 700-1050nm; |
Model Number: | 3535 IR LED; | Brand: | IR LED; |
Warranty: | 2 Years; | Packaging Detail: | 500/PCS; |
Power: | 1-3W; | Chip Size: | 42mil; |
Diode Type: | 3535 LED; | Power - Max: | 3W; |
Brand Name: | HY; | Place of Origin: | Guangdong China; |
Selling Units: | Single item; | Single gross weight: | 0.5 KG; |
Application: | night vision; | Package Type: | Surface Mount; |
Wavelength: | 850nm 870nm 880nm 940nm 980nm; | Type: | LED; |
Max. Reverse Voltage: | 5V; |
Order Code |
Current (mA) |
VF (V) |
Peak Wavelength (nm) |
Radiation Intensity (mW/Sr) |
Radiant Power (mW) |
Angle 60-X1 120-D1 45-S1 |
Half Width (nm) |
---|
HYR35X43B365KN-D1 | 700 | 3.5-4.0 | 365-370 | 375 | 1500-2000 | 120 | 9 |
HYR35X43N380KN-D1 | 700 | 3.0-3.6 | 380-390 | 455 | 1800-2300 | 120 | 10 |
HYR35X43N395KN-D1 | 700 | 3.0-3.6 | 395-405 | 438 | 1700-1900 | 120 | 17 |
HYR35G45N400KN-D1 | 700 | 3.0-3.6 | 395-405 | 355 | 1300-1500 | 120 | 17 |
HYQ35G45N410KN-D1 | 700 | 3.0-3.6 | 410-420 | 346 | 900-1100 | 120 | 17 |
HYQ35G45N420KN-D1 | 700 | 3.0-3.6 | 420-430 | 324 | 900-1000 | 120 | 17 |
HYQ35G45N430KN-D1 | 700 | 3.0-3.6 | 430-440 | 335 | 700-800 | 120 | 19 |
HYQ35R45N450KN-D1 | 700 | 3.0-3.6 | 450-460 | 341 | 700-800 | 120 | 20 |
HYQ35G45P460KN-D1 | 700 | 3.0-3.6 | 460-470 | 281 | 400-500 | 120 | 22 |
HYQ35G45N480KN-D1 | 700 | 3.0-3.6 | 470-490 | 262 | 800-1000 | 120 | 26 |
HYQ35G45P500KN-D1 | 700 | 3.0-3.6 | 495-510 | 235 | 300-400 | 120 | 25 |
HYQ35R45N520KN-D1 | 700 | 3.0-3.6 | 520-530 | 227 | 250-350 | 120 | 30 |
HYQ35G45N530KN-D1 | 700 | 3.0-3.6 | 530-540 | 227 | 250-350 | 120 | 30 |
HYQ35R45P545KN-D1 | 700 | 3.0-3.6 | 540-560 | 227 | 200-300 | 120 | 40 |
HYQ35F45N560KN-D1 | 700 | 3.0-3.6 | 560-570 | 300 | 80-100 | 120 | 40 |
HYQ35E42P590KN-D1 | 700 | 2.0-2.4 | 590-600 | 85 | 100-130 | 120 | 20 |
HYQ35G42N600KN-D1 | 700 | 2.0-2.4 | 600-610 | 187 | 250-350 | 120 | 15 |
HYQ35E42P630KN-D1 | 700 | 2.0-2.4 | 620-640 | 461 | 400-500 | 120 | 15 |
HYQ35E42N660KN-D1 | 700 | 2.0-2.4 | 655-665 | 794 | 600-700 | 120 | 17 |
HYQ35G42N680KN-D1 | 700 | 2.0-2.4 | 670-690 | 774 | 700-800 | 120 | 20 |
HYQ35G42N700AB-D1 | 700 | 1.8-2.4 | 690-710 | 250 | 300-400 | 120 | 22 |
HYQ35E42N730AB-D1 | 1000 | 1.8-2.2 | 720-740 | 600 | 800-1000 | 120 | 22 |
HYQ35L42N760AB-D1 | 700 | 1.6-2.0 | 760-780 | 120 | 500-700 | 120 | 24 |
HYQ35L42N780AB-D1 | 700 | 1.6-2.0 | 780-800 | 430 | 500-700 | 120 | 25 |
HYQ35L42N800AB-D1 | 700 | 1.4-1.8 | 800-820 | 450 | 500-700 | 120 | 32 |
HYQ35G42N820AB-D1 | 700 | 1.6-2.0 | 820-830 | 400 | 500-600 | 120 | 35 |
HYQ35E35N850AB-D1 | 1000 | 1.4-1.8 | 840-860 | 210 | 850-1200 | 120 | 35 |
HYQ35L42N880AB-D1 | 700 | 1.4-1.8 | 870-890 | 130 | 600-800 | 120 | 39 |
HYQ35L42N910AB-D1 | 700 | 1.4-1.8 | 900-920 | 140 | 800-1000 | 120 | 39 |
HYQ35G42N925AB-D1 | 700 | 1.4-1.6 | 915-935 | 350 | 600-800 | 120 | 39 |
HYQ35E42N940AB-D1 | 1000 | 1.2-1.6 | 930-950 | 380 | 900-1100 | 120 | 45 |
HYQ35L42N980AB-D1 | 700 | 1.2-1.6 | 960-980 | 340 | 700-900 | 120 | 52 |
HYQ35L42N1050AB-D1 | 1000 | 1.0-1.4 | 1000-1100 | 100 | 300-400 | 120 | 50 |
HYQ35L14P1350AB-D1 | 50 | 0.5-1.3 | 1300-1400 | 60 | 10-20 | 120 | 80 |
HYQ35L14P1450AB-D1 | 50 | 0.5-1.3 | 1400-1500 | 3 | 10-20 | 120 | 85 |
HYQ35L14P1650AB-D1 | 50 | 0.5-1.3 | 1500-1650 | 3 | 10-20 | 120 | 85 |
