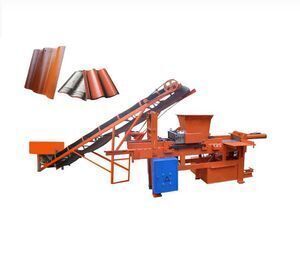

manual concrete roof tile forming machine
-
Supplier: Hangzhou Weixing Building Material Machinery Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Jesse Wang -
Price: $20000.00 /set -
Min. Order: 1 set
| Showroom Location: | None; | Forming speed: | 3-5pcs/min; |
| Supply Ability: | 100 Set/Sets per Week concrete roof tiles forming machine; | Tile size: | customized; |
| Brand Name: | weixing; | Video outgoing-inspection: | Provided; |
| Packaging Detail: | Standard export packaing,20GP for concrete roof tiles forming machine; | Port: | Ningbo/Shanghai; |
| Type: | Tile Forming Machine; | Dimension(L*W*H): | 3100x1600x2600mm; |
| After-sales Service Provided: | Online support,Field installation, commissioning and training; | Machinery Test Report: | Provided; |
| Place of Origin: | Zhejiang China; | Local Service Location: | None; |
| Key Selling Points: | Easy to Operate; | Package Preview: | ; |
| Payment Terms: | L/C,D/P,T/T,Western Union; | Keywords: | concrete roof tiles forming machine; |
| Warranty of core components: | 1 Year; | Tile raw material: | Cement and sand; |
| Operate style: | Hydraulic ststion; | Name: | concrete roof tiles forming machine; |
| Marketing Type: | New Product 2020; | Forming system: | Extrusion; |
| Tile Type: | CONCRETE; | Certification: | ISO9001:2008; |
| Condition: | New; | Production Capacity: | 6-9pcs; |
| Rolling thinckness: | 25mm; | Applicable Industries: | Manufacturing Plant; |
| Feeding width: | 330mm; | Warranty: | 1 Year; |
| Tile shape: | Customized; | After Warranty Service: | Online support,Field maintenance and repair service; |
| Weight: | 4-5tons; | Use: | ROOF; |
| Core Components: | Pressure vessel; | Voltage: | 380v; |

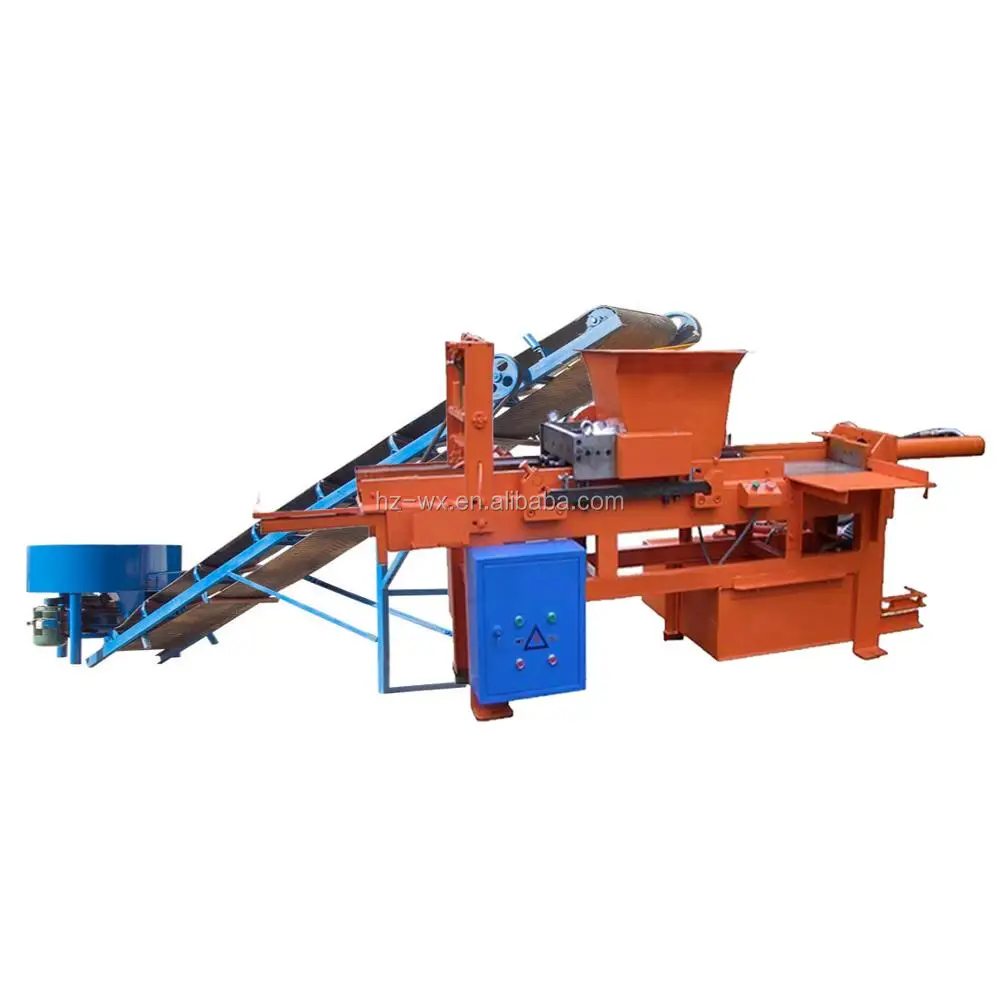

Cement Plain Roof Tile Mould Making Machine
Concrete Tile Making Machine With Good Price SM-X is a automatic cement roof tiles forming machine The machine produces cement roof tiles. It make different shape tiles according to different molds.The tiles is strong anti-seepage water,strong anti-knock. Cement and yellow sand are the raw material of the tile.Tile machine produces tiles fast with high yields.It can produce 5 pieces of tiles each minute.It is the preferred green building.
Technical Parameter
| Technical Parameter: | |
| Item NO.: | SM-X |
| Product's name: | Concrete roof tile machine |
| Forming speed: | 5 pcs/minute |
| Annual production: | 600,000 pcs (8 hours/day) |
| Product Dimension: | 420*330mm |
| Method: | Extrusion |
| Voltage: | 380V |
| Power: | 11KW |
| Materials: | Rolled steel |
| Employee: | 4 persons/group |
| Surface color: | Optional |
| Packaging: | Bulk & Wooden case |
| Minimum order: | One set |
| Delivery time: | 20-30 days after have deposit |
| Cross weight: | About 22,000KG |
| Cube type: | 20 GP/Set |
Basic Scheme
| NO.1 | Name | Quantity | Unit |
|
1 |
SM-X Main machine | 1 | Set |
| 2 | Forming system | 1 | Set |
| 3 | Hydraulic station | 1 | Set |
| 4 | Electric control cabinet | 1 | Set |
| 5 | Raw material mixer | 1 | Piece |
| 6 | Raw material conveyor | 1 | Line |

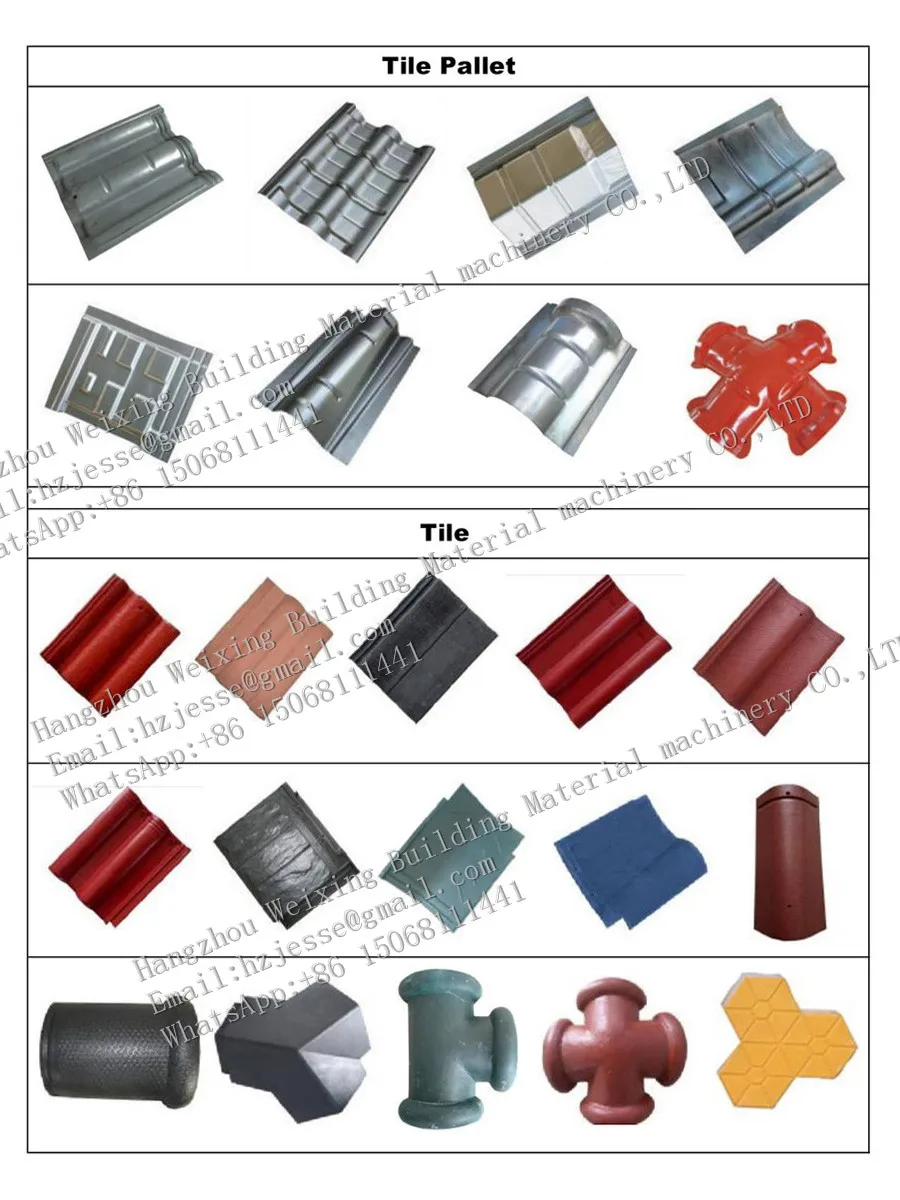

| 7 | Aluminum pallet/Mold | 1000 | Piece |
Auxiliary Machine(customer owned by yourself )
| 1 | Workshop: 600 square meter | 1 space |
| 2 | Tile shelf: 120 pieces/shelf | 100 shelf |
| 3 | Air compressor: W-0.9/7 | 1 Set |
| 4 | Hand pallet truck: 3T | 1 -3 set |
| 5 | Maintenance room: 90 square meter | 1 space |
| 6 | Tile yard: 400 square meter | 1 space |

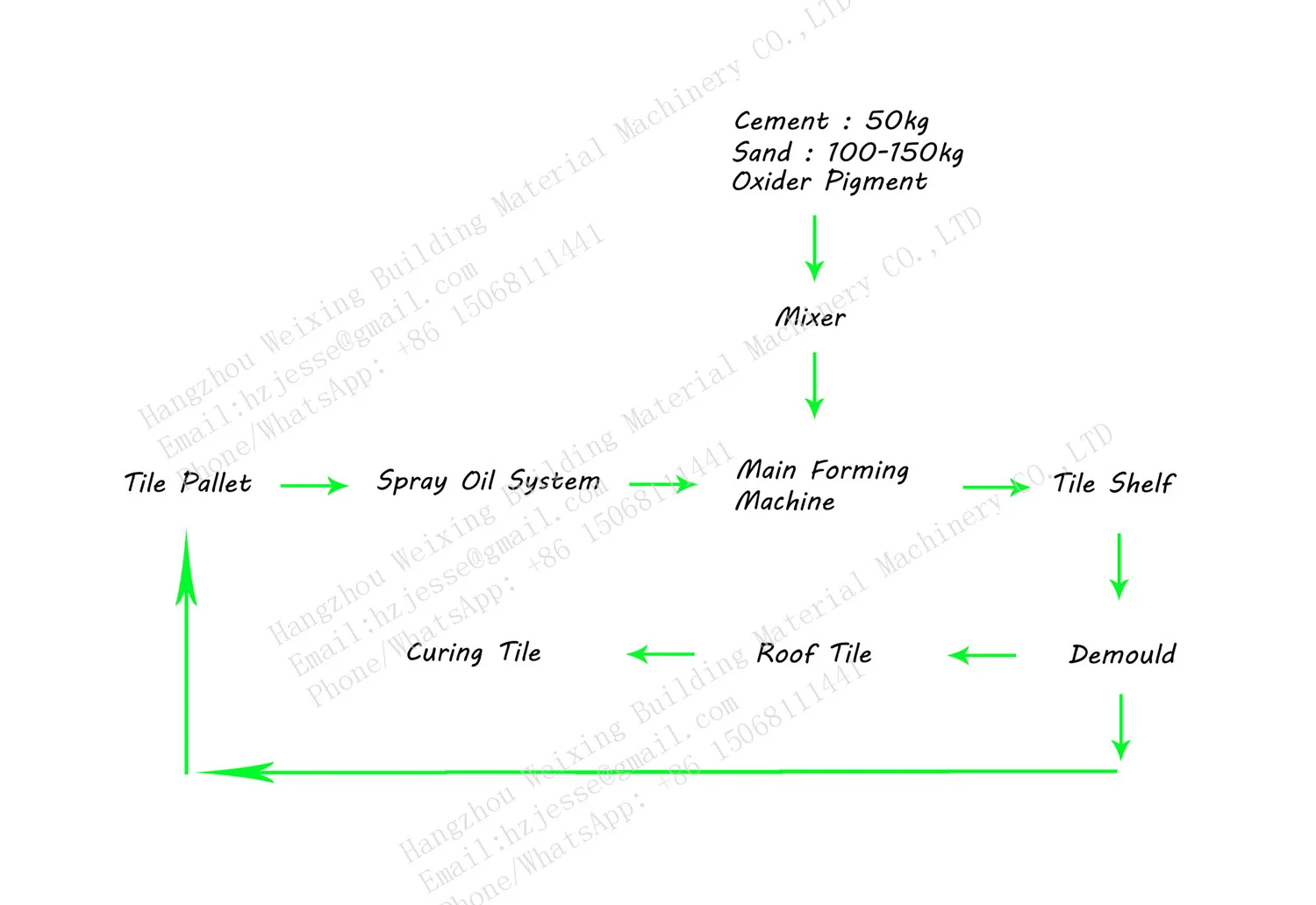

Technological Process
Hangzhou WeiXing Building Materials Machinery Co., Ltd., founded in 1999, is a professional machinery manufacturer speciallized in all series of concrete tile machine(roof tile and floor tile) and block machine , which integrates the research,development,production,sales and after-sale service. Products are under the operational guidance of the China Building Materials Xi'an Wall Materials Research and Design Institute, and State Building Materials &Industrial Wall and Roof Materials Quality Supervision and Testing Center. Products also have passed ISO9001:2015 and SGS authentication.Depend on advanced technology ,excellent quality,and perfect after-sale service, Our concrete roof tuile machine is not only one of the be set in the domestic market, but also sold to Twaiwan,Japan,Vietnam,Indonesia,Cambodia,India,Libya,Mozambique,Botswana ,South africa ,Zimbabwe,and other more than thirty countries.
We are not only a factory for concrete roof tile machine ,we also have ourself cocnrete roof tile factory ,so we are professional than others,many trading company buy machine from us ,We have ourself engineers ,they can go to clients' place to install machine and traing .
Welcome customers to visit our company and do business.

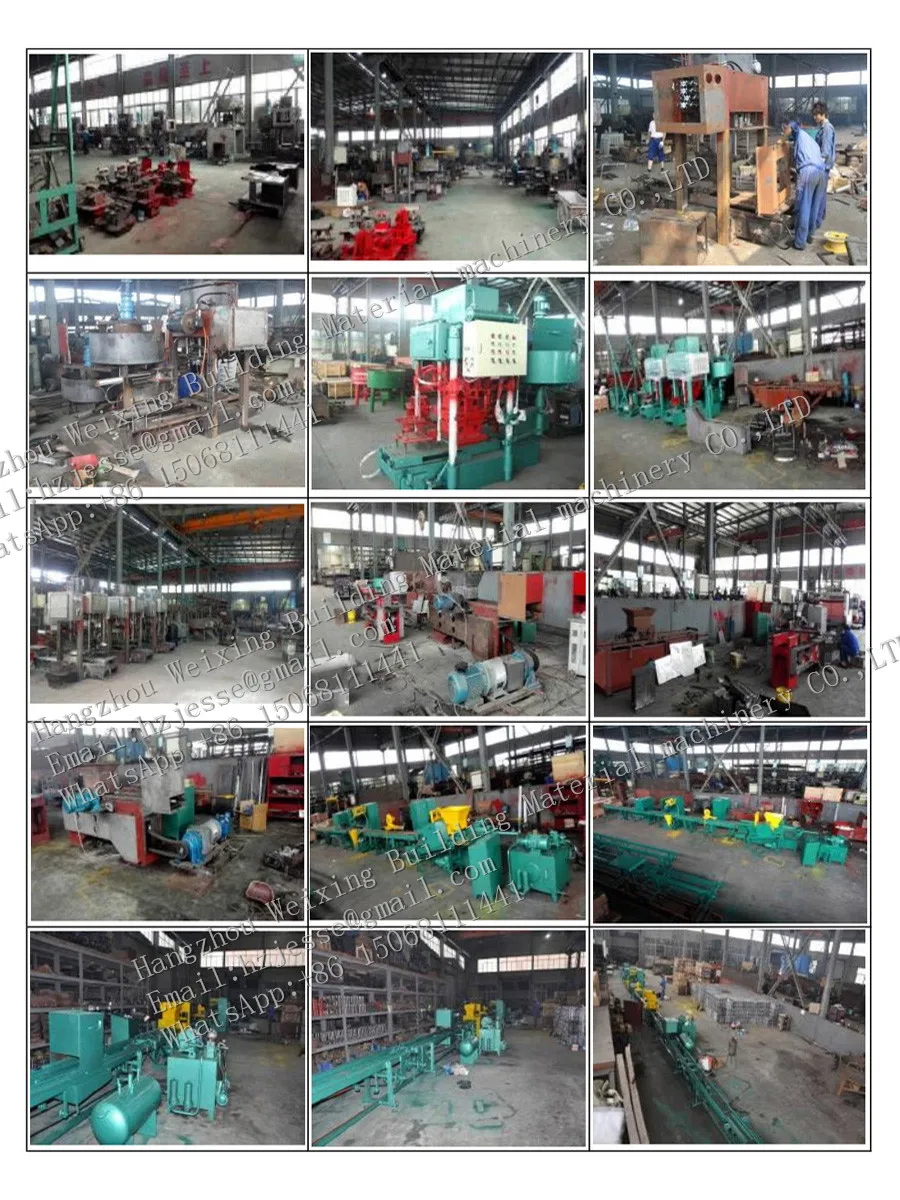

Factory & Workshop Pictures
-
