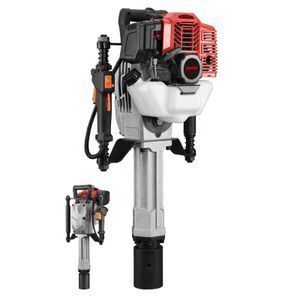

JH-70 gasoline post driver pile driver

Product details
After Warranty Service:Video technical support;Dimension(L*W*H):74*28.3*36cm;
Local Service Location:None;Marketing Type:Ordinary Product;
Color:Red;Piling Speed(m/min):1-2;
Condition:New;Port:for NingBo and ShangHai;
Fuel capacity:1.3L;UNIQUE SELLING POINT:High operating efficiency;
Packaging Detail:kraft-paper box and foam;Payment Terms:L/C,D/A,D/P,T/T;
Application:Pilling;Efficiency:high;
Showroom Location:None;Core Components:Engine,Bearing,Gearbox,Gear;
Applicable Industries:Garment Shops,Building Material Shops,Machinery Repair Shops,Manufacturing Plant,Farms,Home Use,Construction works ,Energy & Mining;Video outgoing-inspection:Provided;
Fuel consumotion rate:0.6L/h;Model:JH-70;
Displacement:52cc;After-sales Service Provided:Video technical support,Online support;
Weight:16.8;Max torque and speed:3.5N.m/5000r/min;
Max. power and speed:1900W/6500r/min;Name:gasoline pile driver;
Supply Ability:500 Set/Sets per Month;Machinery Test Report:Not Available;
Certification:ce,gs,epa;Warranty:1 Year;
Brand Name:JiaHao;Warranty of core components:1 Year;
Place of Origin:Zhejiang China;
Product Description

   JH60 pile driver, this model is very popular, it can easily put the wood or steel pipe on the ground.
Specification Accessories
Engine Type:36*32mm, Single cylinder,
air cooling, 2 stroke
Displacement:33cc
Fuel:mixed oil (25 gasoline:1 motor oil)
"Fuel Tank Capacity: " 1L
Max power and speed: 1000W/7000r/min
Max torque and speed: 1.45N.m/5300r/min
Fuel Consumption Rate: ≤0.5L/h
Impact Frequency: 800-2800BPM
Impact Energy: 25-45J
Carburetor type: MZ15-048
Spark plug type: TORCH BM6A
Starter system: Hand pull start
Piling head size: 50
QTY/CTN: 1
Inner box: Foam box
Packing size: 73.5*42.5*32.5cm
N.W/G.W: 16.8KG/23.3kg
Two Socket Sleeves: 55 & 70
Oil hole wrench:1pc Propotioning pot:1pc priming funnel:1pc Tool bag (4,5,6 socket head wrench , screwdriver sleeve ,spark plug socket ,srewdriver , 8-10 non-adjustable wrench ,strainer ) grease:1pc

JH70 pile driver: new design ,power is high, can pile driver.

Specification Accessories
Engine Type: 44*34 single cylinder, air cooling, two-stroke"
Fuel: "oil mixture(gasoline:stoke motor oil=25:1)"
Fuel capacity: 1.3L
Displacement: 52cc
Max. power and speed: 1900W/6500r/min
Max torque and speed: 3.5N.m/5000r/min
Fuel consumotion rate: 0.6L/h
Impact frequency: 1500BPM
Impact energy: 20-55J
Starter system: Hand pull start
Carburetor type: MZ15-048
Spark plug type: TORCH BM6A
QTY/CTN: 1
Inner box: Foam box
N.W:19.12kg Packing size: 74*39.5*33.5CM
Two Socket Sleeves: 55 & 70
Oil hole wrench:1pc Propotioning pot:1pc priming funnel:1pc Tool bag (4,5,6 socket head wrench , screwdriver sleeve ,spark plug socket ,srewdriver , 8-10 non-adjustable wrench ,strainer ) grease:1pc

JH-68, can pile driver, easily put the wood or steel pipe on the ground, the machine is light, small, easy to handle on.

Specification Accessories
Engine Type:36*32mm, Single cylinder,
air cooling, 2 stroke
Displacement:32.6cc
Fuel:mixed oil (25 gasoline:1 motor oil)
"Fuel Tank Capacity: 0.9L
Max power and speed: 1.2kW/8500r/min
Fuel Consumption Rate: ≤0.5L/h
Impact Frequency: 1300-2800r/min
Impact Energy: 20-45J
Piling head size: 50,70
machine weight: 13kg
Two Socket Sleeves: 55 & 70
Oil hole wrench:1pc Propotioning pot:1pc priming funnel:1pc Tool bag (4,5,6 socket head wrench , screwdriver sleeve ,spark plug socket ,srewdriver , 8-10 non-adjustable wrench ,strainer ) grease:1pc


Company profile

We are the manufacturer in Yongkang, mainly do demolition hammer, rotary hammer, gasoline products.

Gasoline series include gasoline hammer, pile driver, angle grinder, core drill, tree mover and ground drill.



More than 80% spare parts are made by ourselves, such as chisel, iron head, aluminum parts, cylinder, motor and plastic parts.



We mainly do medium and high quality level, we have CE,GS, EMC,ROHS,BSCI certificate for EUROPE market.

We export to America,South America(Peru+Chile+Argentina+Mexico),Austria, Dubai, Middle East, Russia, Ukraine and Europe Market.
