Product name: | graphite cnc milling machine; | Motor: | Stepper Motor; |
Weight: | 150KG; | Certification: | CE; |
Package Preview: | https://sc02.alicdn.com/kf/HTB1r8taaiYrK1Rjy0Fdq6ACvVXam.jpg_640x640.jpg; | Spindle power: | 2.2 KW Water Cooling Spindle; |
Working area: | 600mm*900mm*110mm; | Selling Units: | Single item; |
Machine Type: | Engraving Machine / CNC Router; | Condition: | New; |
Max Working Speed: | 8000mm/min; | Power(W): | 2200W; |
Brand Name: | JFT; | Spindle speed: | 24000rpm/min; |
Production Capacity: | 100%; | Warranty: | 1 Year; |
After-sales Service Provided: | Video technical support; | Transmission: | Taiwan TBI Ball Screw; |
Control system: | Mach3; | Delivery Detail: | 0 days after payment; |
Application: | glass/metal/jade; | Voltage: | 220V/110V; |
Place of Origin: | Guangdong China (Mainland); | Single package size: | 125X90X64 cm; |
Interface: | USB 2.0; | Dimension(L*W*H): | 1250*900*640mm(L*W*H); |
Single gross weight: | 150 KG; | Package Type: | Normal package: wooden case with full foam protection.; |
Model | Upgraded CNC6090Z-A2200W |
Dimension | 1250*900*640mm(L*W*H) |
worktable dimensions | 1150*720*20mm(L*W*T) |
Working area | 600mm*900mm*110mm |
Frame material | The machine is 6061 aluminum. Panel is 6063 aluminum. |
Type of Screw | TBI SFU1605 ball Screw |
Rail type | Chrome plate shaft + Linear Bearings(surface hardening 61 HRC) |
Acceptable material thickness | ≤150mm |
Spindle Motor(rated voltage) | 2200W(600HZ 2200WVFD) |
Cooling mode | Double water pump circulation cooling automatic spray cutting system (including water pump) |
Control system | Mach3 LPT / USB port |
Collet type | ER20 6mm and 1/8” collet |
Stepper motor | 57 type,100 length, high torque, 4.2A heavy current |
Max. working speed | 8000mm/min(engraving speed: 50-7500mm/min) |
Repeat positioning | Less than or equal to 0.02mm |
Carving accuracy | 0.02mm |
Spindle speed | 24000rpm/min |
Command code | G Code (tap, nc, ncc, text) |
Input voltage | AC220V/AC110V |
Package size | 122*86*43cm(L*W*H) |
Package weight | 150Kg |
Packing | Wooden case |
5axis parameters | ||
Reduction ratio | 6:01 | |
Chuck | 100 Chuck can clamp 100mm inner diameter subject or square stock machining. | |
Center height | 98mm | |
Dimension | 450*150*160mm | |
System | Mach3 | |
Net weight | 13KG | |
Package weight | 15KG |

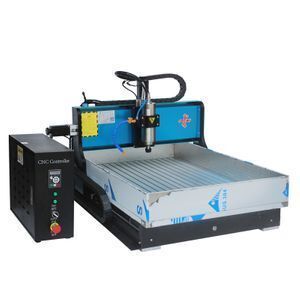

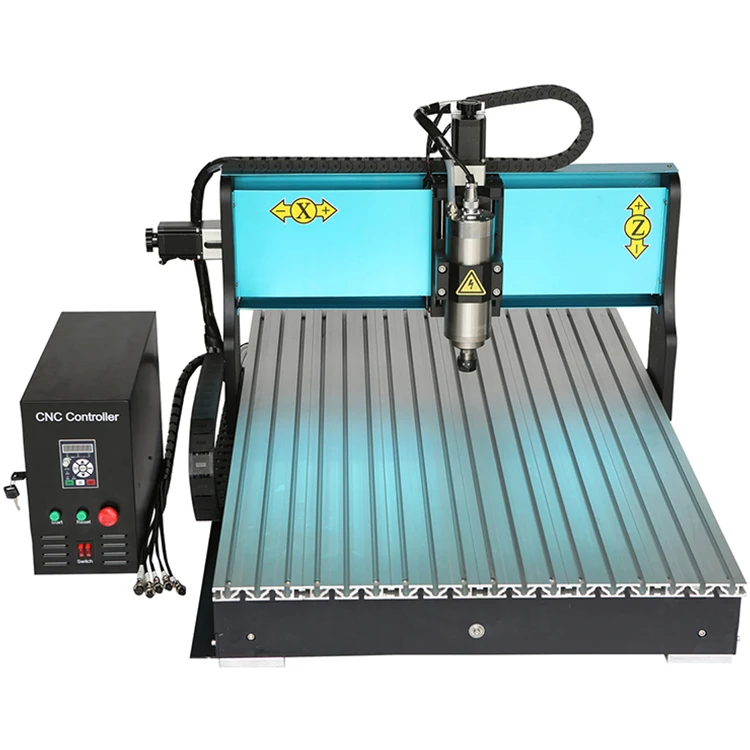

Product display
Carving sample
Certificate
