Use: | ROOF; | Video outgoing-inspection: | Provided; |
Condition: | New; | Local Service Location: | None; |
Speed: | 10-20m/min; | After-sales Service Provided: | Engineers available to service machinery overseas; |
Tile Type: | Steel; | Products: | roof sheet roll forming machine; |
Rolling thinckness: | 0.3-0.8mm; | Place of Origin: | Hebei China; |
Dimension(L*W*H): | 7.5*1.5*1.6M; | Material: | Pre-printed steel coil,galvanized coil,Aluminum coil; |
Type: | Tile Forming Machine; | Supply Ability: | 200 Set/Sets per Year; |
Applicable Industries: | Building Material Shops,Construction works ; | Control mode: | PLS control system; |
Core Components: | Motor,PLC; | Rollers: | 14 rows; |
Brand Name: | YY; | Key Selling Points: | Automatic; |
Production Capacity: | 15-20m/min; | Weight: | 4T; |
Marketing Type: | Hot Product 2019; | Voltage: | According to the customer request; |
Machinery Test Report: | Provided; | Port: | TIANJIN; |
Power: | 4kw; | Showroom Location: | None; |
Feeding width: | 1220mm; | Warranty: | 12 months; |
Cutting mode: | Hydraulic; | Packaging Detail: | NUDE; |
Payment Terms: | L/C,T/T,MoneyGram; | After Warranty Service: | Online support; |
Thickness: | 0.3-1mm; | Warranty of core components: | 1 Year; |
Certification: | CE/ISO; | Material of the cutting blade: | CR12; |

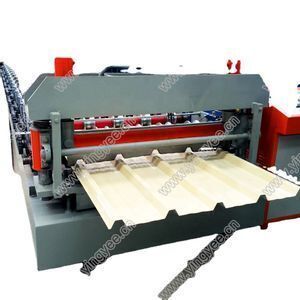

IBR roof sheet roll forming machine /PLC control/hydrailic cutting /fast speed
Specification:
Item NO |
Description |
Offered specification |
1.0 |
Roll forming machine |
Roof sheet |
1.1 |
Rolling speed |
15-20m/min |
1.2 |
Rolling thickness |
0.25-0.8mm |
1.3 |
Raw material |
Galvanized steel sheet & pre-painted steel sheet up to 550mpa |
1.4 |
Control system |
PLC & Transducer(Mitsubishi ) |
1.6 |
dimension |
11000×1500×1500(mm) |
1.7 |
The material width |
1220mm |
1.8 |
Effective width |
1000mm |
1.9 |
Roller stations |
12-20 stations |
1.10 |
Roller material |
45#forge steel, coated with chrome |
1.11 |
Shaft diameter |
φ75mm ,material is 45# forge steel |
1.12 |
Transmission |
By chain |
1.13 |
Material of chain |
45# forged steel with frequency quenching, 16A |
1.14 |
Maim motor power |
7.5kw |
1.15 |
Hydraulic station power |
3.0kw |
1.16 |
Hydraulic pressure |
12Mpa |
1.17 |
Material of cutting |
Cr12Mov with quench HRC58-62° |
1.18 |
Tolerance |
10m+-2mm |
1.19 |
Electric source |
415 volts, 3 phase and 50 Hz or at buyer’s request |
1.20 |
Frame |
350mmX175mm H type steel |
1.21 |
Color of the machine |
According customer’s requirements dark green |
1.22 |
Container need |
1 x40 feet( machine will be fixed by string in the container) |
Shijiazhuang Yingyee Import&Export Co., Ltd.
YINGYEE is the manufacturer specialized in various cold forming machineries and automatic product on lines. We have a wonderful team with highly technology and excellent sales, which offer professional products and related service. We paid attention to quantity and after service, got great feedbackand honor from all the clients. We have a great team for after service. We have sent several patchafter service team to oversea to finish the products installation and
adjustment.
Our products were sold to more than 20 countries already. Also included US and Germany.
Main product :
Installation and training:
Welcome to contact us , we are sure you will get good machine quality and best service. Hope to cooperate with you!
