Other Processing Type and Plastic Sheet Product Type PVC calender machine

Supplier: Kunshan Hexin Precise Machinery Co., Ltd.
Region: Jiangsu, China
Contact: Mr xin He
Price: $70000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Key word:	Other Processing Type and Plastic PVC calender machine;	Voltage:	380V;
Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;	Packaging Detail:	Plywood case;
Supply Ability:	20 Set/Sets per Month;	Place of Origin:	Jiangsu China;
Warranty of core components:	1 Year;	Port:	Shanghai;
Showroom Location:	Nigeria,Australia;	Machinery Test Report:	Provided;
Video outgoing-inspection:	Provided;	Dimension(LWH):	20507501600mm;
Key Selling Points:	Automatic;	Power:	3kw;
Brand Name:	Hexin;	Type:	Graphite film;
Rollers numbers:	two;	Marketing Type:	New Product 2020;
Roller Speed:	0-12.5m/min;	Local Service Location:	Argentina,Algeria,Ukraine,Canada,United States,France;
Core Components:	Gearbox,Motor;	Certification:	CE ISO;
Applicable Industries:	Hotels,Garment Shops,Building Material Shops,Manufacturing Plant,Machinery Repair Shops,Food & Beverage Factory,Farms,Restaurant,Home Use,Retail,Food Shop,Printing Shops,Construction works ,Energy & Mining,Food & Beverage Shops,Advertising Company;	Weight (KG):	4600;
Condition:	New;	Maximum roll spacing:	2mm;
roller working diameter:	400mm;	After-sales Service Provided:	Engineers available to service machinery overseas;
Precision:	±1 micron;	Year:	2020;
After Warranty Service:	Online support;	Pressure:	10T-15T;
Warranty:	One Year;

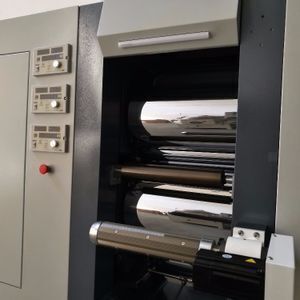

Other Processing Type and Plastic Sheet Product Type PVC Calender Machine

Every machine functions , configurations, size,efficiency are different,we can supply you the detail solutions for graphite film production.

These pictures and datas are only for reference.

Technical Parameters

Model	HX-400Y
Vlotage	220v/380/415v
Power	3kw
max.working width	350mm
Roller number	2 rollers
Speed	0-12.5m/min
Thinkness:	0-2mm
Precision	±1 micron
Weight	4500kg
Mainframe size	20507501600mm

Specification

Machine width:400mm

Max unwinding O.D:400mm

Pay-off core I.D: 3 inches

Max roller distance: 2mm

Min product thickness:0.1mm

Max speed:12.5m/min

Product accuracy tolerance:+/-1 micron

Machine Features

1. P5 Imported Japan brand bearings

2.Good quality of rollers ,0.02-0.08 micron

3.High assembly accuracy

4. Feeding control system: Using magnetic powder brake with tension controller, implementing automatic tension control and less labor

5.Host transmission part: Using AC frequency conversion motor with VVVF inverter as calender power transmission, each roller speed controlled independently to adapt efficient production of different thickness material and ensure quality of product.

6 Automatic meter counting device: Adopting automatic meter counting device, and making two sections of length, precisely control rolling length.

7.Basic feeding form: Integral feeding base, convenient operation, small space covering.

8.Can be customized.

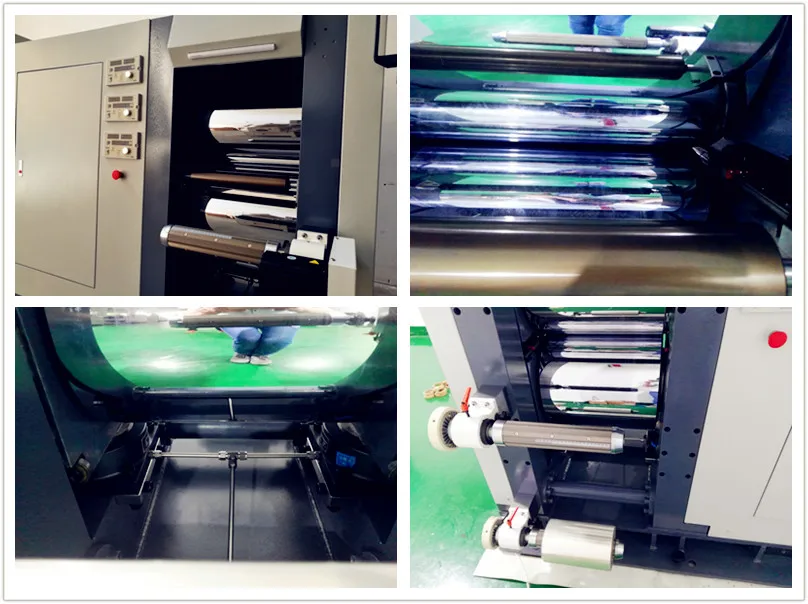

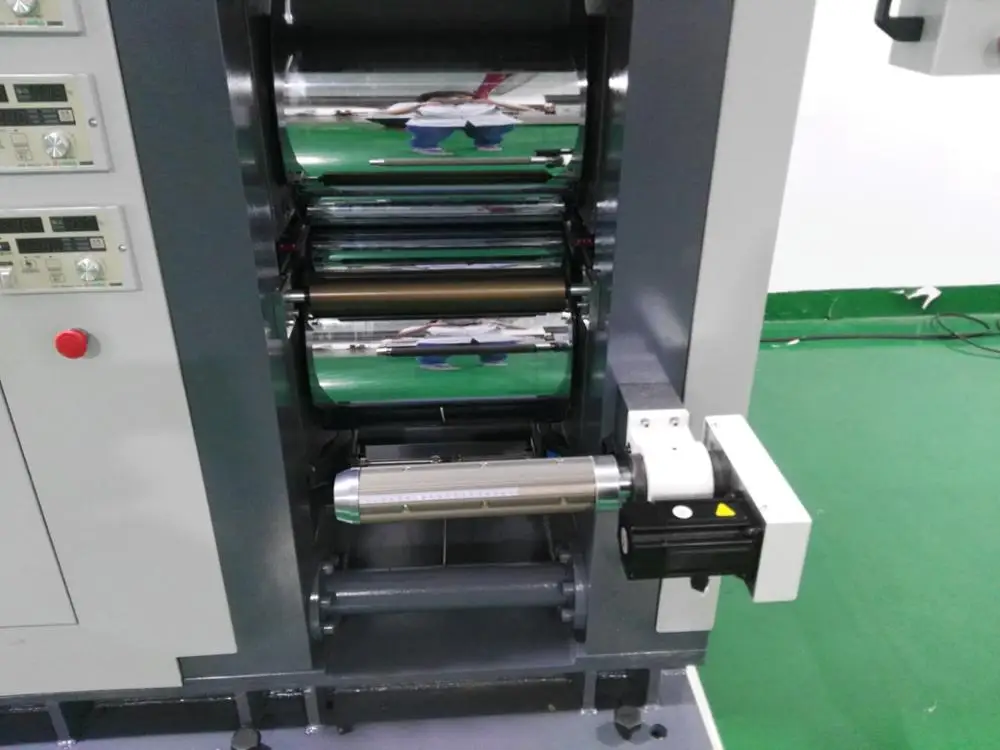

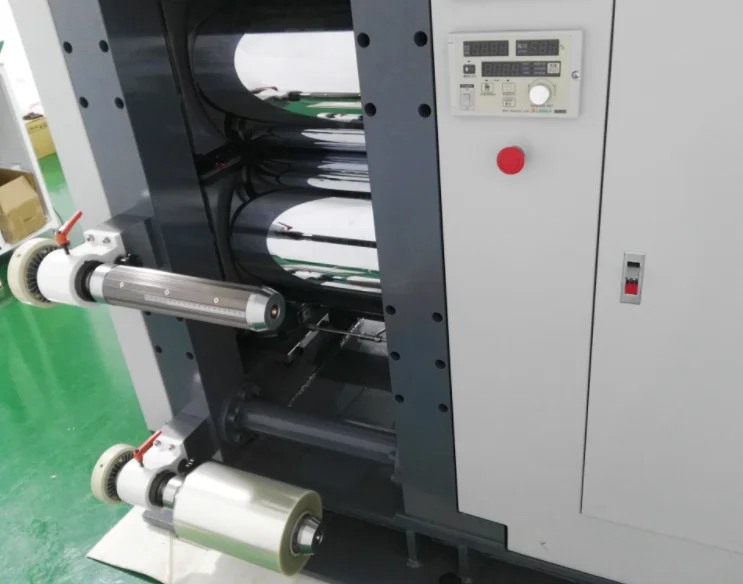

Product Description

Samples Application

Why Choose Use

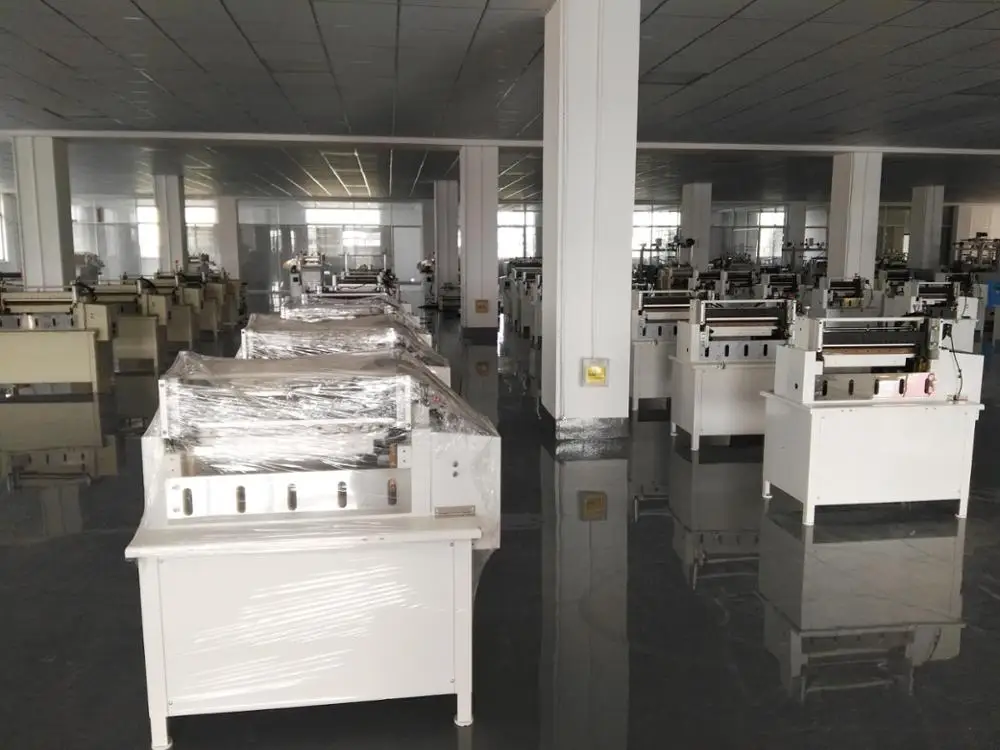

Trusted Company

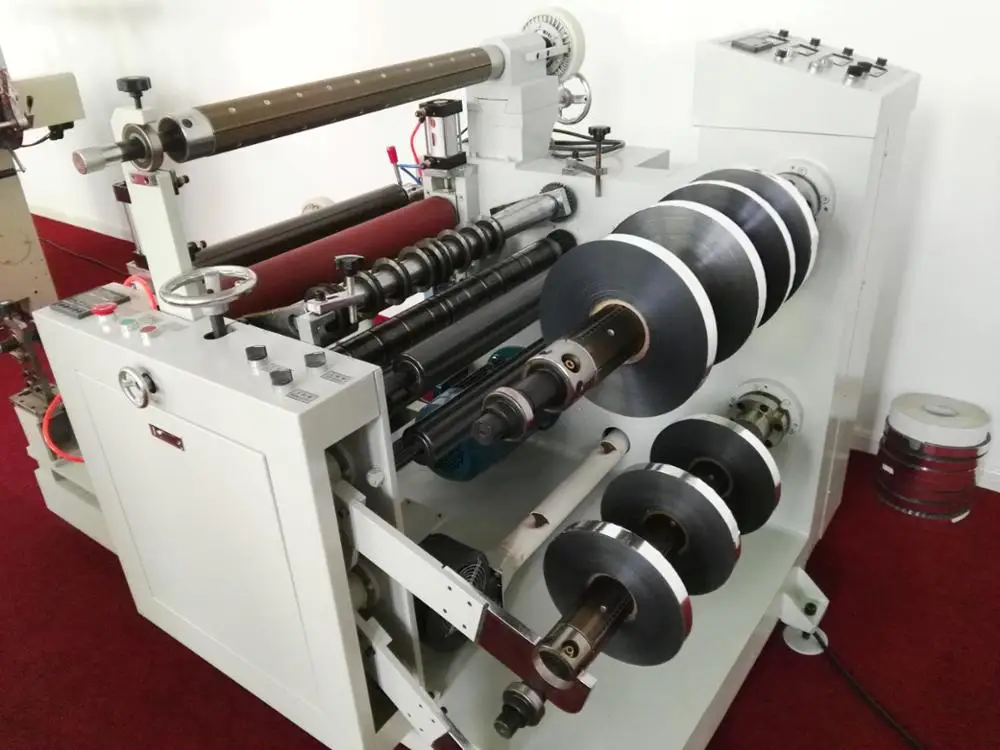

Kunshan Hexin Precision Company Co.ltd is a collection of produciton,research and development, sales and service as one fo professional electronic machinery manufacturing enterprises. We specialized in microcomputer slicing machines, cutting machines, slitting machines, laminating machines and die-cuting machines for many years. Our company have obtained 11 paternts patents and passed the SGS factory qualification ceritficaiton adn the European Union CE certification. In 2013, we have got "national high-tech enterprise/" Our products are exported to Europe, America, Southeast Asia, the Middle East, Singapore, India,Thailand agents at abroad, our products enjoy a good reputaiton at domestic and international market.
