Liyi 10 - 200 Ton UTM Hydraulic Universal Tensile Testing Machine

Product details
Place of Origin:Guangdong China;Maximum tensile test space:580mm;
Warranty:1 Year,12 months;Maximum compression test space:500mm;
Brand Name:Liyi;Port:Shenzhen,guangzhou,hongkong;
Clamping method:Hydraulic clamping;Supply Ability:100 Set/Sets per Month;
Payment Terms:L/C,Western Union,D/P,D/A,T/T,MoneyGram;Power supply:220V 50Hz;
Packaging Detail:1.First packed with stretch film to keep it clean, 2.Then use paper angle bead to make it safe, 3.Next use bubble bag to make double protect, 4.Last packed it with fumigation wooden case.;Certificate:CE ISO;
Standard:ASTM ISO EN JS;Customized support:OEM,ODM,OBM;
Motor Power:2.3KW;Power:Electronic;
Package Preview:;Color:Customer Required;
Certification:ISO,CE;Force capacity:1000KN;

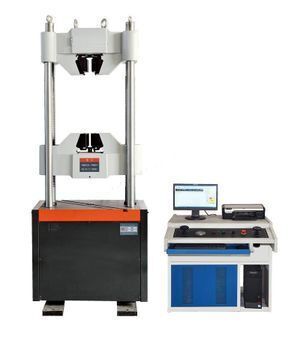

Liyi 10 - 200 Ton UTM Hydraulic Universal Tensile Testing Machine

Product Description

     1. Liyi hydraulic universal testing machine is mainly used to execute the tension, compression, bending, shearing etc. Test for metal materials. Attached simple accessories and devices, it can be used to achieve many kinds of mechanical performances.

     2. The oil cylinder is at the bottom of the load frame, tension space is at the upside of the load frame, compression and bending space is between lower cross head and working table. The lower cross head is driven by motor through decelerator, chain transmission device and screw pair, so realize the adjustment of testing space.
     3. Liyi hydraulic universal testing machine adopts Load cell measure load, use computer control & display load.

Specifications



Max load(kN)   300 600 1000 2000
Test range   6KN-300kN 12KN-600kN 20KN-1000kN 40KN-2000kN
Test force accuracy   ±1%
Displacement resolution   0.01mm
Deformation test accuracy   ±0.5%
Constant force/ displacement controlling accuracy
SV<10%FS, less than ±1.0% of SV
SV≥10%FS, less than ±0.5% of SV
Deformation rate control accuracy
Rate <0.05%FS, less than ±2.0% of SV
Rate ≥0.05%FS, less than ±0.5% of SV
Max drawing space   800mm 800mm 850mm 800mm
Max compressing space   700mm 700mm 700mm 700mm
Flat sample clamp thickness   0-15mm 0-15mm 0-40mm 0-60mm
Round sample clamp diameter   φ6-φ26mm φ13-φ40mm φ13-φ60mm φ13-φ70mm
Bending test branch space   450 mm
Branch width   140mm
Branch diameter   30mm
Piston Stroke   250mm

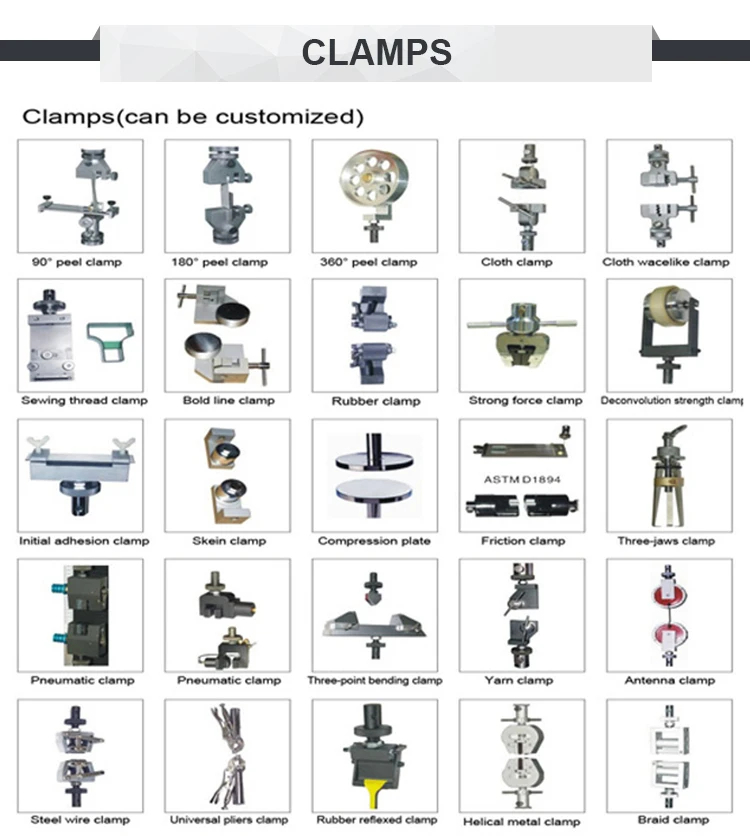

Clamp method   Built-in Hydraulic clamp

Outer demension(mm)

  990×600×2435 990×600×2453 1100×770×2490
1160×1100× 2600
Oil   1100×700×950mm
Complete weight   2800kg 3000kg 4700kg 6500kg
Product Effects



More Options

Company Information

     Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

     Our company mainly produce simulated environmental tester, plastic and rubber tester etc. on all kinds of materials testing industries. The production base is located in the country’s manufacturing center Dongguan, Guangdong province, China. In order to service our customers better in terms of reducing costs and early delivery, in 2005 we had set up an office in Kunshan, Jiangsu province for Eastern China marketing and servicing.

     Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

     Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.

FAQ

Q: Are your company a trading one or a factory ?

     A: We have our own factory and we have also register a trading company for more options (in order to make the business more simple) for more than 18 years focusing on test instruments field and 15 years exporting experience. As one of the toppest supplier in Dongguan, OEM/ODM is warmly welcome from all of you as long as you confirm us with your requirement.



Q: How to choose the most suitable products?

     A: Our professional team will give you the best suggestion as long as you tell us what kind of test you need to do and the required specification.



Q: What's the delivery term?

     A: At most of time, we have stock in the factory. If there is no stock, normally, the delivery time is 15-20 working days after deposit receipt. If you are in urgent need, we can consider making special arrangement for you.



Q: Do you accept customization service?

     A: Yes, of course, we can not only offer standard machines, but also customized machines according to your request. Don't hesitate to tell us your requirement, we will do our best to meet your needs.



Q: Can we visit your factory before order?

     A: Yes, we warmly welcome and sincerely invite you and your team to visit our factory, we will help to arrange hotel and pick up you from airport.



Q: How about your warranty?

     A: Generally, our warranty is one year. Within the warranty period, we can offer technique support and part parts change, if it's necessary, our engineers may go to your place for better service.



Q: What is the order process?

     A: Get Inquiry - Send the Quotation - Confirm the requirements - Order confirming - Payment - production - testing and debugging- packing - Confirm with customer about the necessary documents- Arrangement the Delivery - Send the product out - Customer Receiving - After Service.



Q: How to install and use the product?

     A:About the machine you grt from us, we will send you an operation video to teach you how to install and use the product with English speaking. However, if you need us to teach you face to face, please let us know in advance.
