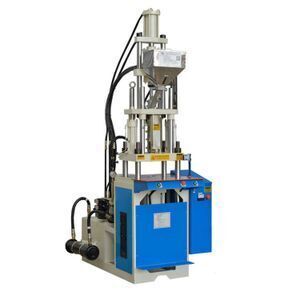

Liyi Vertical PVC Plastic Injection Molding Machine

Supplier: Dongguan Liyi Environmental Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Vickey Jin
Price: $3290.00 /set
Min. Order: 1 set

Click here to contact

Product details

Injection Weight (g):	3;	Video outgoing-inspection:	Provided;
Power (kW):	2.3;	Screw Speed Max:	0-205rpm;
Injection Rate (g/s):	57;	Screw diameter (mm):	30;
Machine dimension(LWH):	1.41.052.3m;	Plastic Processed:	PP,PC,ABS,PET,PVC,FRPP/PVC,PPR,EVA,HDPE,MLLDPE,EPS,PA,Polystyrene,PE,LDPE,EVOH,HDPE/PP,ABS/PP,PE/PP,Polylactic Acid;
Showroom Location:	None;	Color:	Customers' Request;
Motor power:	3.75/5HP;	Used for:	PE PET PVC;
Key Selling Points:	High Safety Level;	After Warranty Service:	Video technical support,Online support,Field maintenance and repair service;
Port:	Shenzhen,guangzhou,hongkong;	Applicable Industries:	Manufacturing Plant,Injection Molding Machine;
Package Preview:	;	Warranty of core components:	1 Year;
Machinery Test Report:	Provided;	Warranty:	1 Year;
Type:	Injection Blow Molding;	Model Number:	LY-250ST-D;
Weight (KG):	900;	Screw Diameter:	26mm,28mm,30mm;
Theoretical Shot Volume(cm³):	74;	Application:	Inserting Plastic Products;
Brand Name:	Liyi;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Ceritifications:	CE,ISO9001:2015;	Machine Type:	Hydraulic;
Ejector Force(kN):	30;	Style:	VERTICAL;
Supply Ability:	100 Set/Sets per Month;	Condition:	New;
Packaging Detail:	Standard export wooden package;	Local Service Location:	None;
Keyword:	Injection molding machine;	Ejector Stroke(mm):	215;
Core Components:	Gear,Screw;	Machine weight:	1050kg;
Place of Origin:	Guangdong China;	Marketing Type:	New Product 2020;
Open Stroke(mm):	215;

Liyi Vertical PVC Plastic Injection Molding Machine

Product Description

Features:

1.Vertical mold opening and vertical injection, suitable for insert molding.

2, Nitrided mast, material tube, high torque night pressure motor drive, multi-stage injection pressure, good plasticizing performance.

3, Direct pressure mother-mother lock cylinder design, rapid mold clamping, low-pressure safety mold clamping, abnormal automatic mold opening, multiple pressure control, high safety, improve mold life.

4, Electrical warranty device, no mistakes occur, maintenance operators safe.

5, Automatic fault display, maintenance is quick and easy.

6, Electronic control, night pressure face using brand-name parts, quiet, precise and durable.

7, Multi-stage temperature control, multi-stage injection pressure, injection speed, back pressure stepless adjustment, suitable for precision plastic parts molding.

Specifications

MODEL	UNIT	LY-250ST-D
Screw Diameter	Mm	26	28	30
Injection Pressure	kg/cm²	1530	1278	886
Theoretical Shot Volume	cm³	61	70.8	81
Max.Shot Weight(ps)	g	56	64	74
Safe Shot Weight(ps)	OZ	2	2.27	2.6
Max.Shot Weight(ps)	cm³/sec	57	66	75.5
Injection Rate	mm	115
Screw Speed Max.	rpm	0-205
Nozzle Comtact Force	Tons	4.45
Nozzle Retraction Stroke	mm	170
Number of Temperature Control		3
Clamping Force	Tons	35
Platen Size	mm	540*380
Distance between tie bere	mm	375*205
Min.Mold Height	mm	158/58
Opening Stroke	mm	180
Max.Open Daylight	mm	338/238
Ejetor Force	Tons	1.3
Ejetor Stoke	mm	35
Max.Hydaulic Pressure	kg/cm²	140
Pump Output	l/min	34.5
Oil Resservoir Capacity	l	100
Cooling Waer Consumption	l/hr	400-600
Pump Motor Power	KW/HP	3.75/5.5HP
Berrel Heating Power	KW	2.4
Total Electricity	KW	6.3
Packing Weight	Kg	1150kg
Packing size(LxWxH)	m	1.451.152.26

Product Effects

Company Information

Dongguan Liyi Environmental Technology Co., Ltd is a high technology supported production-oriented enterprise who specializes in developing, manufacturing, marketing all kinds of environmental equipment. Our company has advanced technology, experienced technical management personnel and efficient professional service staffs, fine quality management and perfect after-sales service system.

Liyi deals with customers from more than 150 countries and regions. Meanwhile, we are committed to cooperate with different dealers in different countries and regions in order to offer better service. Our mission is to help every customers establish testing labs to ensure the quality of their products.

Our company will continue to develop, innovate and keep faith. We combine with the international testing standards and the specific demands of customers that may establish a new banner in Chinese testing industry.

Our Services

During the whole business process, we offer Consultative Selling service.

1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms	FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency	USD, EUR, HKD, CNY
Accepted Payment Type	T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port	Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing. Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
