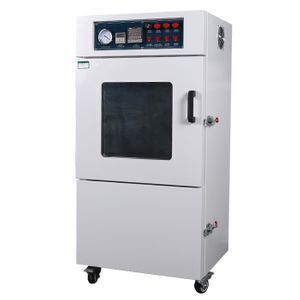

Liyi 20L, 50L, 90L, 210L, and 430L lab vacuum programmable drying oven

Supplier: Dongguan Liyi Environmental Technology Co., Ltd.
Region: Guangdong, China
Contact: Ms Vickey Jin
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Material:	304 steel;	Port:	Shenzhen,guangzhou,hongkong;
Voltage:	220-380V;	Classification:	Laboratory Heating Equipments;
Place of Origin:	Guangdong China;	Supply Ability:	100 Set/Sets per Month;
Warranty:	12 Months;	Heating up time:	10 mins/100 centidegree;
After-sales service provided:	Engineers available to service machinery overseas;	Accuracy:	in 0.3;
Inner size:	45x40x40;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Weight:	50kg;	Temp range:	200-500 centidegree;
External size:	66x92x55;	Packaging Detail:	Standard export wooden case;
Brand Name:	LIYI;

Liyi 20L, 50L, 90L, 210L, and 430L lab vacuum programmable drying oven

Product Description

Uses:

Liyi industrial vacuum oven is used for drying and heating test in vacuum condition of objects in scientific research units, specialty universities, industrial and mining enterprises's laboratories together with production field, etc. Widely used in biochemical, chemical, pharmaceutical, health, agricultural research, environmental protection and other research applications, powder drying, baking and various glass containers for disinfection and sterilization. It is especially suitable for rapid and efficient drying of heat-sensitive, oxidization and complex components.

Advantages:

1) Liyi industrial vacuum chamber can reduce the drying temperature.
2) Liyi industrial vacuum chamber avoid some of the items being oxidation when heating.
3) Liyi industrial vacuum chamber avoid some biologic cells being killed by the air when heating.
4) No dust damage.

Main Features:
1) Liyi industrial vacuum chamber uses high quality cold-rolled steel plate, coated with electrostatic powder spraying; the coat is hard and firm, with strong rust resistance.

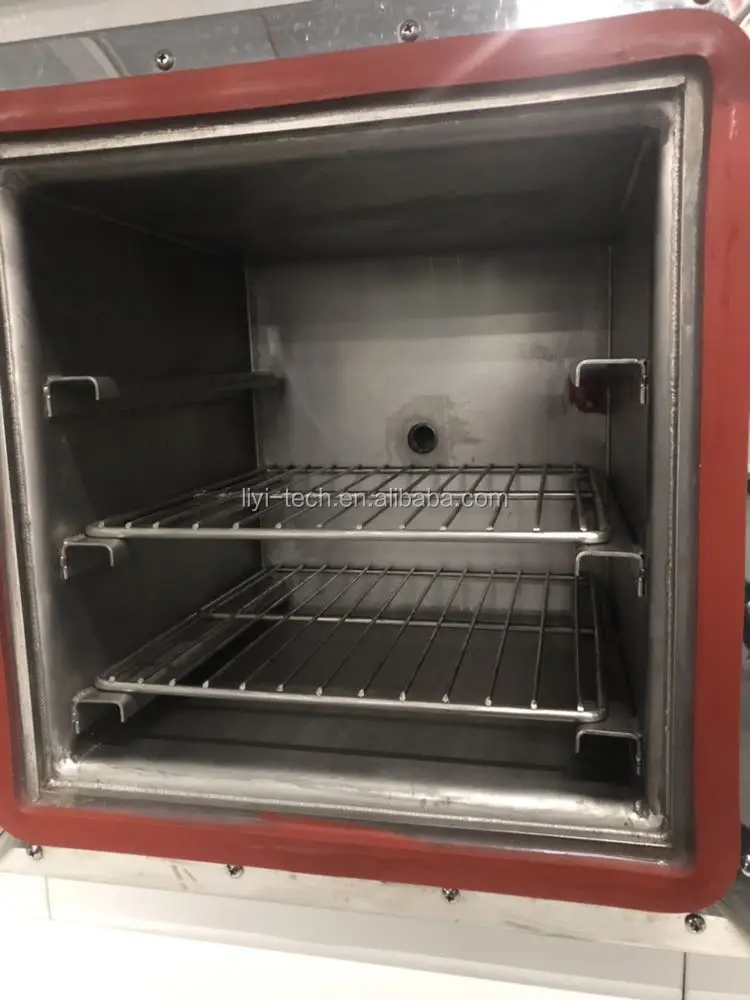

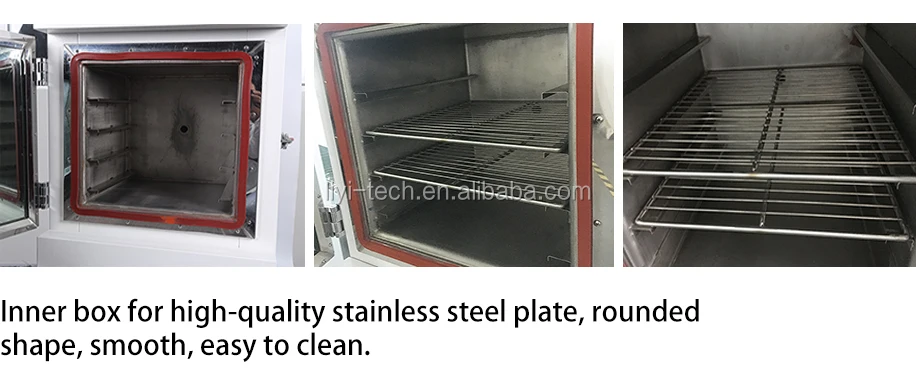

2) The studio is made up of high quality stainless steel plate, which has round shape and is smooth ,fluent and easy to clean.

3) Liyi industrial vacuum chamber is full of superfine glass wool thermal insulation material between the box and the studio,what brings good heat preservation. That can effectively guarantee the stability and accuracy of the temperature in the box and the influence to the environment.

4) Liyi industrial vacuum chamber has a double-layer tempered glass door , users can observe items being heated inside the machine clearly and has good heat insulation effects. The operator can avoid being burned.

5) There is a rubber sealing ring between the studio and glass door to ensure the higher vacuum.

6) The heater is installed on the surface of the studio to improve the temperature uniformity as possible and easy to clean.

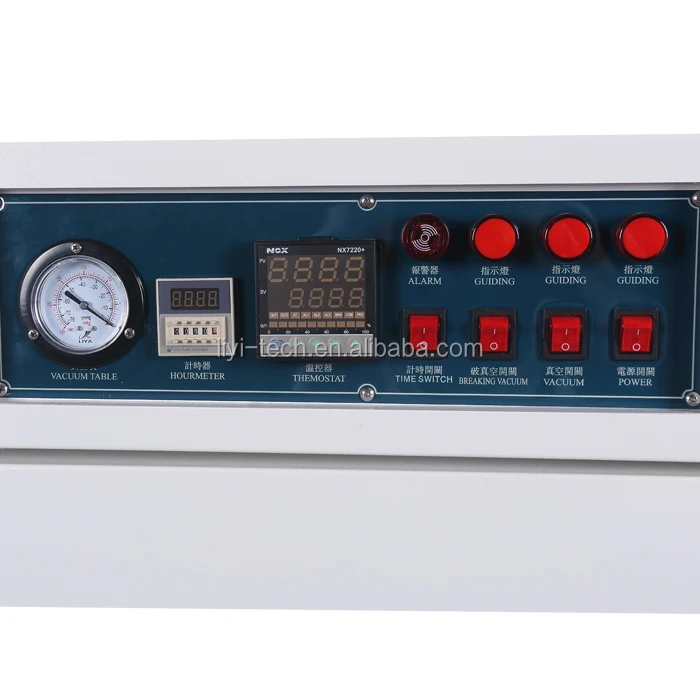

7) Temperature control adopts microcomputer intelligent digital technology manufacture, has industrial PID. It has four-digit double LED Windows indicating function, precision temperature control, strong anti-jamming ability, and is also very convenient to operate (see Temperature Controller Operating Manual).

Specifications

Model	Inner Size WHD(cm)	External Size WHD(cm)	Temperature Range (°C)	Vacuum Degree	Control Mode	Power
LY-608-30	30×30×30	61×47×47	40~200°C	760~1Torr	Microcomputer PID+S.S.R+Timer	220V or 380V
LY-608-40	40×40×40	71×57×57
LY-608-60	60×60×60	96×80×80

Product Effects

Application:

Reality Show:

More Options

Company Information

Our Services

During the whole business process, we offer Consultative Selling service.

1)Customer inquiry process:

Discussing testing requirements and technic details, suggested suitable products to customer to confirm. Then quote most suitable price according to customer requirements.

2)Specifications customize process:

Drawing related drawings to confirm with customer for customized requirements. Offer reference photoes to show the proucts appearance. Then, confirm the final solution and confirm final price with customer.

3)Order process:

We offer below business term:

Accepted Delivery Terms:	FOB, CFR, CIF, EXW, DDP
Accepted Payment Currency:	USD, EUR, HKD, CNY
Accepted Payment Type:	T/T, L/C, Credit Card, PayPal, Western Union, Cash, Escrow
Nearest Port:	Shenzhen, Guangzhou, Shanghai, Qingdao, Tianjing or rquired

4)Production and delivery process:

We will produce the machines according to confirmed PO requirements. Offering photoes to show production process.

After finish production, offer photoes to customer to confirm again with the machine. Then do own factory calibration or third party calibration(as customer requirements). Check and test all the details and then arrange packing.

Deliver the products in confirmed shipping time and inform customer.

5)Installation and after sale service:

Defines installing those products in the field and providing after-sales support.
