hydraulic automatic absorbable gelatin sponge press cutting machine

Supplier: Guangdong Honggang Intelligent Equipment Co., Ltd.
Region: Guangdong, China
Contact: Ms Mandy Chen
Price: $18500.00 /set
Min. Order: 1 set

Click here to contact

Product details

Feeding side:	automatic,double,or as request.;	Cutting force:	50--300tons;optional;
Dimensions:	300023001570mm;	Power:	7.5kw;
Warranty:	1 Year;	Voltage:	220v/380v/415v;
Type:	Hydraulic Cutting Machine;	Supply Ability:	120 Set/Sets per Month sponge cutting machine;
Rated Power:	7.5kw;	After-sales Service Provided:	Field maintenance and repair service,Engineers available to service machinery overseas;
Brand Name:	HONGGANG;	No-Load Rotational Speed:	100%;
Cutting area:	810X1400mm;	Application:	sponge,foam,plastic,eva;
Columns:	Four;	Certification:	CE Certificate;
Max. Cutting Depth:	240;	Suitable for material:	plastic,foam,leather,paper,rubber,all non-metallic materials;
Stroke:	50-240mm;	Name:	sponge cutting press machine;
Place of Origin:	Guangdong China;	Condition:	New;
Saw Blade Diameter:	810;	Color:	blue or as request;
Working mode:	cutting by die/mould;	Payment Terms:	L/C,T/T,Western Union;

hydraulic automatic absorbable gelatin sponge press cutting machine

Working Video

Watch on youtube:

Hydraulic automatic blister die cutting machine with stacker cutting video:

https://www.youtube.com/watch?v=r5rzdvhnwrk

Hydraulic automatic die cutting machine working for blister cutting video:
https://www.youtube.com/watch?v=x8CaSikc-AU&list=PLZTnvjIksKDjwaGTtHZAijzeVp801xacm&index=7

Fully hydraulic automatic Roller Feeding die cutting machine for leather&sponge-foam cutting video:
https://www.youtube.com/watch?v=6vBJXRQvBqQ&list=PLZTnvjIksKDgEDr0iUBsBT_sHfQD6g-aG&index=1

More cutting machine video on our youtube page:

https://www.youtube.com/channel/UCO-wTQeY0Hox4c4Gako8vAQ/videos

Machine Description

What Specification of our cutting press machine?

The working principle of the automatic hydraulic cutting machine is down press to the mould,to cut material by dies / moulds.

suitable to die cut all non-metal soft /half-soft materials.From manual to full automatic type,serving for leather,fabric,EVA/EPE foam,blister packaging,rubber,sponge,automotive/plane etc.
Fully capacity in offering professional cutting solutions/feeding system as demands.

HG-Double-side Automotive Cutting Machine

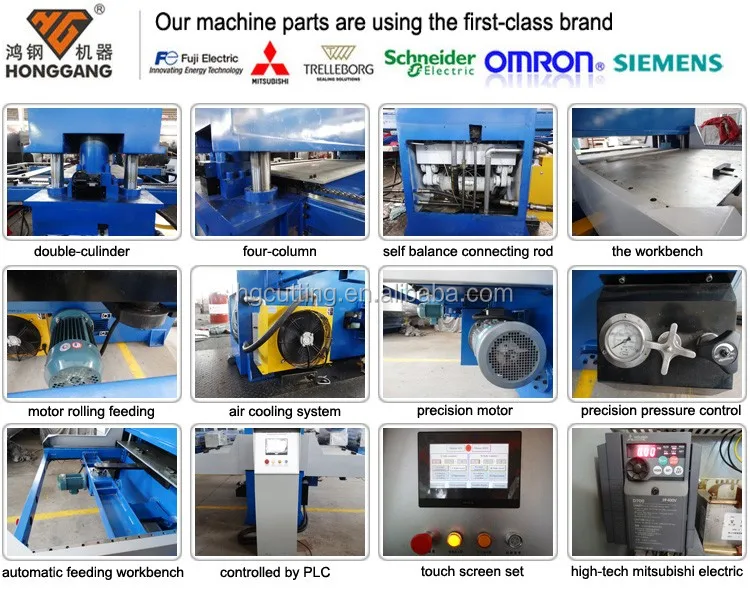

1. Features and Advantages

1. By computer,Electrical box,PLC control---more simple,fast and precision.
2. TWO-cylinders,four-columns,self-balancing connecting rod ----which can maintain equal pressure of each position.
3. Quite down but slow cut, more accurate,+ _ 0.01mm.
4. Hydraulic system, Central automatic lubrication systems can ensure precision and durability of the machine.
5. Feeding: Single or double auto feeding beds for choosing,more economical and 2 or 3 times improving producting capacity.
6. With micro motion system for installed Double dies.

2. Technical Parameters

Model. No	HG-B60T	HG-B80T	HG-B100T	HG-B120T	HG-B150T	HG-B200T
Cutting force	60tons	80tons	100tons	120tons	150tons	200tons
*Dimension (LWH)*	300023001570 mm	300023001570 mm	300023001570 mm	300023001570 mm	300023001570 mm	300023001570 mm
Stroke	50-240mm	50-240mm	50-240mm	50-240mm	50-240mm	50-240mm
Area of Work Table	810*1400mm	810*1400mm	810*1400mm	810*1400mm	810*1400mm	810*1400mm
Main Motor Power	5.5KW	7.5KW	7.5KW	11KW	11KW	11.5KW
Net Weight	4500KG	5000KG	5500KG	6300KG	7000KG	7500KG

What Working of our cutting press machine?

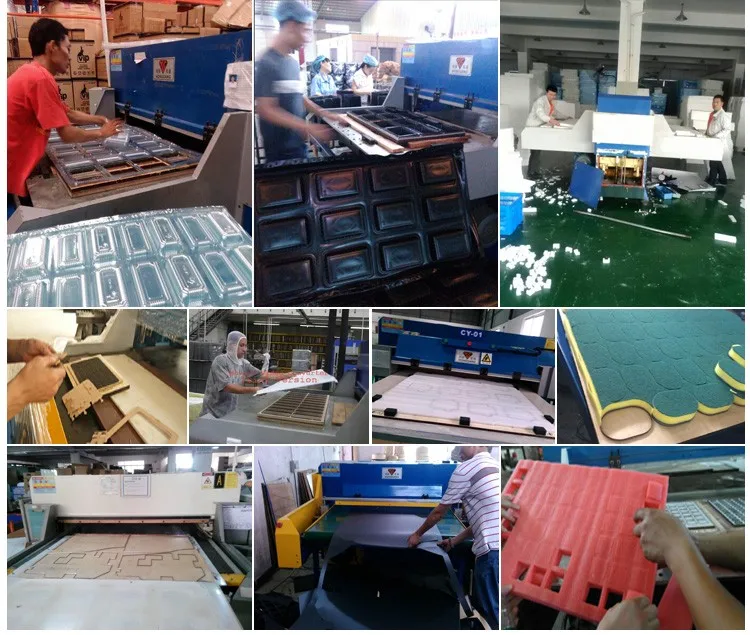

3. the cutting press machine working show press machine

4. the cutting-dies & PP board

We can according to your material,requirements,design the mould for you.

What Application of our cutting press machine?

The hydraulic die cutting machine is suitable to die cut all non-metal soft /half-soft materials, especially use for die cutting disposable blister or foam packaging,paper products,cardboard,EPE foam packaging,automotive/plane interiors etc.large materials sheets.

5. The Hydraulic Cutting Machine Manufacturing Process:

Trade Terms:

Payment & Shipping

Trade term:FOB,CIF,EXW

Payment terms:T/T,Westem Union,PayPal,Escow,MoneyGram.

Payment Condition:30% deposit in advance. 70% balance before delivery.

Delivery time:5-15days working days after deposit.

Packing:Wooden case with plate.

Shipment:By Sea.

Trade Shows

Company show

FAQ

1)What's warranty of hydraulic cutting machine?

12 months Warranty
Life-long maintenance service for press cutting machine

2)What's your after-sales service?
Engineer available to serve machines over seas;
Email and calling service in working hour; 24 hours door to door in domestic.

3)Can we test the our material by your machine free?
Yes, please contact us to send your matrial.

4)How to confirm how much ton pressure is fine?
Always 1m knife line need about 5 ton pressure.
please send your drawing or product photo, we can help you confirm.

5)Can you make dies & PP boards?
Yes, just send your drawing or material.
PP board will come with machine to you.

6)Are you a factory or trading company?
We are a factory and manufacturer

Don't know how many ton you need?
Please contact us!

Don't know how the machine working?
Please contact us to see the video!
