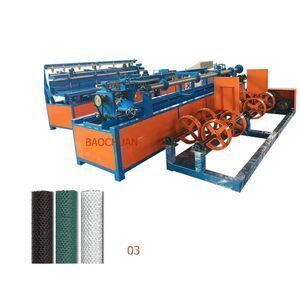

2m 3m 4m 5m 6m China chain link fence machine price / chain link wire mesh making machine

Supplier: Anping Baochuan Wire Mesh Products Co., Ltd.
Region: Hebei, China
Contact: Ms Tianhua Zhang
Price: $8699.00 /set
Min. Order: 1 set

Click here to contact

Product details

Extensive use of materials:	Galvanized wire, to Roberts, PVC coated wire, etc.;	Condition:	New;
Warranty:	1 Year;	Delivery Detail:	0 days after payment;
Place of Origin:	Hebei China (Mainland);	Rotating speed:	adjustable;
Brand Name:	BAOCHUAN;	After-sales Service Provided:	Free spare parts,Online support,Field maintenance and repair service;
Production area classification:	Wire diameter 1.5mm - 4.0mm;	Applicable Industries:	Building Material Shops,Machinery Repair Shops,Construction works ;
After-sales Service Provided:	Overseas third-party support available;	Weight (KG):	2500;
Selling Units:	Single item;	Color:	blue;
Total installed power:	9.24kw;	Package Type:	steel pallet;
weight:	4T;	Single gross weight:	2,500 KG;
Name:	hard wire chain link fence machine;	Type:	Machine;
Production Capacity:	80-120m2;	Power (kW):	7.5;
Single package size:	500X200X1600 cm;

This is our other wire mesh machine:

The video teaching you how to used the machine one step by one step:

1. https://youtu.be/_eA_KobLMPA
2. https://youtu.be/xqfnmbCdLSg
3. https://youtu.be/1DeZ2YRWwU8
4. https://youtu.be/QdaSlfHH9WQ
5. https://youtu.be/5rfrLBygTAo
6. https://youtu.be/_Ccu3JVRZNg
7. https://youtu.be/1xxOj0Fim30

single wire chain link Machine working video:

https://youtu.be/VjmRpxU-TN8
https://youtu.be/k7wFSo6x8mo
https://youtu.be/srk20d2X_qk

Double wire chain link machine working video

https://youtu.be/ws8eI7l3dfU

120m2/hour single wire chain link machine
https://youtu.be/bJ9RbkUQnHI

3m Semi-automatic PVC wire single wire chain link machine
https://youtu.be/DLpRFUUnkNA

4m single wire chain link machine
https://youtu.be/DxysJRGfZCQ

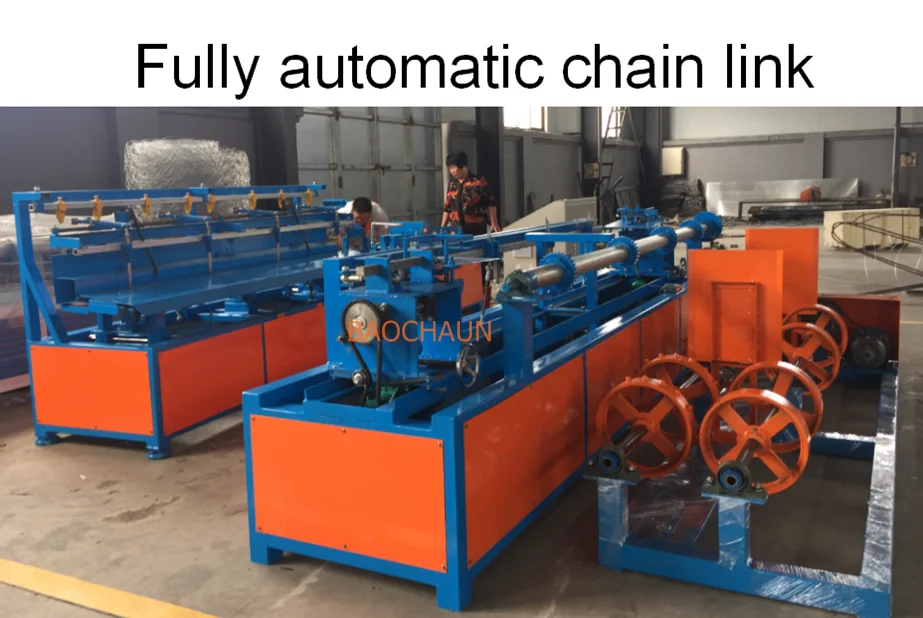

3m Fully automatic for hard wire single wire chain link machine
https://www.youtube.com/watch?v=hR3tnntMmV0&feature=youtu.be

2m 3m 4m 5m width single wire chain link fence machine

Chain link fence machine also name diamond mesh making machine. It is used to make metal fence.
It is suitable for high quality low-carbon wire, galvanized wire, aluminum alloy wire, aluminum-clad steel wire,
stainless steel wire, pvc coated wire etc.

Advantage:

1. PLC control
2. Material feeding by servo motor
3. Single die single spiral
4. Automatically weaving mesh

Usage:

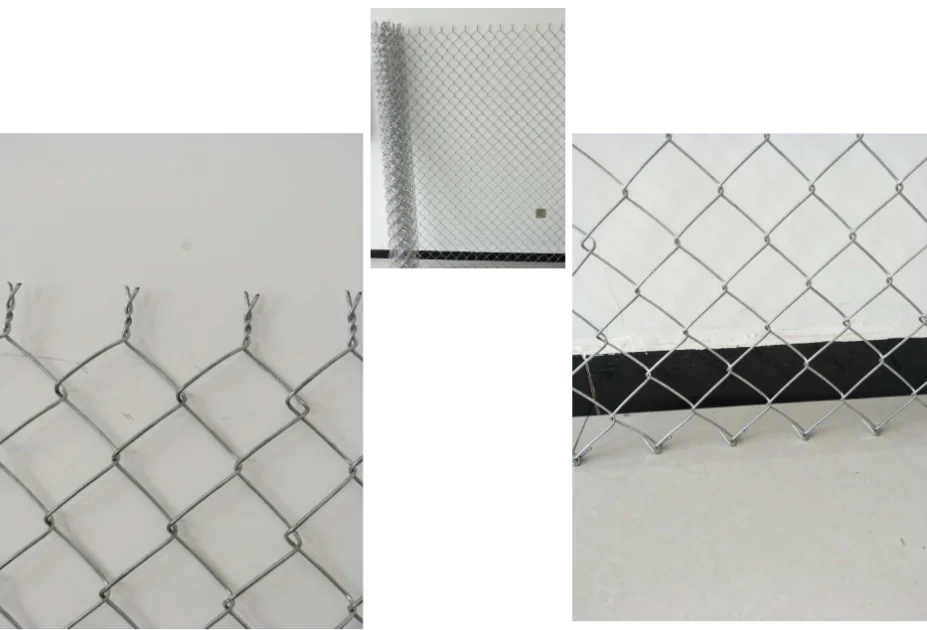

The finished chain link mesh is used as fencing for sports field, river banks, construction and residence, also animal fencing.
Especially, well suitable for a wide range of application, for example for enclosing Lawn, Road. Steel diamond mesh has a
heavy galvanized coating to ensure a long life.

1.Description:

1).Chain link fence making machine is used for manufacturing Chain Link Fence of different sizes,like 30*30mm to 80*80mm.
2). Two wires twist together ,and turn into the finished mesh hole, so the producing speed is high.
3).The mesh is automactically wound to form rolls when the desired length is manufactured.
4).The machine is controlled by PLC automatic controller,and easy and safe to operate,1 person is ok.
5).Auto edging,curved,cutting,high working speed.

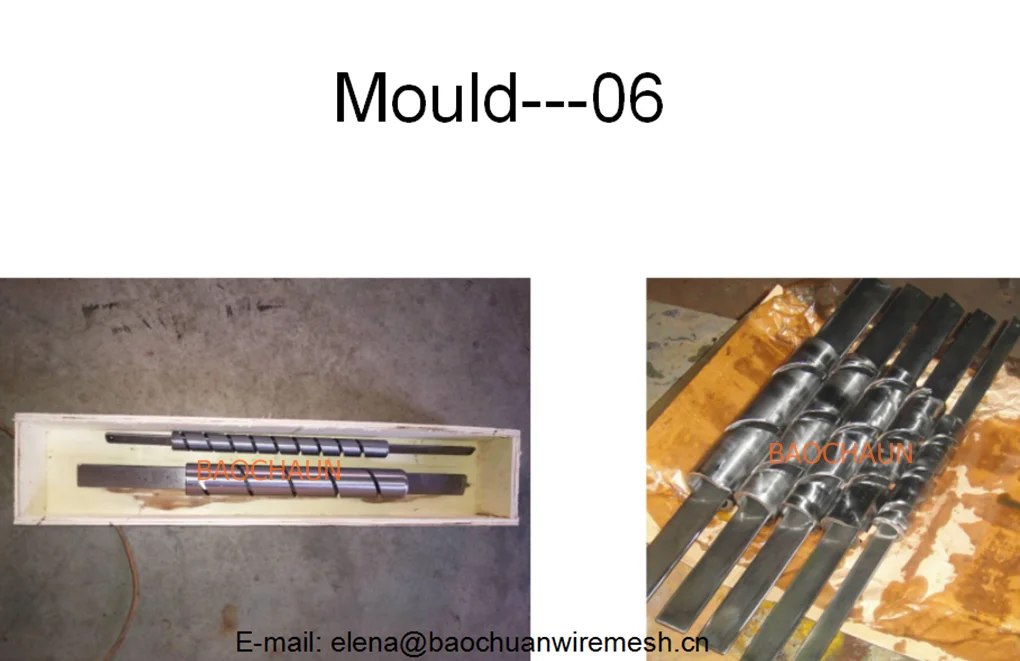

6).Warranty 1 year for main frame, the machine include one set dies.
Engineers avaliable to service machinery overseas

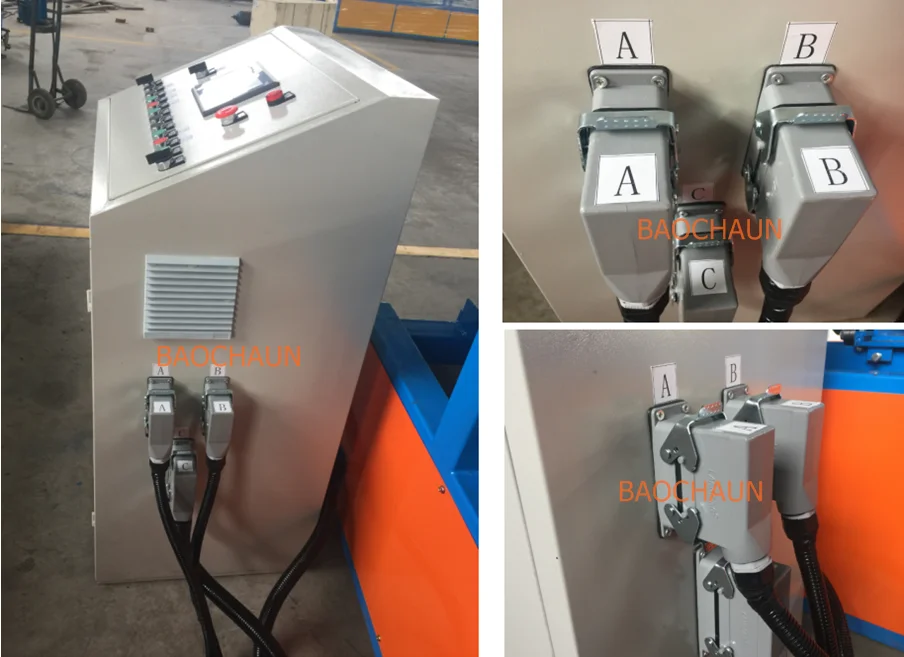

2.Electrical Systems :

1). Germany Siemens PLC origin
2). Frequency converter is selected from Japan "YASKAWA Electrical
3). Low-voltage electrical from Germany Schneider
4). Motor is from Taiwan Teco Electric
5). Clutch & Brake is from Taiwan YA CO, .LTD.

Maximun wire diameter	4.0 mm
Minimum wire diameter	1.5mm
Maximum Mesh Size	100mm
Volts Power	220V, 380V, 415V, 440V, etc. (According to your requirement)
HZ Power	50hz, 60hz, etc. (According to your requirement)
Machine Width	1m-5.0m

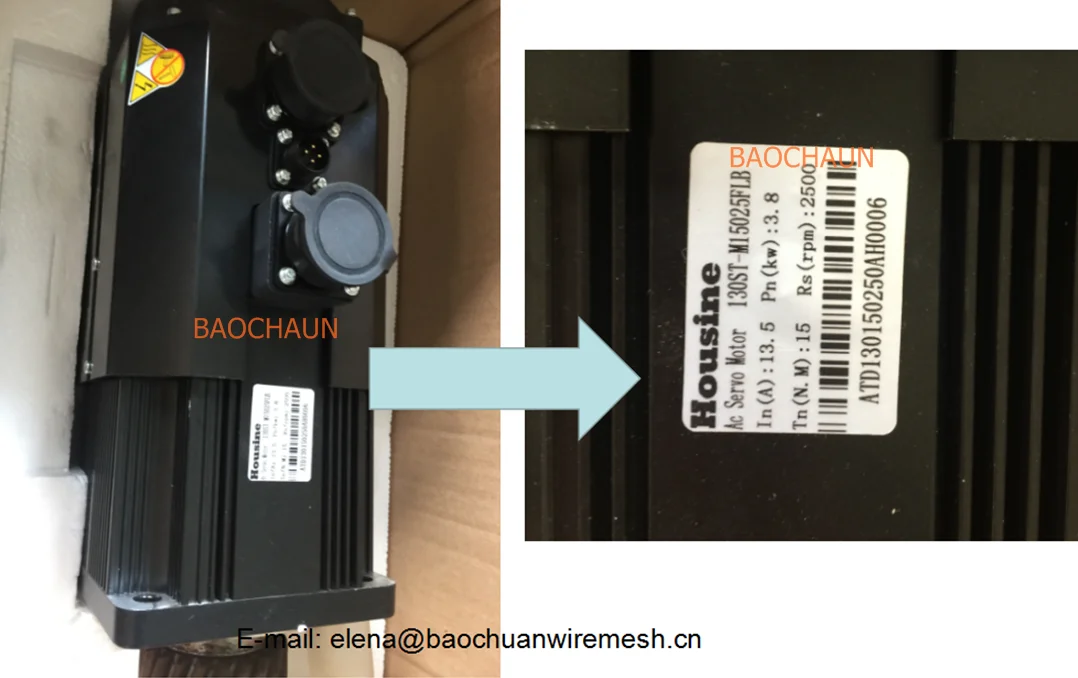

Our Motor is Servo Motor, which can adjust many things through PLC. At the same time, using Servo Motor weave chain link machine more accurate and fast.

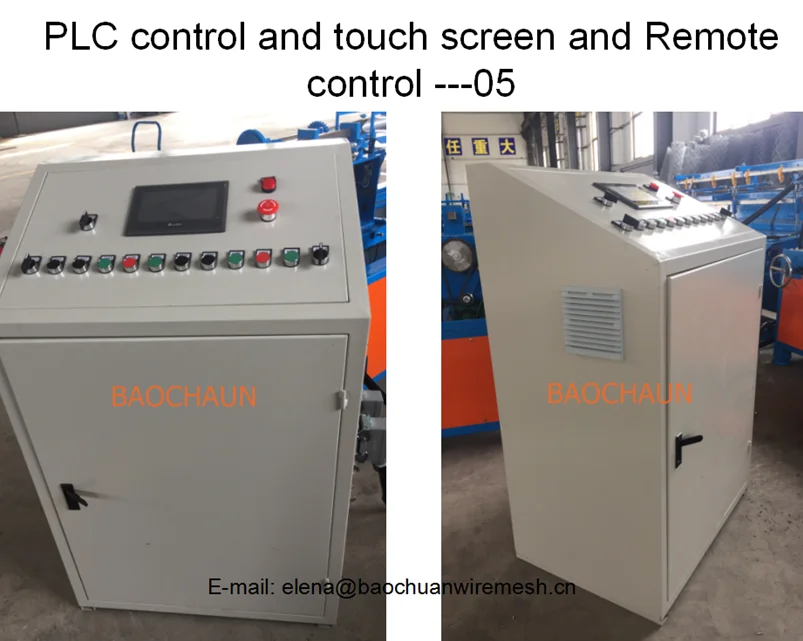

Chain Link Machine PLC:
Through th PLC you can adjust many things. -----Chinese and English

You could choose which one you need:

1 inches=25mm total

1.2 inches=30mm total

1.5 inches=40mm total

2.0 inches=50mm total

2.5 inches=63mm total

3.0 inches=76mm total

If you want know more about the machine or want know the quotation, please check us now

Our Services

1.We are professional manufactuer with many years of experiences;

2. We have advanced facilities for production, most of the products are welded by automatic machine;

3. Direct factory, high quality, favorable price;

4. Friendly & professional before/after-sales team;

5. We can arrange car pickup or hotel booking whenever you want to visit our factory;

6.Don't hesitate, any ideas, please contact us!

7.Our Motor is Servo Motor, which can adjust many things through PLC.

At the same time, using Servo Motor weave chain link machine more accurate and fast.
8. We using big and thick frame tube to make the machine more strong.
9.We fully welded the frame, also polish the welding print before paiting. Morevoer, we paiting by E-caoting to make the machine more buauty.
10.We will adjust the machine and send the video to you before send the machine to you.You can use detrctly once get electricity.
11. If anything happend with your machine within 10 years, we will send worker to adjust the machine. You just shoulder the ticket, hotel and eating

FAQ

Q:1. Are you factory?

A: Yes

Q:2.What product specifications can be determined by customers?
A: Customers can choose the raw materials , the type of surface treatment and assembly, as well as packaing.

Q:3.How long do orders take to produced and delivered?
A:Lead time varies case by case.The customers will be informed when an order is placed.

Q:4.Can I still get an estimate without a diagram?
Yes,we can make a sketch based on your description.Enter the dimensions you have in mind by email and we will let you know if there are any remaining
