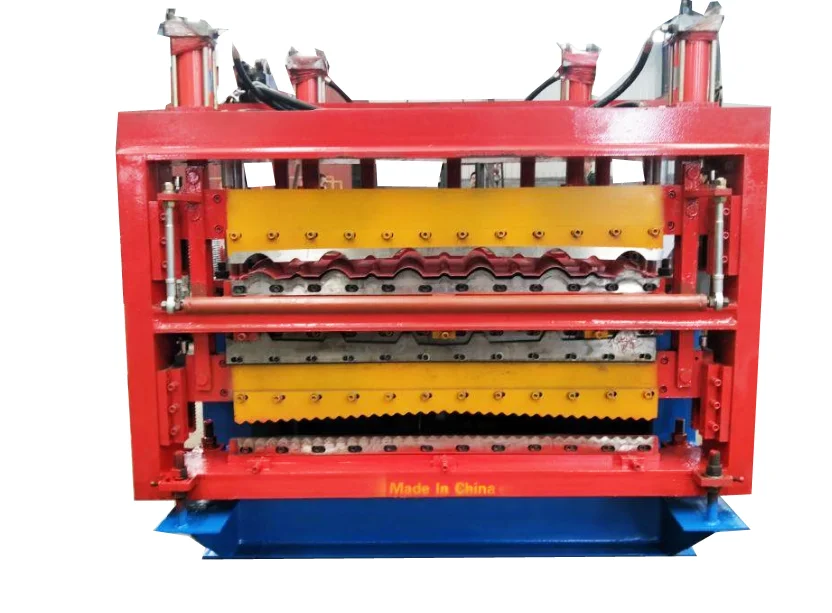

Professional Low Price double layer roof roll forming machine / Tile pressing forning machine

Supplier: Anping Baochuan Wire Mesh Products Co., Ltd.
Region: Hebei, China
Contact: Ms Tianhua Zhang
Price: $89999.00 /set
Min. Order: 1 set

Click here to contact

Product details

After Warranty Service:	Video technical support;	Use:	Roof;
Weight:	10000KG;	Local Service Location:	Egypt,Canada,Turkey,United Kingdom,United States,France,Germany,Viet Nam,Philippines,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Japan,Malaysia,Australia,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,None;
Warranty:	3 years;	number of forming steps:	9 rows;
Showroom Location:	Egypt,Turkey,United Kingdom,Italy,Germany,Viet Nam,Philippines,Brazil,Peru,Saudi Arabia,Indonesia,Pakistan,India,Mexico,Russia,Spain,Thailand,Morocco,Kenya,Argentina,South Korea,Chile,UAE,Colombia,Algeria,Sri Lanka,Romania,Bangladesh,South Africa,Kazakhstan,Ukraine,Kyrgyzstan,Nigeria,Uzbekistan,Tajikistan,Japan,Malaysia,Australia,None;	Shaft material:	No.45 Steel;
Condition:	New;	Tile Type:	Colored Steel;
Forming speed:	8-12m/min;	Production Capacity:	4 kw;
Tile Type:	Colored;	Thickness:	0.3-0.8 Mm;
Voltage:	4 kw;	cutting blade:	Cr12 mould steel with quenched treatment;
Applicable Industries:	Hotels,Building Material Shops,Machinery Repair Shops,Home Use;	Key Selling Points:	Famous brand PLC;
Brand Name:	No;	Certification:	ISO 9901;
material of rollers:	45# forged steel,with hard chrome plating;	Dimension(LWH):	1022m;
Place of Origin:	China;	After-sales Service Provided:	Online support,Video technical support;
Type:	Tile Forming Machine;	Name:	Colored Roof Tile Forming Machine;
hydraulic pressure:	10-12MPa;	Payment Terms:	L/C,D/A,D/P,T/T,MoneyGram;
Voltage:	380V 3Phase 60Hz or at buyer's requirement;

Hydraulic Cutting And Pressing Glazed Metal Roof Tile Making Machine

Product Description
The finished product of Hydraulic Cutting And Pressing Glazed Metal Roof Tile Making Machine is widely used in the construction of various industrial plants, villages, warehouses, supermarkets, hotels, exhibition, family construction, shopping malls shutter doors and etc. It has the advantage of beautiful, classical appearance and grace taste.

Hydraulic Cutting And Pressing Glazed Metal Roof Tile Making Machine
1	Suitable material	PPGI/Aluminium sheet/galvanized sheet/various sheet plates
2	Thickness of coil sheet	0.3-0.8mm
3	Coil width	1250mm
4	Effective width	1000mm
5	Material of main frame	400H steel structure, strong and durable
6	Diameter of Soild shaft	70mm, high grade 45# steel
7	Roller	High grade 45# steel, quenched and tempered treatment, hard chrome plated 0.05-0.07mm
8	Thickness of middle plate	18mm, 45# steel plate
9	Forming station	23 rows

10	Drive type	By chain(1.0 inch), link bearing model 6210
11	Power of main motor	5.5 kw, Lichao, Shanghai, with reducer
12	Sidewall connection bar	25mm, zinc plated
13	Forming speed	About 12-18m/min
14	Hydraulic pump station	5.5 kw, 40# hydraulic oil
15	PLC	Mitsubishi, Japan
16	Material of razor blades	Cr 12, quenching 58-62℃
17	Frequency converter	It has the advantage of slowing down before cutting, to ensure the length accuracy ±1mm, far better than industrial standard ±3mm.
18	Switch	CHNT
19	Frequency changer	SAJ

FAQ

Q1. What are the main key points for selecting right machines?

A1: Whole structure,Roller Shaft,Roller Material,Motor&Pump,and Control system. As the new buyer, please kindly know that price not the final point.

Good quality is for long-term business cooperation.

Q2. Can you provide OEM service for roll forming machine?

A2: Yes, most of cold roll forming machine need to be customized as detailed request, because raw material , size , production usage, machine speed, then machine specification will be some different.

Q3. What’s your standard trade terms ?

A2: We can provide the technical offer with FOB,CFR,CIF,Door to Door and so on. Please kindly tell the detailed port name for competitive ocean freight.

Q4. How about the quality control?

A4: Our company adopts 6S system to control every part with passed ISO9001:2000, CE,TUV/BV(Alibaba) Certificate.

Q5. How about the after-sale service?

A5: We provide 18 months free warranty and free technical support for the whole life of any machine. During warranty period, if parts still broken, we can send the new ones freely.
