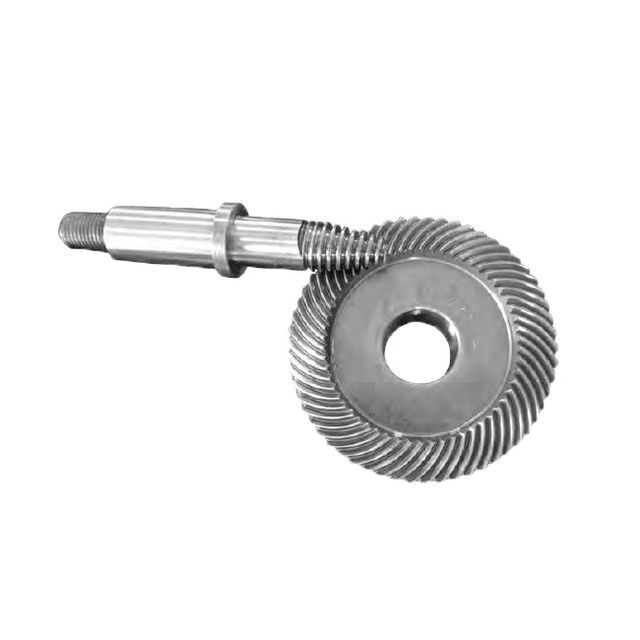

High Precision High Ration Hypoid Gears

Supplier: Shanghai Michigan Mechanical Co., Ltd.
Region: Shanghai, China
Contact: Ms penny Peng
Price: $90.00 / 1 - 99 pieces
$70.00 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Supply Ability:	2000 Piece/Pieces per Month;	Precision grade:	JIS B 1704:1978 grade 3;
Condition:	New;	Applicable Industries:	Auto;
Tooth Profile:	Gleason;	Brand Name:	Custom;
Material:	Low alloy steel;	Warranty:	6 months;
Port:	Shanghai or Ningbo;	Outer Diameter:	17.7;
Core Components:	Gear;	After Warranty Service:	Online support;
Package Preview:	;	Warranty of core components:	6 months;
Place of Origin:	China;	Standard or Nonstandard:	Nonstandard;
Payment Terms:	L/C,Western Union,T/T;	Processing:	milling;
Machinery Test Report:	Provided;	Shape:	BEVEL;
Showroom Location:	None;	Packaging Detail:	Standard export package or custom;
Marketing Type:	New Product 2020;	Pressure Angle:	20 Degree;
Local Service Location:	None;	Video outgoing-inspection:	Provided;

Products Description

Specification
Precision grade	ISO 1328 grade 6
Pressure angle	20°
Material	16MnCr5
Heat treatment	Carburizing
Tooth hardness	60±2 HRC
Surface treatment	light oiled

Reduction radio	Nominal Module	No. of teeth	Direction of spiral	Pitch dia. (C)	Outside Dia. (D)	Face width (J)	Mounting distance (E)	Total length (F)
15	m1	45	R	48	48	6	19	16.3
15	m1			3	L	10.3	10.3	6	127	113
30	m1	60	R	63	63	46.4	21	17.8
30	m1			2	L	12.8	12.8	46.4	134	120
45	m1.5	45	R	78	78	56	28	23.9
45	m1.5			1	L	18.3	18.3	56	152	138
60	m1.5	60	R	98	98	76.8	33	28.2
60	m1.5			1	L	17.7	17.7	76.8	175	151

Thank you for reaching out to us for your custom gear requirements. Our Engineering team will review your request and will be in contact within 24 hours. - SMM TEAM | sales(@)shsmm.com

Company Profile

Shanghai Michigan Mechanical Co. Ltd - Concentrate on OEM Transmission Parts for More Than 15 Years.

Mission: Supporting the Further Success of Clients and Partners with Mechanical Solution & Premium Service.

Core Value: Customer First, Integrity, Never Stop Improving.

Related Products

Spiral Bevel Gears for Cement Vertical Mill

375 Spiral Bevel Gears for Oil Drilling Machine

Zero Bevel Gears

Alternate to staight bevel gears

Hypoid Gears

High RPM, high Precision,low noise

High Precision Power Transmission Gears for Machine Tools

Non-orthogonal Spiral Bevel Gears

Precision Gears for UAV

Involute Spline Gears

Gears for Industrial Robot

Production Process

Raw Material Rough Cutting Gear Turning Quenching & Tempering

Gear Milling Heat Treatment Gear Grinding Testing

Testing

Gleason 1500GMM Inspection Center

Diameter: 1500

Max Weight:4.5t

Links CNC3906 Inspection Center

Diameter: 600

Automatic Inspection Line

How Do Our Technical And Quality Team Support Our Clients And Partners?
Our english speaking engineers do not simply relay messages. We help both customers and partners to strive for real solutions and we practise Kaizen in every single work.

Quality Warranty : 12 months counting from the delivery of the goods.

Product packaging

Inner Package Carton Non-solid Wood Packing Iron box packing

To be packed in new strong case(s)/carton(s), suitable for long distance ocean/air and inland transportation. In addition,we are willing to customize packaging per your request.

Certifications

ISO 9001 certification

ISO/TS 16949 certification

Main Application Fields

Over 15 years accumulating, SMM gears are used in various industries in numerous machines. The main application fields
including,but not limited to machine tools,UAV,Tobacco machinery,new energy automobile,electical tools,cement vertical mill,oil drilling machine.

SMM have been working with some global leading companies more than 10 years.

Why Choose Us

Being proactive, we constantly recognize and strive for opportunities that are beneficial to customers and self-improvement;Action speaks louder than words, we make fast decisions on the needs of customers, suppliers and employees. We are Ready to Support Your Further Success! ——SMM TEAM
