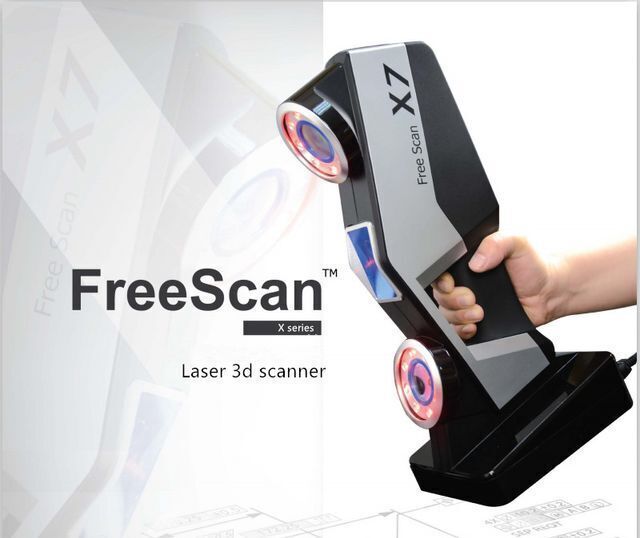

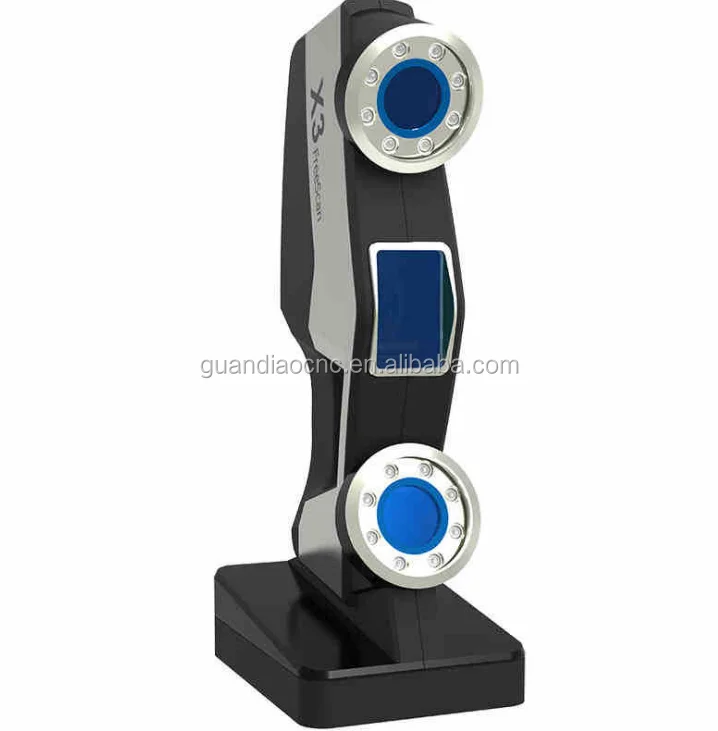

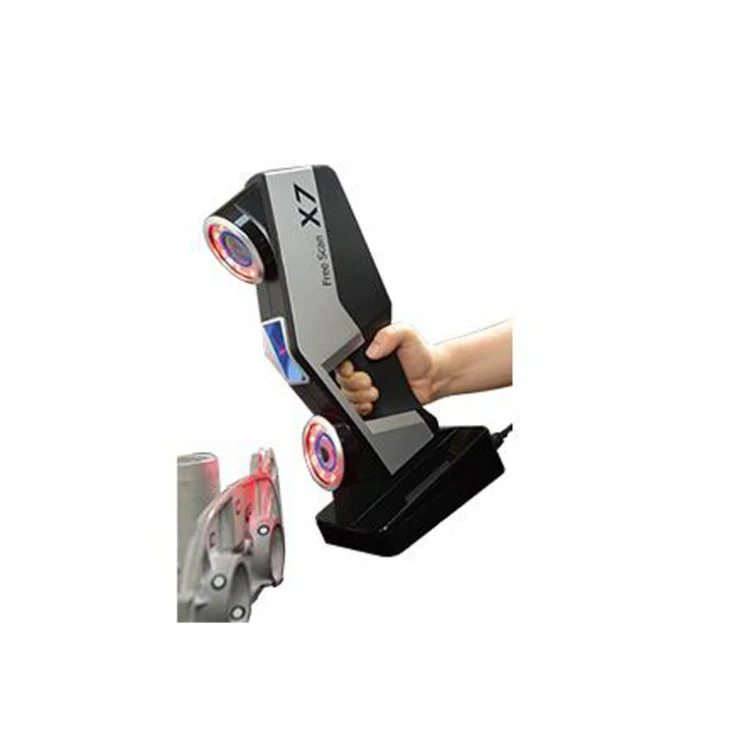

Industrial high-precision handheld 3D laser scanner Copy number Laser portable 3D fast scanning FreeScan X7/x3/x5

Supplier: Shandong Guandiao CNC Equipment Co., Ltd.
Region: Shandong, China
Contact: Ms Daisy Zhang
Price: $3000.00 / 1 - 9 sets
$2000.00 / >=10 sets
Min. Order: 1 set

Click here to contact

Product details

After-sales Service:	Return and Replacement,Repair,Free spare parts,Onsite Training and Inspection,Call Center and on-line Technical Support;	Products Status:	Stock;
Warranty(Year):	1 year;	Alignment:	manual or auto;
Keywords:	3d laser scanner;	Optical Resolution:	4 million megapixel;
Product name:	3d laser scanner;	Packaging Detail:	wood case;
precision:	0.02mm;	Application:	scanning;
Type:	3D Scanner;	Package Preview:	;
Port:	qingdao;	Function:	scan;
Brand Name:	guandiao;	Interface Type:	usb,COM;
single speed:	3s;	Max Paper Size:	A4 size;
Scan Speed:	0.01s;	Colour Depth:	64 bit;
Supply Ability:	1000 Set/Sets per Year;	Certification:	FCC,ce,GS,Sgs;
Key word:	3d;	Scan Element Type:	CCD;
Item:	China Top;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Place of Origin:	Shandong China;	Feature:	Easy Operation;

Product Description

3X serie 3D scanner adopts multiple beam laser to obtain the three-dimensional point from
object surface. Operator can hand-hold the device and adjust the distance and angle between the scanner and measured object timely.It can cooperate with the global photography measurement system when scanning the large piece object to eliminate the accumulated error and improve the global scanning accuracy. The scanner can also be conveniently carried to industrial field or production workshop, and scanned the object efficiently and accurately according to its size and shape.

Features

Dual Scan Mode;
-With three red laser crosses & single red laser scan modes
-Two working modes switch rapidly
-Easy to scan large and small object

High Efficiency;
-3 red laser crosses
- Single red laser line scan the deep hole

High precision;
- Metrology-grade accuracy up to 0.03mm

Ultra-High Detail;
-resolution is up to 0.05mm -Volumetric accuracy 1 (use the Scanner individually): 0.02mm+0.08mm/m

Product Parametes

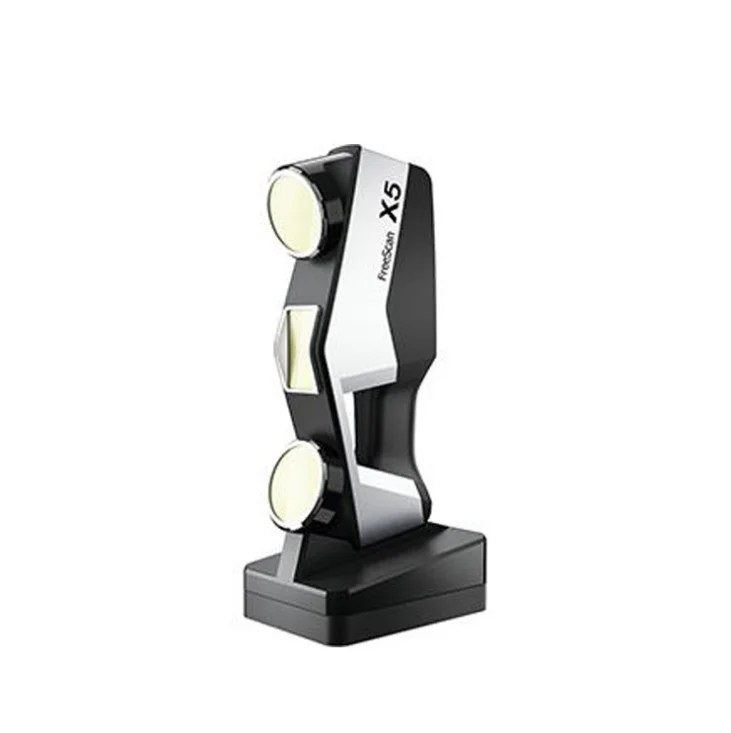

Mode	Freescan x3	Freescan x5	Freescan x7
Weight	0.95kg			0.3mm	0.05mm
Dimension	13090310mm			15 frames/s	<2s(single scan)
Scan rate	240,000 points/s	350,000 points/s	480,000 points/s
Scanning area	280*250mm	300*250mm	300*275mm
Light source	laser cross lines X3+1 class 2 (eye-safe)	laser cross lines X5+1 class 2 (eye-safe)	laser cross lines X7+1 class 2 (eye-safe)
Resolution	0.10mm	0.1mm	0.05mm
Accuracy	0.03mm	0.03mm	0.03mm
Volumetric accuracy	0.02+0.10 mm/m	0.02+0.08 mm/m	0.02+0.06 mm/m
Extended scanning configuration	Digimetric
Volumetric accuracy with Digimetric	0.020+0.025 mm/m
Standard-off distance	300mm
Depth of filed	250mm
Scanning parts size	0.1-6mm	0.1-8mm	0.1-8mm

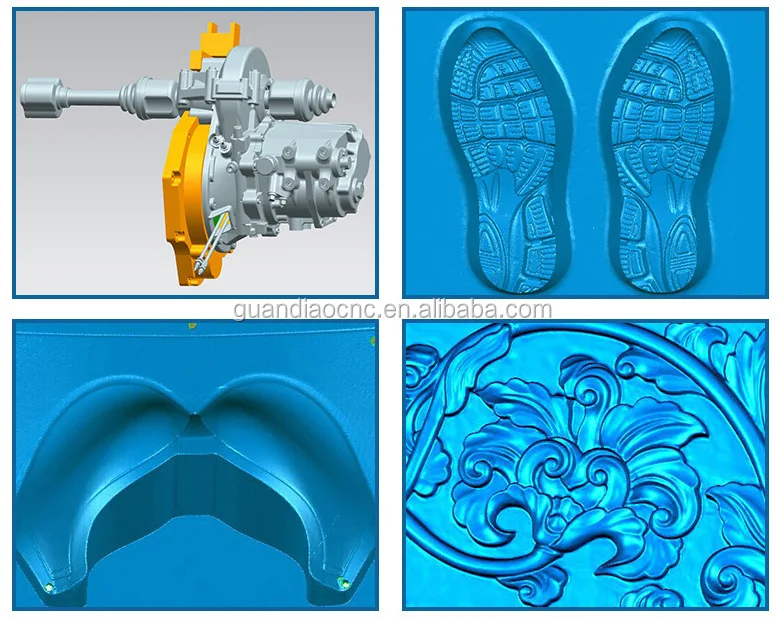

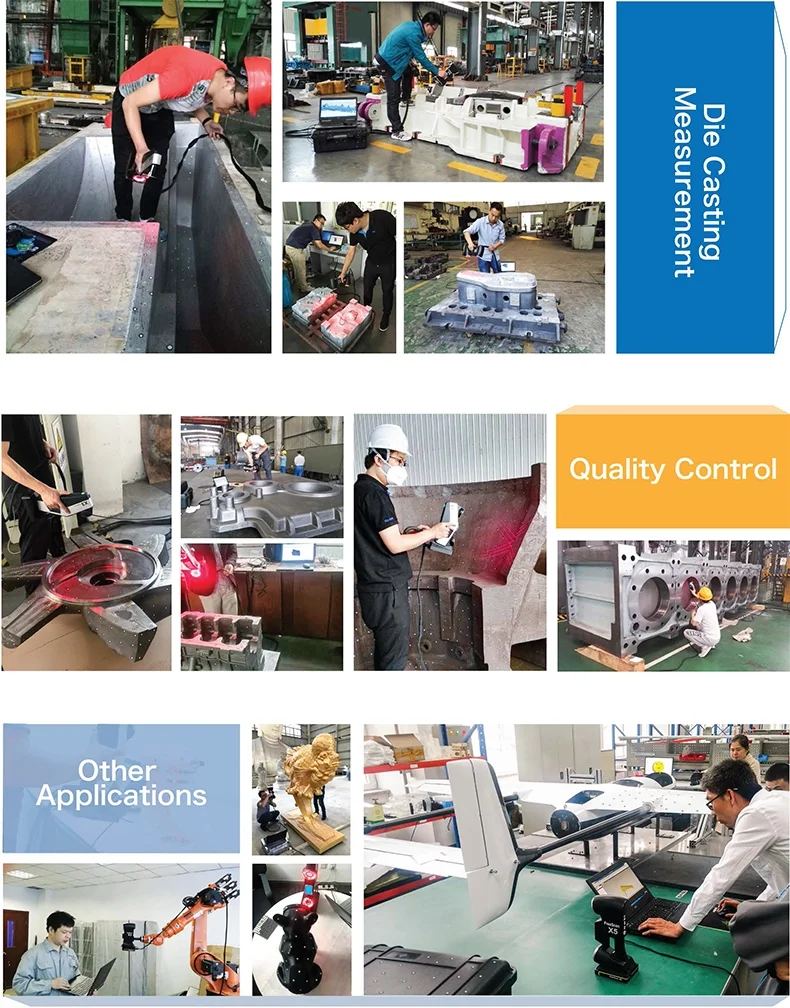

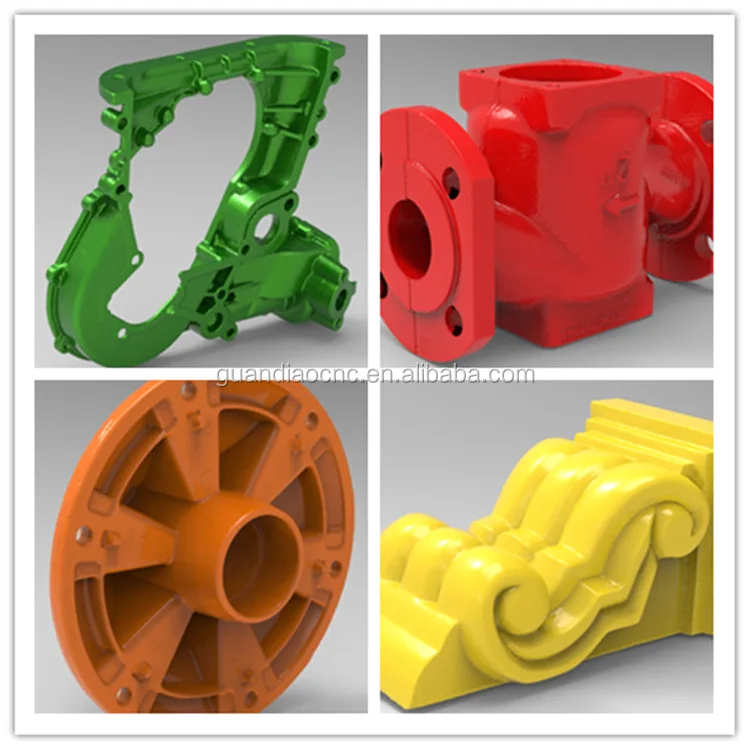

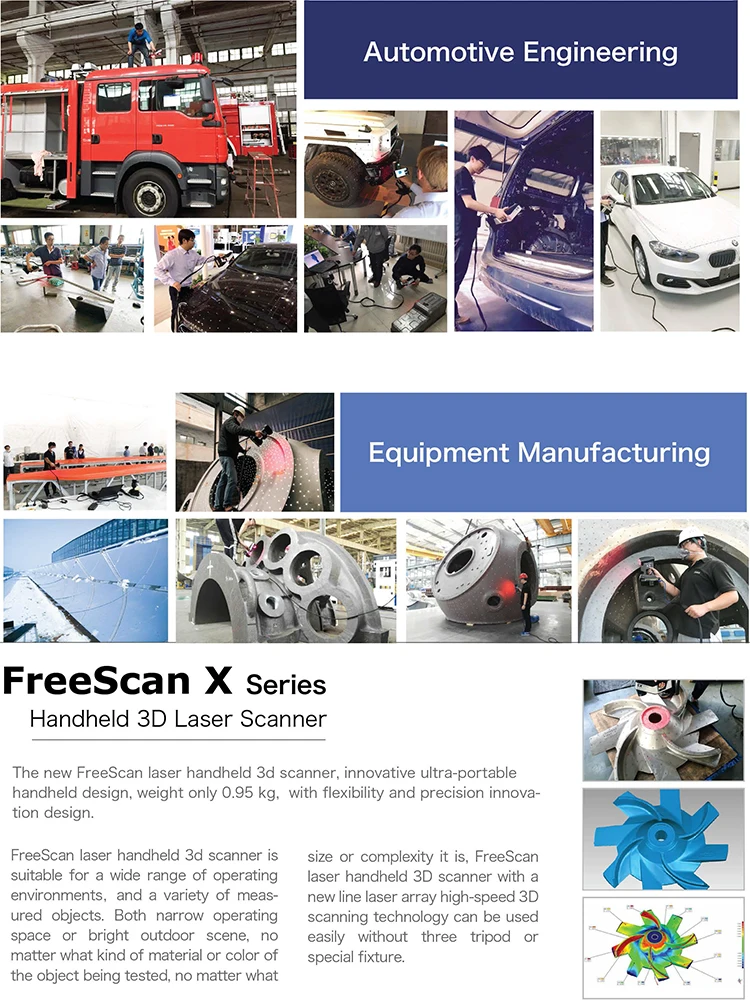

Application

Company Profile

FAQ

1. This is the first time I buy the machine, is it easy to operate?
A: We provide the operation manual or video for guiding. If it is hard for you learning, we can also help you by "Team
viewer" online, with telephone or Skype explain.
2. Are you a factory or trading company?
A: We are a factory.
3. Can I visit your factory?
A: Yes! We greatly welcome you to visit our factory!
4. What is your MOQ?
A: Our MOQ is 1 set. We could send machine to your country port directly, please tell us your port name.The we can give you a freight for your reference.

Our Service

1.1 years quality guaranty, the machine with main parts(excluding the consumables) shall be changed free of charge if there is any problem during the warranty period.
2.Lifetime maintenance free of charge.
3.Free training course at our plant.
4.We will provide the consumable parts at an cost price when you need replacement.
5.24 hours on line service each day, free technical support.
6.Machine has been adjusted before delivery

If you have any questions about our products, please contact me with no hesitate.
