Leaching Tank Mineral Mixing Tank Ore Mixing Flocculent Barrel Blender Leaching Agitation Tank

Supplier: The Nile Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Lily Li
Price: $2000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Henan China;	Port:	QingDao;
Brand Name:	The Nile;	Dimension(LWH):	130010001665mm;
Impeller speed:	530r/min;	Impeller diameter:	240mm;
OEM:	yes;	Certification:	CE ISO;
Motor power:	1.5kw;	Chute height:	1000mm;
Marketing Type:	New Product 2020;	Effective Volume:	0.58m3;
Application:	Mineral agitation barrel;	Video outgoing-inspection:	Provided;
Packaging Detail:	Standard export container;	Core Components:	Motor;
Supply Ability:	300 Set/Sets per Month;	Motor Type:	AC Motor;
Factory visit:	welcome;	Condition:	New;
Chute diameter:	1000mm;	Type:	Leaching Tank;
Production Capacity:	98%;	After-sales Service Provided:	Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service;
Applicable Industries:	Manufacturing Plant,Construction works ,Energy & Mining;	Weight:	685kg;
Local Service Location:	Kenya;	Warranty of core components:	1 Year;
Machinery Test Report:	Provided;	Warranty:	1 Year;
Showroom Location:	Kenya;	Motor model:	Y100L-6;
Payment Terms:	L/C,T/T;

Product Description

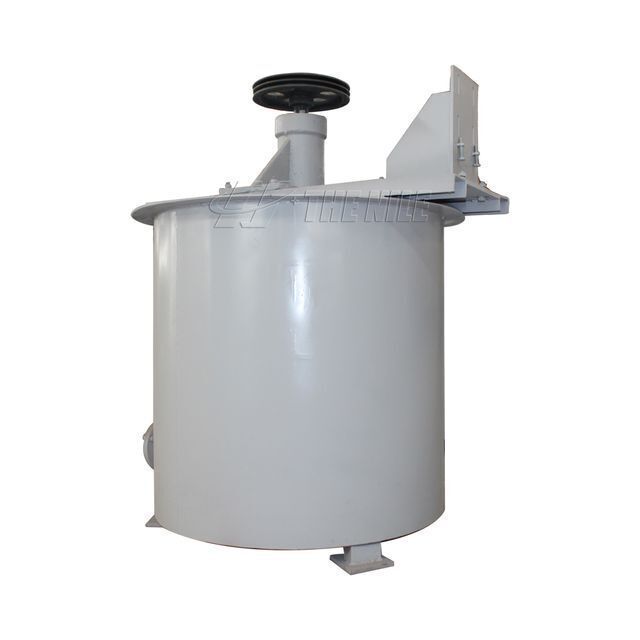

Mineral Agitation Barrel

The mineral agitation barrel is driven by the electric motor to rotate the impeller, and the upper and lower circulation stirring is carried out in the tank body, so that the medicine and the slurry are well mixed uniformly, and the necessary reaction equipment for increasing the reaction time of the medicine is enhanced. It is mainly used for better beneficiation operation before flotation.

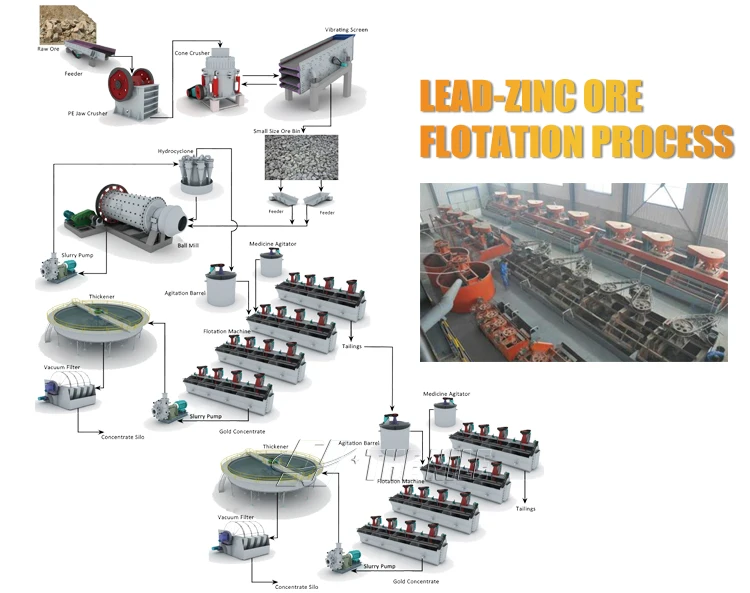

Application

Technical Data

Model			NLH1000	NLH1500	NLH2000	NLH2500	NLH3000
Chute Size (mm)	Diameter	1000	1500	2000	2500	3000
Chute Size (mm)	φ1500*5700	Height	1000	1500	2000	2500	3000
Effective Volume (m3)			0.58	2.2	5.6	11.2	19.1
Impeller Diameter (mm)			240	400	550	630	700
Impeller Speed (r/min)			530	320	230	230	210
Motor Model			Y100L-6	Y132S-6	Y132M2-6	Y160L-6	Y225S-8
Motor Power (kw)			1.5	3	5.5	11	18.5
Dimension (mm)	Height	1300	1690	2381	2881	3266
Dimension (mm)		Length	685	861	1240	3462	4296

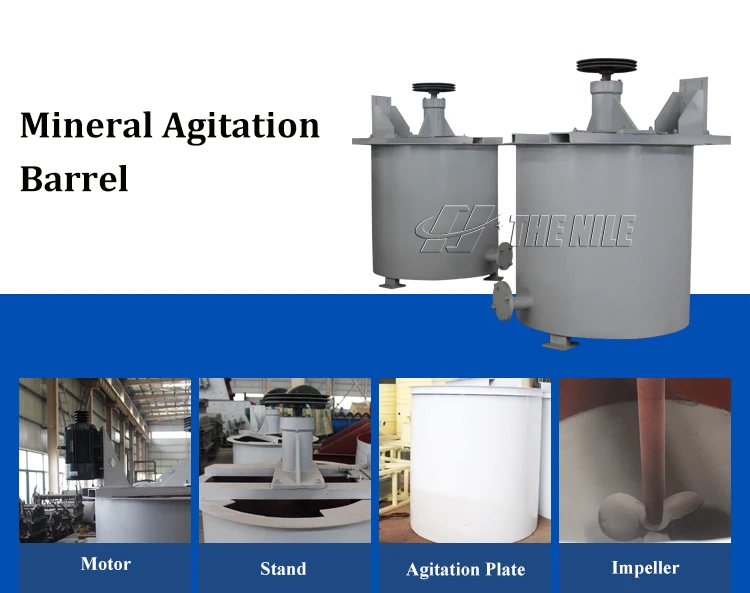

Product Details

Customer Site

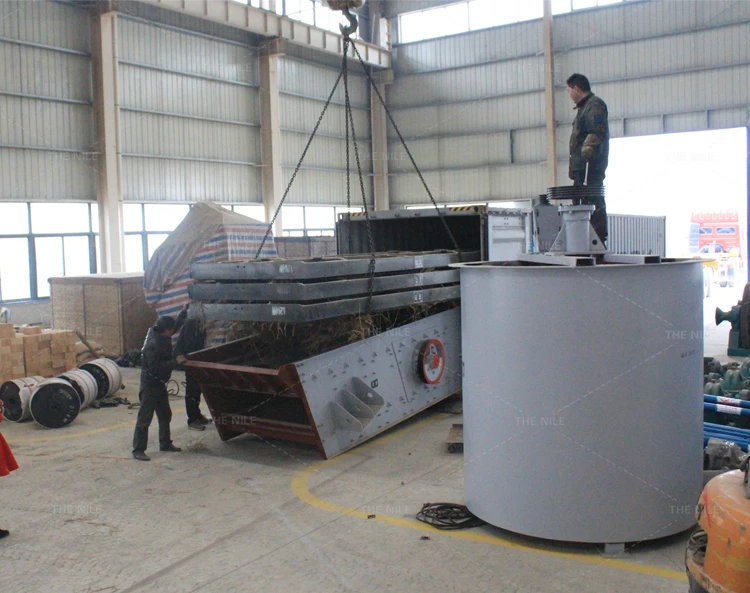

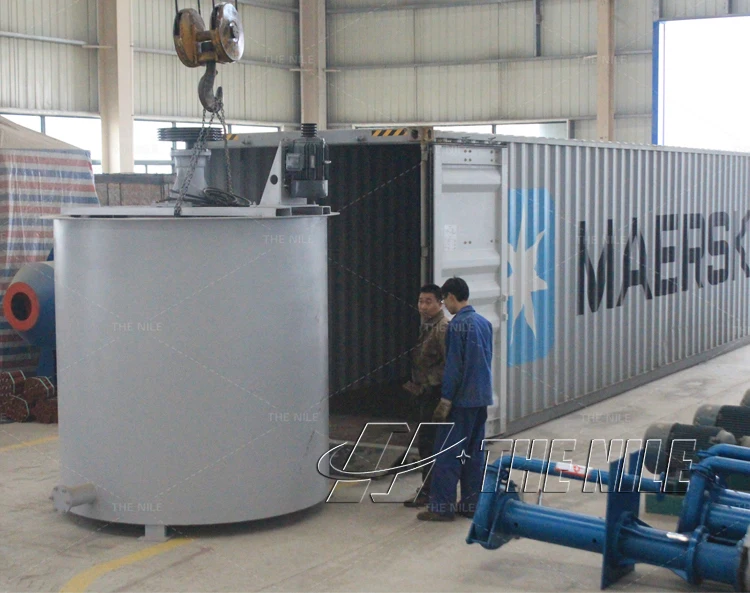

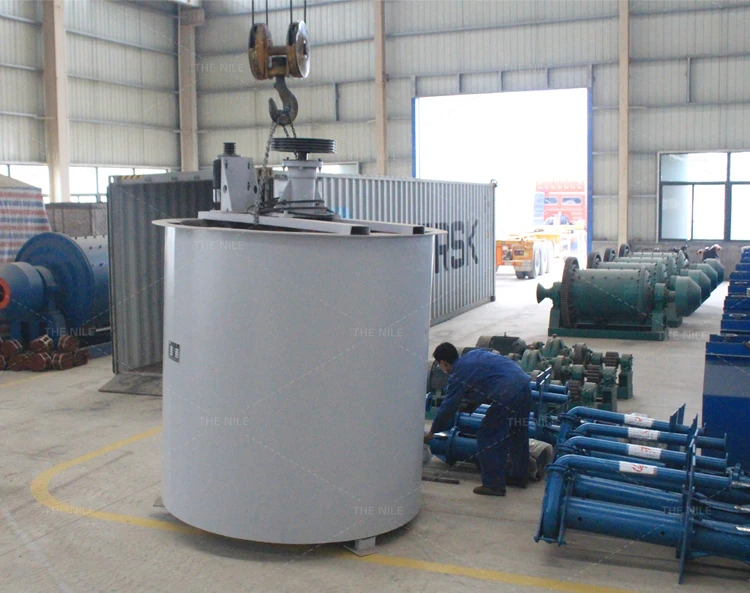

Packing&Shipping

Company Profile

The Nile Co.,Ltd.is committed to designing,producing grinding mills,crushers,conveyors,feeding machines,drying and calcinating as well as beneficiation equipment,fine sand recycling equipment etc,which are widely applied in electricity,metallurgy,mine and quarry, wharf,granary,chemical industry.Our products have been spread all over China,and also exported to European,American,Asian,African countries and enjoyed great popularity among our customers.

Our Advantages

Overseas Service

1.We have engineers in Kenya , Sudan ,Uganda , Professional installation and training skills .

2.We have factory and warehouse in Kenya and China , Fast pre-sale and after-sale service , Wear Parts in stocks , You can get it soon .

3.Our products have been spread all over China,and also exported to European,American,Asian,African countries . Our sales managers and engineers know the local condition very well , We will supply the most suitable solution for you .

Factory and Warehouse in Kenya

Welcome to visit our factory in China and Kenya .

FAQ

Q1: Are you factory or trade company?
A1: We are factory with CE. We have factory in China and Kenya .

Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.

Q3: How will you help the customer to install the equipment?

#1 Our senior engineer will supply installation and training service on-line or on-site .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .

Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .

Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.

Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
