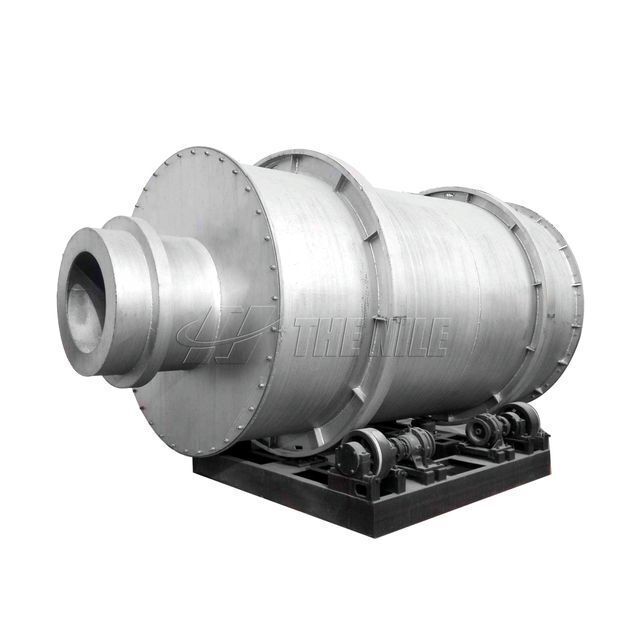

High Quality Small Sand Dryer Sand Drying Machine Three Pass Rotary Dryer

Supplier: The Nile Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Lily Li
Price: $1000.00 /set
Min. Order: 1 set

Click here to contact

Product details

Machinery Test Report:	Provided;	Packaging Detail:	Standard container;
Marketing Type:	New Product 2020;	Dimension(LWH):	According to the model;
Condition:	New;	Package Preview:	;
Voltage:	380V;	Local Service Location:	Kenya;
Supply Ability:	500 Set/Sets per Month;	Weight:	18.5t;
Color:	Customer's Request;	Brand Name:	The Nile CO.,LTD;
Factory visit:	Welcome;	Showroom Location:	Kenya;
Warranty:	1 Year;	Port:	Qingdao Port;
weight(t):	18.5;	Core Components:	Motor;
Place of Origin:	Henan China;	Capacity(t/h):	4.5-5.7;
Max. intake temperature(℃):	700-800;	Video outgoing-inspection:	Provided;
Applicable Industries:	Building Material Shops,Manufacturing Plant,Energy & Mining;	Certification:	ISo CE;
Key Selling Points:	High Productivity;	Installation slope(°):	3-5;
Power:	15KW;	Payment Terms:	L/C,T/T,High Quality Small Sand Dryer Sand Drying Machine Three Pass Rotary Dryer;
Warranty of core components:	1 Year;	After Warranty Service:	Online support;
Motor power(kw):	15;	Type:	Rotary Drying Equipment;
Cylinder volume(m3):	21.2;	Application:	mining ore process;
After-sales Service Provided:	Online support,Video technical support;

High Quality Small Sand Dryer Sand Drying Machine Three Pass Rotary Dryer

Product Description

Rotary dryer is widely used to dry materials in industries like cement,mine,construction,chemical,food,compound fertilizer,etc.Thermocouples are installed in feeding and discharging units to control the temperature.The temperature change of the dryer also can be indicated by the thermometer,which is convenient for temperature control inside the dryer ( it is usually 250-350℃).

Applications

Powder & particle:Sands,limestone,stones,clay,mineral filter cake,coal,iron sulphate,filter cakes,fly ash,gypsum etc.
Damp and sticky material:Coal slime,sewage sludge,bentonite,Kaolin etc.
Corrosive material:Distillers ‘grains,Fertilizer,animal dung,slag etc.
Biomass material:Sawdust,wood chips etc.

Working principle

The Three drum rotary dryer consists of rotary body,throwing flitch,transmission device,supporting device,sealing ring,heat source,beater device,belt loading machine,feeding machine,rotary roller,belt discharger,draft fan,discharger,and switchboard.This 3 pass dryer has 3 drying zones in the 3 cylinders(internal one, middle one and external one ) that construct the rotating body.Heat processing of a product with high moisture content is done efficiently in those 3 drying zones.The product is put in from the inlet of the hopper,sent to the internal cylinder where heating of the product is made,then moves to the middle cylinder where evaporation of moisture is promoted further.The solid constituent of the product is gradually broken into pieces and discharged from the outlet via the third final drying zone.The hot air produced in the furnace is sent to the internal cylinder,passes through the middle and external cylinders.The hot air is then sent to the cyclone where dust is removed.

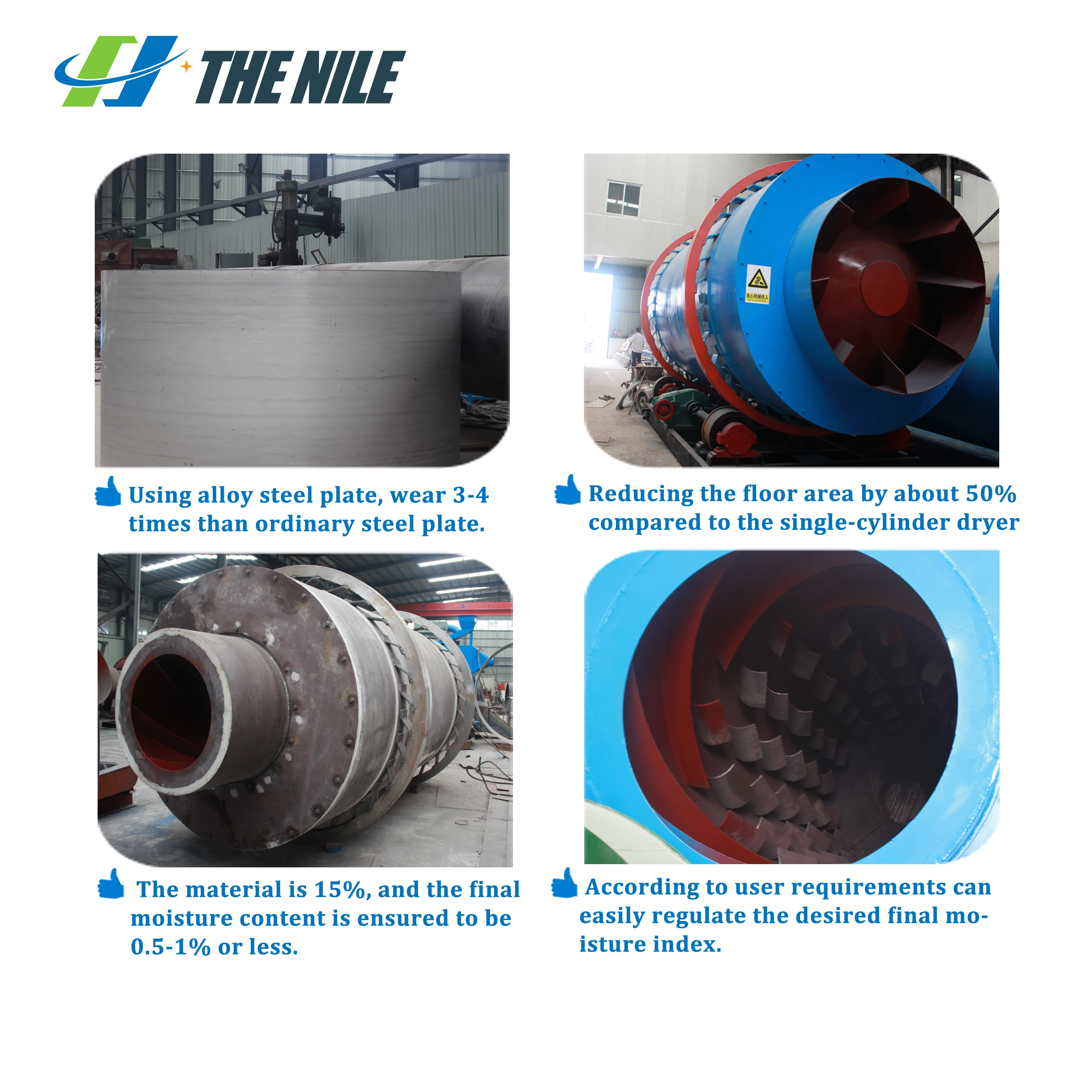

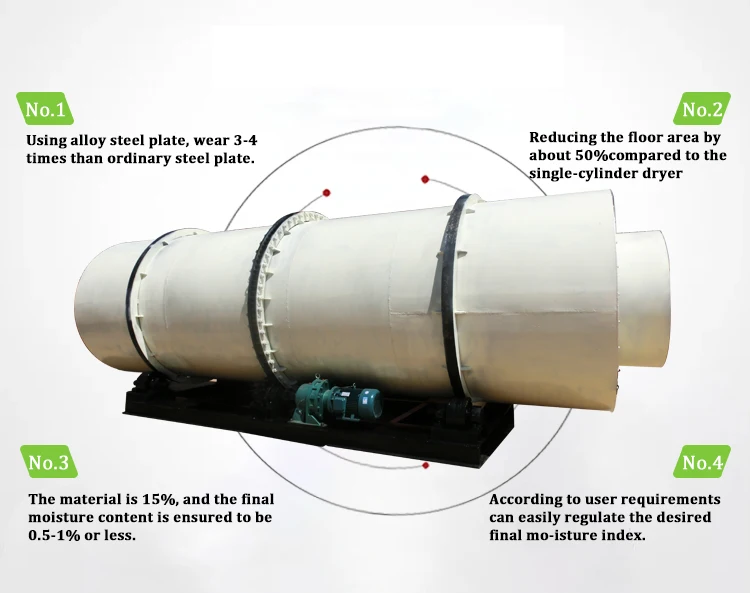

Features

1. International standard with ISO,CE certificate;

2. Simple system,safe and easy operation;

3. Flexibility in fuels used (NG,Oil,Coal ect.);

4. Year of experience with all types of dryers;

5. Capable of installation anywhere in the world;

6. In house engineering for custom fit applications;

7. Proven design.

Technical Parameters

Specification	Cylinder volume (m³)	Capacity (t/h)	Installation slope (°)	Max. intake temperature (℃)	Motor power (kw)	weight (t)
∅0.6×8	2.2	0.3-0.5	3-5	700-800	3	1.9
∅1.0×10	7.85	1.2-2.0			5.5	6
∅1.2×10	11.3	2.4-3.0			7.5	11
∅1.5×12	21.2	4.5-5.7			15	18.5
∅1.5×15	26.5	5.7-7.1			15	20.5
∅1.8×12	30.5	6.5-8.1			18.5	21.3
∅1.8×14	35.6	7.6-9.5			18.5	23
∅2.2×12	45.6	9.7-12.2			22	33.5
∅2.2×16	60.8	13.0-16.2			22	38

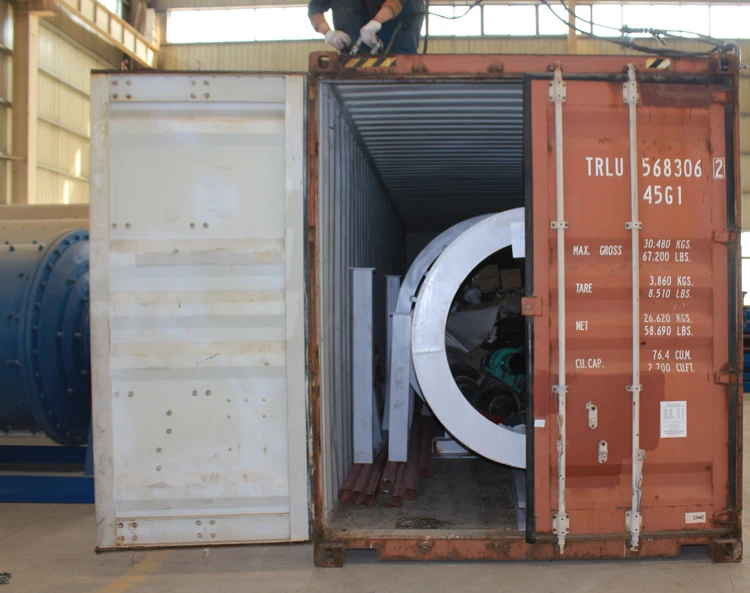

Packaging & Shipping

A standard package in wooden boxes or containers.

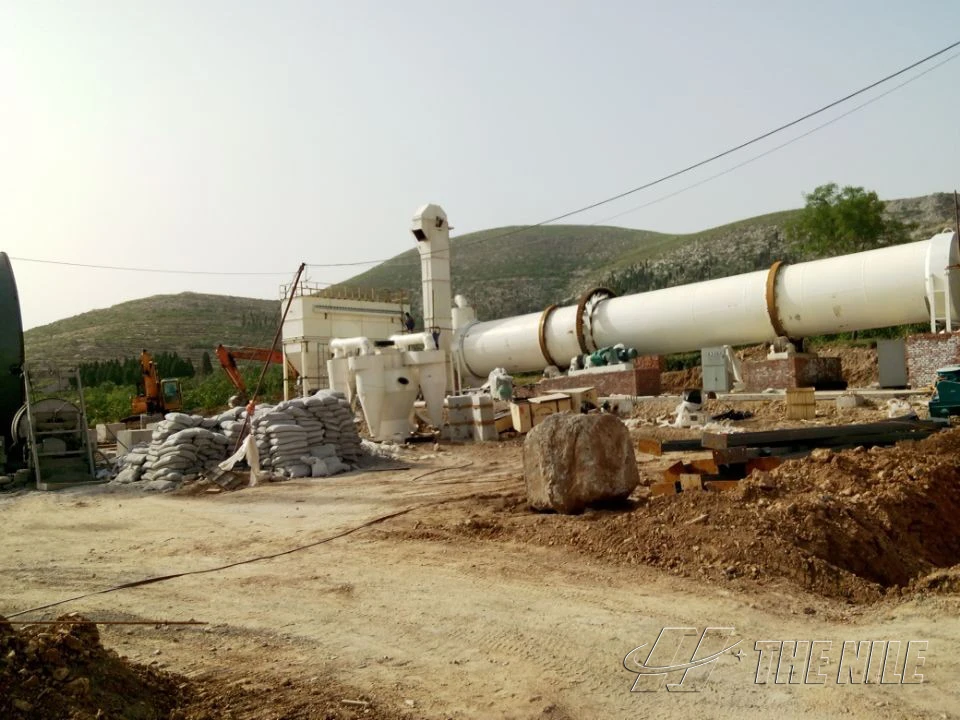

Successful Case

Company Information

The Nile Co.,Ltd.is committed to designing,producing grinding mills,crushers,conveyors,feeding machines,drying and calcinating as well as beneficiation equipment,fine sand recycling equipment etc,which are widely applied in electricity,metallurgy,mine and quarry, wharf,granary,chemical industry.Our products have been spread all over China,and also exported to European,American,Asian,African countries and enjoyed great popularity among our customers.

Our company owns an experienced and skilled sales and service team which compose a perfect service network.We will send the professional engineers to the installation sites and provide guidance for the installation,commissioning and initial run as well as planning administration of the equipments after purchase.

Our Services

We can not only provide good quality sand making machine, but also provide the best service for our clients. The series of professional technology services will make you have an excellent product experience.

Pre-sale services:

(1) The advice of model choice.
(2) Design and manufacture machines according to customer's special requirements
(3) The company is free of charge to the user on-site engineering and technical personnel planning site for the user to design the best processes and program

After-sale services :

(1) Arrange technicians to go to the site to guide installation
(2) If your machine is out of warranty period, you can go to the Nile's overseas office to buy spare parts.
(4) complete sets of equipment installed, 1-2 full-time technical staff to stay free of charge to help customers on-site production of 1 month, until the user' satisfaction.

FAQ

Q1: Are you factory or trade company?
A1: We are factory.

Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.

Q3: How will you help the customer to install the equipment?
A3: Our senior engineer will guide the installation and commissioning as well as the initial production at

Q4: How about the wear parts supply?
A4: We offer wear parts to our customer with our most favorable price. If there are problems youcould not handle, we will send our technicians to your place and you are therefore, responsible for all thecost involved.

Q5: What about the payment method?

A5:T/T, L/C Paypal is available

Q6: What about after-sale service?
A6:12 months warranty for all kinds of products.
