Gold Concentrator Machine High Recovery Knelson Type Centrifugal Separating Machine Gold Concentrator Equipment

Supplier: The Nile Machinery Co., Ltd.
Region: Henan, China
Contact: Ms Lily Li
Price: $5700.00 / 1 - 2 sets
$4000.00 / >=3 sets
Min. Order: 1 set

Click here to contact

Product details

Voltage:	220-480v;	Port:	Qingdao Port;
Dimension(LWH):	According to the model;	Marketing Type:	New Product 2020;
Warranty:	1 Year;	Application:	Gold;
Weight:	0.5t;	Feeding size(mm):	0-4;
Core Components:	Motor;	Packaging Detail:	Standard package in wooden boxes or container.;
Key Selling Points:	Sustainable;	backlash water quantity(kg/time):	6-8;
Certification:	ISO9001 CE BV;	Concentrates capacity(kg/time):	10-20;
Warranty of core components:	1 Year;	Product name:	Centrifugal gold Concentrator;
Capacity(t/h):	3-5;	Cone rotation speed (r/min):	600;
Brand Name:	The Nile CO.,LTD;	Place of Origin:	Henan China;
Slurry density(%):	0.50;	Type:	Gravity Separator;
Showroom Location:	Kenya;	Pressure water required(Mpa):	0.05;
Condition:	New;	Supply Ability:	100 Set/Sets per Month;
Payment Terms:	L/C,T/T;	Video outgoing-inspection:	Provided;
Package Preview:	;	After-sales Service Provided:	Overseas service center available,Video technical support,Online support,Field installation, commissioning and training,Field maintenance and repair service;
Machinery Test Report:	Provided;	Applicable Industries:	Manufacturing Plant,Construction works ,Energy & Mining;
Local Service Location:	Kenya;	Production Capacity:	99%;

Product Description

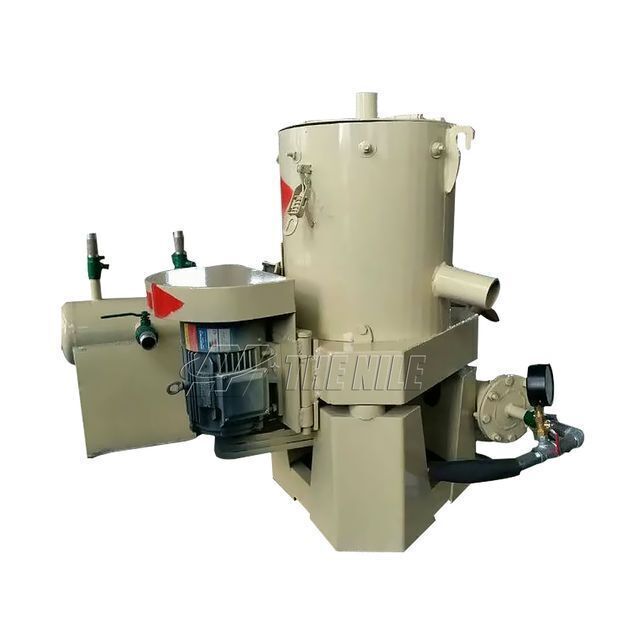

Gold Concentrator

STL Gold centrifuge concentrator processing plant is kind centrifugal concentration equipment. It can be used not only for placer gold mining, but also for hard rock mining to recover the natural gold, replacing amalgamation. It is also used to recover gold from the old tailings.

Working Principle of Gold Centrifugal Concentrator

The main shaft is a hollow shaft, the pressurize backwash water come from the shaft, then goes into the separation unit, the water spray from holes to the gratings. During the process, the pressure of the water shall be 0.06-0.15MPa.

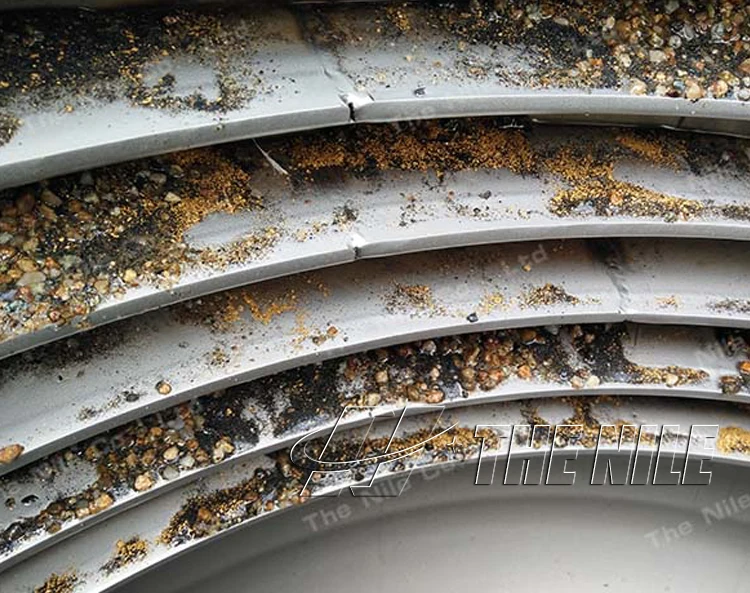

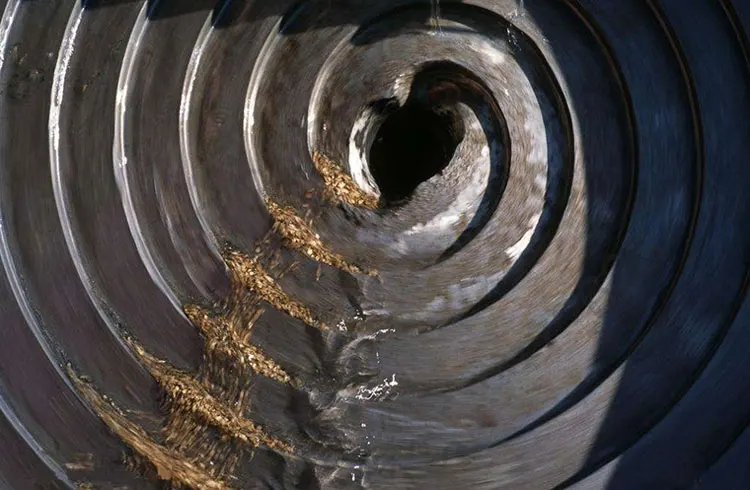

The slurry which is mixed with water and ore and sand will be injected to the mainframe. With the heavy centrifugal force, the slurry will be move upward along the cone body, the light particles will be extracted from the upper part of cone, then discharge through the tailing outlet. The heavy particles will be stay in the gratings of the inner layer.

Features of Gold Centrifugal Concentrator

1. High concentrating ratio and high recovery 2. Total process automation, steady recovery performance 4. Environmentally friendly ( no chemical additives or reagents) 5. Low water and electricity requirements 6. Low production costs, durable wear parts, minimal maintenances requirements 7. Compact design requiring less space, easy merged into the existing mining processing 8. Quick payback on investment, typically less than half year

Technical Data

Model	STL-30	STL-60	STL-80	STL-100
Capacity	3-5 t/h	15-30 t/h	40-60 t/h	80-100 t/h
Power	3 kw	7.5 kw	11 kw	18.5 kw
Feed Size	0-4 mm	0-5 mm	0-5 mm	0-6 mm
Slurry Density	0-50 %	0-50 %	0-50 %	0-50 %
Backlash Water Quantity	6-8 kg/time	15-30 kg/time	25-35 kg/time	50-70 kg/time
Concentrates Capacity	10-20 kg/time	30-40 kg/time	60-70 kg/time	70-80 kg/time
Cone Rotation Speed	600 r/min	460 r/min	400 r/min	360 r/min
Water Pressure	0.05 Mpa	0.16 Mpa	0.18 Mpa	0.2 Mpa
Weight	0.5 t	1.3 t	1.8 t	2.8 t

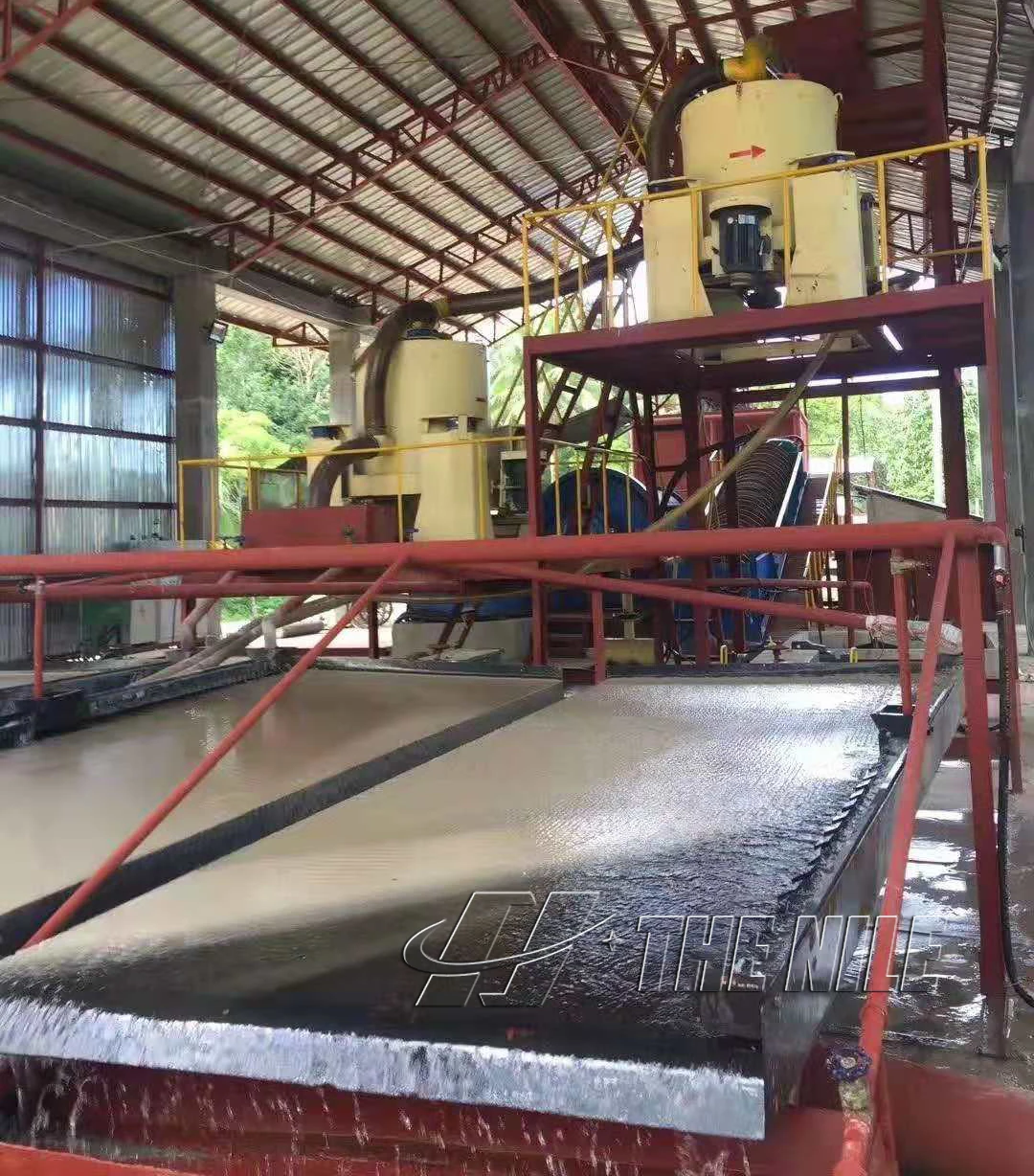

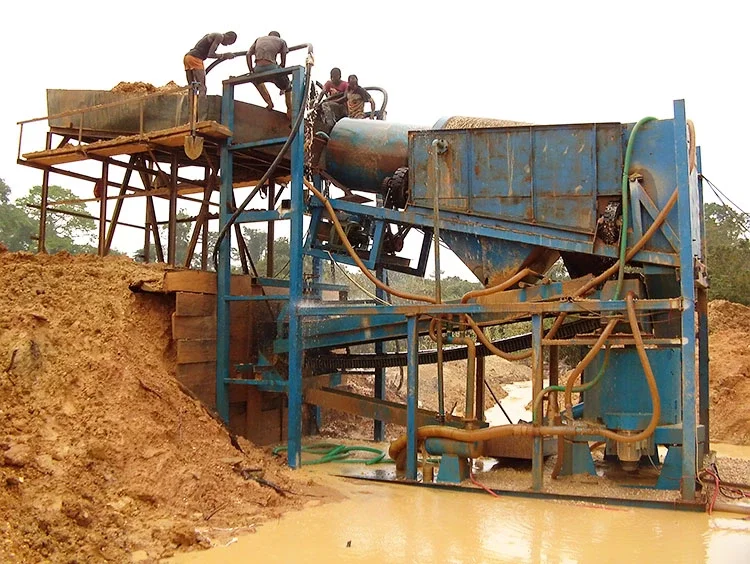

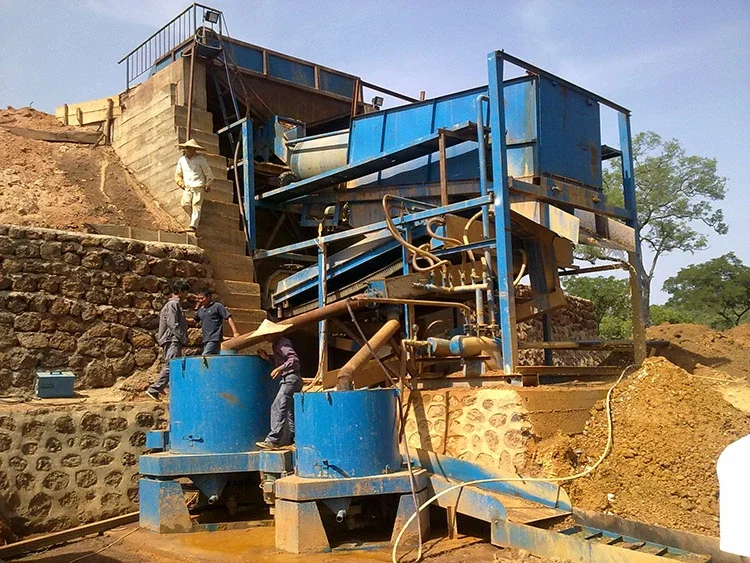

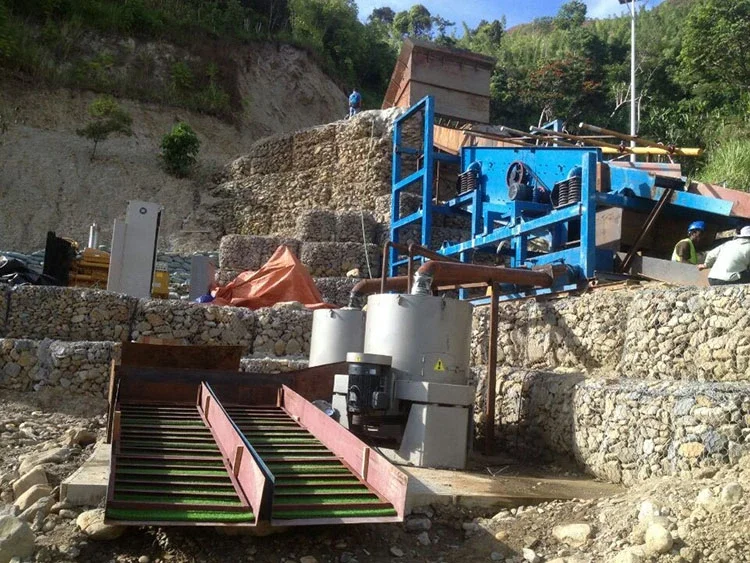

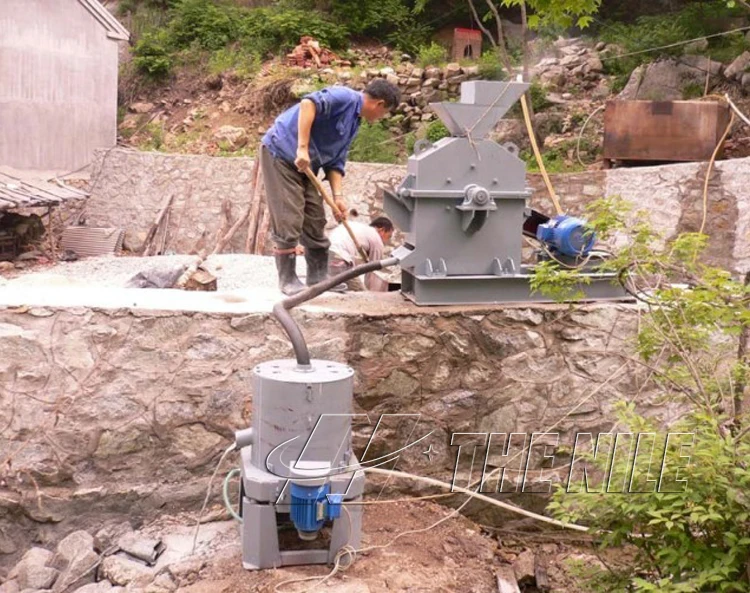

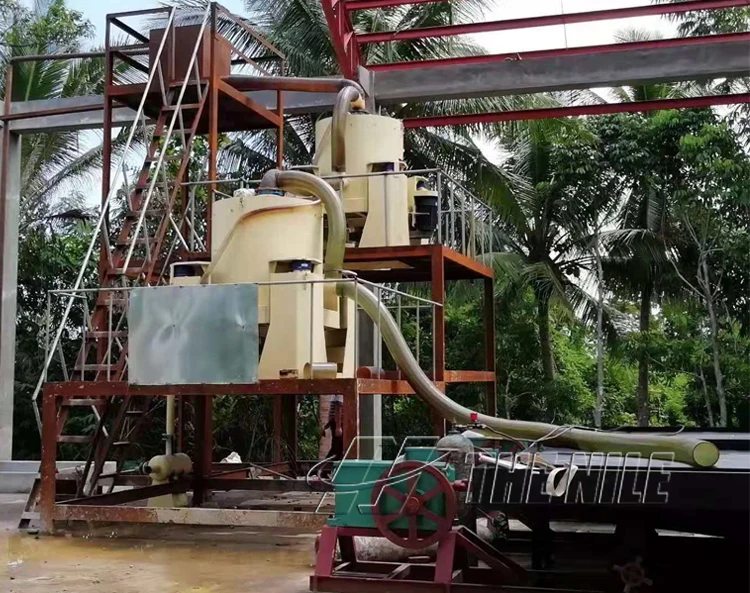

Customer Site

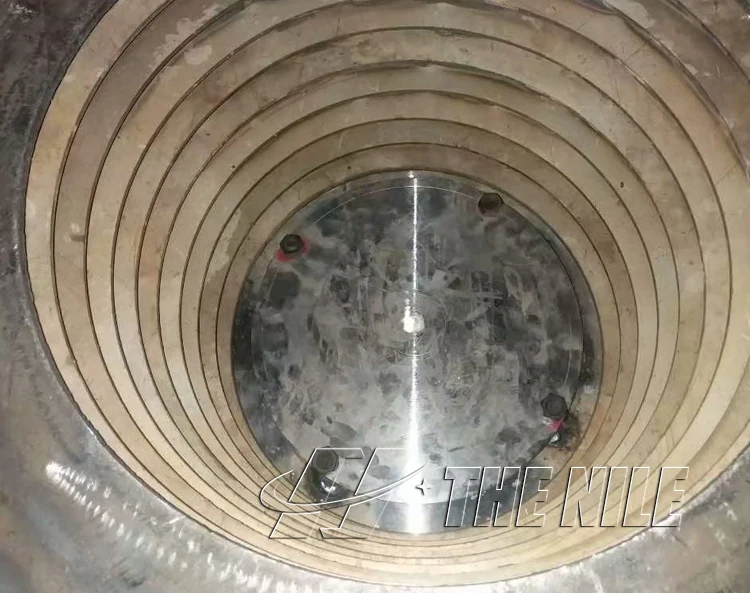

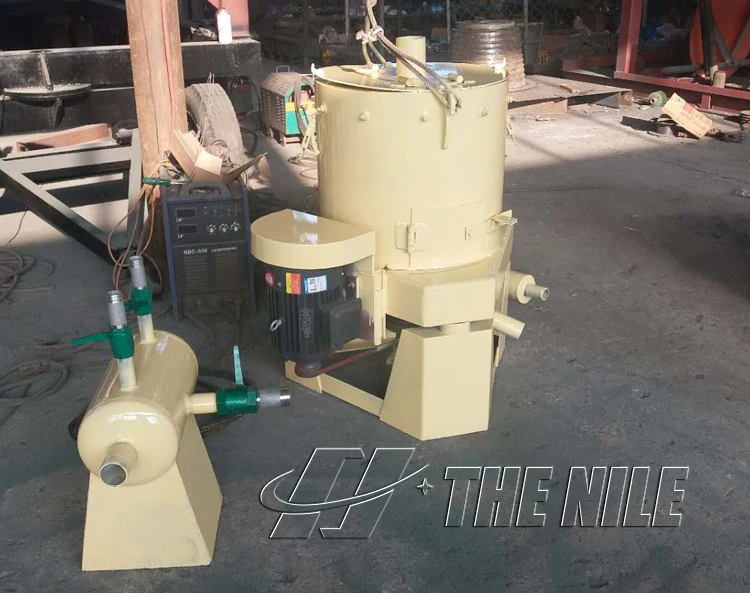

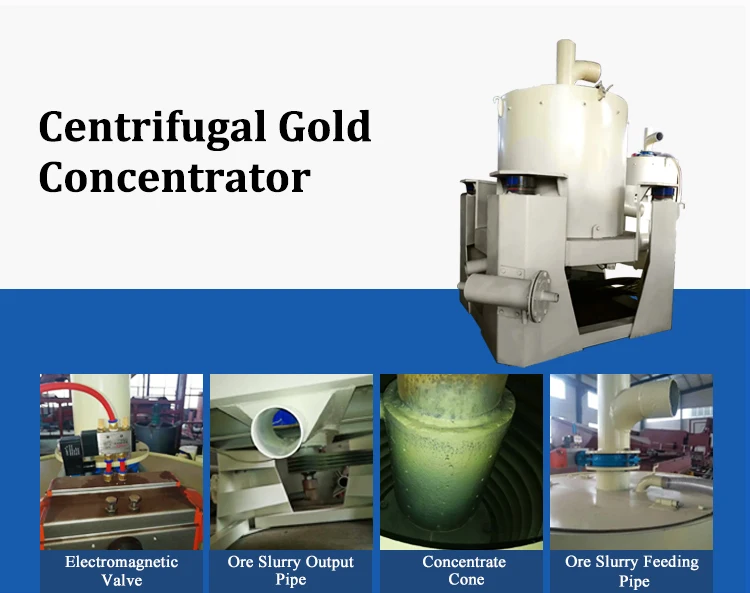

Product Details

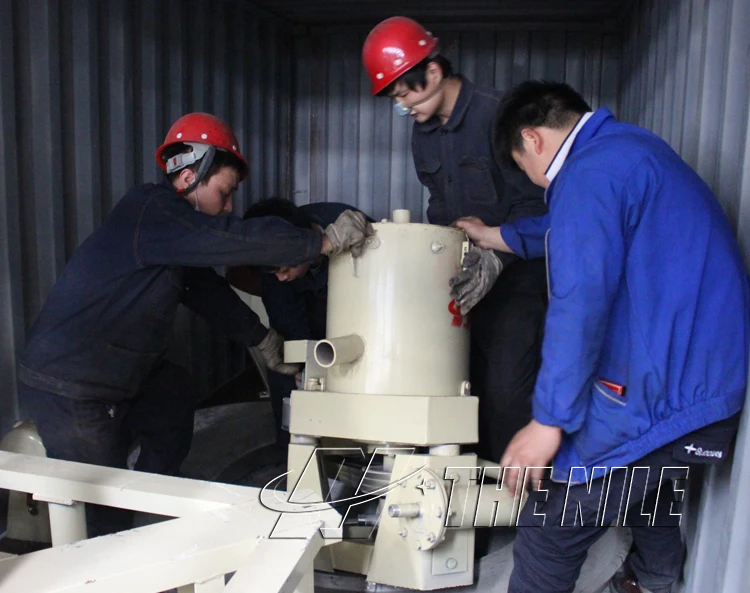

Packing&Shipping

Company Profile

The Nile Co.,Ltd.is committed to designing,producing grinding mills,crushers,conveyors,feeding machines,drying and calcinating as well as beneficiation equipment,fine sand recycling equipment etc,which are widely applied in electricity,metallurgy,mine and quarry, wharf,granary,chemical industry.Our products have been spread all over China,and also exported to European,American,Asian,African countries and enjoyed great popularity among our customers.

Our Advantages

Overseas Service

1.We have engineers in Kenya , Sudan ,Uganda , Professional installation and training skills .

2.We have factory and warehouse in Kenya and China , Fast pre-sale and after-sale service , Wear Parts in stocks , You can get it soon .

3.Our products have been spread all over China,and also exported to European,American,Asian,African countries . Our sales managers and engineers know the local condition very well , We will supply the most suitable solution for you .

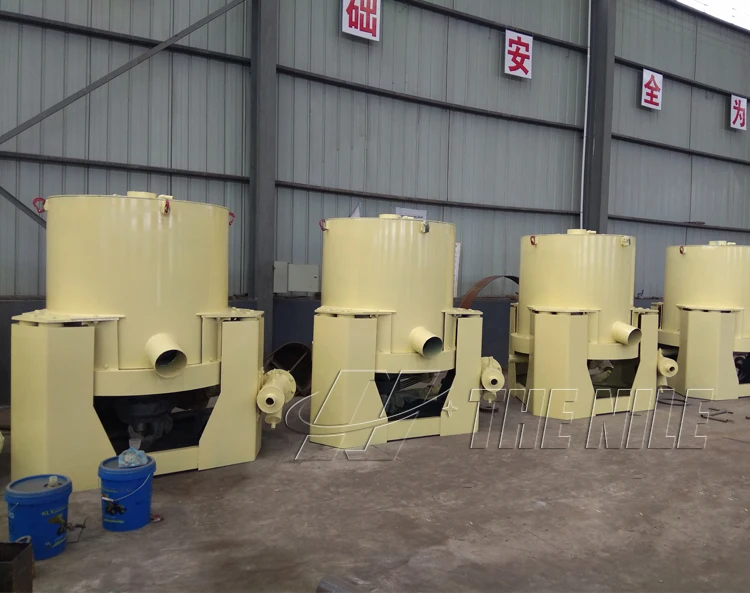

Factory and Warehouse in Kenya

Welcome to visit our factory in China and Kenya .

FAQ

Q1: Are you factory or trade company?
A1: We are factory with CE. We have factory in China and Kenya .

Q2: Where your products have been exported before?
A2: Our products have been sold to South Asia, Africa, South America, middle East and so on.

Q3: How will you help the customer to install the equipment?

#1 Our senior engineer will supply installation and training service on-line or on-site .
#2 We have engineer in Uganda ,Sudan ,Kenya ,China, We will supply 7*24 service .

Q4: How about the wear parts supply?
A4: We will supply the wear parts with factory price . You can buy them from our factory in China and Kenya .

Q5: What about after-sale service?
A5:12 months warranty for all kinds of products.

Q6: How to get the free solution and quotation ?
A6: Please send inquiry to us ,leave your whatsapp and email , our sales manager will contact you within 1 hours .
