Output Frequency: | 0Hz; | Place of Origin: | Guangdong China (Mainland); |
Payment Terms: | T/T; | Type: | Switching; |
Output Current: | 0-3A DC; | Port: | Shenzhen; |
RH: | 90% (40±5℃); | Size: | 81*165*220mm; |
Name: | Switching Power Supply; | Output Voltage: | 0-30V DC; |
Brand Name: | WANBO; | Output Power: | 51 - 100W; |
Display Resolution: | 0.01V/0.001A; | Product Name: | adjustable dc power supply; |
Input Voltage: | AC 220V/110V±10%; 50Hz/60Hz; | Efficiency: | ≥89%; |
Application: | Lab, education, aging test, electric appliances repair, etc.; | Model Number: | SLC303DF; |
Supply Ability: | 1000 Piece/Pieces per Week adjustable dc power supply; | Warranty: | 1 Year; |
Output Type: | Single; | Packaging Detail: | Dimensions (mm): 81(W)*165(H)*220(L) N.W.: 1.4 kg per piece G.W.: 1.7 kg per piece Packing Size (mm): 120(W)*205(H)*290(L) Packing Method: 8 piece per ctn G.W.: 15.0 kg per ctn; |
Output: | Single; |
Electronic Switching Adjustable DC Power Supply
adjustable dc power supply
Switching DC Power Supply:
High Precision

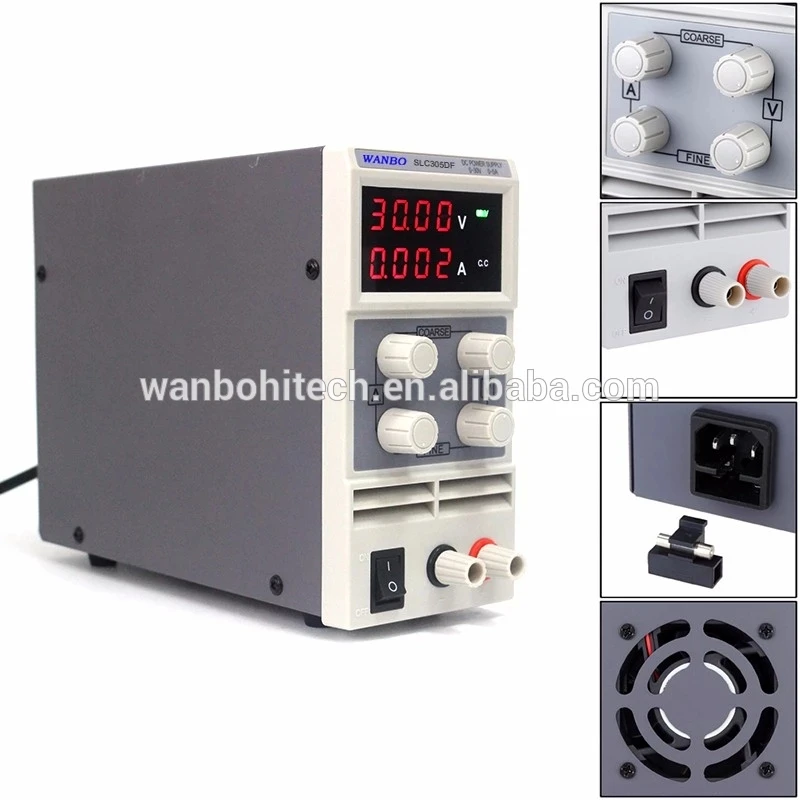

SLC series switching power supply has single output, high precision and double digital display. It has full operating protection function and the features of high efficiency, low ripple, high stability, small size and so on. Current limiting protective function can protect the product and load against accidental damage. It is equipped with temperature control circuit, intelligent dissipating heat and low noise.
Technical Parameters:
Input Voltage | AC 220V/110V±10%; 50Hz/60Hz |
Output Voltage and Current | See sheet below |
Ripple Voltage | Vpp≤1% |
Efficiency | ≥89% |
Display | 4-digit LED display |
Display Resolution | 0.01V/0.001A |
Display Accuracy | ±1% + 2 digits |
Working Temperature | (-10~45) ℃ |
Storage Temperature | (-20~60) ℃ |
RH | 90% (40±5℃) |
Main Features:
High efficiency, full power
Low ripple, small size, light weight
Voltage and current are displayed separately by LED, high precision
Stable voltage output, current limiting and simple operation
Dual voltage input, to facilitate selection
Dissipate heat by temperature-controlled fan, low noise and long service time.
Applications:
1. Production line test
2. Electric appliances repair
3. Aging test
4. Charging the batteries
5. Laboratory, scientific research and education
6. Other applications requiring power supplyn.
Model | Output Voltage(V) | Output Current(A) | Display Resolution(V) | Display Resolution(A) | Unit |
SLC1505DF | 0~15V | 0~5A | 0.01V | 0.001A | Piece |
SLC1510DF | 0~15V | 0~10A | 0.01V | 0.001A | Piece |
SLC303DF | 0~30V | 0~3A | 0.01V | 0.001A | Piece |
SLC305DF | 0~30V | 0~5A | 0.01V | 0.001A | Piece |
SLC3010DF | 0~30V | 0~10A | 0.01V | 0.001A | Piece |
SLC602DF | 0~60V | 0~2A | 0.01V | 0.001A | Piece |
SLC603DF | 0~60V | 0~3A | 0.01V | 0.001A | Piece |
SLC605DF | 0~60V | 0~5A | 0.01V | 0.001A | Piece |
SLC1003DF | 0~100V | 0~3A | 0.01V | 0.001A | Piece |
Shenzhen Wanbo Hi-tech Co Ltd is specializing in manufacturing TAB bonding machine, ACF bonding machine, LCD screen laser repair machine, soldering station, soldering tips, digital multimeter, adjustable dc power supply, programming electronic load, LCR meter, oscilloscope, lamp mafnifier, smt machine, pick and place machine, reflow oven, solder paste, miscroscope, ultrasonic cleaner, ultrasonic welding machine, assembly line, LED chip packaging machines etc. We have R&D team based in Shenzhen. Our goal is to build perfect world.
1. Can you do OEM?
Yes. Also can be customized according to the customer's specific requirements.

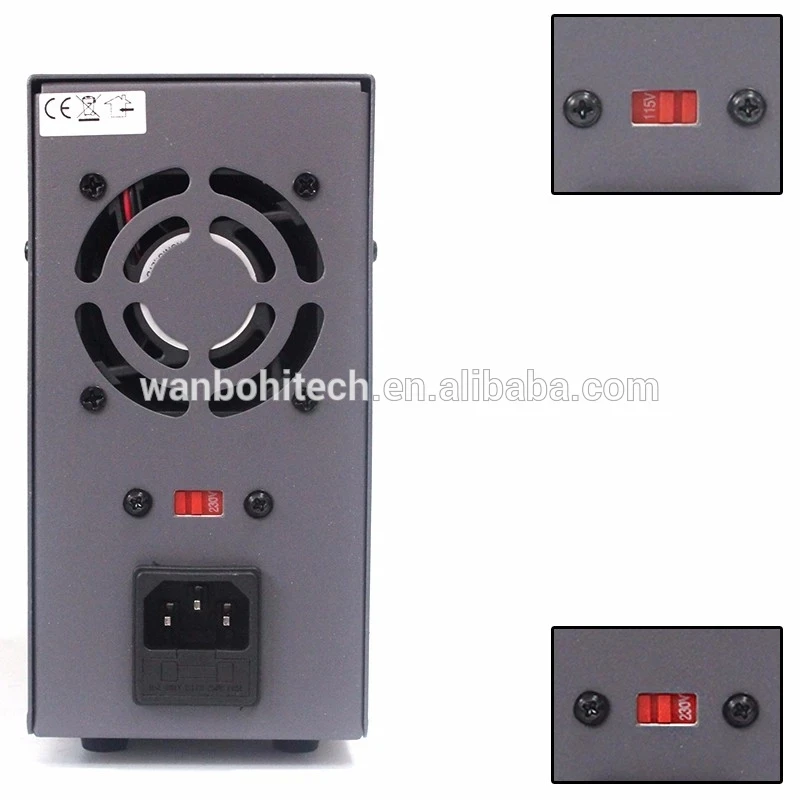

2. If 110V is available?
Yes. 110V and 220V can be switched arbitrarily.

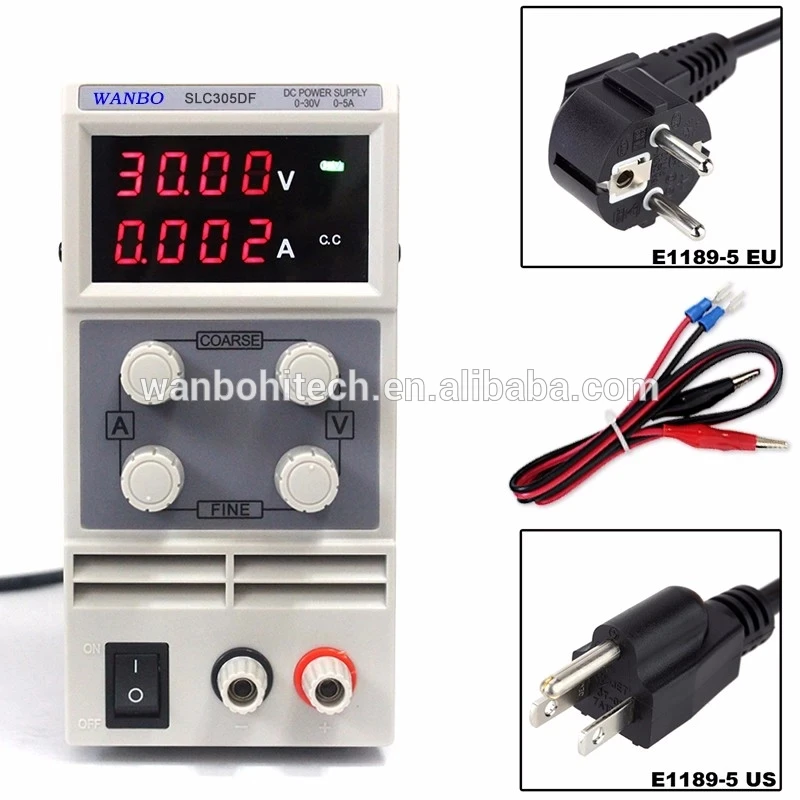

3. What kind of plug does your product equip with?
American or Australian or European or UK plug or other types of plug.
