Supply Ability: | 1000 Piece/Pieces per Week soldering station; | Port: | Shenzhen; |

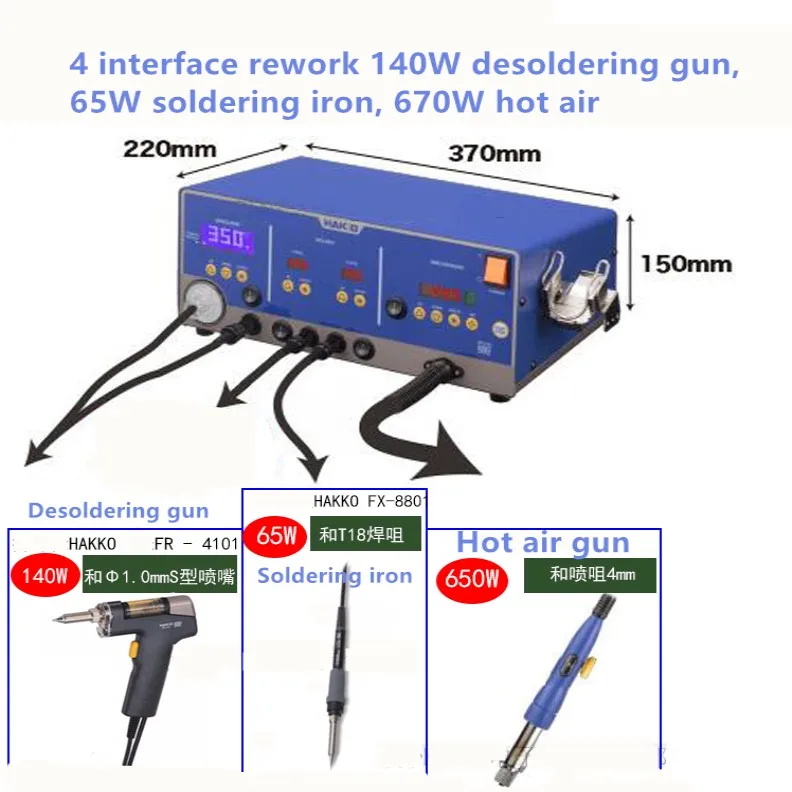

Warranty: | 2 Years; | Dimensions: | 370*150*220mm; |
After-sales Service Provided: | Free spare parts,Field installation, commissioning and training,Field maintenance and repair service,Video technical support; | Condition: | New; |
Certification: | ROHS; | Setting method: | Key setting; |
Place of Origin: | Guangdong China (Mainland); | Type: | Soldering Station; |
Usage: | Electronic Industry; | Product name: | soldering station; |
After-sales Service Provided: | Engineers available to service machinery overseas; | Packaging Detail: | Paper box package 39*26*12cm; |
Color: | Blue; | working voltage: | 220V50Hz, output 24V; |
Wire length: | 1.22M; | Payment Terms: | L/C,T/T,Western Union,MoneyGram; |
Brand Name: | Wanbo; | Weight: | 9kg; |
Power supply: | AC 220V 50Hz; | Temperature range: | 50-480; |
output: | 70W; | Display: | LED Digital Dispaly; |
Heat Conduction Digital Display Soldering Station
soldering station
Boot 15 seconds up to 350 degrees centigrade
Silver alloy heat conduction material, heat conduction mode of heat conduction, fast return temperature.
The latest improved control software, temperature control is more accurate.
Through WCB1 or WCB2, temperature compensation, temperature locking, automatic cooling, user window and other functions can be realized
Two ways of soft ground and hard grounding are optional.
It can be connected with electric cautery tweezers, preheating plate and so on. It is a comprehensive maintenance platform.
The iron head is separated from the heating body, so as to reduce the user's use cost..
Specifications:

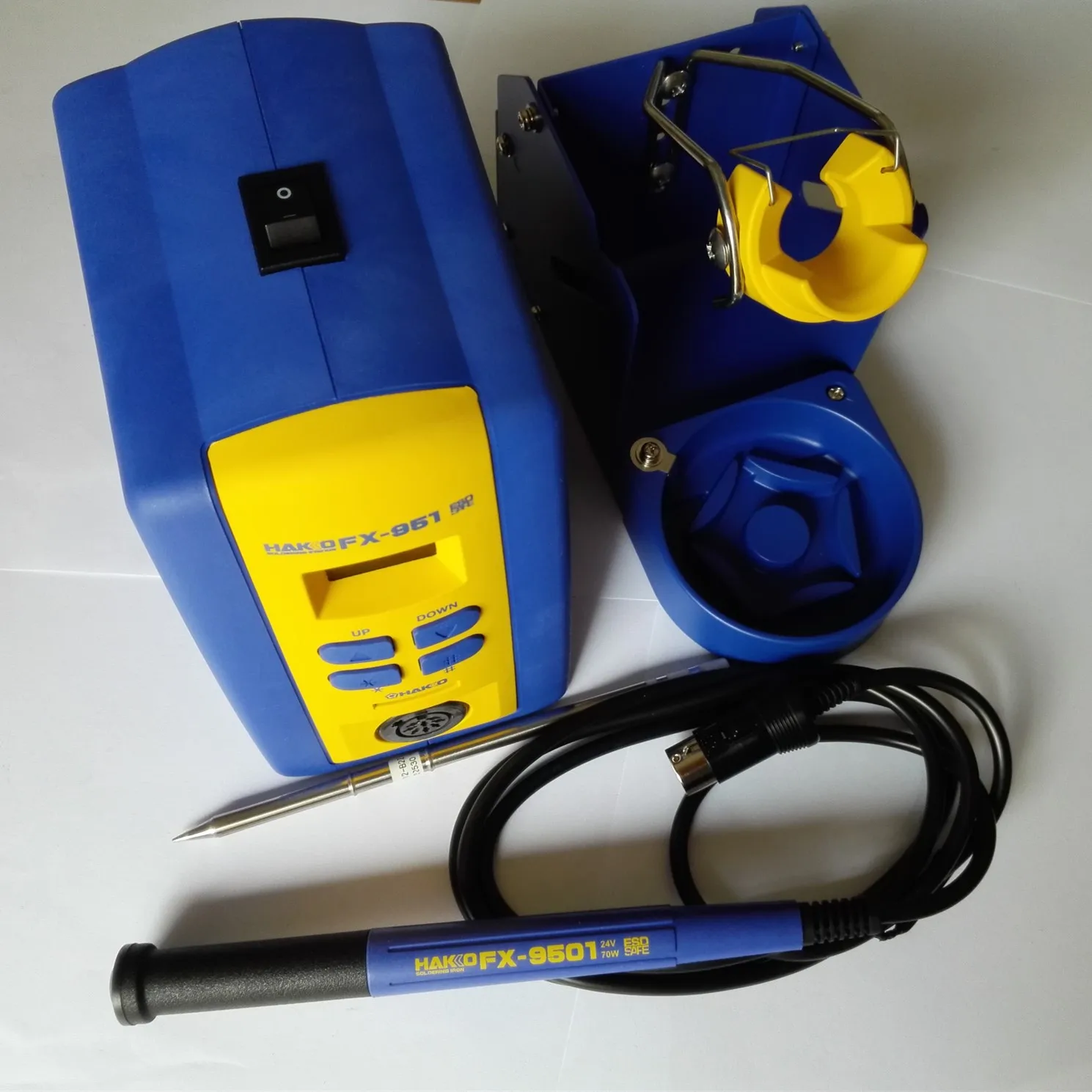

Model | FX-951 |
output | 70W |
Soldering Iron | FM-2026 |
working voltage | 220V50Hz, output 24V |
power | 70W |
temperature range | 200 ~450 C |
Wire length | 1.22M |
No load temperature drift | +/- 2 C |
Temperature accuracy | +/- 5 C |
Optional iron head series | T12 T13 series |
Earth resistance of welding nozzle | Less than or equal to 2 Ohm |
ESD | YES |
Leakage voltage of welding nozzle | Less than 2mV |
The distance between the new suction nozzle and the filter tube is shortened to prevent the tin blockage from being sucked in
Using disposable ceramic filter paper, ceramic filter paper and tin can be disposed separately
One touch change nozzle, the suction nozzle can be used to change the suction nozzle safely
The detachable handle provides two grip methods: gun type or vertical type
Connect gun handle to connect vertical handle
Changing suction nozzle is simple and convenient:
1) suction nozzle release button 2) pull the extractor into the suction nozzle 3) press the suction nozzle release button 4) pull out the suction nozzle
Model FM-2024
Power consumption 70W (24V)
The range of temperature control is 350 ~ 450 centigrade
The impedance between suction nozzle and grounding is < 2 ohm
Nozzle and the grounding resistance between a < 2mV
Length of wire 1.2m
Length (excluding wires) 180mm
Weight (excluding wire and throat) 65g
* temperature data are measured using a white FG-101 thermometer
* excluding suction nozzles, suction nozzles need to be purchased

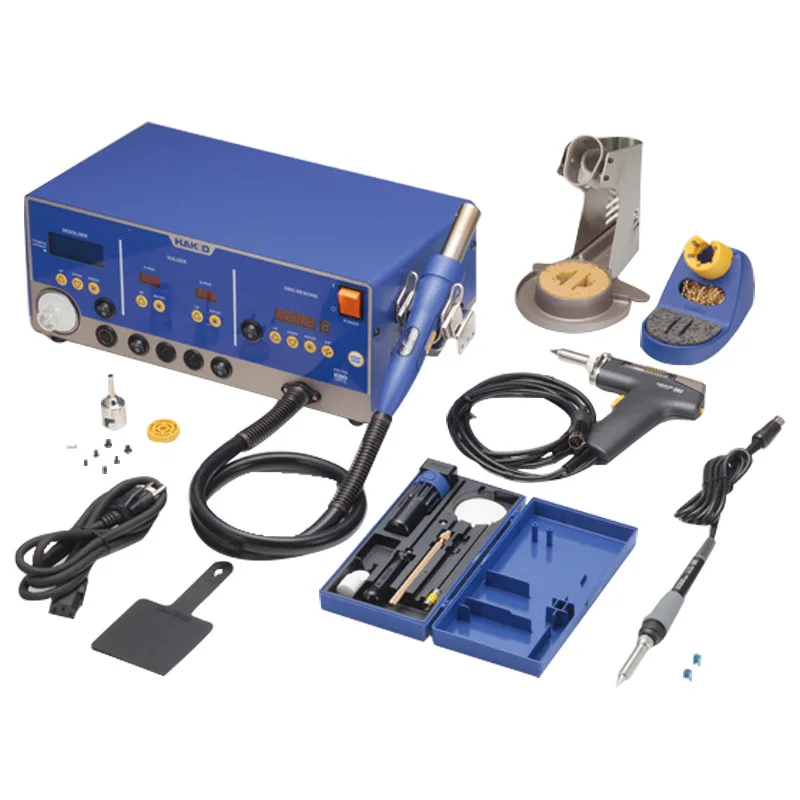

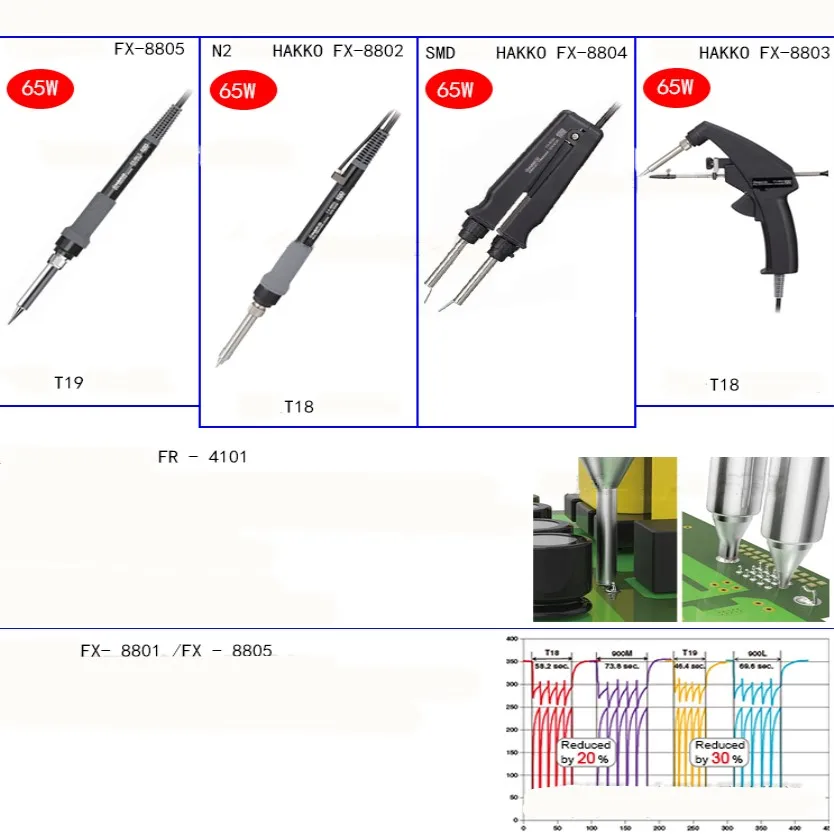

Look at other tin gun: FR-400, FR-410, FR-300, white light maintenance system FR-701, FM-204, 474, white light maintenance system FR-702, 475 product number and name content
FM2024-02
(only suction gun, without suction nozzle) FM-2024 tin gun
(excluding N1 suction nozzle)
FM2024-27 tin gun conversion kit
(for FM-203 welding units must be connected together using the compressor) * welding iron sleep function
*599B welding nozzle cleaner
Clean drill needle
* 10 ceramic filter papers
*220V DCB tin suction control box
* epitaxial connecting wires
* filter tube combination
*FM-2024 tin suction gun (excluding N1 pull out)
Gun type handle
Suction extractor
Shenzhen Wanbo Hi-tech Co Ltd is specializing in manufacturing TAB bonding machine, ACF bonding machine, LCD screen laser repair machine, soldering station, soldering tips, digital multimeter, adjustable dc power supply, programming electronic load, LCR meter, oscilloscope, lamp mafnifier, smt machine, pick and place machine, reflow oven, solder paste, miscroscope, ultrasonic cleaner, ultrasonic welding machine, assembly line, LED chip packaging machines etc. We have R&D team based in Shenzhen. Our goal is to build perfect world.
1. Can you do OEM?
Yes. Also can be customized according to the customer's specific requirements.
2. If 110V is available?
Yes. 110V and 220V can be switched arbitrarily.
3. What kind of plug does your product equip with?
American or Australian or European or UK plug or other types of plug.
