Voltage: | 220/380V; | MOQ: | 1 set; |
Type: | Core Drilling Rig; | Max.Travel Speed: | 45km/h (28mph); |
Machinery Test Report: | Provided; | Warranty: | 1 Year; |
Video outgoing-inspection: | Provided; | Dimension(L*W*H): | /; |
Port: | QINGDAO/NINGBO/SHANGHAI; | Packaging Detail: | Packing in Nude in FR; |
Total Weight: | 55,000kg (121,250lb); | After-sales Service Provided: | Online support,Video technical support,Field installation, commissioning and training,Field maintenance and repair service; |
Condition: | New; | Brand Name: | BEYOND; |
Applicable Industries: | Energy & Mining; | Showroom Location: | Egypt; |
Transmission: | Winstar BY603; | Hook Hoisting Speed: | 0.25-1.4m/s (0.82-4.6ft/s ); |
Model Number: | XJ; | Weight: | 3000; |
Supply Ability: | 10 Set/Sets per Week; | Warranty of core components: | 1 Year; |
Core Components: | Engine,Gear; | Certification: | ISO 9001; |
Usage: | Oil Well; | Local Service Location: | Egypt; |
Place of Origin: | Shandong China; | Max. Hook Load: | 1,575kN (354,000lbf); |
Power Type: | Diesel; | Rated Hook Load: | 2,000m(6,560ft, 4-1/2'' DP); |
Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Workover Depth: | 7,000m/5,500m/4,200m; |
keywords: | oil drilling rig; | Marketing Type: | Ordinary Product; |
Servicing Depth: | 8,500m (27,900ft, 2-7/8" EUE tubing); |
Model | XJ650 | Engine Power | 470kW(630hp)/2100r/min | |
Drilling Depth | 2,000m (6,560ft, 3-1/2" DP) | Derrick | ||
Workover Depth | 7,000m (23,000ft, 2-7/8" DP) | Net. Height | 35m (115ft) | |
5,500m(18,000ft, 3-1/2" DP) | Max. Static Hook Load | 1,580kN(355,200lbf) | ||
4,200m(13,800ft, 4-1/2" DP) | Effective Lines | 8 | ||
Servicing Depth | 8,500m (27,900ft, 2-7/8" EUE tubing) | Racking Board Capacity | 2,000m(6,560ft, 4-1/2'' DP) | |
Max. Hook Load | 1,575kN (354,000lbf) | Racking Board Height | 22.5m(73.8ft) | |
Wireline Dia. | Φ29mm (11/8'') | Max. Wind Velocity | 30m/s(98ft/s) | |
Traveling System | 4×5 | Drawwork | ||
Overall Dimensions(L×W×H) | 19.9×3.1×4.37m(65.3×10.2×14.3ft) | Rated Power | 310kW(415hp) | |
Weight | 55,000kg (121,250lb) | Drum Dimensions | Φ429×918mm(Φ16.9''×36'') | |
Max. Travel Speed | 45km/h (28mph) | Max. Faster Line Pull | 210kN (47,000lbf) | |
Power and Carrier | Sanding Drum Dimensions | Φ965×264mm (Φ38''×10.4'') | ||
Carrier | Self-propeller 12×8 | Air assist Brake System | KOBELT Disc4-10.5-48.5'' Matched 5028-CM Caliper. | |
Engine | CATC18 | |||
Racking Board Capacity | 6,500m(21,330ft, 2-7/8" EUE Tubing) | |||
Racking Board Height | 22.5m(73.8ft ) | |||
Drawwork Rated Power | 315kW(420hp, Double Drum) | |||
Main Drum | Φ429×965mm(Φ16.9"×38") | |||
Max. Faster Line Pull | 210kN(47,200lbf ) | |||
Sanding Drum | Φ965×264mm (Φ38"×10.4") | |||
Air Assist Brake System | KOBELT Disc4-7-48″Caliper 5026-CM | |||
Drill Floor ( L×W×H) | 6.74×5×5m(22.1×16.4×16.4ft) | |||
Swivel Model and Max. load | SL150 1,350kN (303,500 lbf) | |||
ZP175 Rotary Table | Max. Load 1,350kN (303,500 lbf ); Max. Open Dia. 444.5mm(17.5") |
We supply a full line of drilling rig packages:
skid-mounted drilling rigs, truck-mounted drilling rigs and trailer-mounted drilling rigs. Our skid-mounted drilling rigs include diesel electric AC/VFD or DC/SCR drive rigs, mechanical-electric combined drive rigs, and mechanical rigs (Belt or Chain transmission), from 450HP to 3,000HP (Rated Drilling depth: 1,500-9,000m). Our truck-mounted drilling rigs range from 550HP to 1,000 HP.

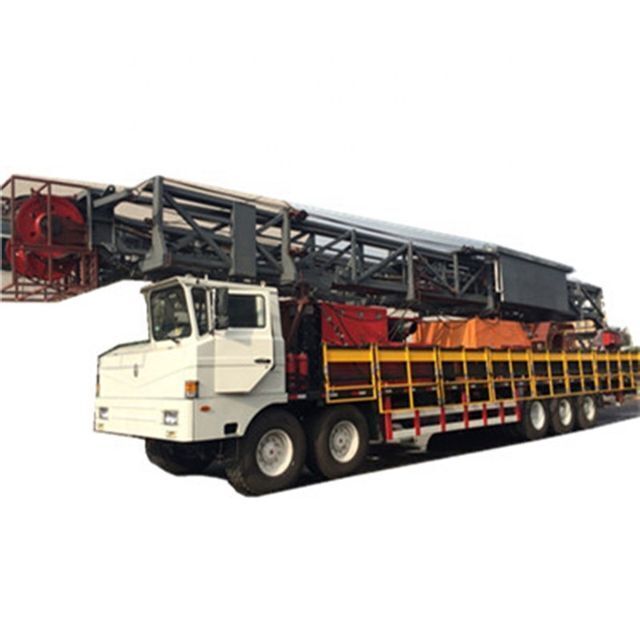

Characteristics for series of truck-mounted drilling rigs:
◆ Power system is fitted with engine and hydro-mechanical transmission.
◆ Electric, air, and hydraulic system is centrally controlled. Key components are world famous make.
◆ The mast design and manufacturing comply with API 4F and 8C specification. Finite element analysis and stress inspection test will be conducted for mast. The surface of structural pieces will be sand blasted.
◆ Chassis is powered by the deck engine via transfer case. Heavy duty wide wheel distance, high strength beam, hydraulic power steering.
Q: Are you trading company or manufacturer ?
A: With 11 years export experience, but we have been purchase agents for years of clients from America, Azerbaijan, South America, India, Egypt, South Africa, Kazakhstan.
Hope we could also be your sincere supplier in this field.
Q: How long is your delivery time?
A: Generally for the spares we have in stock, and for mud pump and other drilling rig equipments, it will delivery in 30 working days, for 1 complete set of drilling rig, delivery time will be at least 60 working days.
Q: What is your terms of payment ?
A: T/T, 30% advance payment, the balance 70% payment should be paid before delivery.
Q: How is the quality ?
A: All of our products are certified by API, ISO9001, we have professional technical department to make sure all the products could help clients earn more profit.
Q: Do you accept OEM products ?
A: Of course, we could manufacture according to your requirement and help you to choose the best reliable factory.
Q: How is the packing ?
A: We all packing meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.
Q: How is the shipping ?
A: Shipping by air, sea and train both acceptable, and based on the good relationship with our all shipping agents, we could help every client to save more in the logistics and transportation.
