API 550HP Workover Oil and Gas Equipment Rig Mine Rock Drill Rig Oilfield Offshore Onshore Oil Well Drilling Rigs

Supplier: Shandong Beyond Petroleum Equipment Co., Ltd.
Region: Shandong, China
Contact: Mr Alex Zhao
Price: $420000.00 / 1 - 1 sets
$415000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Dimension(LWH):	20.1 * 3.05 *4.49 (m);	Applicable Industries:	Construction works ,Energy & Mining;
After-sales Service Provided:	Engineers available to service machinery overseas;	Warranty:	12 Months;
Theory Drilling Depth(M):	2000;	Warranty of core components:	1 Year;
Marketing Type:	Ordinary Product;	Port:	QINGDAO/NINGBO/SHANGHAI;
Weight:	58000 KG;	Max.Hook Load:	1580kN;
Core Components:	PLC,Engine,Bearing,Gearbox,Motor,Pressure vessel,Gear,Pump;	Certification:	API;
Place of Origin:	Shandong China;	Voltage:	220V~380V;
Machinery Test Report:	Provided;	Supply Ability:	50 Set/Sets per Year;
Showroom Location:	Egypt,Saudi Arabia,India,Argentina,Chile,UAE,Kazakhstan,Uzbekistan;	Local Service Location:	Egypt,Saudi Arabia,India,Argentina,Chile,South Africa,Kazakhstan;
Brand Name:	BEYOND;	Power Type:	Diesel;
Transmission Mode:	Hydraulic+Mechanical;	Mast Height:	35m;
Type:	Rotary Drilling Rig;	Hydraulic System:	14MPa;
Drawworks Rated Power:	600HP;	Usage:	Oil Well;
Packaging Detail:	Packing in nude;	Condition:	New;
Wirerope Diameter:	29mm;	Installed Power:	630HP (470KW);
Video outgoing-inspection:	Provided;	Model Number:	ZJ20;
Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;

Product Description

Introduction :

1. Power system: engine and hydro-mechanical transmission.

2. API 4F and 8C specification 3. Main drum : integral type Lebus groove.

Main braking : band type or hydraulic disc brake.

Auxiliary brake : air controlled water-cooling disc brake, air tong brake, hydro brake, electromagnetic eddy auxiliary brake.

Sand drum is optional. 4. Optional : new-style cab,

embedded stairs,

automatic locking pin for mast,

air controlled auxiliary brake

Product Paramenters

Type/Technical Spec.	ZJ15CZ	ZJ20CZ	ZJ30CZ	ZJ40CZ
Nominal Drilling Depth (M)	1500	2000	3000	3000
Installed Power	540HP (402KW)	630 HP×2 (470 KW×2)	630HP (470KW)	630 HP×2 (470 KW×2)
Max.Hook Load	1350kN	1580kN	2250kN	2250kN
Drawworks Rated Power	450HP	600HP	1000HP	1000HP
Drive	Hydraulic+Mechanical	Hydraulic+Mechanical	Hydraulic+Mechanical	Hydraulic+Mechanical
Mast Height (M)	33	35	38	38
Hydraulic System	14MPa	14MPa	21MPa	21MPa
Overall Size	19.37×3.05×4.49m ( Including Mast) 14.6×3.05×3.1m （ Without Mast）	20.1×3.05×4.49m ( (Including Mast) 15.56×3.05×3.1m （ Without Mast）	23×3.2×4.8m ( Including Mast) 16. 56×3.2×3.2m ( Without Mast)	23×3.2×4.8m ( Including Mast) 16. 56×3.2×3.2m ( Without Mast)

Company Profile

BEYOND is established on request of customer and aimed to supply best product and service for the customer. It focuses on to supply best solutions for the overseas oilfield customer on equipment & spares maintenance and supply.

China has become main equipment supplier for oil production countries, but Chinese equipment has some special features different with European and American countries, also there exits big language and cultural difference between China and other countries, so it has become one big challenge for the overseas customer to get the exact equipment and parts they need in a short time.

However, BEYOND takes root in China, and has very good cooperation relationship with most of famous factories, plus strong technical support and good advantage in language. Therefore, BEYOND is quite capable to help the customer to solve this challenge.

BEYOND products cover but not limited to: China-make oil drilling rigs, workover rigs, wellhead and downhole tools, drilling tools, OCTG and other related equipment and parts. Meanwhile, BEYOND can offer technical services, personnel training and maintenance guide towards China-made drilling rigs. Only if it is what you need, BEYOND can get it for you: from best factories, with most competitive price and within shortest lead time.

With “Professional & Efficient, Customer Focus, Win-win Cooperation” as its operation principle, BEYOND believes that it will become your best cooperative partner in China. “Professional & Efficient, Customer Focus, Win-win Cooperation” “Professional Oilfield Equipment and Parts Supplier”

Packing and Shipping:

Spares packing in wooden box. Big machine we packing in nude on container and flat rack.

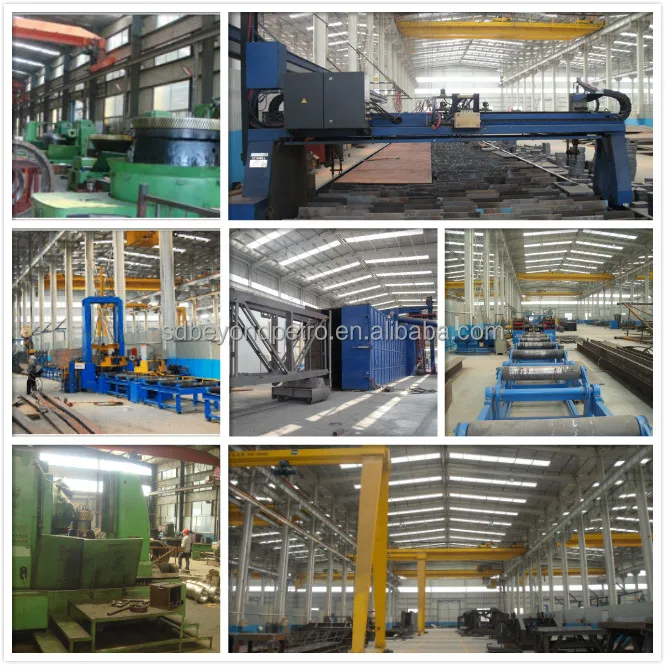

Manufacture Workshop:

Certificate:

Clients Visiting & On Exhibition:

Welcome all clients visiting our factory and we also drive them all over the China to help them purchase what they need. Also we join the exhibition to communicate with clients face to face.

FAQ

Q: Are you trading company or manufacturer ?
A: We are professional trading company with 12 years experience working in this field, and own our reliable supply chain to provide clients ONE STOP purchasing service in our main products oil drilling rig, drilling mud pump, related oilfield drilling equipment, construction machinery, water well drilling rig and etc. Now we have been exported to more than 20 countries of Azerbaijan, Kazakhstan, Asia, South America, Africa, India, Egypt, and get a good reputation in the world, and many of them base on long-term business, 6-10 years.

Q: How long is your delivery time?
A: Generally for the pump spares we have in stock, and for mud pump and other drilling rig equipments, it will delivery in 30 working days, for 1 complete set of drilling rig, delivery time will be at least 60 working days.

Q: What is your terms of payment ?
A: T/T, L/C at sight, 30% advance payment, the balance 70% payment should be paid before delivery.

Q: How is the quality ?
A: All of our products are certified by API, ISO9001, for the mud pump we test whole day to check all the operation details under pressure, and drilling rig spares our quality inspect department will check all and provide quality certificate.

We provide one year quality warranty.

Q: Do you accept OEM products ?
A: Of course, we could manufacture according to your requirement and even the color, logo, clients' requirement is NO.1.

Q: How is the packing ?
A: We all packing meet the strict export packing requirement, we surely know how important the beautiful and firm packaging to the goods.

Q: How is the shipping ?
A: Shipping by air, sea and train both acceptable, and based on the good relationship with our all shipping agents, we could help every client to save more in the logistics and transportation.

Contact Lily at ：
