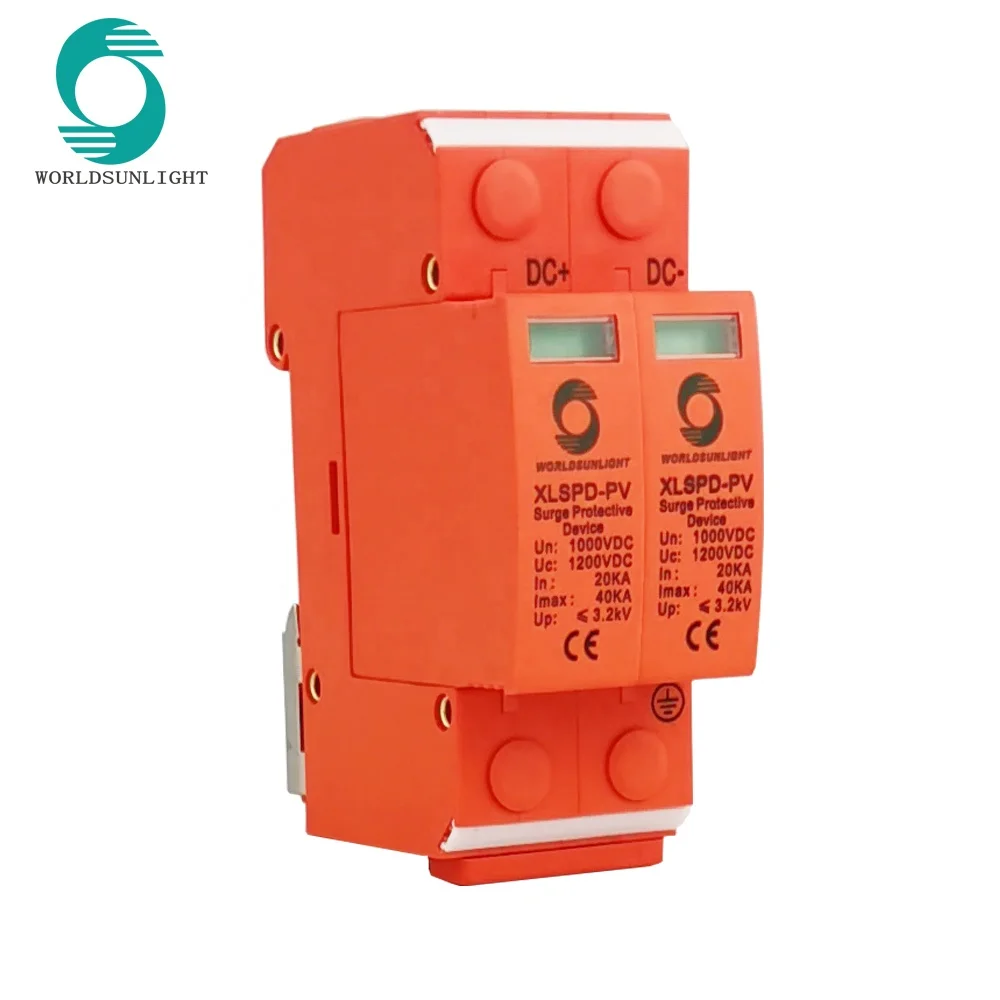

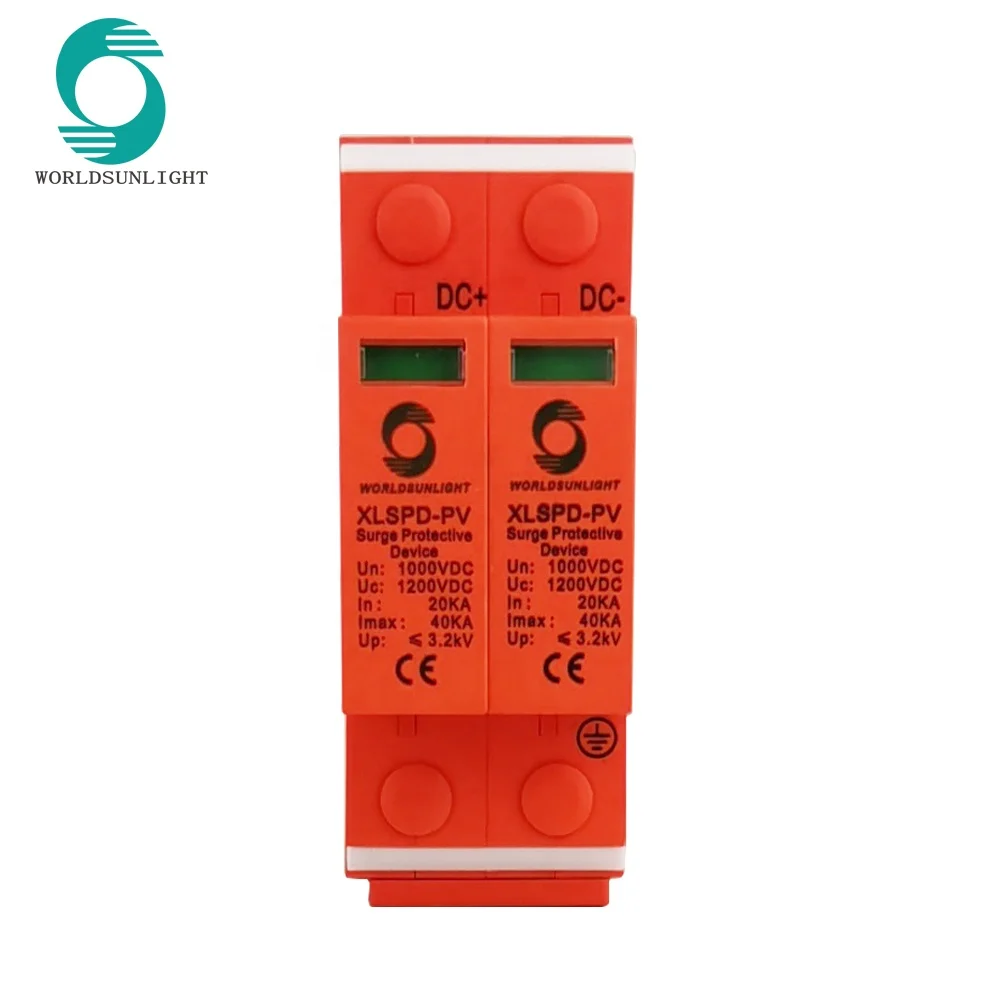

XLSPD-PV CE TUV Solar PV 20KA-40ka 2Pole 2P DC 1000V surge protector protection arrester surge protective device SPD

Supplier: Yueqing Xianglang Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Frank R
Price: $4.00 /set
Min. Order: 1 set

Click here to contact

Product details

Place of Origin:	Zhejiang China;	Port:	Ningbo/shanghai;
Another name:	DC surge protective device;	Protection Class:	IP20;
Payment Terms:	L/C,Western Union,T/T,MoneyGram;	Weight:	0.24/0.26kg/pcs;
OEM/ODM:	Available;	Brand Name:	WORLDSUNLIGHT;
Discharge current:	20-40ka;	Poles:	2P;
Packaging Detail:	Selling Units: Single item Single package size: 42X32X17 cm Single gross weight: 18.9 KG Package Type: Surge Arrester Photovoltaic SPD, 2P Packing qty :60 Size(m)(WxHxL):0.420.320.165 3P Packing qty :40 Size(m)(WxHxL):0.420.320.165;	Warranty:	2 years;
Rated Voltage:	DC1000V;	Model Number:	XLSPD-PV;
Certificate:	CE TUV;	Package Preview:	;
Supply Ability:	10000 Set/Sets per Week;	Operating temperature:	-5°C - 40°C;

DC SPD Feature:

XSPD surge protective device, protect against lightning surge voltages in solar system (photovoltaic power supply system).These units must be installed in parallel on the DC networks to be protected and provide common and different modes protection. Its installed location are recommended at both ends of the DC power supply line (solar panel side and inverter/converter side), especially if the line routing is external and long.High energy MOVs equipped with specific thermal disconnectors and related failure indicators.

DC SPD Specification:

Item	DC surge protector
Model Number	XLSPD-PV
Pole	2P
Classified test	Ⅱ
Un (V DC)	1000
Uc (V DC)	1200
In(8/20)us (kA)	20
Imax(8/20)us (kA)	40
Up (kV)	3.8
Hard wiring capacity(mm²)	4~25
Flexible wiring capacity(mm²)	4~16
Stripping length(mm)	10
Terminal screwa	MS
Protection class	IP40
Installation environment	No obvious shock and vibration
Altitude (m)	≤ 2000
Working Temperature	-3.0~+70
Relative humidity	30%~90%
How to Install	Installed with H35-7.5/DIN35 steel mounting rail

Detailed Images

Shipment

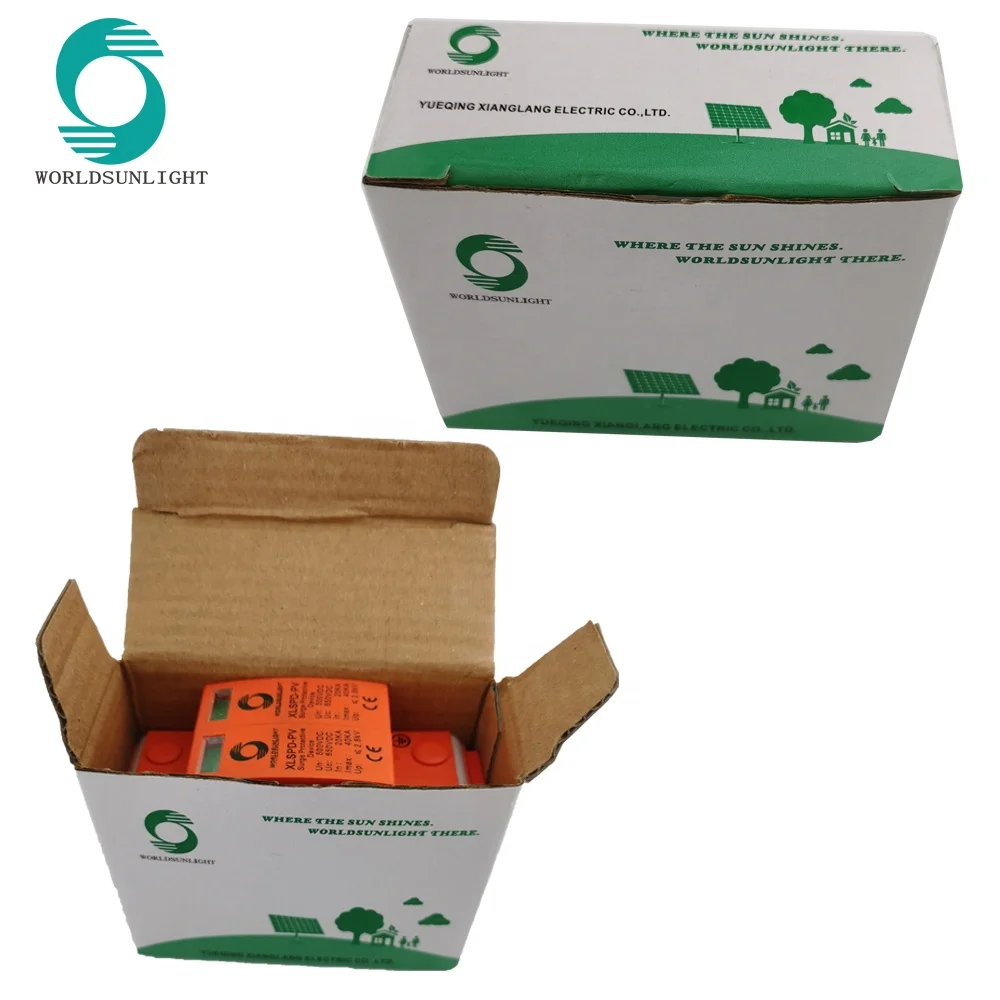

DC SPD Packing Details:

2P DC SPD:60 PCS PER CARTON/43*21*25cm/15.5kg

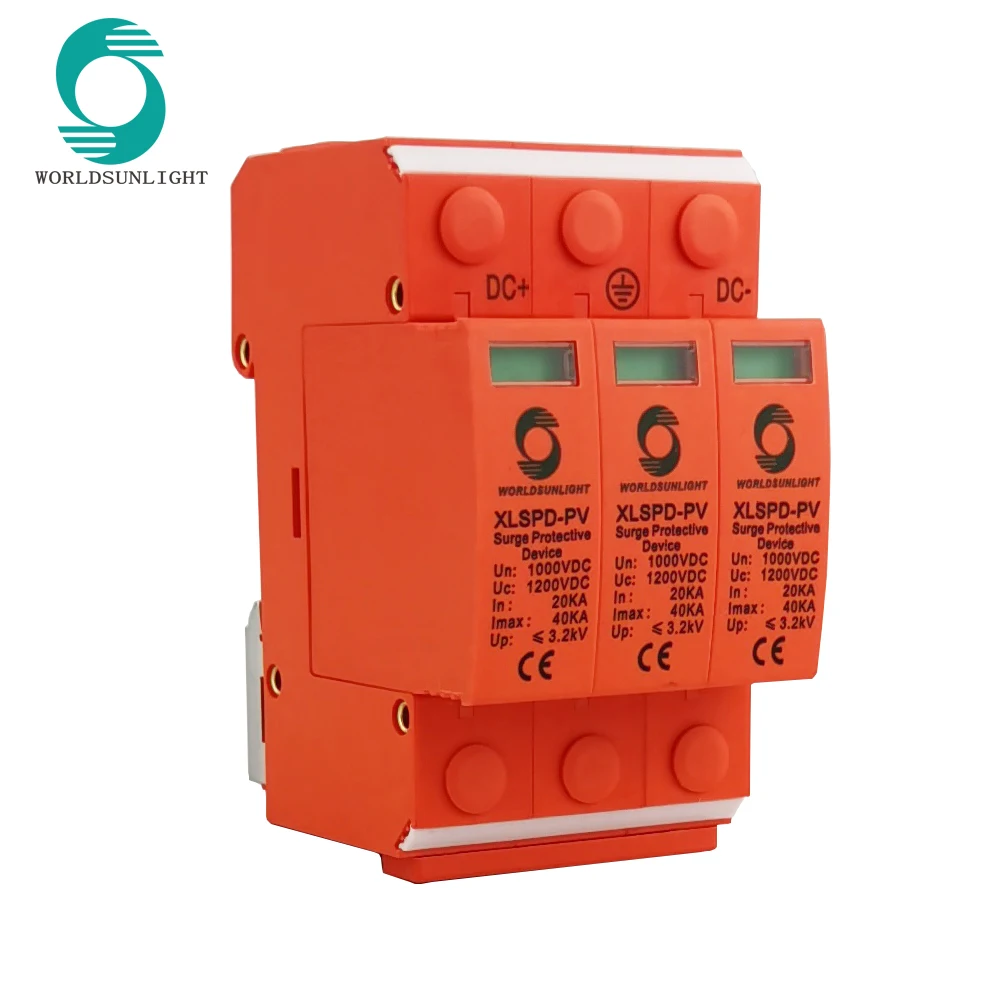

3P DC SPD:42 PCS PER CARTON/43*21*25cm/18.5kg

DC SPD Delivery Time:

1-7 days after confirming order,detail delivery date should be decided according to production season and order quantity.

DC SPD Shipping:

1. Shipment port:SHANGHAI/NINGBO
2. By Air or by Sea for batch goods,Airport/ Port receiving;
3. Customers specifying freight forwarders or negotiable shipping methods!

Feedback from Customers

FAQ

Q: If I'm interested in your DC SPD when I can receive your quotation and detail information after send the enquiry?
A:All your enquiry will be replied in 24hours.

Q:Can I get a sample before the order because I really don't how is your DC SPD quality?
A:Of course!We also think sample order is the best way to build the trust.And in our company we offer sample service!Please send the enquiry to us and get the sample!

Q:How's the delivery?Because I really need them is urgently?
A:For sample order 3~7days will be no problem.And for regular order we promise in 10 days.

Q:How's the warranty period for your DC SPD?
A:We offer two year warranty for our customer.
