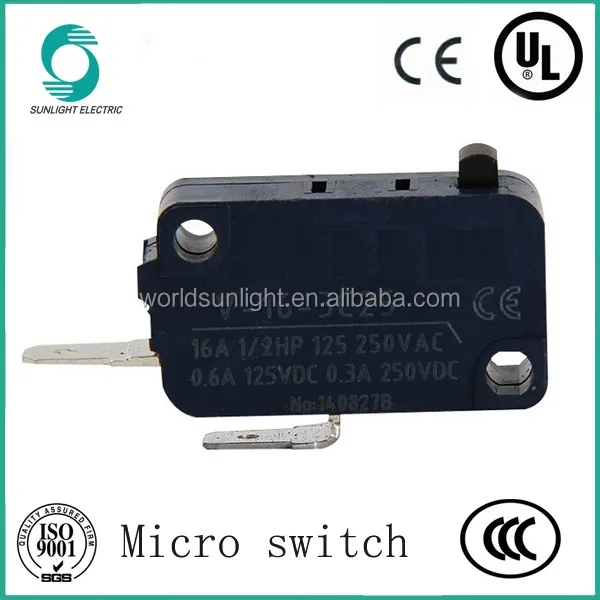

IP40 CE approval spdt or spst 3A 5A 10A 15A 16A 250V miniature mini waterproof snap action micro switch t85 5e4

Product details
Max. Voltage:125/250VAC;Packaging Detail:IP40 CE approval spdt or spst 3A 5A 10A 15A 16A 250V miniature mini waterproof snap action micro switch t85 5e4 standard exporting cartons or can be customized.;
Item:Long Life Micro Switch;Electrical life:20,000,000 Times (At the rated OT);
Place of Origin:Zhejiang China (Mainland);Brand Name:Sunlight/OEM;
Port:shanghai/ningbo;Max. Current:1A~16A;
Payment Terms:L/C,T/T,Western Union,Paypal is also ok;Delivery Detail:Shipped in 3 days after payment;
Operating Temperature:-25℃-85℃;Supply Ability:100000 Piece/Pieces per Month;
Color:Black;Free Sample:Available;
Terminal type:Solder;Rating:1~16A 250VAC;
Protection Level:IP40 IP67;Certification:CCC CE ISO9001;
Lever type:variety types;Circuit:SPDT or SPST;
Model Number:KW7 series;Mechanical Life:500,000 Times(At the rated OT);

IP67 IP40 CCC CE UL approval spdt or spst 3A 5A 10A 15A 16A 250V miniature mini waterproof snap action micro switch t85 5e4

Feature:

♣Characteristic:small contact clearance.quick action,high sensitivity and small operating travel.

♣Long life,high reliability.

♣A variety of models with low operating force to high operating force are available.

♣A variety of levers.



Product Description





1.UL,CE, CCC approved..ISO9001:2008;

2.1-16A, 250VAC ;

3.0.6A 125VDC 0.3A 250VDC ;

4.Material:Base plastic---Nylon 66;

                   Button plastic---PC or Nylon 66;
                   Copper parts such as terminal----Copper H62;
                   Terminal surface treatment----- tin plating;
                   Contact----silver on copper ;
                   Spring----Tungsten steel;
                   With water protect cap(if required) .

5.Material:Silver Contact,PC,PA66;

6.Used for home appliances and electronic equipments.Such as :Micro ovean.etc. Can with handle ;

IP67 IP40 CCC CE UL approval spdt or spst 3A 5A 10A 15A 16A 250V miniature mini waterproof snap action micro switch t85 5e4

Characteristics :

Item
Data
Operation speed
0.1mm-1m/sec
Operation frequency
Mechanical
600 times/min
Electrical
60 times/min
Insulation resistance
100MΩ min.(at DC500V)
Contact resistance
15MΩ max. (Initial value)
Withstand voltage
Between terminals of the same polarity
1000VAC,50/60Hz for one minute
Between each terminal and ground
1500VAC,50/60Hz for one minute
Vibration
Misoperation
10-55Hz (Amplitude)1.5mm
Hitting
Machine
400m/sec
Misoperation
100m/sec
Life
Electical
500,000 (At the rated OT)
Mechanical
20,000,000  (At the rated OT)
Protection degree
IP40/IP65
Ambient operating temperature
-25-85°c
Humidity
General purpose type:85% RH max.,Sealed type:95% RH max
+

Ue (V)

Ie (A)

Ith (A)

AC-250

7.5

10

AC-125

15

20

DC-250

0.3

0.45

DC-125

0.6

0.75

IP67 IP40 CCC CE UL approval spdt or spst 3A 5A 10A 15A 16A 250V miniature mini waterproof snap action micro switch t85 5e4

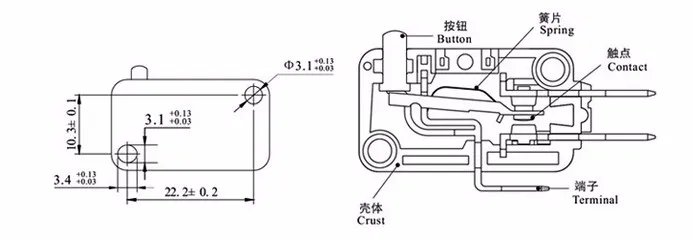

Mounting hole dimensions &structure:

IP67 IP40 CCC CE UL approval spdt or spst 3A 5A 10A 15A 16A 250V miniature mini waterproof snap action micro switch t85 5e4

Contact Form:

IP67 IP40 CCC CE UL approval spdt or spst 3A 5A 10A 15A 16A 250V miniature mini waterproof snap action micro switch t85 5e4

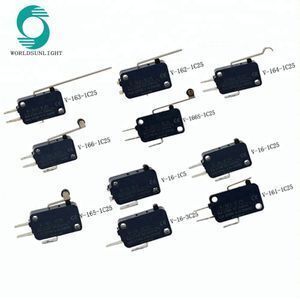

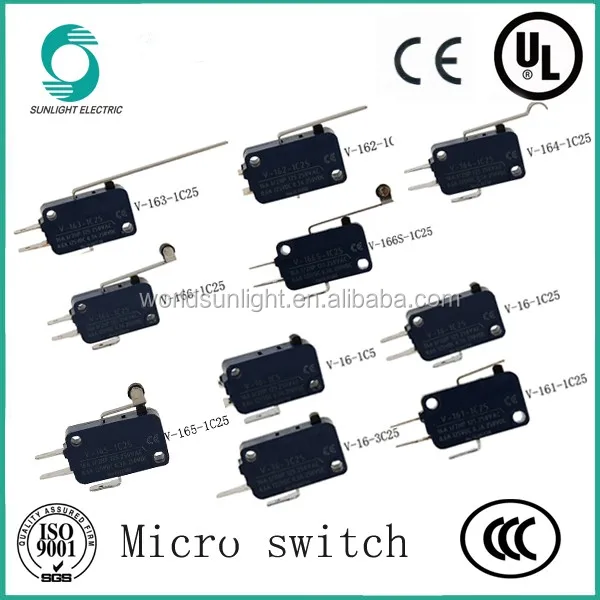

Picture:

+

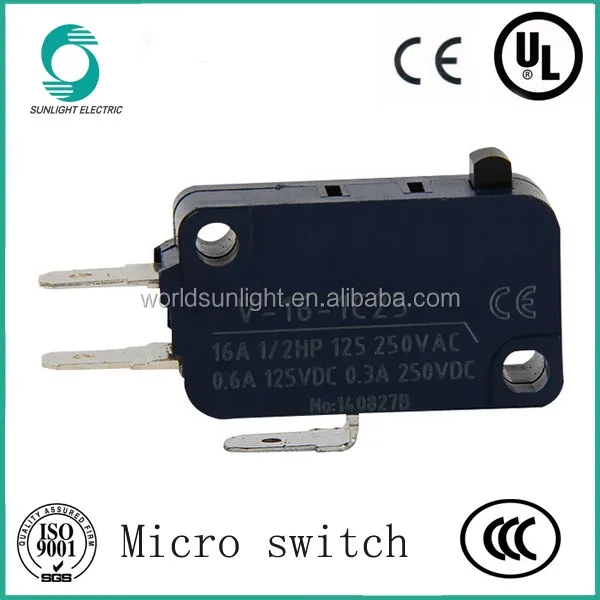

V-16-1C25

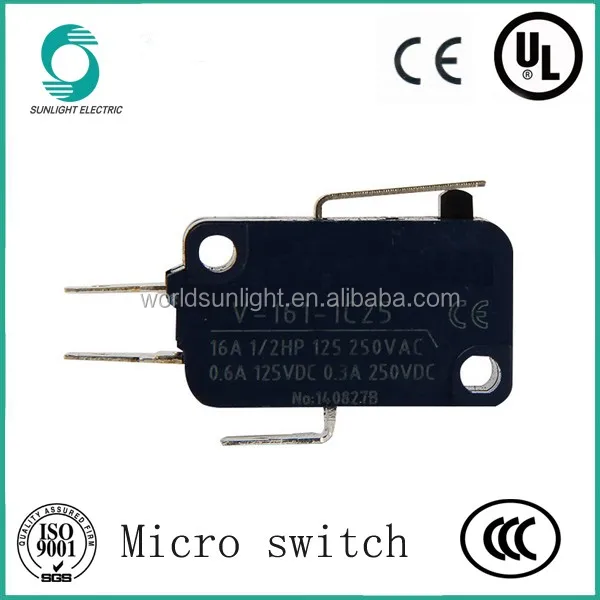

 V-161-1C25

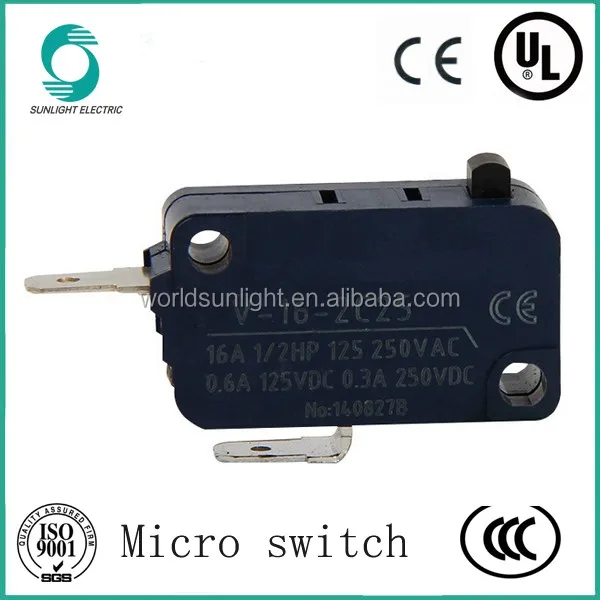

 V-16-2C25 V-16-3C25

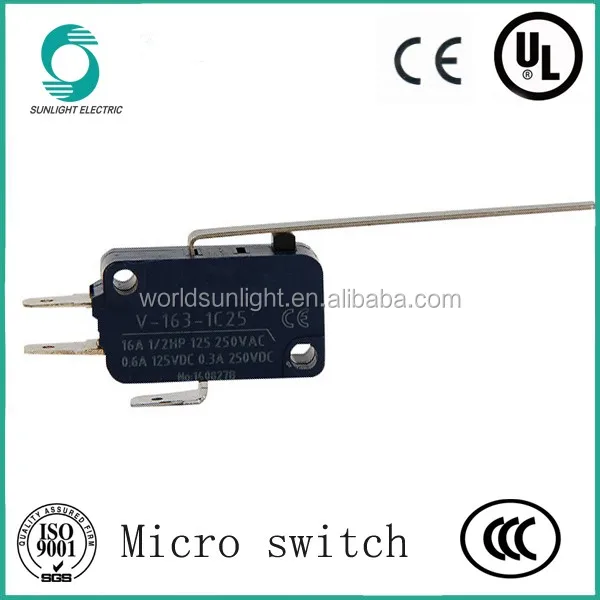

V-162-1C25V-163-1C25
V-165-1C25 V-166S-1C25

 V-164-1C25

  IP67 IP40 CCC CE UL approval spdt or spst 3A 5A 10A 15A 16A 250V miniature mini waterproof snap action micro switch t85 5e4

Related Products

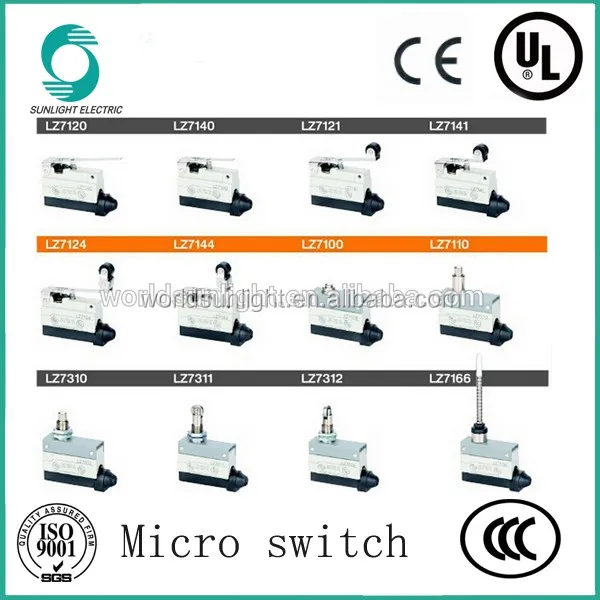

LZ7 series 10A 1NO1NC micro limit switch Industrial Control 1NC1NO WL series limit switches
