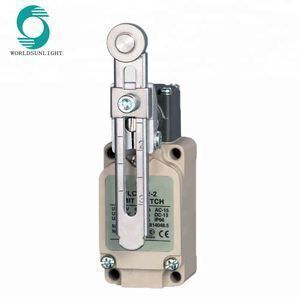

380VAC CCC approved 1NC1NO adjustable lever WLCA12-2(12-2-Q) roller shutter limit switch

Supplier: Yueqing Xianglang Electric Co., Ltd.
Region: Zhejiang, China
Contact: Mr Frank R
Price: $3.00 / >=10 pieces
Min. Order: 10 pieces

Click here to contact

Product details

Contact form:	1NC1NO;	Max. Current:	Max. 10A;
Model Number:	WL series;	Feature:	Double Spring Inner Switch;
Certificate:	UL TUV CCC CE RoHS;	Max. Voltage:	380VAC;
Application:	Industrial Control;	Actuator:	Roller;
Operating Temperature:	-10°C to +80°C;	Selling Units:	Single item;
Brand Name:	Sunlight/OEM;	Contact resistance:	15m Max. (inital);
Place of Origin:	Zhejiang China (Mainland);	Single gross weight:	0.34 KG;
Material:	Strong Aluminum Cast Outer Shell;	Electric life:	500,000 times above;
Color:	Grey;	Mechanical life:	20,000,000 operations;
Single package size:	10X4X5 cm;	Protection Level:	IP67;

380VAC CCC approved 1NC1NO adjustable lever WLCA12-2(12-2-Q) roller shutter limit switch

Product Description

1. 380VAC CCC approved 1NC1NO adjustable lever WLCA12-2(12-2-Q) roller shutter limit switch features and application:

Features:

Double-circuit limit switch,is widely used;

Firm alumium alloy enclosure;

High mechanical strength;

Structure preventing oil,water and pressure;

Indicating plating with setting position is installed in it,so it is easy to maintain;

Kinds of actuators is taken convenience for using;

Built-in contact stand has double-reed,so it has long mechanical life;

Application:

Widely used in mechanical equipment,automatic machine,and instrument,electro motion tool etc.

2. 380VAC CCC approved 1NC1NO adjustable lever WLCA12-2(12-2-Q) roller shutter limit switch characteristics:

Characteristics:

Operation speed	1mm-2m/s
Operating frequency	Mechanical: 120 operations/minute, Electrical: 30 operations/minute
Contact resistance	15mΩ max. (initial value)
Insulation resistance	100mΩ min. (at 500VDC)
Dielectric strength	1000VAC, 50/60HZ for 1 minute between terminals of the same polarity
	2200VAC, 50/60 HZ for 1 minute between current carrying and non-current-carrying metal parts
	2200VAC, 50/60 HZ for 1 minute between each terminal and ground
Vibration	10-55HZ,1.5mm double amplitude
Shock	Mechanical durable: 1, 000m/Sec2 (about 100GS) Malfunction: 300m/Sec2 (about 30GS)
Ambient temperature	-10°C to +80°C
Life	Mechanical: 15,000,000 operations above Electrical: 500,000 operations above
Weight	About 275g
Degree of protection	IP67

Operating characteristics:

Item	Characteristics
OF Max	1360g
RF Min	227g
PT Max.	20º
OT Min.	30º
MD Max.	12º
TF Max.	2720g
TT Min.	50º

3. 380VAC CCC approved 1NC1NO adjustable lever WLCA12-2(12-2-Q) roller shutter limit switch dimension:

4. 380VAC CCC approved 1NC1NO adjustable lever WLCA12-2(12-2-Q) roller shutter limit switch pictures:

5. 380VAC CCC approved 1NC1NO adjustable lever WLCA12-2(12-2-Q) roller shutter limit switch certification:

Packaging & Shipping

6. 380VAC CCC approved 1NC1NO adjustable lever WLCA12-2(12-2-Q) roller shutter limit switch packaging:

Packaging Details: Standard export packaging, also can do as customers' order
Delivery Detail: 3-15 days(depend on your order quantity)

7. 380VAC CCC approved 1NC1NO adjustable lever WLCA12-2(12-2-Q) roller shutter limit switch shipping:

TNT: about 5-7 working days could reach your side normally

EMS: need 10-15 working days to reach your side

UPS: special express for North America,need 3-5 working days

DHL: normally 3-5 working days could reach your side

FEDEX: normally 3-10 working days could reach US and European
