Warranty of core components: | 1 Year; | Supply Ability: | 100 Set/Sets per Month; |
Application: | Chocolate; | Brand Name: | QUANTA; |
Marketing Type: | Hot Product 2019; | Packaging Detail: | export wooden case; |
Key Selling Points: | Long Service Life; | Dimension(L*W*H): | Customizable; |
Place of Origin: | Other Country; | Material: | 304 Stainless Steel; |
Product name: | cashew nuts chocolate coating machine; | Core Components: | Motor,Gearbox; |
Certification: | CE; | Power: | 0.37-5.5kw; |
After-sales Service Provided: | Engineers available to service machinery overseas,Video technical support; | Weight: | 220; |
Usage: | Food Industry Equipment; | Machinery Function: | {-8-{-9-nut coating}}; |
Showroom Location: | None; | Output product name: | chocolate nuts; |
Video outgoing-inspection: | Provided; | Applicable Industries: | Manufacturing Plant,Food & Beverage Factory,Farms,Restaurant,Home Use,Food Shop,Energy & Mining,Food & Beverage Shops; |
After Warranty Service: | Video technical support,Online support,Spare parts; | Application fields: | Seasoning plant,Fruit processing plant,Snack food factory,Bakery,Frozen food Factory,Beverage Factory; |
Machinery Test Report: | Provided; | Raw material: | Milk,Corn,Fruit,Nuts,Soybean,Flour; |
Payment Terms: | L/C,Western Union,D/P,D/A,T/T,MoneyGram; | Warranty: | 1 Year; |
Local Service Location: | None; | Condition: | New; |
Port: | Shanghai /Guangzhou; | Voltage: | 220V/380V; |

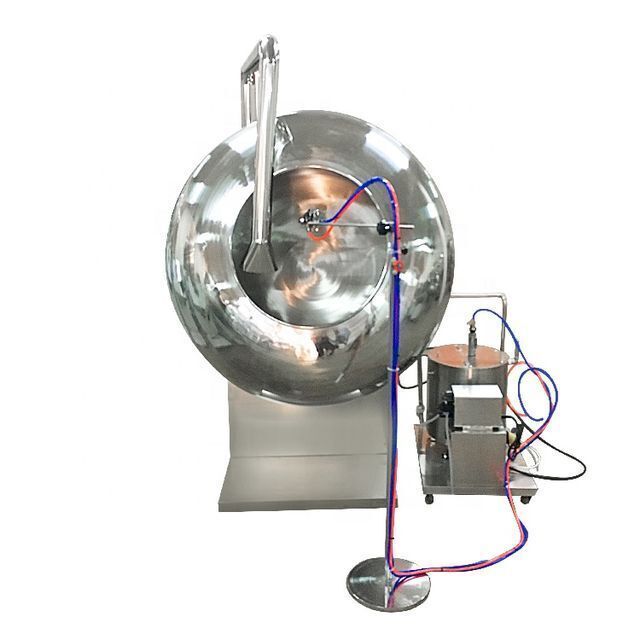

1.This machine is mainly used for making pellet, film coating on tablets. It can also be used for making ball shape products or granules, mixing, and polishing, etc.Such as:chocolate polishing, peanut coating, sugar coating,seasoning, producing tapioca pearls, and pelletizing the desiccant & aluminium hydroxide, porcelain ball making, etc.
2.This machine consist of main body, worm wheel box, coating pan, heating device,hot air&common blower,electrical equipment, etc. The transmission process that the motor drive the worm wheel and worm via triangle belt to make the coating pan rotate.Then the material revolve up and down in the coating pan, so that even mixing, pelletizing and polishing can be completed well.
Model | BY200 | BY300 | BY400 | BY600 | BY800 | BY1000 | BY1250 | BY1500 |
Diameter of coating drum (mm) | 200 | 300 | 400 | 600 | 800 | 1000 | 1250 | 1500 |
Capacity (kg/time) | 1 | 2 | 5 | 15 | 30-50 | 50-70 | 80-150 | 300-400 |
Rotation Speed (r/min) | 46 | 46 | 46 | 36 | 36 | 32 | 28 | 26 |
Power of motor (KW) | 0.37 | 0.37 | 0.37 | 0.75 | 1.5 | 1.5 | 3 | 5.5 |
Power of fan (KW) | 0.075 | 0.075 | 0.075 | 0.06 | 0.12 | 0.12 | 0.18 | 0.37 |
Power of heat (KW) | 1.2 | 1.2 | 1.2 | 2 | 2.2 | 3 | 5 | 6 |
Overall size (mm) | 500*350 *700 | 500*350 *700 | 550*400 *800 | 800*600 *900 | 1000*800 *1430 | 1100*1000 *1560 | 1250*1200 *1820 | 1500*1500*1980 |
Weight (kg) | 36 | 37 | 38 | 85 | 205 | 220 | 350 | 600 |
TAIZHOU QUANTA MACHINERY EQUIPMENT CO.,LTD |
