Place of Origin: | Guangdong China; | Name: | Signal Generator; |
Type: | Handheld; | Display Type: | 3.5-inch TFT-LCD 320*240; |
Usage: | Industrial; | Brand Name: | original brand; |
Packaging Detail: | carton package; | input & output: | Universal; |
Weight: | 500g; | Working Temperature: | 0 degrees to 50 degrees; |
Product: | infrared thermocouple; | Port: | HongKong; |
Size: | 92*70*32MM; | Payment Terms: | Western Union,T/T,MoneyGram,PayPal; |
Supply Ability: | 100000 Piece/Pieces per Month; | Model Number: | MR9270S; |
Power Supply: | USB Charging & Battery; |

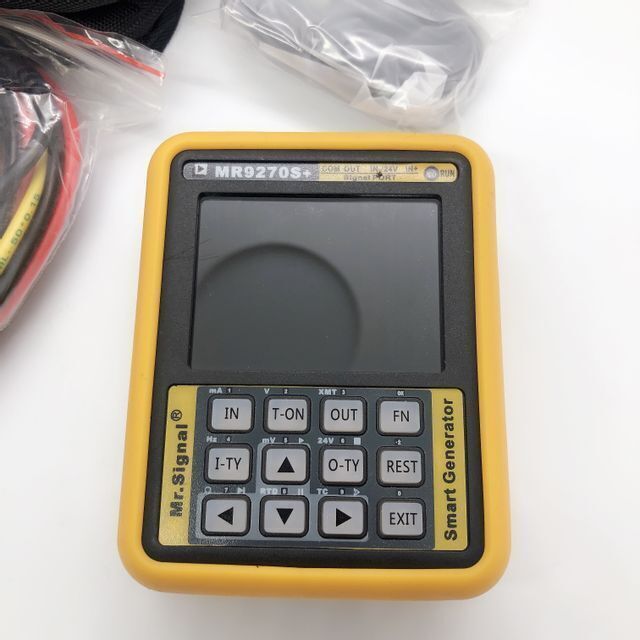

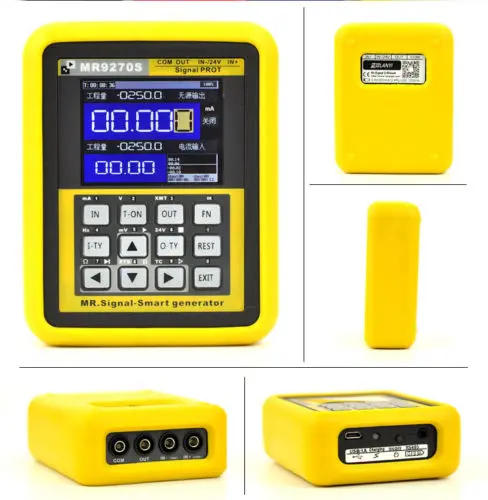

MR9270S 4-20mA Signal Generator Calibration Current Voltage Thermocouple
Model | Power Supply | Size |
MR9270S | USB Charging & Battery | 92*70*32MM |
Description:
Instrument Brief Introduction
1.Smart has powerful performance for it has a high-speed ARM CPU and is easy to get start for it has friendly UI. The following is the structure chart of Smart.
2. Introduction of Software functions
Programmed Output:
You can make Mr. Signal Smart to do auto increased/decreased output. There has two modes.
Mode One:
Set a period and start/end value of output. The output will be automatically -- increased from start value to end value and -- decreased from end value to start value in a period. The auto increased/decrease output will be repeated as many times
as you want.
Mode Two:
Advanced setting, the changing of output is determined by more parameters.
Type One:
After setting the starting point, ending and cycles the equipment can start working.
Preset Values:
You may need only several fixed value of output in your daily work. The product allow you to customize 9 presetting value for you to quick output.

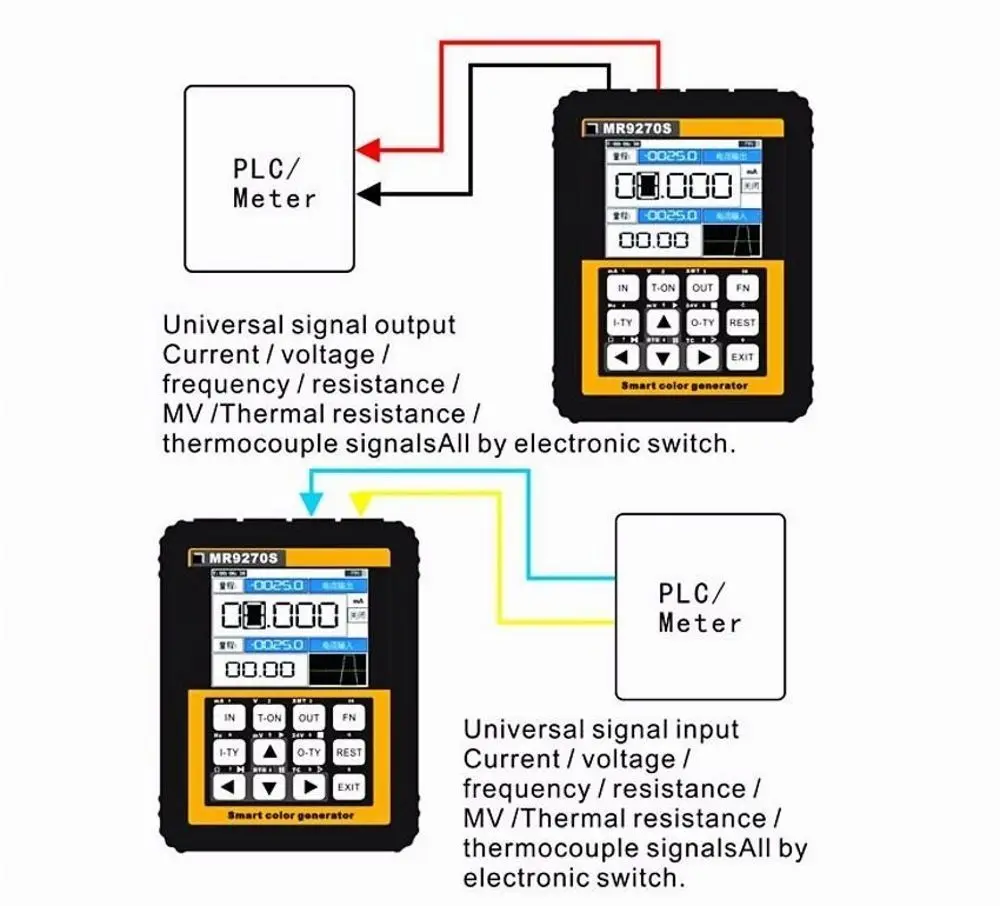

Converting Signal: Input can be converted into another kind of output. For example, Input Hz signal, then convert them into current output.
Real-time Curve:
The input/output changing can be displayed as curves. You can set the capture period and zoom in the curves according to the max and min.
Display as Range/Actual Value:
Input and output value can be displayed as actual value or range according to your wish. Actual value corresponds to range --ly. For example, 4-20mA corresponds to 0-100, then 4mA corresponds to 0, 12mA corresponds to 50, 20mA corresponds to 100. You can vary correspondence between actual value and range.
Quick master the operation of Smart you need to learn the next four point.
1. Read “Instrument Brief Introduction” and “Technical Parameters” to know the main functions and signal types of the Smart.

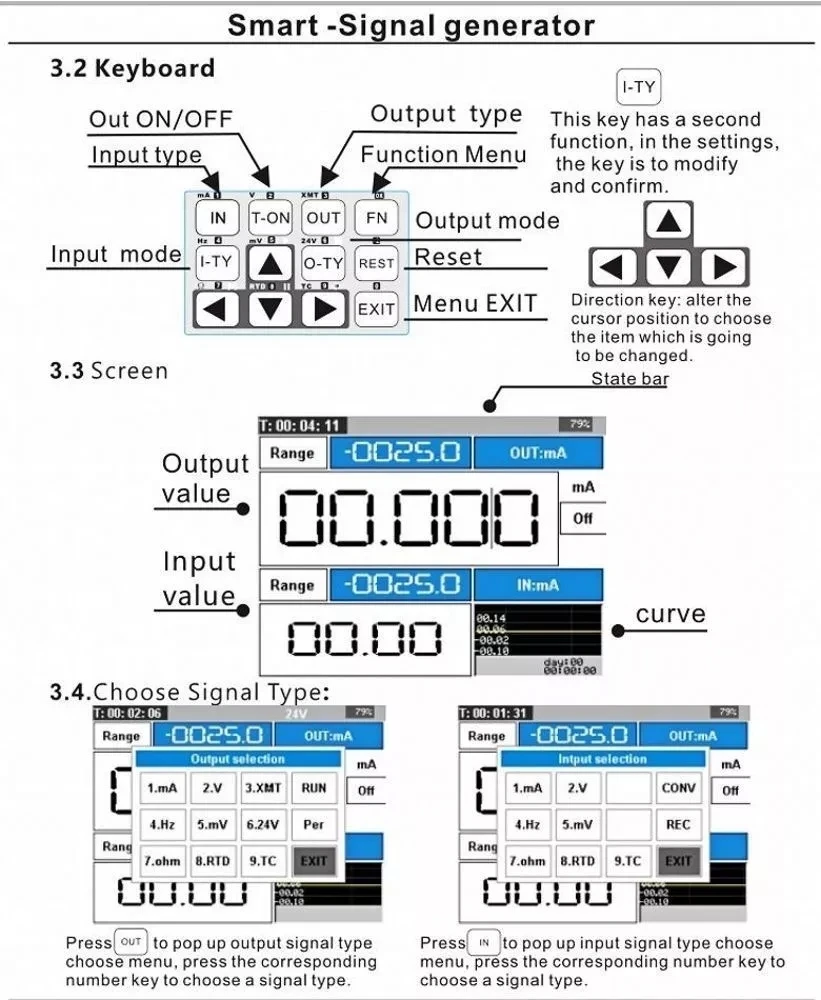

2. Basic operation: how to choose signal type and signal mode. For example, If choose to output millivolt which is one of the signal types, and TC is one kind of millivolt, then millivolt and all kinds of TC is the signal mode.

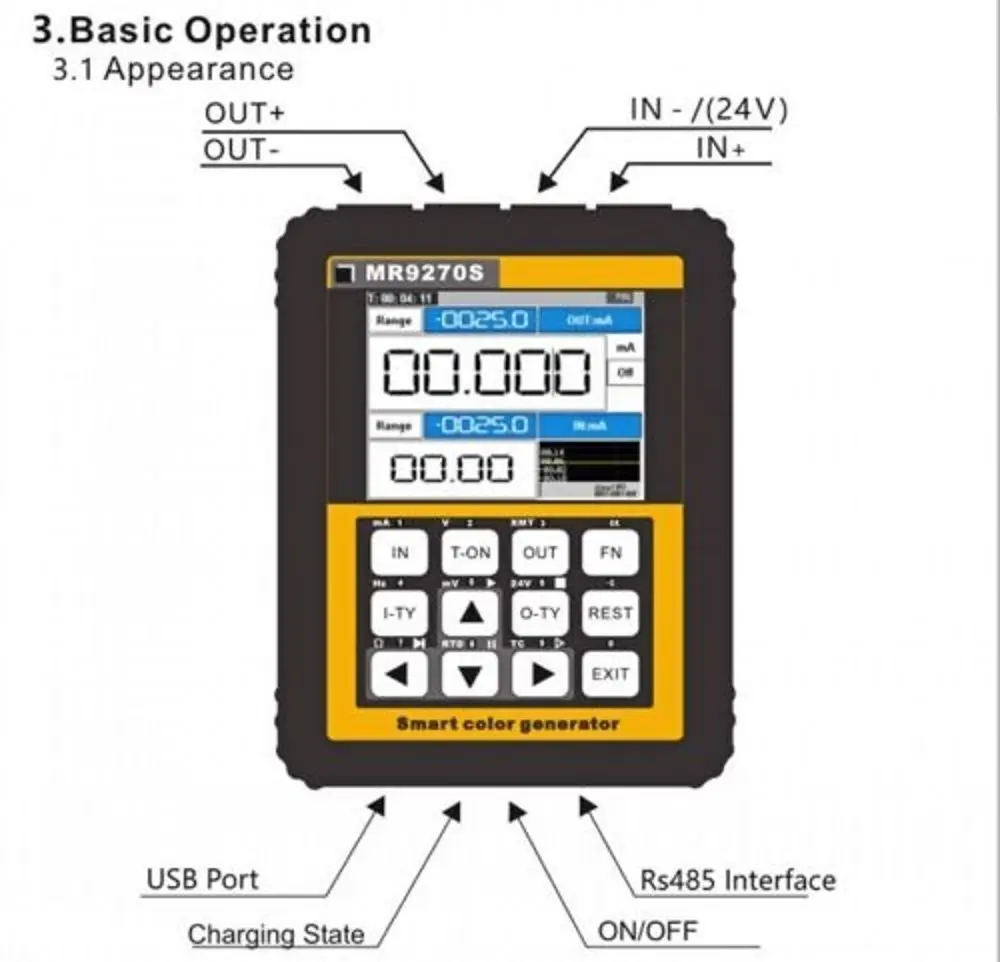

3. Basic operation: Enter menu.

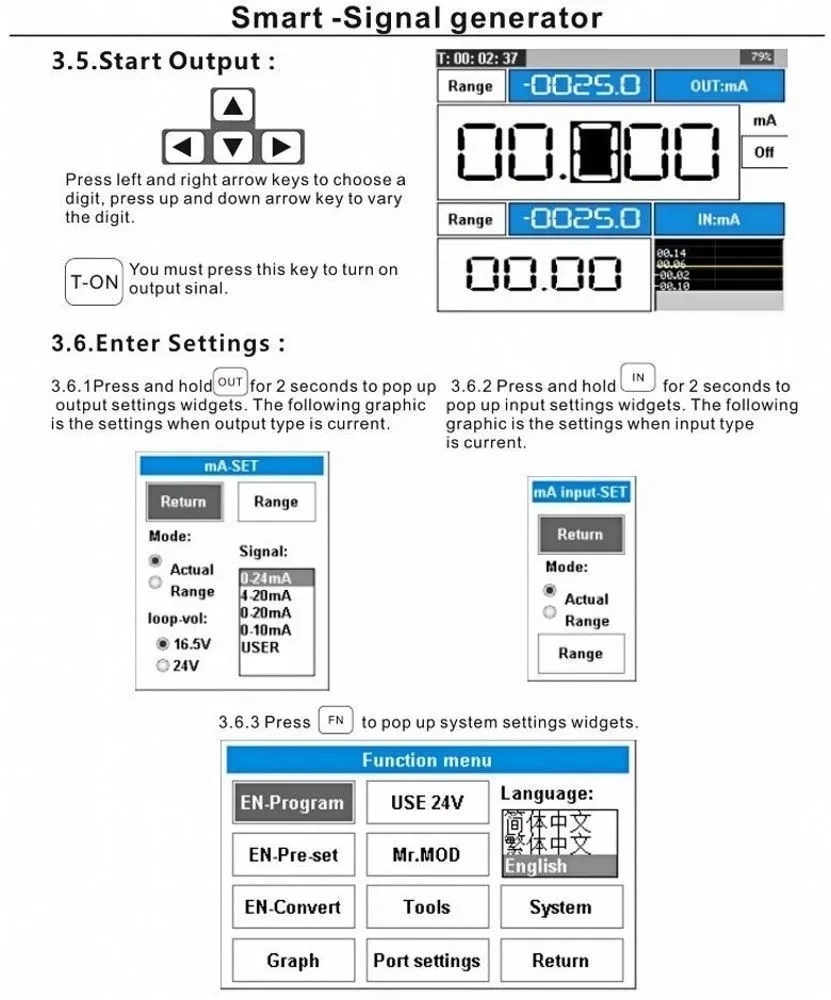

4. Basic operation: Set parameters of image controls
