SAGA Vacuum Dryer Wood Kiln HF Power Woodworking Timber Machine For Sale

Supplier: Shijiazhuang Saga Machinery Co., Ltd.
Region: Hebei, China
Contact: Mr Jack Shi
Price: $36000.00 / 1 - 1 sets
$35000.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

Power (kW):	30kw;	Brand Name:	SAGA;
After Warranty Service:	Video technical support;	Payment Terms:	L/C,D/A,D/P,T/T,Western Union,MoneyGram;
Drying Capacity:	4.5 CBM(4.5m3);	Core Components:	PLC,Engine,Motor,radio tube;
Local Service Location:	None;	Place of Origin:	Hebei China;
Drying Application:	Hardwood,Softwood,Veneer,Floor Board,House Planks,Furniture Wood;	Marketing Type:	Ordinary Product;
Machine Name:	SAGA Vacuum Dryer Wood Kiln HF Power Woodworking Timber Machine;	Video outgoing-inspection:	Provided;
Other Name:	Timber Vacuum Kiln,Drying Chamber,Wood Oven;	Showroom Location:	None;
Top Hydraulic Pressure:	4T;	Control System:	PLC control,Fully Automatic;
Working Principle:	High Frequency(Radio Frequency) Heating And Vacuum Tank;	Condition:	New;
Vacuum Range:	-0.09Mpa(-13psi);	Warranty:	1 Year;
Power:	30KW;	Supply Ability:	10 Set/Sets per Month Radio Vacuum Wood Drying Chamber From SAGA Machinery HFVD45-SA;
Key Selling Points:	fast drying and high quality drying result;	Port:	Tianjin port;
After-sales Service Provided:	Free spare parts;	Weight (KG):	7000;
Machinery Test Report:	Provided;	Machine Type:	wood drying machine;
Applicable Industries:	solid wood furniture;	Warranty of core components:	1 Year;
Wood Stack Size:	100010004500mm;	Packaging Detail:	Foam and plastic,wooden box for HF generator;

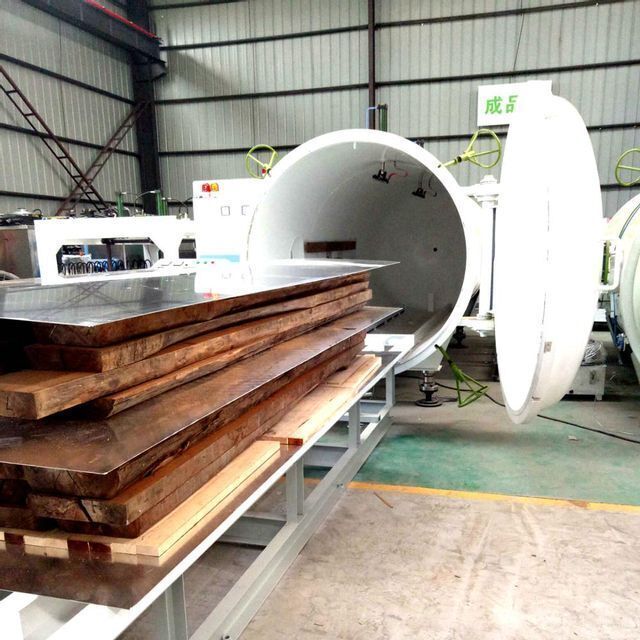

SAGA Vacuum Dryer Wood Kiln HF Power Woodworking Timber Machine For Sale

Description HF Dryer

High Frequency Vacuum Drying Machine is a relatively small and fast timber drying equipment. It adopts HF electric field as heating source, uniformly radiate to timber, directly heat moisture, speed up moisture removing by vacuum water absorption function, which is extremely suitable for solid wood and all kinds of timber processing factory.

Benefit you can count on:
*Vacuum Drying -- 60°C starting to vaporize, which can reduce wood cracking and deformation while achieving low temperature drying
* Warp deformation Recovering --- Wood clamped by hydraulic system before drying, warping deformation to be recovered when soften , making outturn greatly improving and make easy palletizing
* Quick heating --- No need heat conduction, inside and outside of wood timber are heated at the same time
* Fast dehydration--- During the heating process, stepped temperature difference between inside and outside of wood can speed up the water movement from inside wood to outside wood
* High quality--- Avoid outside & inside cracking and color change, by taking control of heating speed, relative vacuum degree and condensing rate.
* Good adaptability---It can achieve both low temperature and high temperature drying, also can eliminate stress, solidify resin and apply to dry almost all kinds of wood
* Full-automatic & Easy operation --- Automatic feeding and discharging device, drying proceeding under unattended mode
* Cost saving --- Low dry shrinkage and material saving
* Sterilization function & Eco-friendly

SAGA Model List

Model	Timber Stack Size	Capacity	Power
HFVD30-SA	1000X1000X3000mm	3m3	30KW
HFVD45-SA	1000X1000X4500mm	4.5m3	30KW
HFVD60-SA	1000X1000X6000mm	6m3	50KW
HFVD80-SA	1000X1000X8000mm	8m3	50KW
HFVD100-SA	1250X1250X6000mm	10m3	50KW
HFVD120-SA	1250X1250X8000mm	13m3	50KW

HF Vacuum wood drying Basic Diameter

SAGA Vacuum Dryer Wood Kiln HF Power Woodworking Timber Machine For Sale
High frequency generator size	1000x1000x1900mm
Drying tank size	5700x2150x2200mm
Cooling tank size	1500x1150x2000mm
Gross weight	7.3 ton
Inside diameter	1700mm
Tank thickness	12mm
Effective drying size	1000x1000x4500mm
HF input power	40kva
HF output power	30kw
Temperature monitor	Fiber optic temperature sensor,not disturbed by HF
Moisture monitor	Weighting system(SAGA patent technology),most accurate,not disturbed by HF
Cooling system	Stainless steel condenser with stainless steel water-ring vacuum pump
Control system	Fully automatic with PLC touch screen
Hydraulic cylinder	4 ton with 2 pcs cylinder
Vacuum pump	Stainless steel 7.5kw
Feeding way	Automatic
Door of tank	Ears door,more safe and powerful
Weighting system	Under the tank,can weight the wood every time

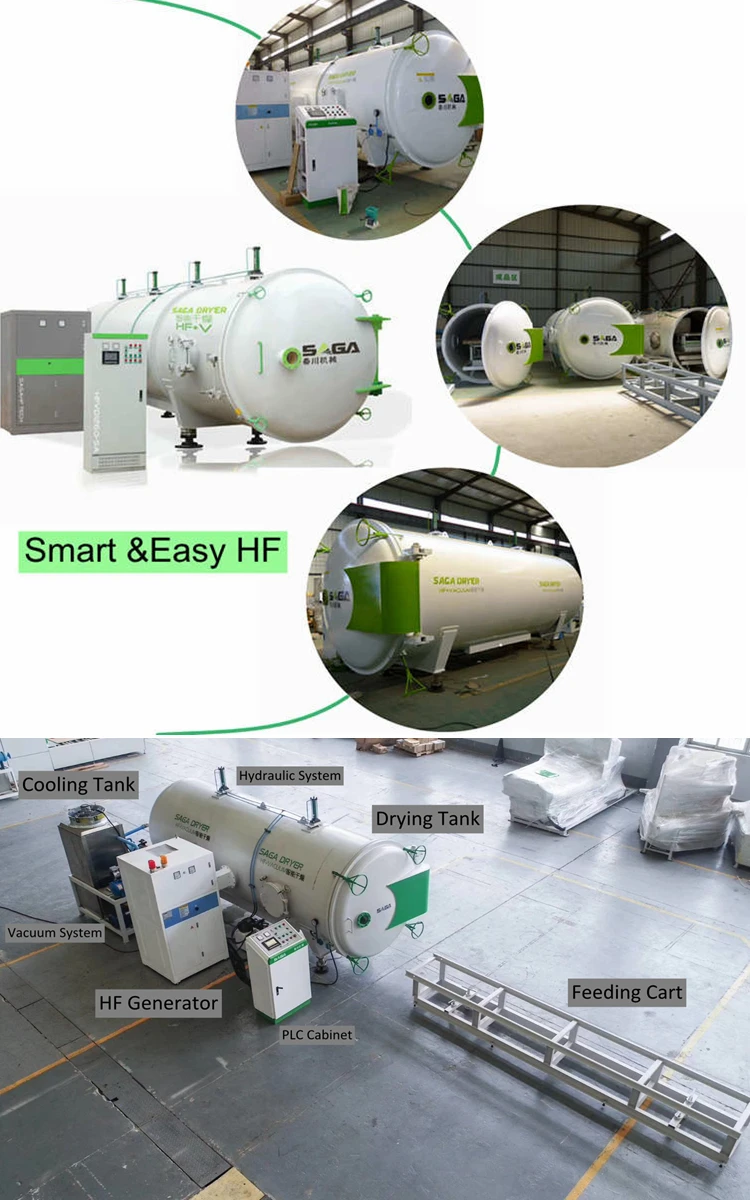

High frequency kiln Main Pictures

HF Vacuum Wood Drying Kiln Features

Fast drying cycle
Automatic feeder
Large capacity
PLC automated systems with touch screen control panel
Uniform heating
No sparking or bending problem
Veneer, panels, hardwood
Weighing testing technology
Fiber optic temperature testing

SAGA Certifications

Wood Drying Cases

Wood Species	Start Moisture	End Humidity	Drying Time(Hour)
Extremely Hard Wood
Mahogany valued wood Density>1.0	15%	10%	80
Mahogany valued wood Density>1.0	30%	10%	150
Medium Hard Wood
Beech/Oak/Ash/Teak,etc Density>0.6	20%	8%	70
Beech/Oak/Ash/Teak,etc Density>0.6	40%	8%	120
Softwood
Pine Density<0.5	15%	8%	20
Pine Density<0.5	40%	8%	75
Above is just a common comparing chart for your reference,but there are so many wood types world wide,you can compare with the density of your wood type and get a approximately calculation,but for some special wood like Teak-contains oil or other special wood,may need different drying time.Thickness changes also affect drying time.Sp this information much rely on real condition
