Health status: | new | Warranty: | 1 year, 1 year |
strength: | 30KW | After-sales service provided: | Engineers can repair machinery overseas |
electricity demand: | Three-phase four-wire 380V 50Hz | place of origin; place of origin: | Hebei china |
Open during the day: | 1100 mm (3.60 in) | Voltage: | 220V |
port: | Tianjin | Woodworking Machinery: | High Frequency Wood Bending Heat Press |
type: | Hot Press | Dimensions (L*W*H): | 2300*800*2200mm |
oscillation: | 6.78Hz | Platen size: | 800*1600mm(2.62"*5.24") |
application: | Plywood Products | Certification: | testing report |
weight: | 9000kg | Supply capacity: | 10 sets per month |
model: | YX80-SA | High frequency output power: | 20KW |
Packaging Details: | Plywood base, plastic and foam covering | payment terms: | L/C,D/A,D/P,T/T,Western Union,MoneyGram |
Delivery Details: | Ships within 25 days of payment | brand: | Saga |
High frequency input power: | 30KVA | Cylinder pressure: | 80 tons |
pressure: | 80T |
production instructions

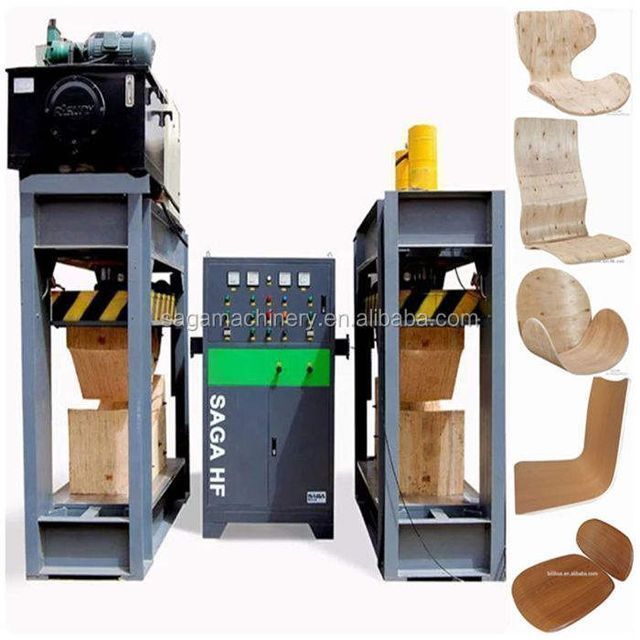

80 tons high frequency wood bending heat press YX80-SA
The high-frequency wood bending heat press applies a high-frequency generator to a hydraulic press through a mold and an electrode, and transmits the high-frequency energy to the workpiece to achieve the function of fast bonding and forming. High frequency presses are suitable forCurved plywood Curved or curved plywood or other curved plywood products for chairs, furniture or beds, such as coat hangers, musical instrument surfaces, etc.
feature
1) The high-frequency generator heats quickly and evenly
2) The bending shape is stable, and it is not easy to change the laminations
3) The high-frequency power supply is a selective heating power supply, which only concentrates water or glue in the wood, does not consume high-frequency power supply, and is more efficient and energy-saving.
4) Use wood mold or MDF mold, which is more economical than metal mold if the shape changes a lot.
Basic parameters
Model | YX80-SA | YX150-SA |
high frequency generator | 20kW, 2 outputs | 30kW, 2 outputs |
Working size of press | 1600*800mm | 2500*1300mm |
cylinder | 80T(2PCS) | 150T(2PCS) |
Cylinder stroke | 600mm | 600mm |
control | automatic | automatic |
hydraulic power | 7.5kW | 7.5kW |
open board | 1200mm | 1200mm |
oversized | 2300*800*2200mm | 2900*1300*2200mm |
Outai brand accessories
Certification
exhibition
Welcome to Saga, welcome to experience the humanized high frequency technology
...................................................... ................................................... ...................................................................................................................................................................................................... ……………………

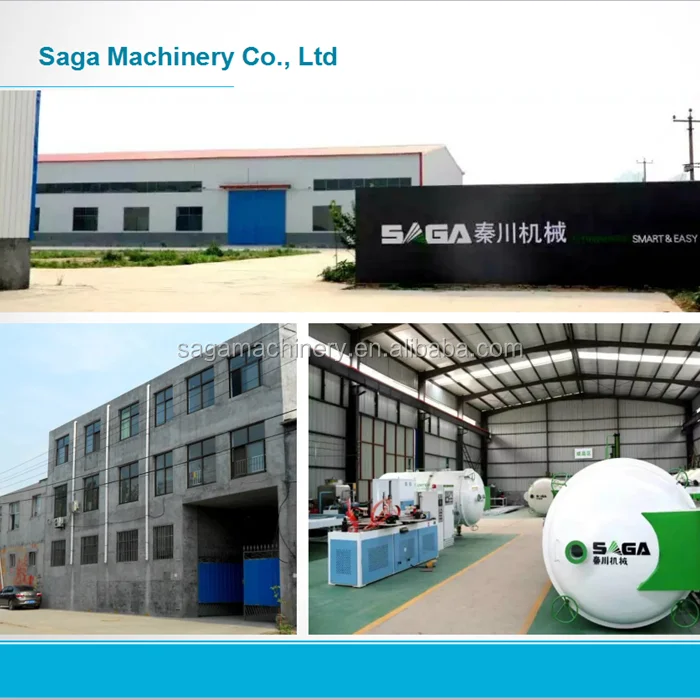

About Saga

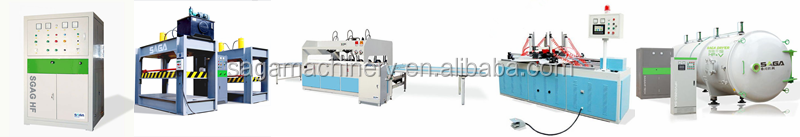

Saga Machinery Co., Ltd. is a company specializing in the development, design and production of high frequency machinery. Our products cover high frequency oblique glue machine, high frequency generator, high frequency vacuum wood dryer, high frequency wood frame assembly machine, high frequency bending plywood press, etc.
