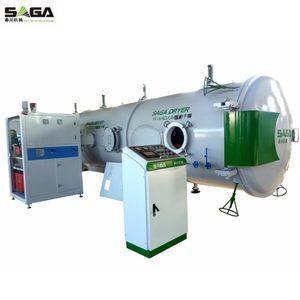

Radio Frequency Wood Drying Kiln Timber Dryer Machine HFVD45-SA

Product details
Payment Terms:L/C,D/A,D/P,T/T,Western Union,MoneyGram;Packaging Detail:Foam and plastic,wooden box for HF generator;
Supply Ability:10 Set/Sets per Month Radio Frequency Wood Drying Kiln Timber Dryer Machine HFVD45-SA;Drying Application:Hardwood,Softwood,Veneer,Floor Board,House Planks,Furniture Wood;
After-sales Service Provided:Free spare parts;Place of Origin:Hebei China;
Applicable Industries:timber drying machine;Voltage:380V 50Hz,3Phase,4Wire;
Other Name:Timber Vacuum Kiln,Drying Chamber,Wood Oven;Brand Name:SAGA;
Condition:New;Port:Tianjin port;
High Frequency Generator Power:30KW;Vacuum Range:-0.09Mpa(-13psi);
Machine Name:Radio Frequency Wood Drying Kiln Timber Dryer Machine HFVD45-SA;Wood Stack Size:1000*1000*4500mm;
Working Principle:High Frequency(Radio Frequency) Heating And Vacuum Tank;Drying Capacity:4.5 CBM(4.5m3);
Top Hydraulic Pressure:4T;Warranty:1 Year;

Radio Frequency Wood Drying Kiln Timber Dryer Machine HFVD45-SA

Description HF Dryer





Radio Frequency Wood Drying Kiln Timber Dryer Machine is a relatively small and fast timber drying equipment. It adopts HF electric field as heating source, uniformly radiate to timber, directly heat moisture, speed up moisture removing by vacuum water absorption function, which is extremely suitable for solid wood and all kinds of timber processing factory.



Radio Frequency Wood Drying Kiln Timber Dryer Machine

Benefit you can count on:
*Vacuum Drying -- 60°C starting to vaporize, which can reduce wood cracking and deformation while achieving low temperature drying
* Warp deformation Recovering --- Wood clamped by hydraulic system before drying, warping deformation to be recovered when soften , making outturn greatly improving and make easy palletizing
* Quick heating --- No need heat conduction, inside and outside of wood timber are heated at the same time
* Fast dehydration--- During the heating process, stepped temperature difference between inside and outside of wood can speed up the water movement from inside wood to outside wood
* High quality--- Avoid outside & inside cracking and color change, by taking control of heating speed, relative vacuum degree and condensing rate.
* Good adaptability---It can achieve both low temperature and high temperature drying, also can eliminate stress, solidify resin and apply to dry almost all kinds of wood
* Full-automatic & Easy operation --- Automatic feeding and discharging device, drying proceeding under unattended mode
* Cost saving --- Low dry shrinkage and material saving
* Sterilization function & Eco-friendly

SAGA Model List



ModelTimber Stack SizeCapacityPower
HFVD30-SA1000X1000X3000mm3m330KW
HFVD45-SA

1000X1000X4500mm

4.5m330KW
HFVD60-SA1000X1000X6000mm6m350KW
HFVD80-SA1000X1000X8000mm8m350KW
HFVD100-SA1250X1250X6000mm10m350KW
HFVD120-SA1250X1250X8000mm13m350KW



HF Vacuum wood drying Basic Diameter

Radio Frequency Wood Drying Kiln Timber Dryer Machine HFVD45-SA
High frequency generator size1000x1000x1900mm
Drying tank size5700x2150x2200mm
Cooling tank size 1500x1150x2000mm
Gross weight 7.3 ton
Inside diameter1700mm
Tank thickness12mm
Effective drying size 1000x1000x4500mm
HF input power40kva
HF output power30kw
Temperature monitorFiber optic temperature sensor,not disturbed by HF
Moisture monitorWeighting system(SAGA patent technology),most accurate,not disturbed by HF
Cooling systemStainless steel condenser with stainless steel water-ring vacuum pump
Control systemFully automatic with PLC touch screen
Hydraulic cylinder4 ton with 2 pcs cylinder
Vacuum pump Stainless steel 7.5kw
Feeding wayAutomatic
Door of tankEars door,more safe and powerful
Weighting systemUnder the tank,can weight the wood every time



High frequency kiln Main Pictures





HF Vacuum Wood Drying Kiln Features

  • Fast drying cycle
  • Automatic feeder
  • Large capacity
  • PLC automated systems with touch screen control panel
  • Uniform heating
  • No sparking or bending problem
  • Veneer, panels, hardwood
  • Weighing testing technology
  • Fiber optic temperature testing





SAGA Certifications



 Wood Drying Cases

Wood Species Start MoistureEnd HumidityDrying Time(Hour)
Extremely Hard Wood
Mahogany valued wood Density>1.015%10%80
30%10%150
Medium Hard Wood
Beech/Oak/Ash/Teak,etc Density>0.620%8%70
40%8%120
Softwood
Pine Density<0.515%8%20
40%8%75
Above is just a common comparing chart for your reference,but there are so many wood types world wide,you can compare with the density of your wood type and get a approximately calculation,but for some special wood like Teak-contains oil or other special wood,may need different drying time.Thickness changes also affect drying time.Sp this information much rely on real condition





Drying Live-action



  • Veneer Drying(lathing cut or sliced)





  • Wood Floor Board Drying

  • Hardwood Drying

  • Thicker Wood Drying

Drying Result Comparison



SAGA Dryer  Three No.1  Proprietary Technology

Packing and Transportation





Spare Parts



Our Service And Cooperation

1.Pre-sales service

∨Sales person,project manager,technology engineer,accountant staff.

∨Professional responsing-team:would be fastly and exactly to send you offers.

2.After-sale service

∨Assistance to build factory.

∨Repairing and maintenance if any problems occur in warranty.

∨Installation and clerks training.

∨Spare and wearing parts for free or with big discount.

Any feedbacks can be told us,and we can try our best to support.

3.Other cooperation service

∨Technology knowledge share.

∨Factory building advising.
