DCPM Big flow solar water pump solar dc surface water pump
-
Supplier: Zhejiang Dingfeng Electrical Appliance Co., Ltd. -
Region: Zhejiang, China -
Contact: Mr Frank Fang -
Price: $180.00 /piece -
Min. Order: 1 piece
Product details
| Model Number: | DCPM21-14-72-750; | Package Preview: | ; |
| Warranty: | 2years; | Pressure: | High Pressure; |
| Voltage: | dc72v; | Power: | Solar Power; |
| Brand Name: | DIFFUL; | Standard or Nonstandard: | Standard; |
| Structure: | Multistage Pump; | Place of Origin: | Zhejiang China; |
| Port: | NINGBO/SHANGHAI; | Horsepower: | 1; |
| Supply Ability: | 1000 Piece/Pieces per Day; | Fuel: | Solar Power; |
| Certification: | ce; | Product name: | Solar Pump; |
| Impeller: | Brass; | Material: | 304 Stainless Steel,ss; |
| Packaging Detail: | package is Carton or wooden case; | Usage: | Water; |
| Application: | Water,irrigation; | Payment Terms: | L/C,D/P,T/T; |

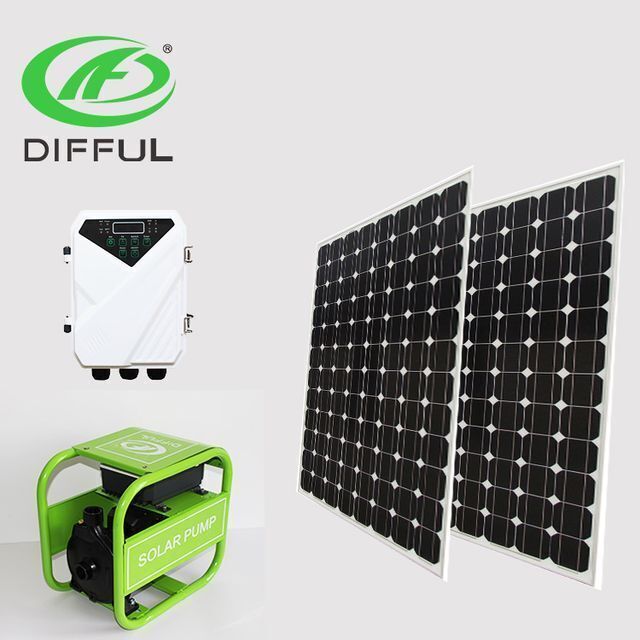

Products Show
DCPM Big flow solar water pump solar dc surface water pump
Material of Parts
Outlet: Stainless SteelPump body: Stainless Steell
Impeller: Stainless Steell
Motor Body: Die-cast Aluminum
Bearing: NSK
Motor: Brushless DC motor
Controller shell: Die-cast Aluminum (IP67)

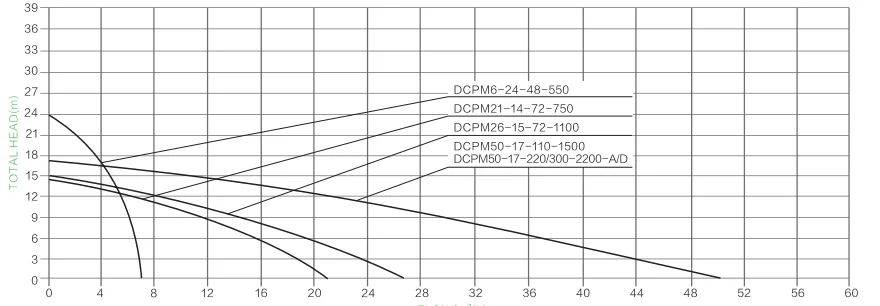

Product Paramenters
DCPM Big flow solar water pump solar dc surface water pump
Model | Power(W) | Voltage | Max flow (m3/h) | Max head (m) | Outlet (inch) |
DCPM7-25-48-550 | 550 | dc48 | 7 | 25 | 1 |
DCPM21-14-72-750 | 750 | dc72 | 21 | 14 | 2 |
DCMP26-15-72-1100 | 1100 | dc72 | 26 | 15 | 2 |
DCPM50-17-110-1500 | 1500 | dc110 | 50 | 17 | 3 |
DCPM50-17-220/300-2200-A/D | 2200 | ac220/dc300 | 50 | 17 | 3 |
How to connect the solar pumps:
Solar panels connect P+ P-.
Pump connect U V W
Very simple connection.Tips1: Do not reverse the positive and negative of power, otherwise it will not work.
Tips2: Before you start wiring the controller box, switch must be in the off position
Pump connect U V W
Very simple connection.Tips1: Do not reverse the positive and negative of power, otherwise it will not work.
Tips2: Before you start wiring the controller box, switch must be in the off position
Controller Featurers:
Automatically run when power enough or tank is not full. Automatically off when tank is full. High waterproof grade: IP65, double seal effect in waterproof and leak-proof . Soft start technology: No impulse current, longer life for the pump motor.High voltage/Low voltage/Over-current/Hightemperature protection
Customer reviews
WHY CHOOSE US:
According to the other customers feedback of our return rate is 2% lower than other factory
①304 S/S pump shaft.
①304 S/S pump shaft.
② Brass outlet/connector/ oil cylinder.
③Japanese NSK bearing, the working life will be 3 to 5 times
prolonged.
prolonged.
④ Double bearing motor base can work under more axial pressure
⑤Alloy mechanical seal: Longer working life and highreliability.
Packaging
What We Get For You (Package Include): - 1 x 3" DC solar Pump with 2m cable
- 1 x Pump controller with MPPT function
- 1 x Stainless steel float switch (sensor for the tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof
- 1 x Pump controller with MPPT function
- 1 x Stainless steel float switch (sensor for the tank)
- 1 x Pump outlet joint connector
- 1 x Splice kit for cable join
- 1 x Splice kit for waterproof
About us
As one of the earliest water pump manufacturers engaged in producing water pump for over 25 years in china , we believe one day difful pump will exist in every corner of the world by means of its reliable quality and good reputation.
DIFFU sincerely welcomes all the friend to visit our company and hopes to have a good communication and double-winpartnership with all of you cause dingfeng pump is always on the way to be better! Your views are the driving forces of DIFFUL.
Related Products
DCPM Big flow solar water pump solar dc surface water pump
dc solar pump with mppt controller
dc solar pump with plastic impeller
dc solar swimming pool pumps
FAQ
1. Q:What’s your MOQ?
A:Trial sample order is OK.
2. What’s your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electrcity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
A:Trial sample order is OK.
2. What’s your payment terms?
A: T/T,L/C,D/A,D/P
3. Q: What is the delivery time?
A: 25-30 days after receiving your advanced deposit.
4. Q:Can you we do OEM brand?
A:Yes,welcome your OEM.
5. Q: How to buy our pumps ?
A: Firstly we should know from you :
What is the fluid ?
Clean water(temperature), dirty water(temperature), particles,or slurry ?
What is the flow and head ? And the power?
What is the voltage and frequency of three phase electrcity ?
Other conditions from customer if possible : pump type , motor ?
With complete information, then we selected the pump and feedback to you
