high quality pure sine wave inverter 12v 220v 3000w IGBT 5kw 8kw off grid on grid hybrid solar inverter 10kw inverter solar

Supplier: Foshan Tanfon Energy Technology Co., Ltd.
Region: Guangdong, China
Contact: Mr Terry Luo
Price: $898.00 / 1 - 4 pieces
$798.00 / 5 - 99 pieces
$268.00 / >=100 pieces
Min. Order: 1 piece

Click here to contact

Product details

Accept:	Seperaacial Design And OEM;	Weight:	15-52kg;
Sercice:	During The Warranty, Ship The Free parts;	Model Number:	TF10KW-IGBT;
Packaging Detail:	plywood packing;	Inverter Efficiency:	99%;
Protection:	Short Circuit, Overload, Overvoltage Protection;	Output Voltage:	110V/220V/230V/240V;
Product name:	solar Inverter, wind inverter, home inverter;	Output waveform:	Pure Sine Wave Output;
Output Frequency:	50Hz/60Hz;	Color:	Black, or Orange;
Port:	FOSHAN;	Rated power:	10kw;
Brand Name:	TANFON;	Package Preview:	;
Output Current:	110V/120V/220V/230V;	Input Voltage:	24v/48v/96V/380v;
Supply Ability:	2000 Set/Sets per Month;	Certificate:	CE, RoHS, ISO;
Display:	LCD;	Type:	DC/DC Converters,DC/AC Inverters;
Warranty:	2 years,2 - 3 years;	Output Type:	Single,DUAL,Triple,Quad,Multiple;
Size:	473220386mm;	Place of Origin:	Guangdong China;
Payment Terms:	L/C,Western Union,T/T,CASH MONEY;

Products Description

IGBT inverter Model	TF10KW
Capacity(W)	10000
DC voltage(V)	96
Input voltage(V)	160-265VAC
Input frequency	45-65HZ
Output voltage	Four steps AVR, 110V/120V/220V/230V for optional
Output wave form	Pure sine wave
THD	≤ 3%
Low-voltage protection(V)	78
Over voltage protection(V)	120
Recharge current	20-30A
Weight(N.W &G.W)	66kg/77kg

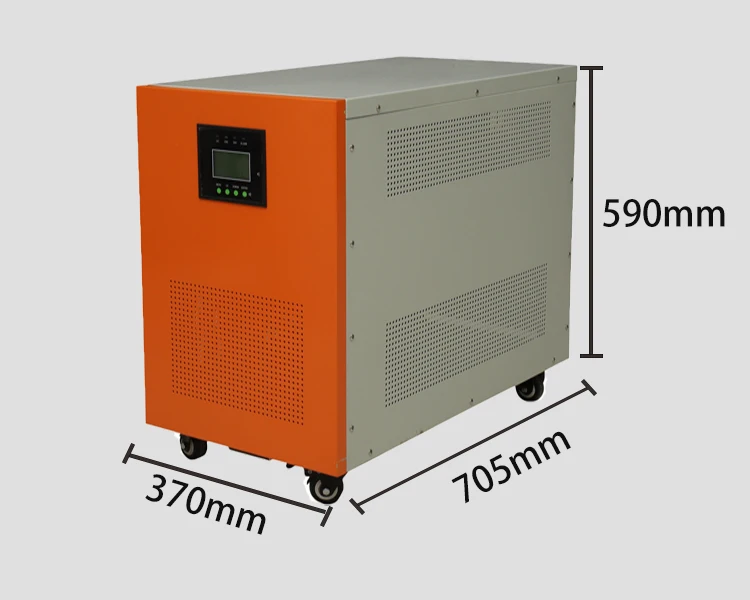

Product size(mm)	570290600

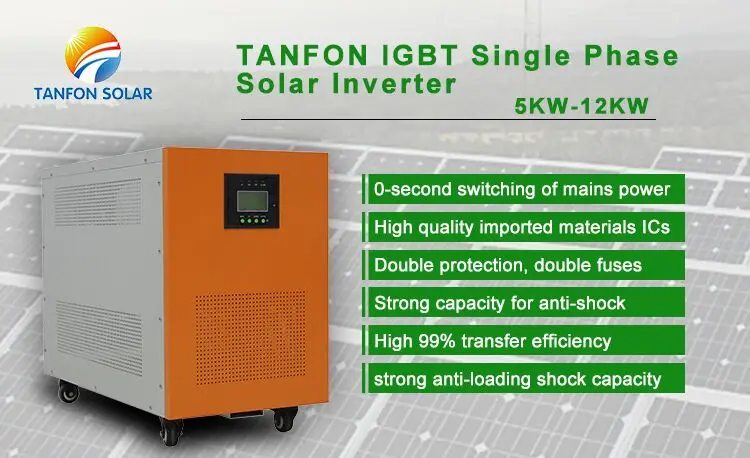

Tanfon IGBT Inverter :

1. The chassis is thick, resistant to falling, shockproof and not easily deformed. 2. Only Tanfon solar produce 5kw model IGBT inverter in China --- IGBT model: Japan Mitsubishi

3. The process is good, the wiring is complete, the circuit board wire head is not easy to lose, and the failure rate is reduced. 4. ICs and diodes are also imported materials and are personally designated by the engineer. So far, it is 12years we never change the supplier of these components. Their quality is stable. 5. Powerboard brushed three anti-paint, moisture-proof, dust-proof, anti-static, improve work efficiency 6. Design life is 10 years

IGBT Inverter Supply System

Since the establishment of our inverter factory, we have been purchasing transformers and capacitors from the same supplier.

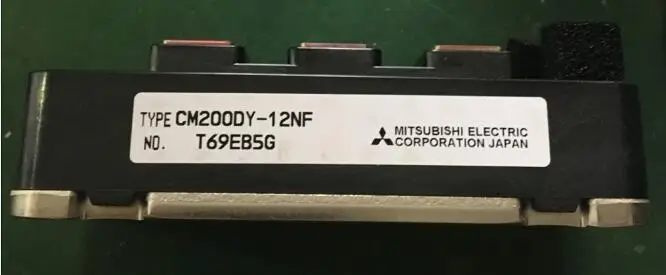

IGBT adopts Japanese Mitsubishi brand

IGBT Inverter QC System

ICT test, pinhole alignment PCB board, check all lines, reduce the failure rate.

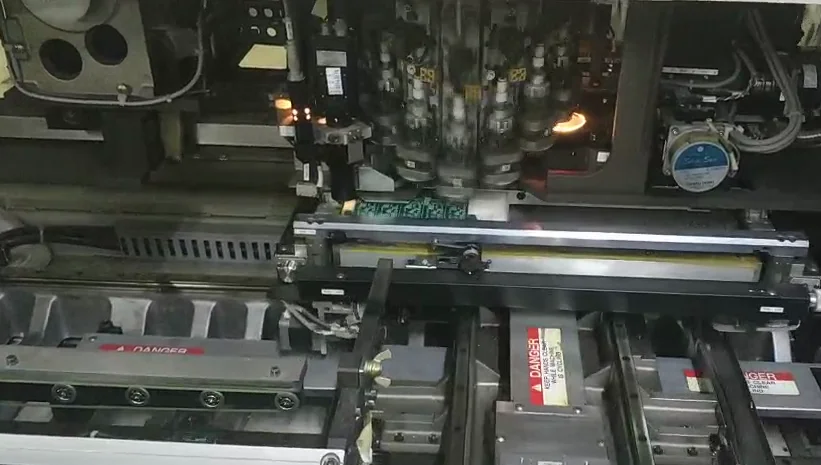

IGBT Inverter Production System

IGBT inverter board production uses automated machine plug-ins. Improve efficiency, reduce loss, and enhance stability

Factory Inspection System

Our inverter has passed 100 times of ultimate power-off test. According to statistics, 99% of the tested inverter can work very stable.

Foshan Tanfon Energy Technology Co., Ltd is a professional manufacturer of green energy products with great commitment, contribution heart, and responsibility.
We are specialized in the R&D, manufacture, and sale of high-quality IGBT inverters, all kinds of pure sine wave inverter(off-grid and on-grid, single-phase and three-phase).
