Production Capacity: | 30000pcs/day; | Dimension(L*W*H): | 360*170*200cm+180*250*200cm; |
Warranty of core components: | 1 Year; | After Warranty Service: | Video technical support,Online support,Spare parts,Field maintenance and repair service; |
Machinery Test Report: | Provided; | Payment Terms: | L/C,T/T; |
Marketing Type: | New Product 2020; | Applicable Industries: | Hotels,Manufacturing Plant,Restaurant,Home Use; |
Voltage: | 380V; | Video outgoing-inspection: | Provided; |
Weight: | 1500kg; | Core Components: | PLC,Engine,Motor; |
Condition: | New; | Local Service Location: | Turkey,Pakistan,India; |
Certification: | CE Certificate; | Place of Origin: | Jiangsu China; |
Power: | 4kw-8kw; | Application: | Microfiber; |
Showroom Location: | Turkey,Pakistan,India; | After-sales Service Provided: | Engineers available to service machinery overseas,Free spare parts,Video technical support,Online support; |
Brand Name: | TPET; | Warranty: | 1 Year; |
Product Description
Microfiber Towel Length Sewing Machine For Weft Knitting Fabbric | | Automatic Collecting Device | |
Weight | 360kg | Weight | 175kg |
Dimension | 400*180*200cm | Dimension | 207*89*128cm |
Power | 1.3kw | Power | 620w |
Voltage | 220v | Voltage | 220v |
Air pressure | 220v | Air pressure | >0.6MPA |
Efficiency | 750meter/hour | Hourly Capacity | 720pcs/h |
Size range | 280-750mm | Size range | length:23-80cm width:23-60cm |
Specifications
1、Automatic edge correction, high quality.
2、The whole roll fabric into the equipment, automatic feeding.
3、Continuous automatic sewing on both on both sides (applicable to warp and weft knitting fabrics).
4、Easy to adjust .Improve efficiency.
Front Part | | Rear Part | |
Weight | 360kg | Weight | 1000kg |
Dimension | 360*170*200cm | Dimension | 180*250*200cm |
Power | 2.5kw | Power | 6.5kw |
Voltage | 220v | Voltage | 380v |
Air pressure | >0.6MPA | Air pressure | >0.6MPA |
Hourly Capacity | 500-4500r/min | Hourly Capacity | 500-4500r/min |
Size range | 230-750mm | Size range | 180-800mm |
Specifications
1、Overlock Two Edges Continuously, Cut Off Automatically.
2、Double-layer Feeding,Two Pieces At aTime (1450pcs/h).
3、Auto Label-sewing (Multiple Label Optional).
4、 Auto Fabric Cutting and Thread Trimming..
5、 Auto Stack-up.
6、 Intelligent Touch Operating System.
7、SPV Data Management System(Cloud Management).
8、 Auto Button-Start,Convenient Operation.
9、 Auto Edge-cutting,Size-Standardized.
Products Application
With the global origination for our Full Automatic Towel Machine, labor-saving and unmanned production processes are achieved by the integration of cutting and sewing.
Be awarded 22 national authorized patents for utility models. It has wide scope to do the stitch like 3thread-serging,
4thread-serging, two-needle5thread and three-needle6thread etc. to promote the transformation and upgrading of the industy.

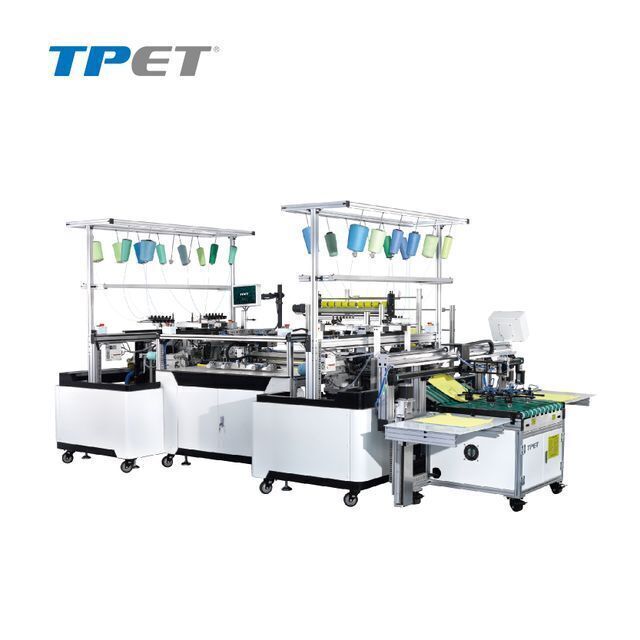

SPECIFICATIONS FOR FULL AUTOMATIC TOWEL MACHINE
| | | |
| Front part
| Rear part
| Overlock speed
|
| 2 direct-drive overlock heads,left and right;1 electronic speed synchronous tug
| 4 overlock heads on left and right;2 label machines;NC cutter;electronic speed synchronous tug
| |
Main performance parameters
| Weight
| Dimension
| Power
|
| Front part:360kg
| Front:360*170*200cm
| Front:4kw
|
| Rear part:1000kg
| Rear:180*250*200cm
| Rear:8kw
|
| Front part
| Rear part
| size range
|
| 500m/h(working speed 3000 needles/min,needle gauge 2mm)
| | 25-65cm
|
| | | 25-70cm
|
Detailed Images
Our Company
Since its establishment in 2009,TPET has been dedicating itself to Textile garment,digitalized Home-textile industry,
intellectualized production,innovation-driven and independent R&D.We are the professional provider of production solutions to promote the transformation and upgrading in sewing field.We are so grateful and appreciated with the great trust and huge support from large customers and industry leaders as TPET striving over the years.
Certifications
Packing & Delivery
Packaging
| |
Size
| depend on machine size
|
Weight
| depend on machine size
|
| The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated.If container is too tigher,we will use pe film for packing or pack it according to customers special request.
|
| |
| |
delivery
| |
30 workdays after received the deposit or l/c
| |
| The normal package is wooden box(Size: L*W*H). If export to european countries, the wooden box will be fumigated.If container is too tigher, we will use pe film for packing or pack it according to customers special request. |
| |
| |
| |
Our Service
Pre-Sales Service
1.Fastly and professional reply to you about your questions for our full automatic towel machine.
2.Expert sales person will provide you professional suggestion to you based on your correct needs for the configurations of themachines
3.Detailed and clearly explain to you when you come to our factory for visiting or negotiate online before contract.
After-Sales Service
1.Training how to instal the machine, training how to use the machine.
2. Engineers available to service machinery overseas.
3.Guarantee you steady supply for the spare parts with the lower price.
FAQ
Q:Are you available for on-the-spot invitation?
A:We do welcome our new and old friends come here to have a visitation.Besides we should send you our exposition and relative information to promote a face-to-face meeting if you would like to.
Q:Is the price offered changeable?
A:We offer reasonable price for every client,and the price is changeable according to purchasing amount,customization.
Q:How about the quality?
A:The main subassembly and raw materials are all supplied by large companies.Key parts are research and developed by our own staff.Professional assembly line work and strict quality test system can ensure your high quality requirements.
Q:How's the installation?
A:Professional installation and training at customer spot factory,during time decides by customers' needs.(technicians' travel fees should pay by customers)
Q:How's the after-sale service and warranty time?
A:We offer engineers available to service overseas under merchandiser's supervision and translation.12 months since machinery installation finished.we can send the broken comsumable parts free once comfirmed within two years.
