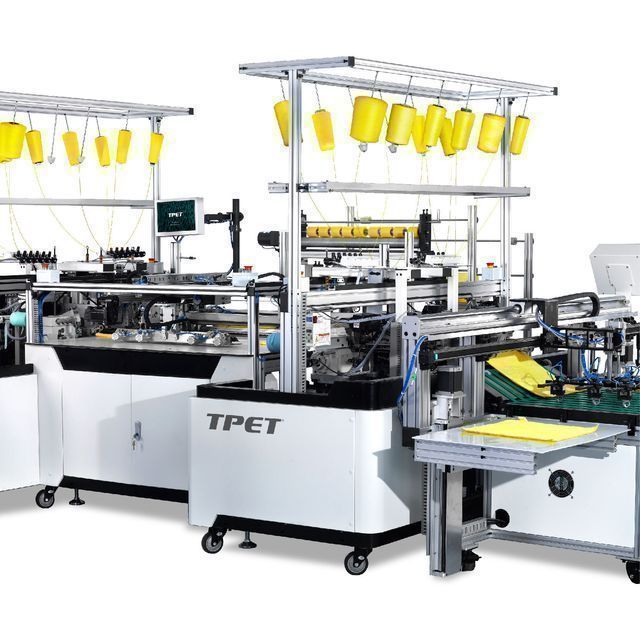

Automatic Microfiber Towel Horizontal Sewing Machine

Supplier: Suzhou Transparent Technology Co.,LTD
Region: Jiangsu, China
Contact: Mr Brent He
Price: $82685.00 / 1 - 1 sets
$71900.00 / >=2 sets
Min. Order: 1 set

Click here to contact

Product details

port:	Shanghai	Voltage:	380V
Warranty:	1 year	The machine is used for:	automatic
Packaging Details:	wooden bag	State of health:	new
Package preview:		Application products:	microfiber towel
Showroom location:	Turkey, Pakistan, India	Core components:	PLC, bearings, motors, gears
Production capacity:	1300PCS/hour	strength:	6.5KW
place of origin; place of origin:	Jiangsu, China	payment terms:	wire transfer
Marketing Type:	New Products 2022	Core component warranty:	1 year
Video shipment inspection:	if	weight:	1000
name:	Automatic Microfiber Towel Horizontal Sewing Machine	Dimensions (LWH):	180250200CM
Fabric material:	superfine fiber	Applicable industries:	Hotels, factories, household use, others
Mechanical test report:	if	brand:	thermoplastic polyester

Product Description

scope	Front part	rear	Automatic collection device
weight	360 kg	1000 kg	175 kg
size	360170200cm	180250200cm	20789128cm
strength	2.5 kW	6.5kw	0.62kw
Voltage	220 volts	380v	220 volts
air pressure	>0.6MPA	>0.6MPA	>0.6MPA
Capacity per hour	500-4500 rpm	500-4500 rpm	720 pieces/hour

Specification

1. Continuous wrapping on both sides, automatic cutting.

2. Double-layer feeding, two pieces at a time (1450pcs/h).

3. Automatic sewing label (multi-label optional).

4. Automatic cloth cutting and thread cutting..

5. Automatic stacking.

6. Smart touch operating system.

7. SPV data management system (cloud management).

8. Automatic button start, easy to operate.

9. Automatic edge trimming and standardized size.

Applications

The world's first fully automatic towel machine integrates cutting and sewing to realize labor-saving and unmanned production processes.

Obtained 22 utility model patents authorized by the state. Stitches such as three-thread hemming, four-thread hemming, two-needle five-thread, three-needle six-thread, etc. are widely used to promote the transformation and upgrading of the industry.

Technical parameters of automatic towel machine
components	components	rear	Overlock speed
		2 left and right direct drive overlock sewing heads; 1 electronic speed control synchronous tugboat	4 overlock heads on the left and right; 2 labeling machines; CNC cutter; electronic speed-regulating tugboat	500-4500 rpm
				500-4500 rpm
Main performance parameters	weight	size	strength
		Front: 360kg	Front: 360170200cm	Front: 4kw
		Rear: 1000kg	Back: 180250200cm	Rear: 8kw
hour capacity	Front part	rear	Size range
		500m/h (working speed 3000 stitches/min, stitch distance 2mm)	1200	25-65cm
			1200		25-70cm
