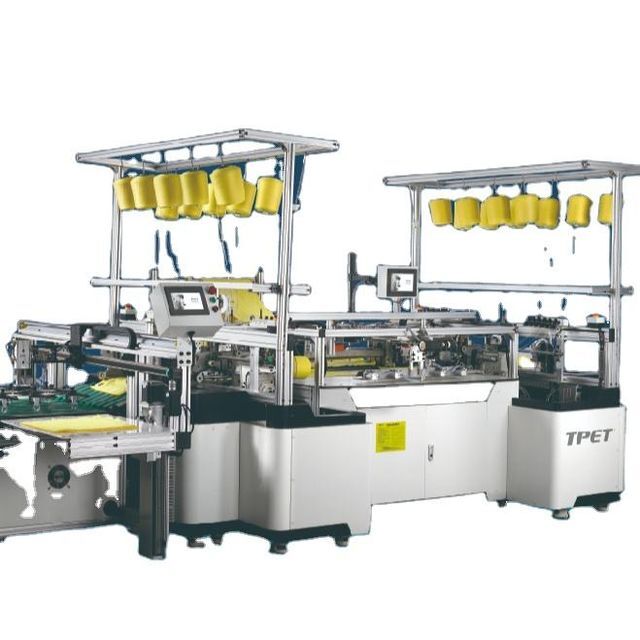

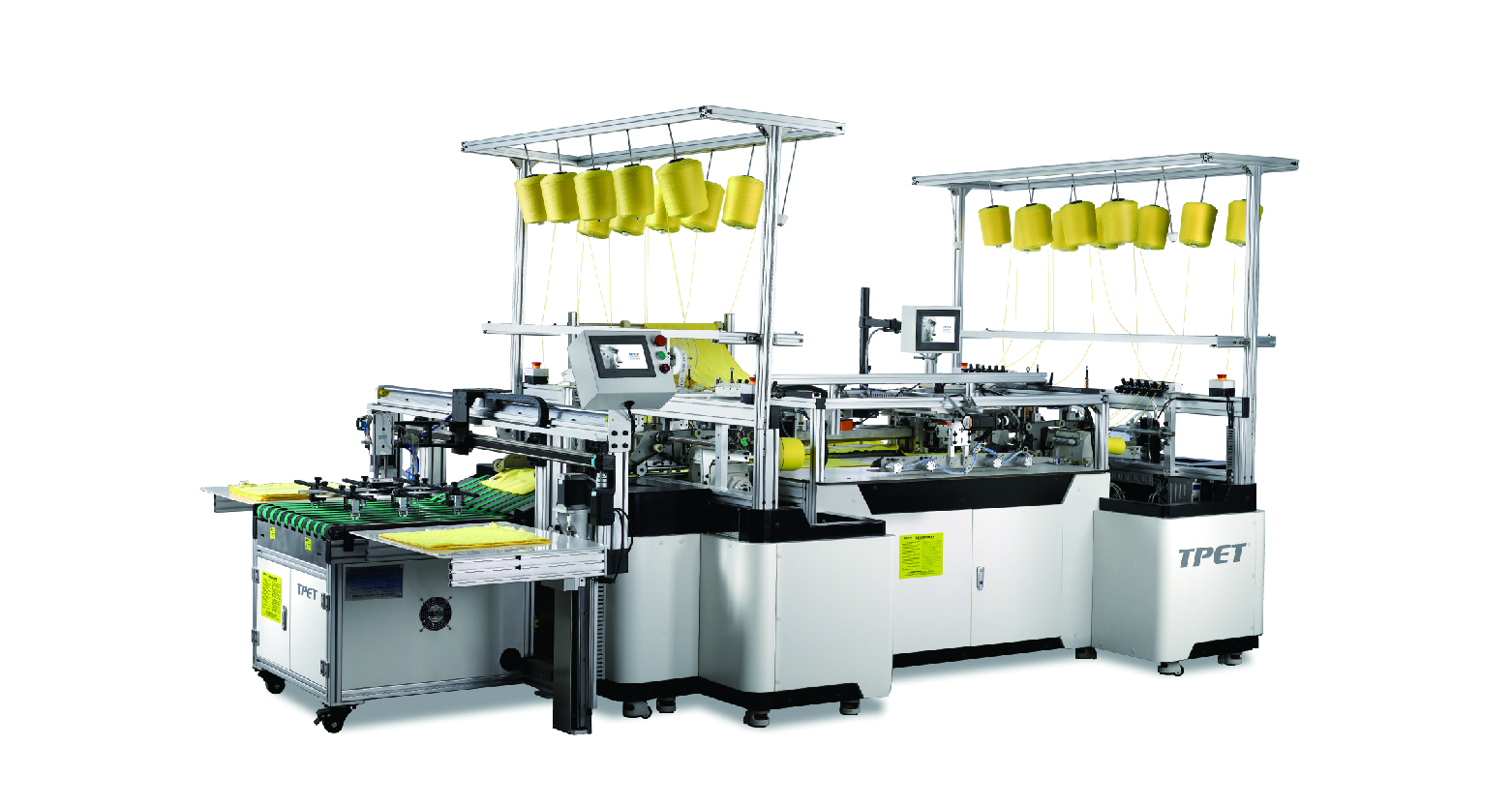

Fully automatic microfiber rag machine

Supplier: Suzhou Transparent Technology Co.,LTD
Region: Jiangsu, China
Contact: Mr Brent He
Price: $68310.00 / 1 - 4 sets
$59400.00 / >=5 sets
Min. Order: 1 set

Click here to contact

Product details

brand:	TPET	Name:	towel machine
Warranty:	1 year	Mechanical test report:	if
Core Components Warranty:	1 year	payment terms:	wire transfer
Showroom location:	Turkey, Pakistan, India	Dimensions (LWH):	180250200cm
port:	Shanghai	Machines are used for:	Microfiber Towel
Video external inspection:	if	Supply capacity:	100 sets per month
After Warranty Service:	Video technical support, online support, spare parts	Marketing Type:	New Products 2021
strength:	6.5KW	weight:	1000kg
Production capacity:	1500/hour	Health status:	new
Core components:	PLC, bearing, motor, gear	place of origin; place of origin:	Jiangsu, China
Packaging Details:	Standard wood packaging	Local service location:	Turkey, Pakistan, India
After-sales service provided:	Free spare parts, video technical support, online support	Voltage:	380V
Packaging Preview:		Applicable industries:	Manufacturing plant, home use

Product Description

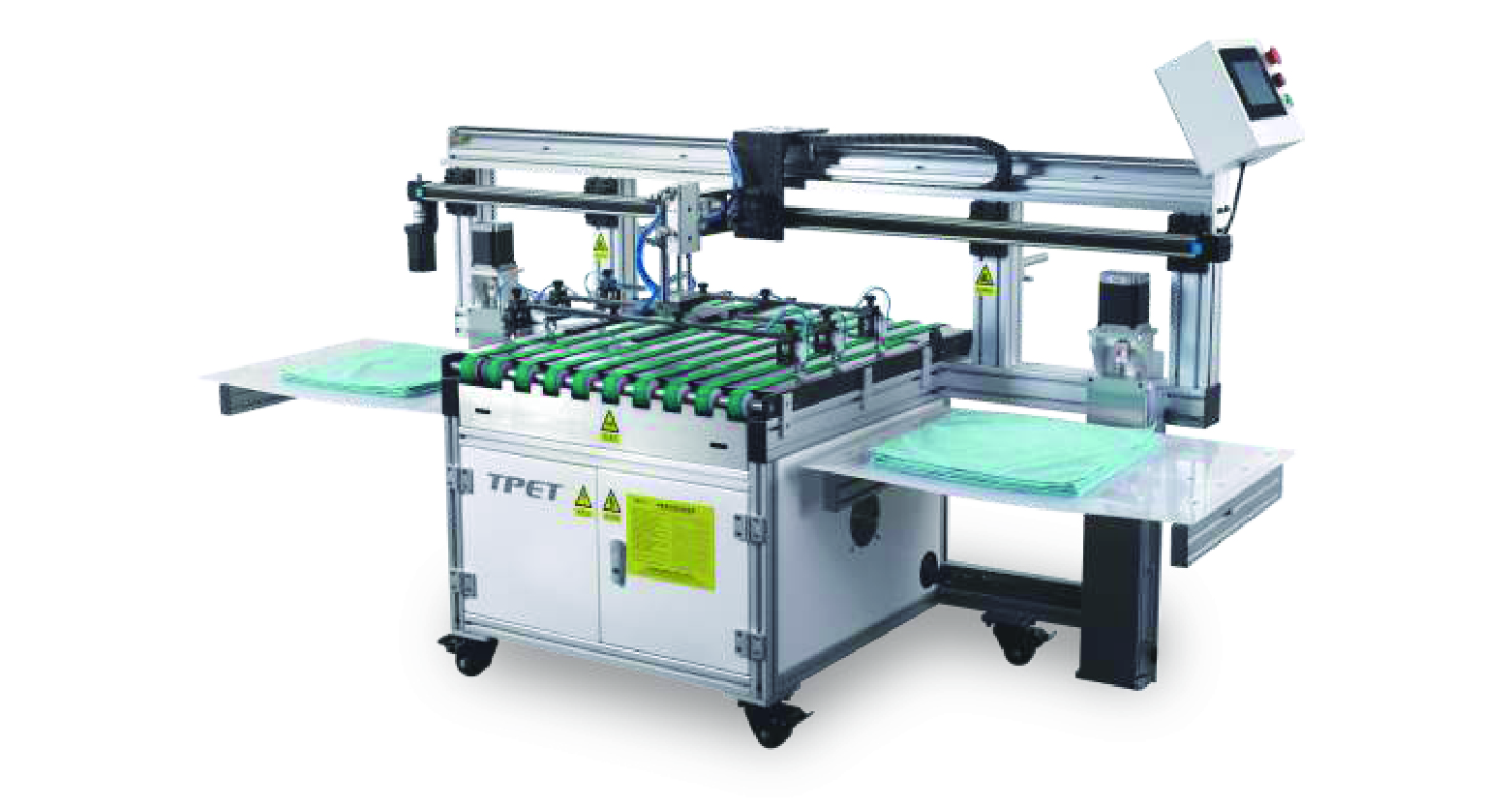

scope	Front part	rear	Automatic collection device
weight	360kg	1000kg	175kg
aspect	360170200cm	180250200cm	20789128cm
strength	2.5kW	6.5kW	0.62kw
Voltage	220v	380v	220v
air pressure	>0.6MPA	>0.6MPA	>0.6MPA
hourly capacity	500-4500r/min	500-4500r/min	720/hour

Specification

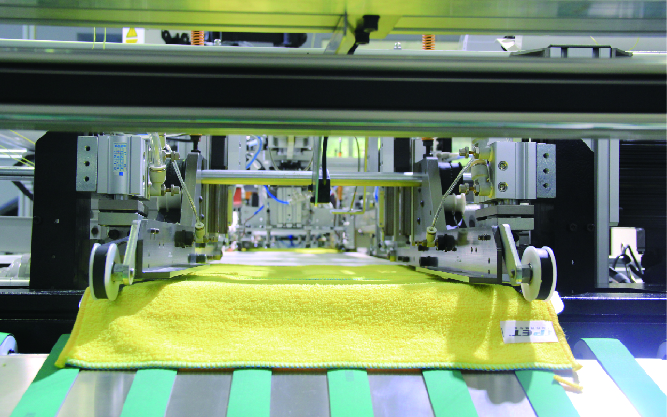

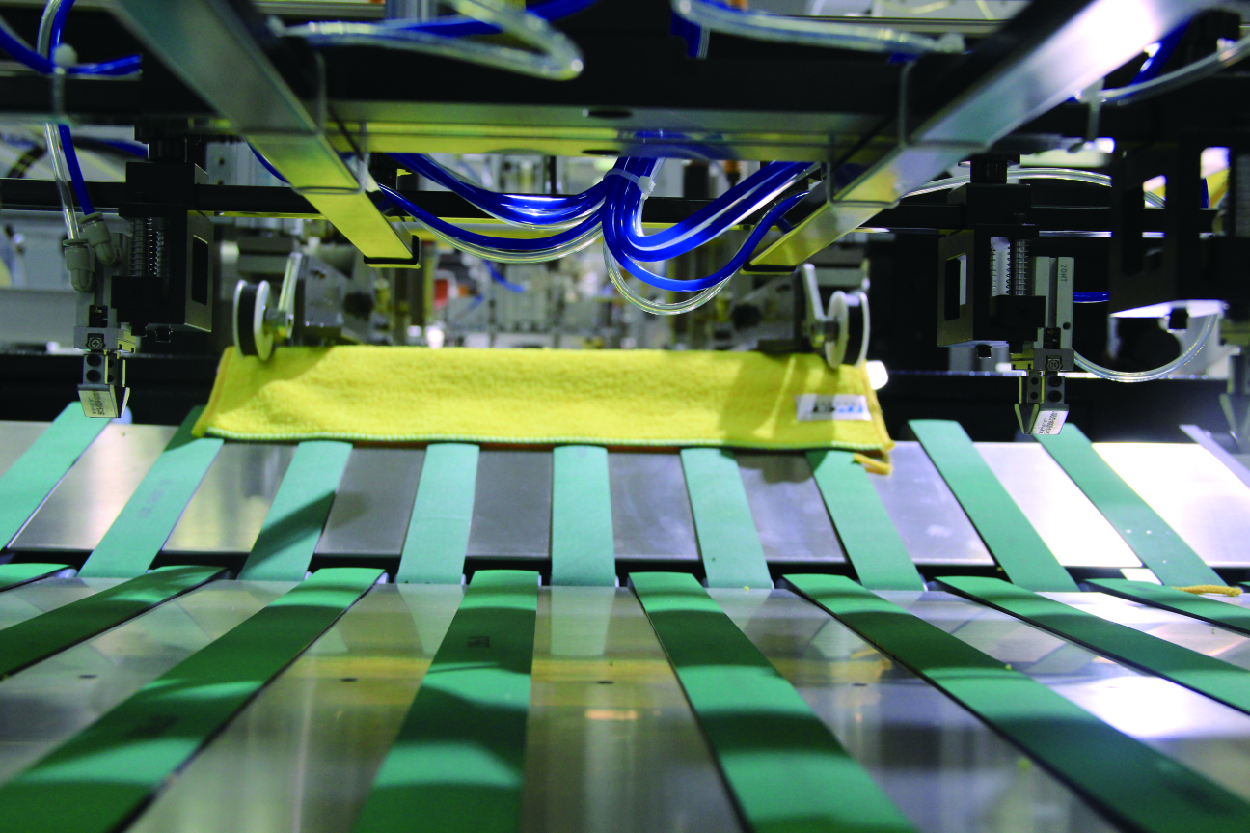

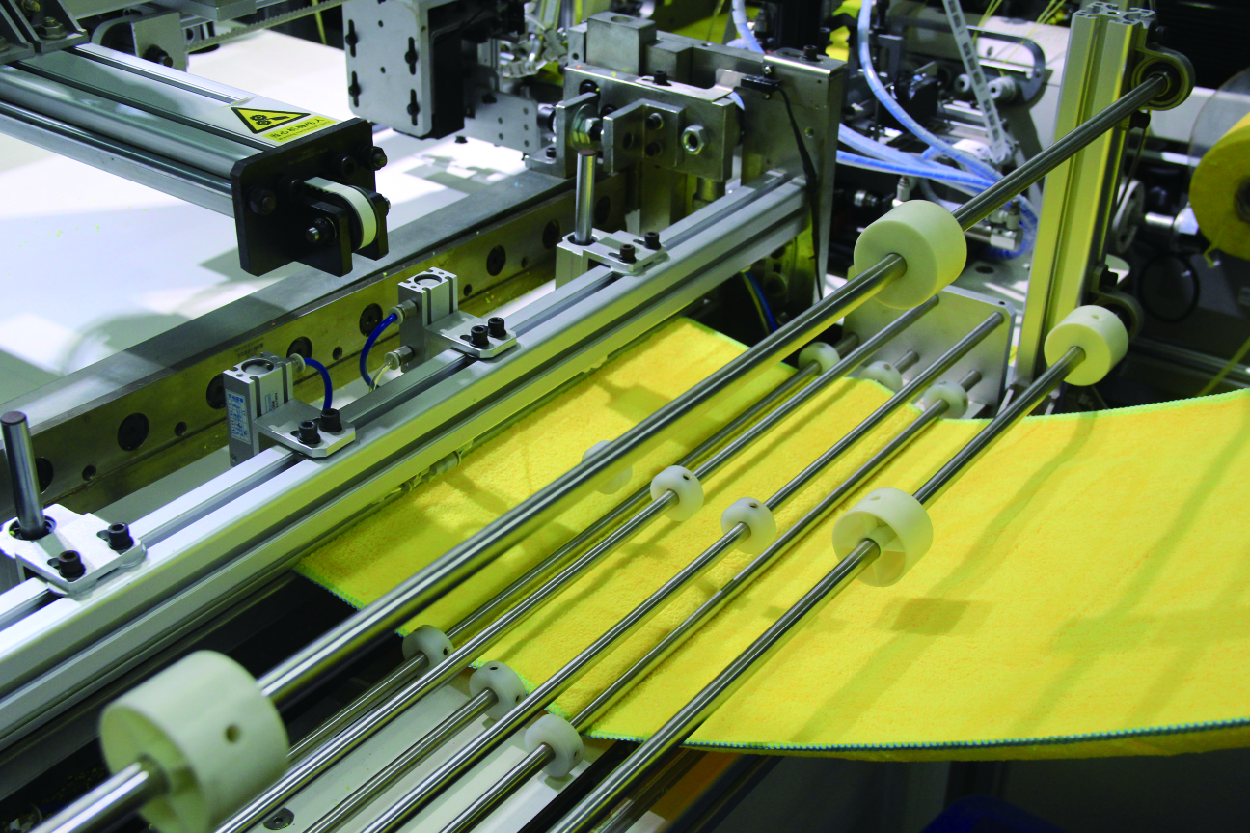

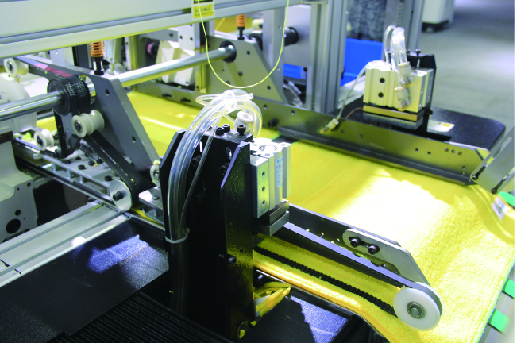

1. Continuously overlock both sides and automatically cut off.

2. Double layer feeding, two pieces at a time (1450pcs/h).

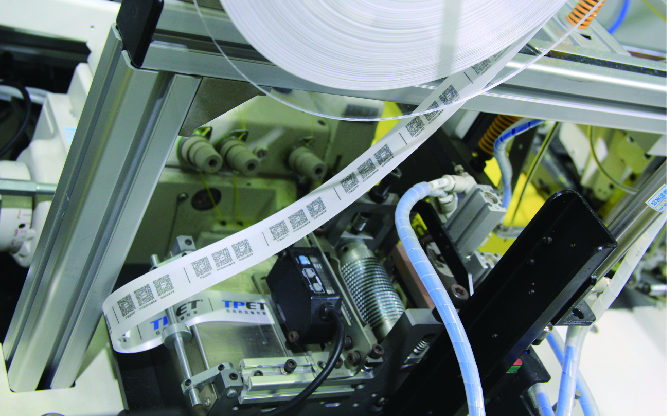

3. Automatic label sewing (multi-label optional).

4. Automatic cloth cutting and thread cutting..

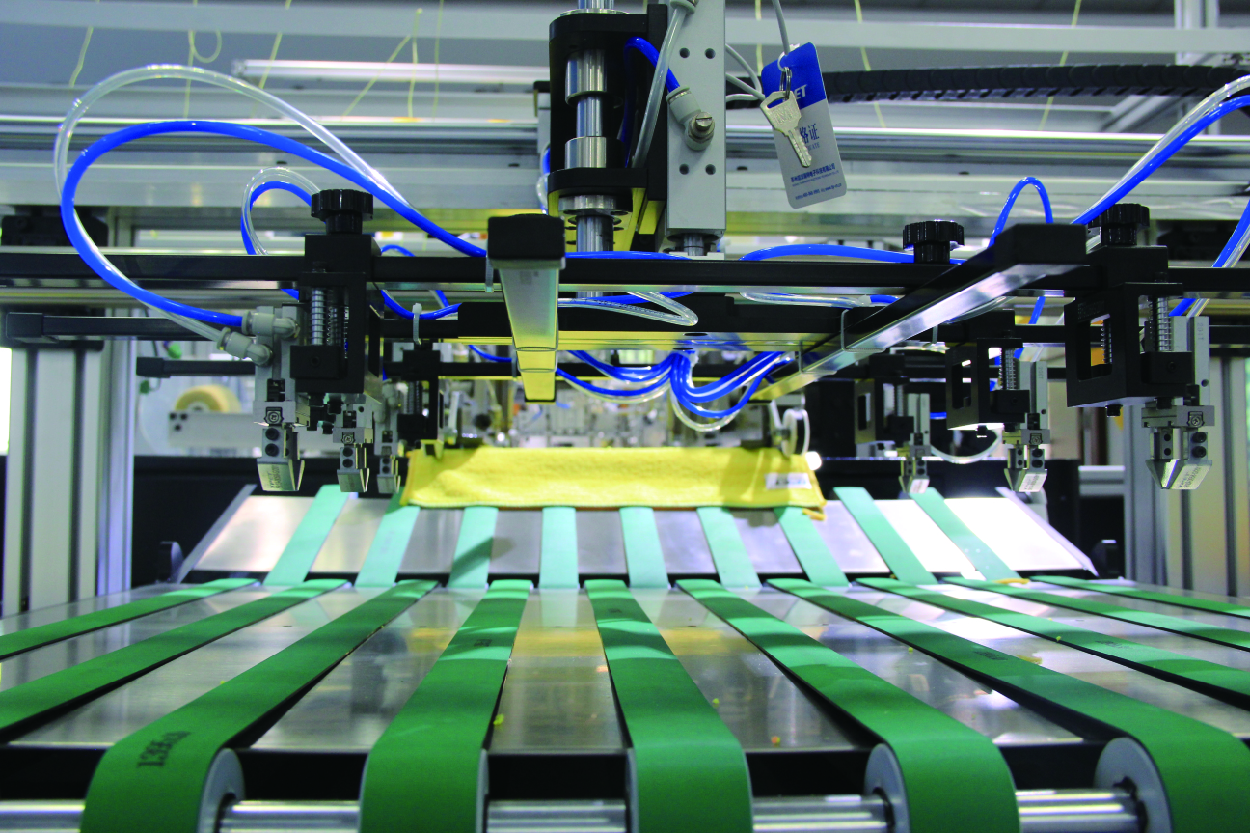

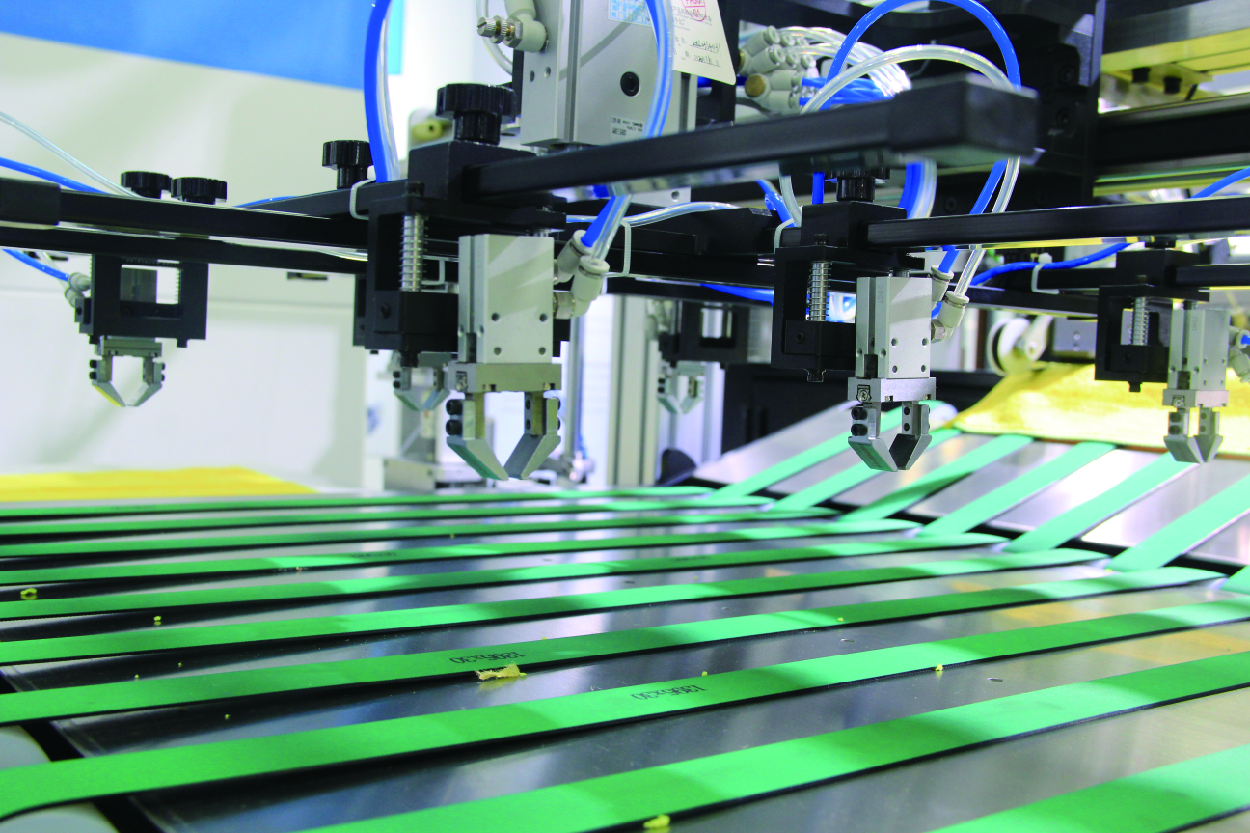

5. Automatic stacking.

6. Smart touch operating system.

7. SPV data management system (cloud management).

8. Automatic button start, easy to operate.

9. Automatic trimming and standardized size.

Applications

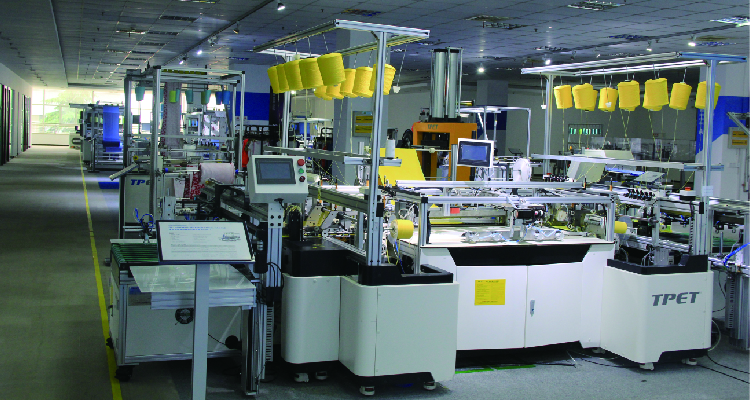

The fully automatic towel machine is the first in the world, and the integration of tailoring realizes labor-saving and unmanned production.

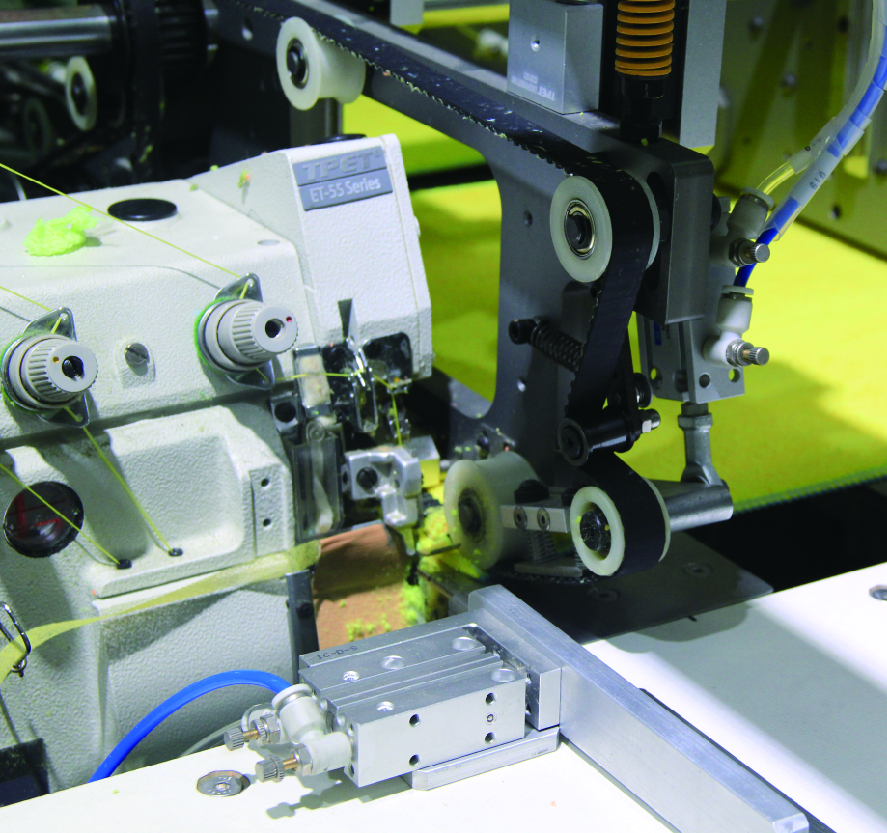

Obtained 22 national utility model patents. Widely carry out stitches such as three-thread hemming, four-thread hemming, two-needle five-thread, three-needle six-thread, etc., to promote the transformation and upgrading of the industry.

Specifications of automatic towel machine
Element	Element	rear	Overlock speed
		2 left and right direct drive overlock heads; 1 electronic speed synchronizing tug	4 left and right overlock sewing heads; 2 labeling machines; CNC cutter; electronic speed synchronizing tug	500-4500r/min
				500-4500r/min
Main performance parameters	weight	aspect	strength
		Front: 360kg	Front: 360170200cm	Front: 4kw
		Rear: 1000kg	The rear: 180250200cm	Rear: 8kw
hourly capacity	Front part	rear	Size range
		500m/h (working speed 3000 stitches/min, stitch distance 2mm)	1200	25-65cm
			1200		25-70cm
