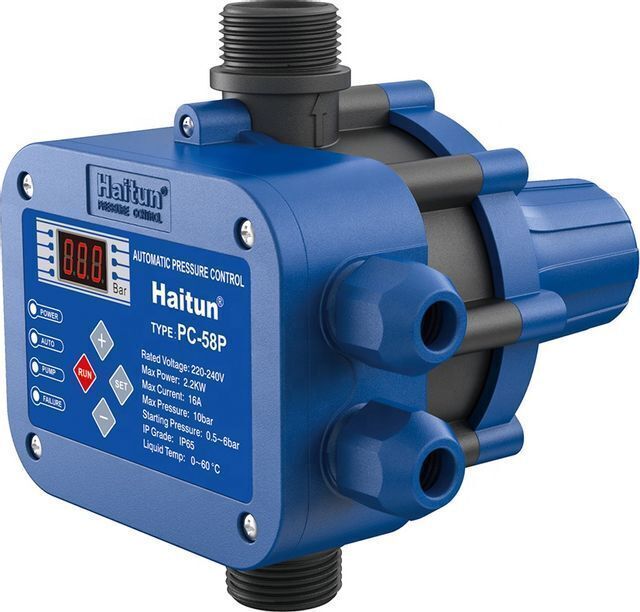

Haitun Automatic Water Pump Pressure Controller Pressure Switch

Supplier: Zhejiang Shenneng Technology Co., Ltd.
Region: Zhejiang, China
Contact: Ms Kelly Liu
Price: $17.88 / >=2 pieces
Min. Order: 2 pieces

Click here to contact

Product details

Port:	Ningbo/Shanghai;	Starting pressure:	0.5-6bar;
Place of Origin:	Zhejiang China;	Model Number:	PC-58;
Supply Ability:	1000 Piece/Pieces per Day;	Max. Voltage:	110V/220V;
Frequency:	50 /60 Hz;	Warranty:	1 Year;
Max. Working Pressure:	10BAR;	Payment Terms:	L/C,Western Union,D/P,D/A,T/T,MoneyGram;
Whether the smart:	Yes;	Packaging Detail:	12pcs/ctn 4188pcs/20''GP;
Protection rating:	IP65;	Max.Power:	1.1KW / 2.2KW;
Brand Name:	Haitun;	Certification:	TUV/CE/ROHS/ISO 9001,CE, Rohs, TUV;
Max. Current:	10A;

Product Description

1. Automatic control of pump operation and shutdown.

2. Stop pumping automatically in case of water shortage.

3. Call will start automatically after power failure.

4. Manual mandatory startup.

5. Over-pressure protection, system pressure more than 10 bars automatically stop the pump work.

6. Water shortage self-start, the time interval of self-start is 1 minute, 30 minutes, 1 hour, and then 1 hour cycle.

7. Anti-card protection, long-term non-use of the pump, 48 hours to start once.

8. Sampling pressure sensor and LED display, real-time control system pressure value.

9. Built-in two working modes, automatic mode: the controller can automatically adjust the starting pressure value according to the pressure in the pipeline, and can monitor the pressure in the pipeline in real time. The bigger the pipeline pressure is, the smaller the starting pressure is, and the smaller the starting pressure is. It does not need to be set manually, so as to avoid the mismatch between the starting pressure and the head of the pump caused by the mismatch of the artificial setting starting pressure and the head of the pump. Obstacles occur, which can be used freely on pumps in the range of 10-98 meters lift, rated voltage, current and power. It is especially suitable for systems with mixed and superimposed pressure (such as tap water pressure or other booster pump pressure). Compared with traditional pressure controllers, it greatly reduces the occurrence of faults, thereby reducing the after-sale cost and is more intelligent. Manual setting of starting pressure value, 0.5-6.0 bar adjustable, wide range of voltage regulation, simple operation.

10. Thread interface: G1"external thread.

11. It can be configured according to user's requirements.

Technical Parameters:

1. Start-up pressure range: 0.5-6.0 bar

2. Maximum rated current: 10A or 16A

3. Maximum power: 1.1KW or 2.2KW

4. Permissible maximum pressure: 10 bar

5. Rated voltage: 110V or 220V

6. Frequency: 50/60Hz

7. Maximum ambient temperature: 40 degree C
8. Maximum Medium Temperature: 60 degrees C

9. Protection Level: IP65

Related Products

Packing&Shipping

BOX SIZE(CM)	20.5×17×18.3
CARTON SIZE(CM)	52.5×42.5×38.5
PCS/CTN	12
N.W.(KGS)	17
G.W.(KGS)	19
20GP QUANTITIES(PCS)	4188

Company Introduction

As one of the biggest manufacturers, ZHEJIANG SHENNENG TECHNOLOGY CO.,LTD was established in 1993,our products are pressure control and water pumps. with the trademark “SHENNENG” and “”HAITUN, which are widely welcomed by all over the world customers. Over 20 year’s development, our annual production capacity of the pressure control has achieved 5 million sets, the annual production capacity of water pump has achieved 200 thousand sets, we passed ISO9001:2008 quality management system, our products won the certificates: CCC(China),TUV(Germany),CE(Europe) ,UL(America) ,CSA(Canada),Rohs(EU).

Our purpose is “QUALITY FIRST”, we have built advanced producing and consummate testing equipment, with professional technical engineers and managers. Each product was checked before sent out our factory.

ZHEJIANG SHENNENG TECHNOLOGY CO.,LTD has about 50,000 square meters building, Over 33,000 square meters for the production. Now we have three different factories, More than 500 staffs.

Here we warmly invite you, our friends to visit to our factory and kindly give your comments for our development

FAQ

Q1: Are you a factory or just a trading company?

A1:We are a manufacturer that specializes in pressure control pressure switch for more than 30 years. Submersible deep well pump, inverter and inverter pump for more than 10years.

Q2: Is customized service available?

A2: Of course, OEM & ODM is available.

Q3: How can I get Pressure Control quotation?

A3: Leave us message with your purchase requirements and we will reply you within one hour on working time. And you may contact us directly by Trade Manager.

Whatsapp: +86 13758256437 Wechat:+86 18858636697 e-mail: haitun6@snpump.cn

Q4: How long is the warranty?

A4: One year.

Q5: I am buying from another supplier, but need better service, would you match or beat the price I am paying?

A5: We always feel we provide the best service and competitive prices. We would be more than happy to personalize a competitive quote for you, just contact us.
